Shure AD3 Axient Digital Plug-On Transmitter (G57)
- Plug-on Axient Digital transmitter for XLR mics
- Off, 12 V, or 48 V phantom power
- 2 AA batteries or an optional SB900C
$1,154.00 USD

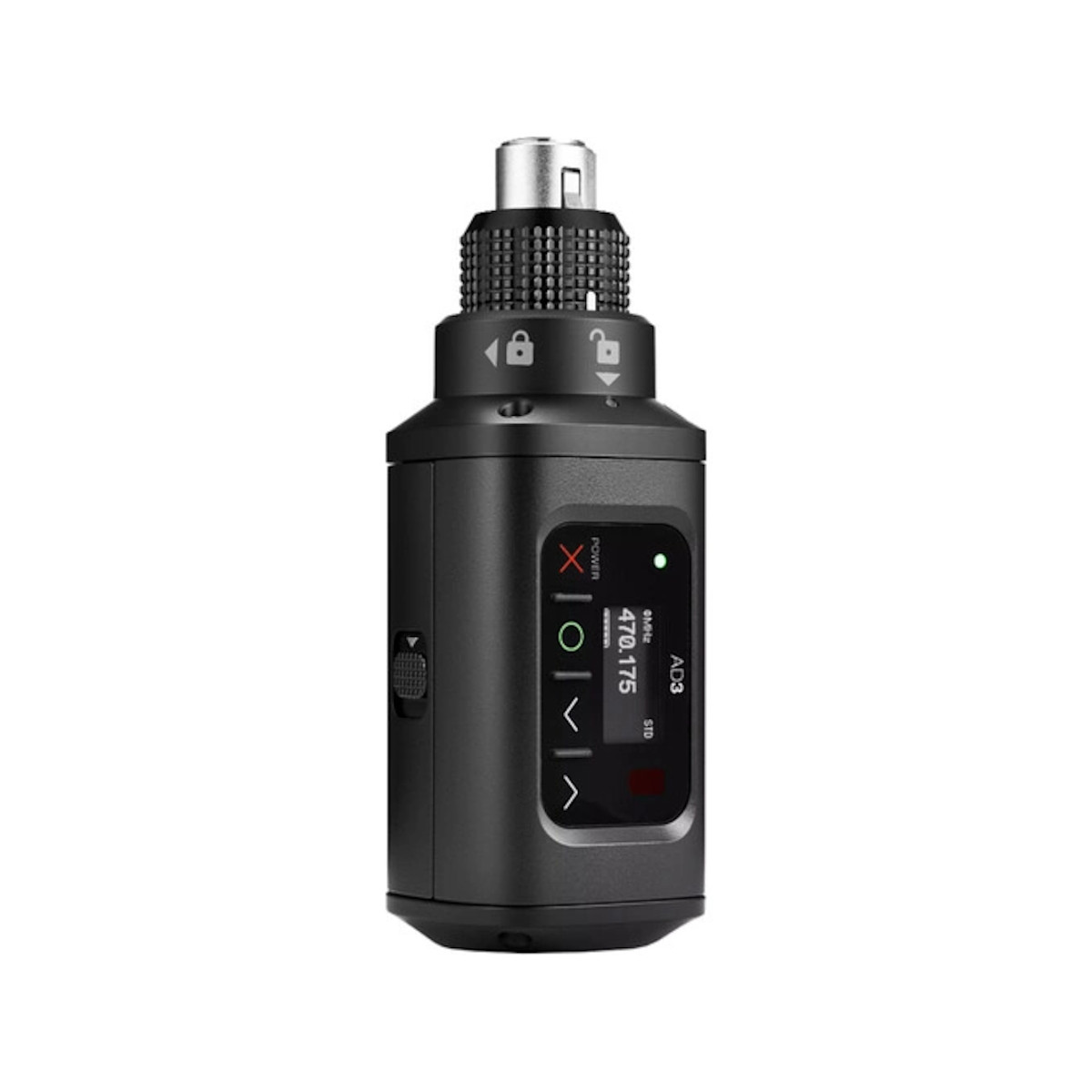

Shure AD3 Axient Digital Plug-On Transmitter (G57)

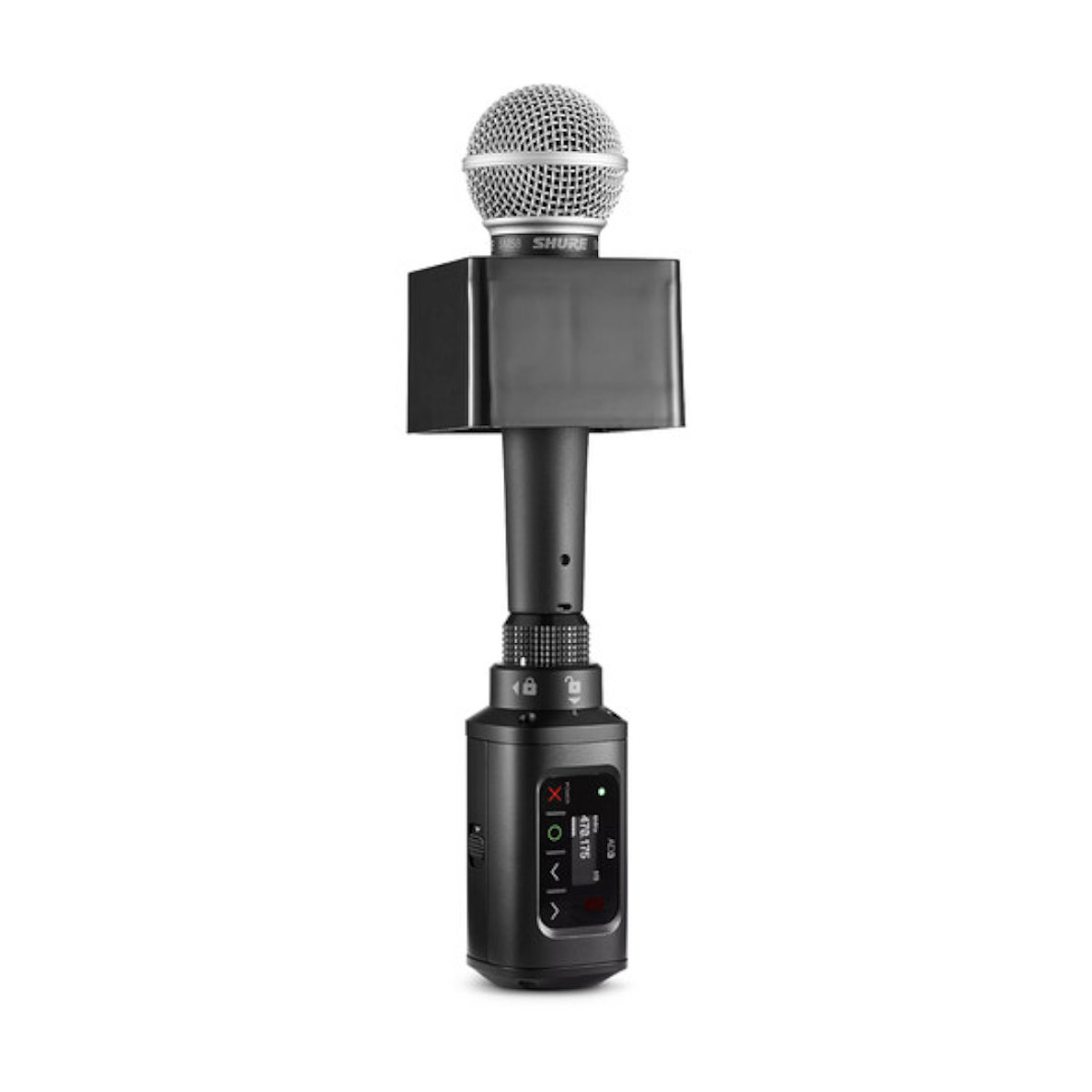

With the Shure AD3 on its output, a wired microphone becomes an Axient Digital wireless mic for interviews, news gathering, and film and television work.
The AD3 locks onto the mic with a secure XLR connector and sets its own input gain through automatic input staging. Phantom power switches between off, 12 V, and 48 V, and a high-pass filter can be set from 40 to 240 Hz.

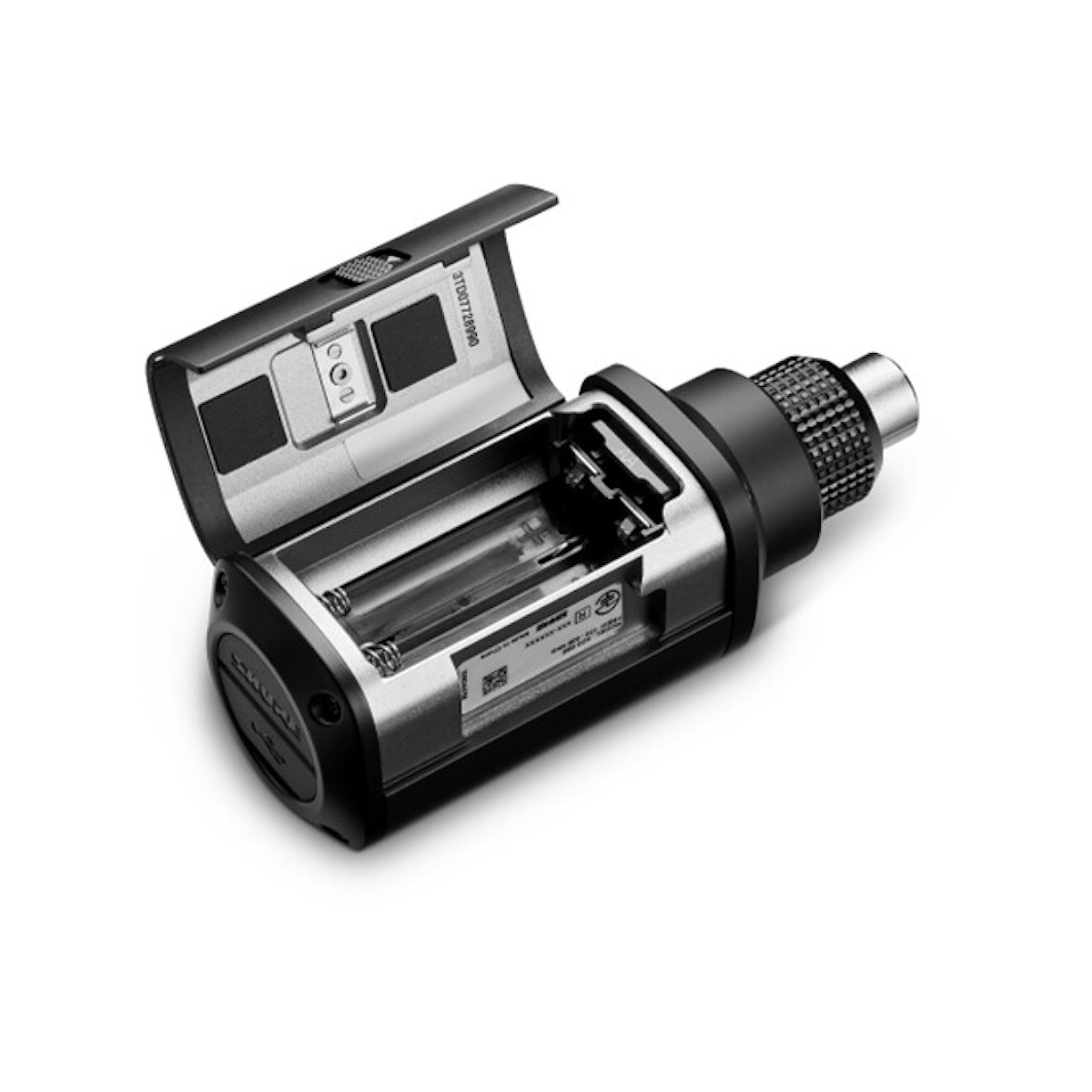

Two AA batteries come with the transmitter and run it for more than 7 hours. An optional SB900C rechargeable battery gives more than 10.5 hours, and USB-C supplies external power and charging. This version covers the G57 band, 470 to 616 MHz, and works with AD4D and AD4Q receivers.
Features
- Locking XLR connector
- Automatic input staging
- Off, 12 V, or 48 V phantom power
- High-pass filter, 40 to 240 Hz
- Standard and High Density modes
- 2, 10, or 35 mW RF power
- AES-256 encryption
- OLED display
- More than 10.5 hours on an SB900C battery
- USB-C power and charging
What's Included
- 2 × AA alkaline batteries
- USB-A to USB-C cable
- Zipper bag
- Pouch with belt clip
Specifications
| RF | |
|---|---|
| Frequency Band | G57: 470 – 616 MHz (gap from 608 to 614 MHz) |
| RF Power | 2, 10, or 35 mW, by region |
| Transmission Modes | Standard (350 kHz spacing) or High Density (125 kHz spacing) |
| Line-of-Sight Range | 100 m (300 ft) |
| Encryption | AES-256 |
| Audio | |
| Input | 3-pin female XLR, balanced |
| Phantom Power | +48 V (7 mA max.) or +12 V (15 mA max.) |
| Maximum Input Level | 21 dBV pad −12 dB, 9 dBV at 0 dB, −3 dBV boost +12 dB |
| High-Pass Filter | 12 dB per octave, 40 to 240 Hz in 20 Hz steps |
| Mic Offset | −12 to 21 dB in 1 dB steps |
| Frequency Response | 20 Hz – 20 kHz |
| Power and Physical | |
| Battery | 2 AA, more than 7 hours SB900C rechargeable, more than 10.5 hours, at 10 mW |
| Dimensions | 126 × 44.5 × 44.5 mm (4.96 × 1.75 × 1.75 in) H x W x D |
| Weight | 240 g (8.5 oz) without battery 280 g (9.9 oz) with rechargeable battery |
| Housing | Cast metal |
| Operating Temperature | −10 to 50 °C (14 to 122 °F) |
| Latest Specifications | Specifications are subject to change without prior notice. For current information, visit www.shure.com. |
