Sennheiser EW-D ME4 SET Digital Wireless Lavalier Set
- Digital lavalier set with the ME 4 cardioid mic
- For speech in noisy rooms
- Smart Assist app setup, three US bands
From $749.00 USD
Sennheiser EW-D ME4 SET Digital Wireless Lavalier Set

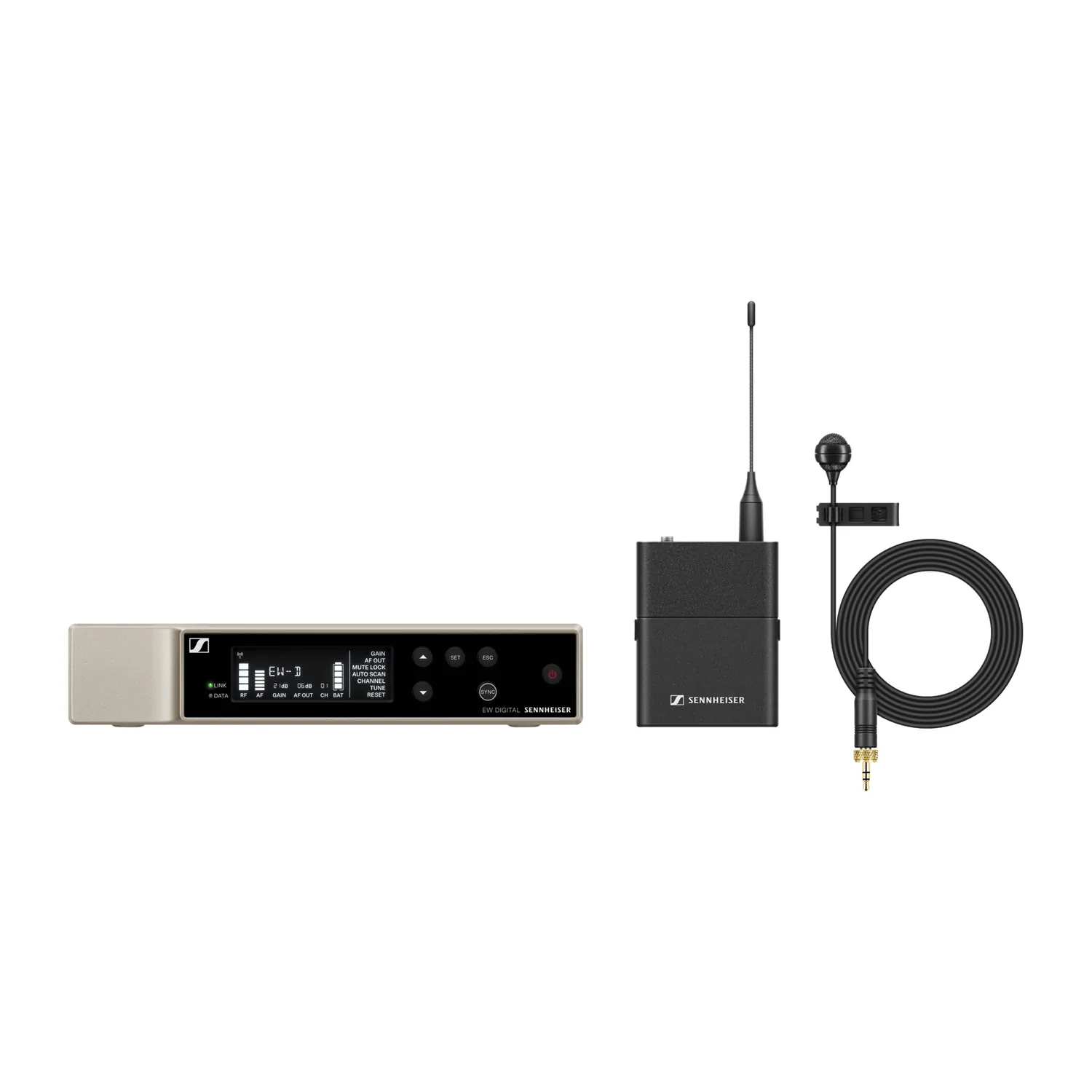

The Sennheiser EW-D ME4 SET is a digital wireless lavalier kit built around the ME 4, a cardioid clip-on mic that keeps a speaker’s voice clear when the room is noisy.
A cardioid lavalier picks up less of the room than an omni and resists feedback from nearby loudspeakers. The metal EW-D SK bodypack sends to the EW-D EM rack receiver. The system’s 134 dB input dynamic range means there is no input sensitivity to set. Setup runs through the Smart Assist app over Bluetooth Low Energy, and auto scan finds clear frequencies. The bodypack runs up to 8 hours on two AA batteries, or up to 12 hours on a BA 70 rechargeable pack, sold separately.
Frequency Bands
This page offers three US bands: Q1-6 (470.2 to 526 MHz), R1-6 (520 to 576 MHz), and R4-9 (552 to 607.8 MHz). Each band covers 56 MHz with up to 90 channels. The signal is digital, so channels sit on an even 600 kHz grid.
Features
- ME 4 cardioid clip-on microphone
- Metal EW-D SK bodypack transmitter
- Half-rack EW-D EM receiver
- 134 dB dynamic range, 1.9 ms latency
- Smart Assist app setup
- Up to 90 channels in 56 MHz
- Rackmount kit, antennas, and power supply included
What's Included
- EW-D EM rack receiver
- EW-D SK bodypack transmitter
- ME 4 lavalier microphone
- 2 x rod antennas
- NT 12-5 CW power supply with country adapters
- GA 3 rackmount kit
- 4 x rubber feet
- Quick guide
- Safety guide
Specifications
| System | |
|---|---|
| Frequency Ranges | Q1-6: 470.2 – 526 MHz R1-6: 520 – 576 MHz R4-9: 552 – 607.8 MHz |
| Tuning Bandwidth | 56 MHz, up to 90 channels on a 600 kHz grid |
| Audio Frequency Response | 20 Hz – 20 kHz (−3 dB) |
| Dynamic Range | 134 dB |
| THD | ≤ −60 dB (1 kHz at −3 dBFS) |
| Latency | 1.9 ms |
| Bluetooth Low Energy | 2402 – 2480 MHz, for the Smart Assist app |
| Operating Temperature | −10 to +55 °C (14 to 131 °F) |
| EW-D EM Receiver | |
| Format | Half-width 19-inch rack receiver |
| Audio Output Level | 18 dBu max. |
| Input Voltage | 11 – 13 V DC |
| Dimensions | 212 × 44 × 189 mm (8.35 × 1.73 × 7.44 in) |
| Weight | 1000 g (35.27 oz) |
| EW-D SK Bodypack Transmitter | |
| Housing | Metal |
| Transmission Power | 10 mW ERP (audio link) |
| Power | 2 AA batteries (included), up to 8 hours BA 70 rechargeable pack (sold separately), up to 12 hours |
| ME 4 Lavalier | |
| Microphone | ME 4, condenser, cardioid |
| Sensitivity | 40 mV/Pa |
| Equivalent Noise Level | 31 dB |
| Max. Sound Pressure Level | 120 dB |
| Cable | About 1.6 m, 3.5 mm plug |
| Warranty | 2 years |
| Latest Specifications | Specifications are subject to change without prior notice. For current information, visit www.sennheiser.com. |
