Sennheiser EW-D CI1 SET Digital Wireless Instrument Set

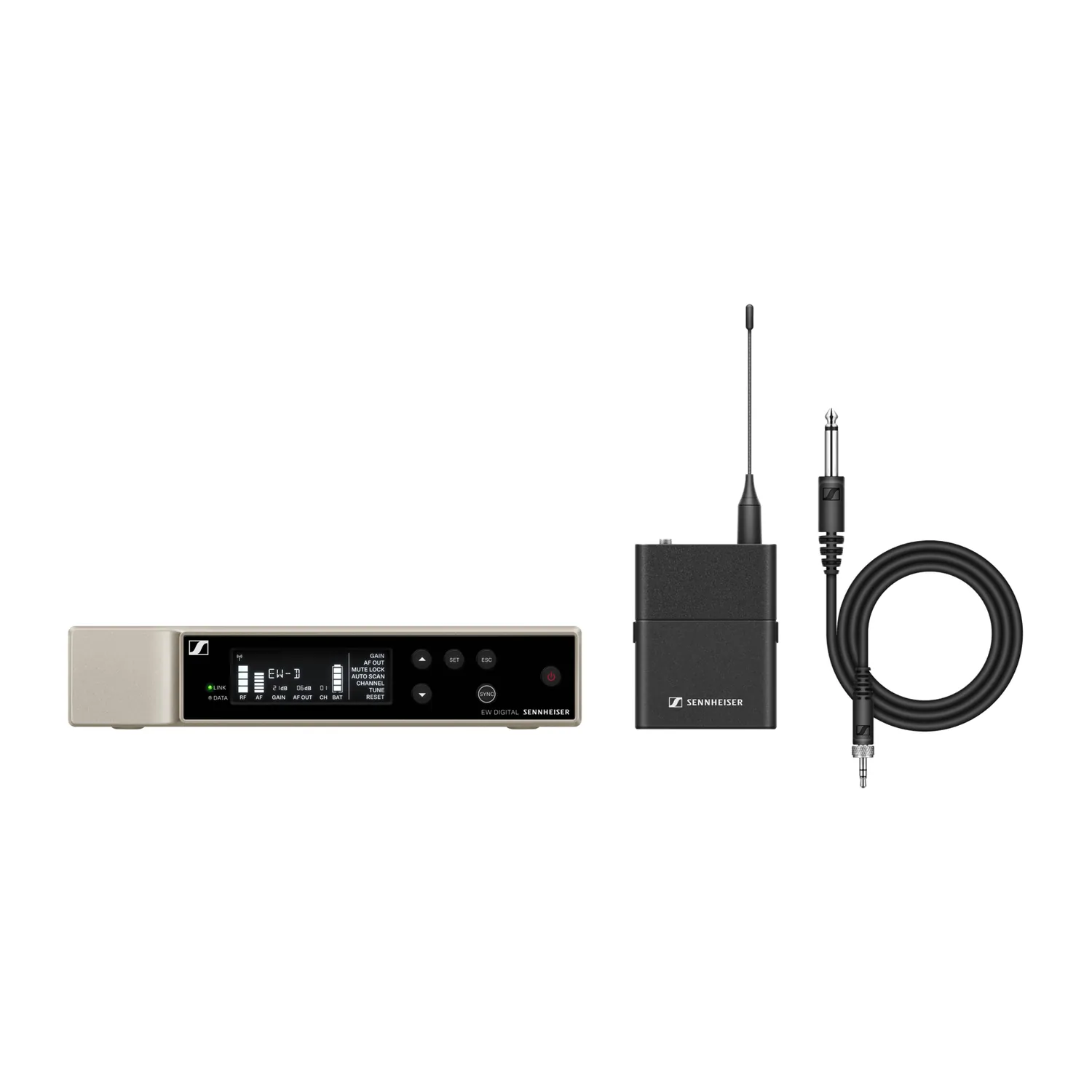

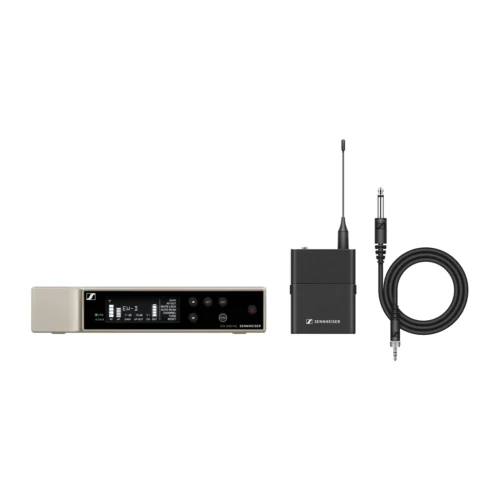

Guitarists get a digital wireless rig in one box with the Sennheiser EW-D CI1 SET: a CI 1 instrument cable, a metal EW-D SK bodypack, and an EW-D EM rack receiver.

The CI 1 runs from the guitar’s jack to the bodypack on your strap or belt, and the signal reaches the receiver with only 1.9 ms of delay. The system’s 134 dB input dynamic range means there is no input sensitivity to set. Setup runs through the Smart Assist app over Bluetooth Low Energy, and auto scan finds clear frequencies. The bodypack runs up to 8 hours on two AA batteries, or up to 12 hours on a BA 70 rechargeable pack, sold separately.

Frequency Bands

This page offers three US bands: Q1-6 (470.2 to 526 MHz), R1-6 (520 to 576 MHz), and R4-9 (552 to 607.8 MHz). Each band covers 56 MHz with up to 90 channels. The signal is digital, so channels sit on an even 600 kHz grid.

Features

• CI 1 instrument cable
• Metal EW-D SK bodypack transmitter
• Half-rack EW-D EM receiver
• 134 dB dynamic range, 1.9 ms latency
• Smart Assist app setup
• Up to 90 channels in 56 MHz
• Rackmount kit, antennas, and power supply included
