Sennheiser EW 500 FILM G4 Wireless Combo Set (AW+)
- Bodypack with MKE 2 lav, plug-on, and camera receiver
- 48 V phantom power on the plug-on
- AW+ band, 470 to 558 MHz
$1,599.00 USD
In Stock
Sennheiser EW 500 FILM G4 Wireless Combo Set (AW+)

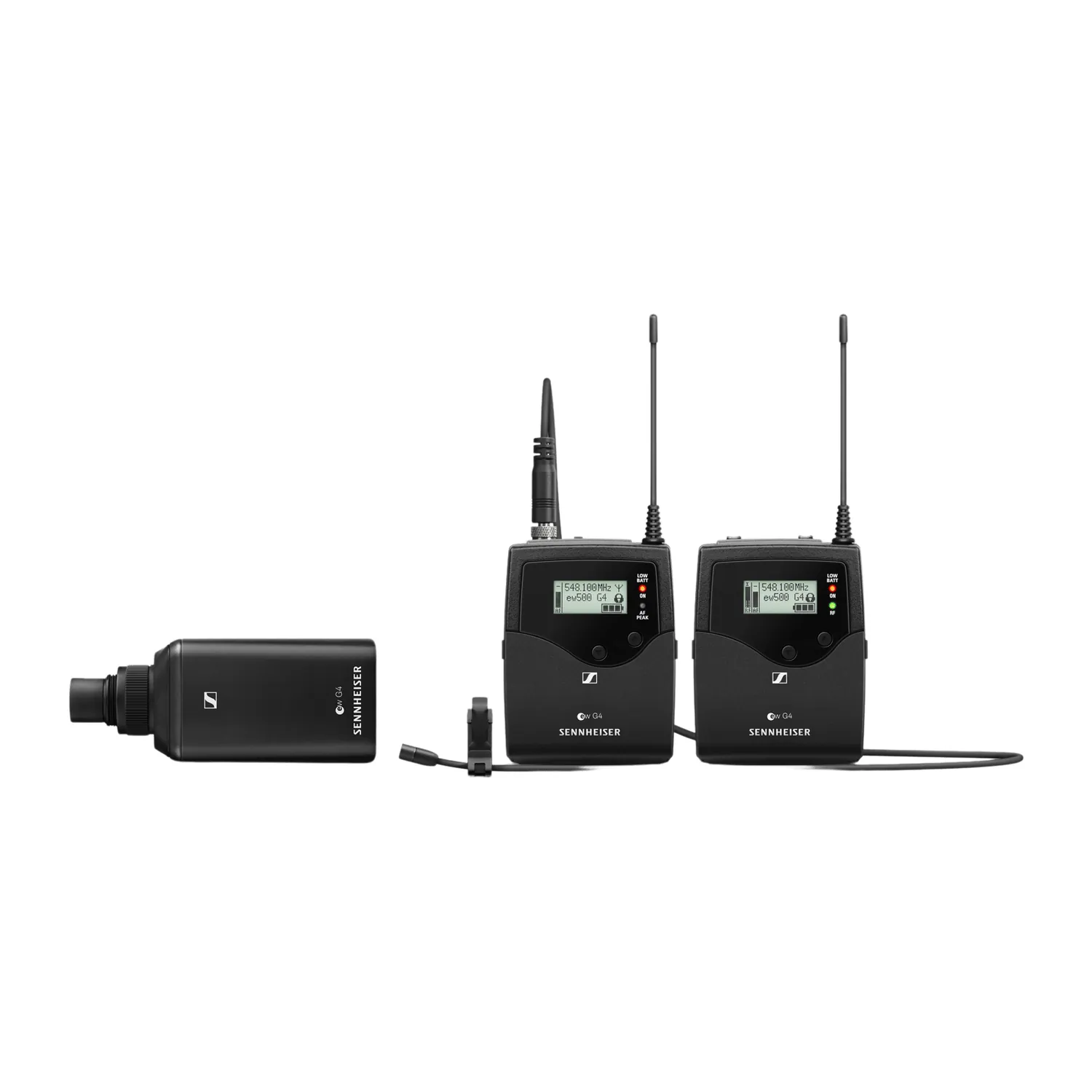

The Sennheiser EW 500 FILM G4 pairs two transmitters with one camera receiver. An SK 500 G4 bodypack with an MKE 2 lavalier handles dialogue, and an SKP 500 G4 plug-on transmitter takes a boom or handheld mic.
The plug-on supplies 48 V phantom power for condenser mics. Transmitter and receiver sync over infrared. The system tunes across up to 88 MHz with up to 32 channels, reaches up to 100 m (330 ft), and lets you set the RF output to 10, 30, or 50 mW. Each unit runs about 8 hours on two AA batteries.
This set covers the AW+ band, 470 to 558 MHz. Sennheiser has discontinued the set.
Features
- SK 500 G4 bodypack and MKE 2 omni lavalier
- SKP 500 G4 plug-on transmitter with 48 V phantom power
- EK 500 G4 portable camera receiver
- Infrared sync between transmitters and receiver
- Up to 88 MHz switching bandwidth, up to 32 channels
- Range up to 100 m (330 ft)
- About 8 hours on AA batteries
- AW+ band, 470 to 558 MHz
What's Included
- EK 500 G4 camera receiver
- SK 500 G4 bodypack transmitter
- SKP 500 G4 plug-on transmitter
- MKE 2 lavalier microphone
- MKE 2 fur windscreen
- 6 x AA batteries
- CL 1 3.5 mm jack cable
- CL 500 XLR to 3.5 mm jack cable
- CA 2 camera adapter
- Quick guide
- Safety guide
Specifications
| System | |
|---|---|
| Frequency Range | AW+: 470 – 558 MHz |
| Switching Bandwidth | Up to 88 MHz, up to 32 channels |
| RF Output Power | 10, 30, or 50 mW (selectable) |
| Range | Up to 100 m (330 ft) |
| Receiver Principle | Adaptive diversity |
| RF Sensitivity | Under 1.6 μV for 52 dBA effective S/N |
| Receiver Output | 3.5 mm jack, +17 dBu (mono, balanced) |
| Signal-to-Noise Ratio | 110 dBA or more (line) |
| THD | 0.9% or less |
| Squelch | Low 5 dBµV, middle 15 dBµV, high 25 dBµV |
| Battery Operating Time | About 8 hours (2 AA per unit) |
| Receiver Dimensions | 82 × 64 × 24 mm (3.23 × 2.52 × 0.94 in) |
| Warranty | 2 years |
| Latest Specifications | Specifications are subject to change without prior notice. For current information, visit www.sennheiser.com. |
