Schoeps MiniCMIT Miniature Shotgun Microphone
- Miniature shotgun with the sound of the CMIT 5
- P48 and P12 phantom power, low current draw
- W 140 windscreen and SG 20 clamp included
$2,829.00 USD
Availability: In Stock

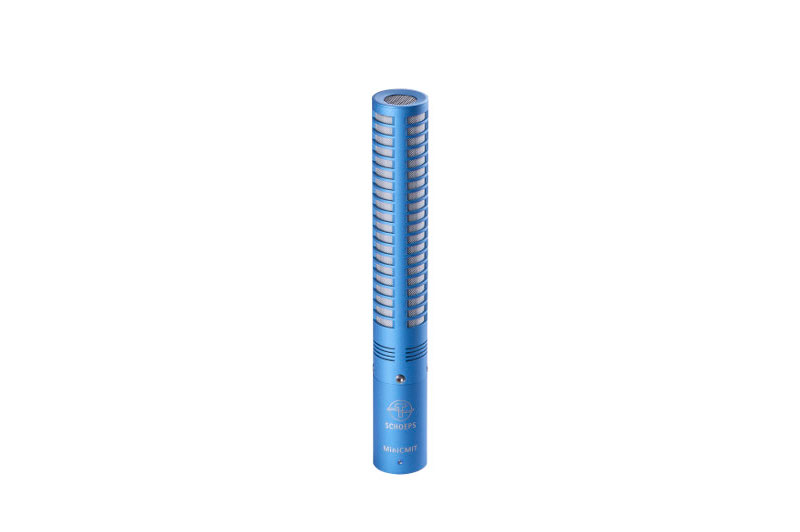

Schoeps MiniCMIT Miniature Shotgun Microphone
The Schoeps MiniCMIT is a miniature shotgun microphone that gives the sound of the CMIT 5 in a shorter, lighter body, at 151 mm and 78 g.
Its circuitry is close enough to the CMIT 5’s that the two can be swapped without a change in sound, and its frequency response also matches the SuperCMIT’s second channel. A fixed fourth-order low-cut filter at 70 Hz is built in.
It runs on P48 or P12 phantom power with a low current draw, which makes it a good match for digital wireless transmitters such as the Sound Devices A20-TX. Schoeps’ latest RFI Shield guards against radio interference, and the capsule resists humidity. A W 140 foam windscreen and an SG 20 stand clamp come with it.
Features
- CMIT 5 sound in a compact body
- 151 mm long, 78 g
- Fixed 70 Hz low-cut, 24 dB/oct
- P48 and P12 phantom power
- Low current draw for wireless transmitters
- Humidity-resistant capsule
- W 140 windscreen and SG 20 clamp included
What's Included
- MiniCMIT shotgun microphone
- W 140 foam windscreen
- SG 20 stand clamp
Specifications
| Acoustics | |
|---|---|
| Pickup Pattern | Supercardioid, lobe-shaped |
| Frequency Range | 60 Hz to 20 kHz |
| Sensitivity | −35 dB (V/Pa), 17 mV/Pa |
| Equivalent Noise Level (A-Weighted) | 14 dB |
| Equivalent Noise Level (CCIR) | 24 dB |
| Signal-to-Noise Ratio (A-Weighted) | 80 dB |
| Maximum SPL (THD < 0.5%) | 130 dB SPL (P48), 115 dB SPL (P12) |
| Low-Cut Filter | Fixed, 70 Hz, 24 dB/oct |
| Electrical | |
| Maximum Output Voltage | 1 V (0 dBV) into 2 kΩ |
| Phantom Power | P48 (over 24 V), P12 (over 11 V) |
| Current Consumption | 2.3 mA (P48) |
| Output Impedance | 100 Ω |
| Minimum Load Impedance | 2 kΩ |
| Common Mode Rejection (1 kHz) | Over 55 dB |
| Maximum Cable Length | Over 100 m |
| RFI Shield | Yes |
| Output | XLR-3M, analog, 1 channel |
| Physical | |
| Length | 151 mm |
| Diameter | 21 mm |
| Weight | 78 g |
| Finish | Blue (standard); anthracite gray and chroma green (custom) |
