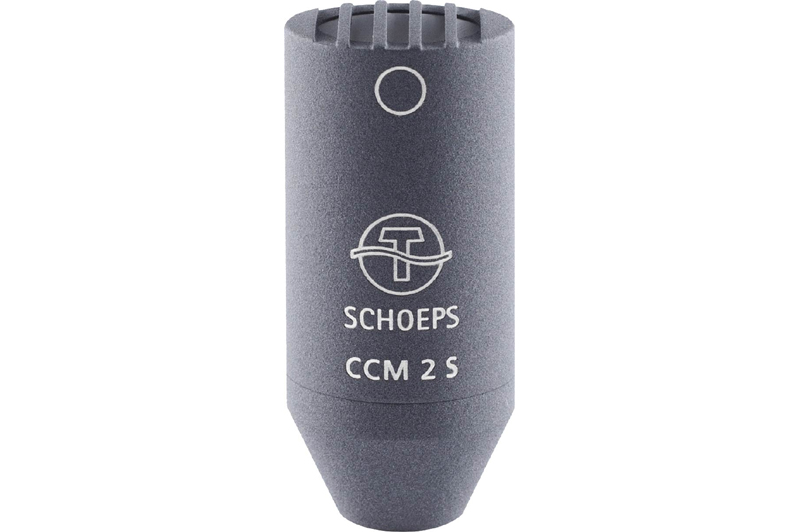

Schoeps CCM 2S Omnidirectional Compact Microphone

Omnidirectional Compact Microphone

This product is currently out of stock and unavailable.

Description

  • omnidirectional pattern
  • slight high-frequency rise to compensate for losses at moderate recording distances
  • for a very wide range of recording applications
  • often preferred for spaced stereophony and Decca Tree arrangements

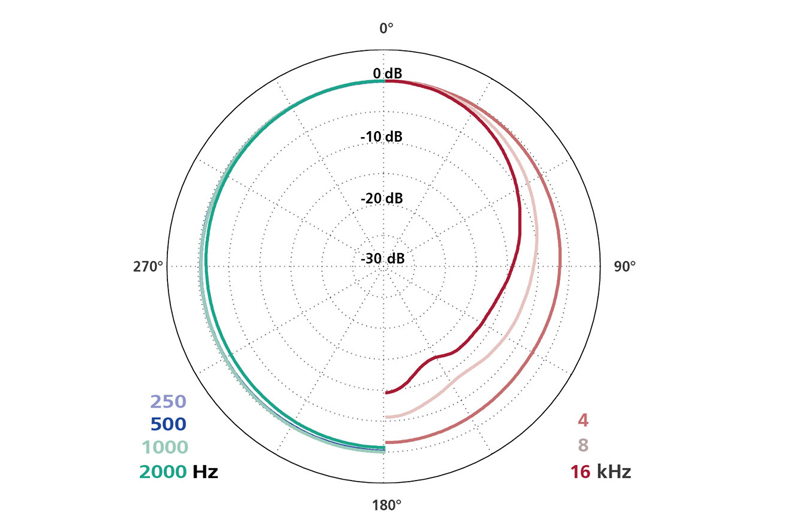

The CCM 2S exhibits a slight high-frequency emphasis for frontal sound incidence, with only a slight rolloff of high frequencies off axis and in the reverberant sound field.

The frequency response characteristic of the CCM 2S falls between that of the CCM 2 and the CCM 2XS, making this microphone suitable for a wide range of applications.

Practice

The CCM 2S has proven particularly useful in two- and three-microphone stereo arrays, where its placement near the reverberation radius of the sound field presents a sonically balanced pickup favored by many recording engineers. This model has become our most popular pressure transducer.

For spaced microphone (A/B) stereo recording and especially the Decca Tree method, KA 40 accessory spheres are recommended.

Specifications

Frequency range see corresponding capsul
Sensitivity see corresponding capsul
Maximum sound pressure level (THD < 0.5 %)
  • 136 dB-SPL (P48)
  • 128 dB-SPL (P12)
Maximum output voltage 2,6 V (8,3 dbV) with 2 kΩ load
Low cut filter 20 Hz, 12 dB/Okt.
Output impedance 90 Ω @ 1 kHz
Maximum cable length > 400 m
SCHOEPS RFI Shield No
Powering standard / Valid range
  • P48 / > 40 V P12 / > 10 V
  • Current consumption

  • 4 mA (P48)
  • 3,6 mA (P12)
  • Common mode rejection ratio (at 1 kHz)

  • > 55 dB
Minimum recommended load impedance 2 kΩ
Length 46 mm (CCM-L)
Diameter 20 mm
Weight 33 g (CCM-L)
45 g (CCM-L)
