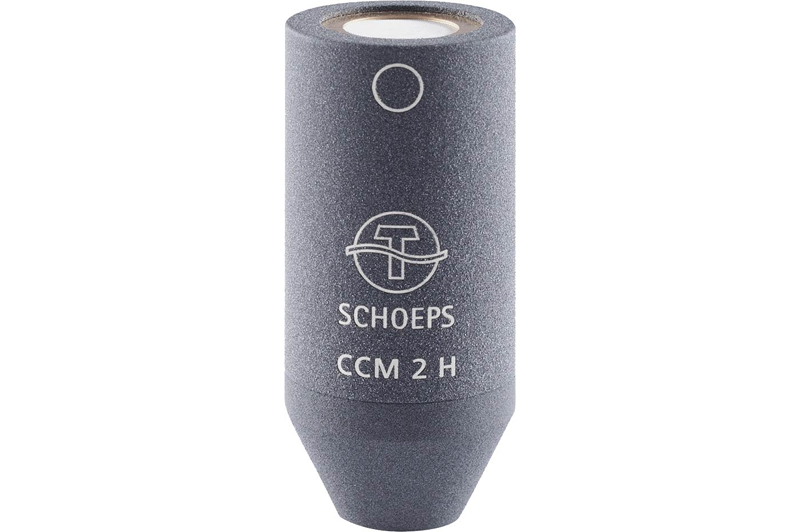

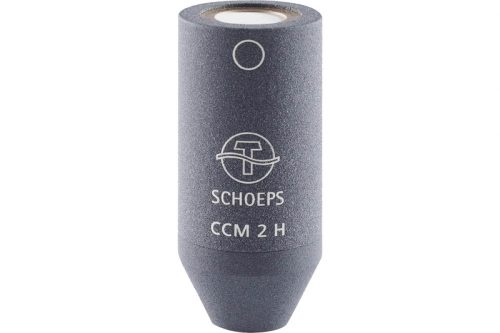

Schoeps CCM 2H Omnidirectional Compact Microphone

Omnidirectional Compact Microphone

This product is currently out of stock and unavailable.

Description

  • omnidirectional pattern
  • mild high-frequency rise to compensate for losses at medium recording distance
  • often chosen for spaced stereophony and Decca Tree arrangements

If this microphone is used indoors at medium recording distances (i.e. where direct sound energy is similar in amount to reflected sound energy), its overall response will be linear. Its extended frequency response and low noise make it appropriate for the most demanding applications.

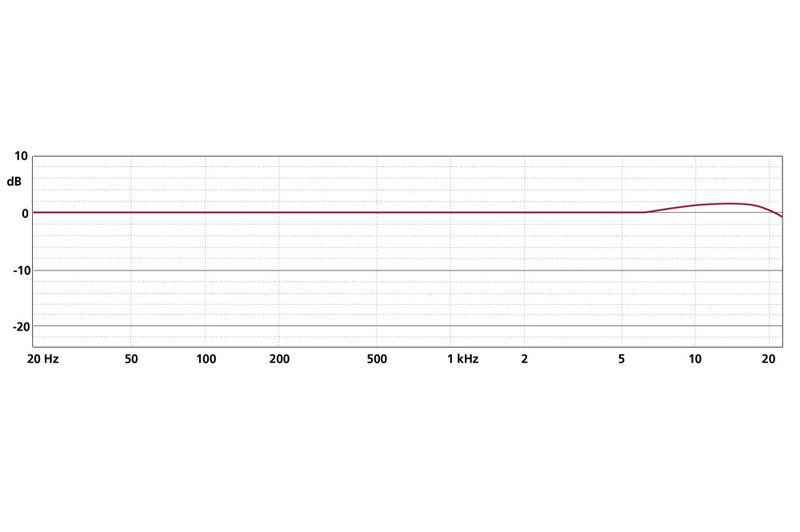

The sound inlet of the CCM 2H is narrower than that of our other pressure transducers, causing a slight, purely acoustic response elevation above 6 kHz. This reduces the high frequency loss for diffuse sound, thus helping to preserve natural sound quality.

Practice

The CCM 2H, like the CCM 2S, is ideal for natural-sounding pickup of instruments and orchestras in spaces with well balanced reverberance. The choice between the two capsule types is essentially a matter of personal preference. At a given miking distance the CCM 2H might be described as more ?balanced and round? sounding while the CCM 2S would give a slight additional brilliance. However, one might also choose the CCM 2H for slightly closer placement or the CCM 2S for slightly more distant placement ? and then these two capsule types would have very similar sound quality, with the main difference then being in the balance of direct to reverberant sound which is picked up.

For spaced microphone (A/B) stereo recording and especially the Decca Tree method, KA 40 accessory spheres are recommended.

Specifications

Frequency range see corresponding capsule
Sensitivity see corresponding capsule
Maximum sound pressure level (THD < 0.5 %)
  • 135 dB-SPL (P48)
  • 127 dB-SPL (P12)
Maximum output voltage 2,6 V (8,3 dbV) with 2 kΩ load
Low cut filter 20 Hz, 12 dB/Okt.
Output impedance 90 Ω
Maximum cable length > 400m
SCHOEPS RFI Shield No
Powering standard / Valid range
  • P48 / > 40 V
  • P12 / > 10 V
Current consumption
  • 4 mA (P48)
  • 3,6 mA (P12)
Common mode rejection ratio (at 1 kHz) > 55 dB
Minimum recommended load impedance 2 kΩ
Length 46 mm (CCM-L)
Diameter 20 mm
Weight 33 g (CCM-L)
