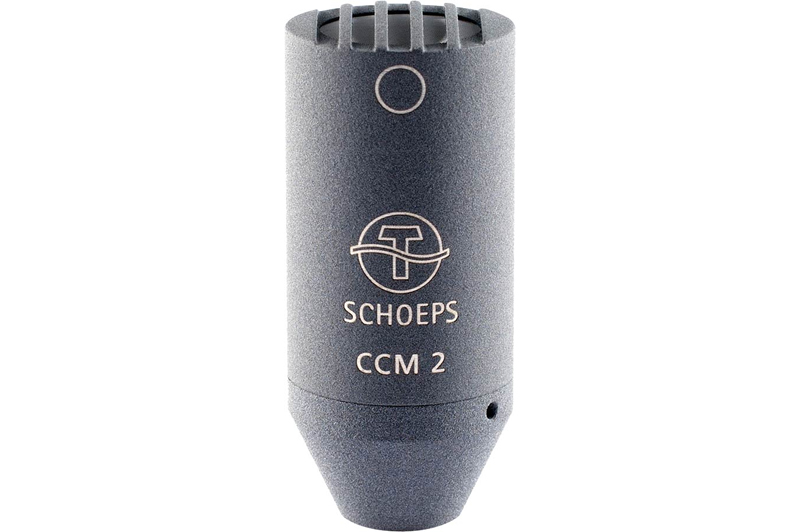

Schoeps CCM 2 Omnidirection Compact Microphone

This product is currently out of stock and unavailable.

SKU: SCHCCM2 Categories: , , , Tag:
Share on:
Share on google Share on pinterest Share on mail

Description

  • omnidirectional
  • linear frequency response
  • corrected for the direct sound field
  • for use close to the sound source (frontal sound incidence)
  • preferred applications: close pickup of singers and instruments

As can be seen from the frequency response curve, this microphone type has flat frequency response for frontal sound incidence. This yields a very natural quality when picking up sound that is predominantly direct, i.e. close to the source or in a “dry” acoustic.

Practice

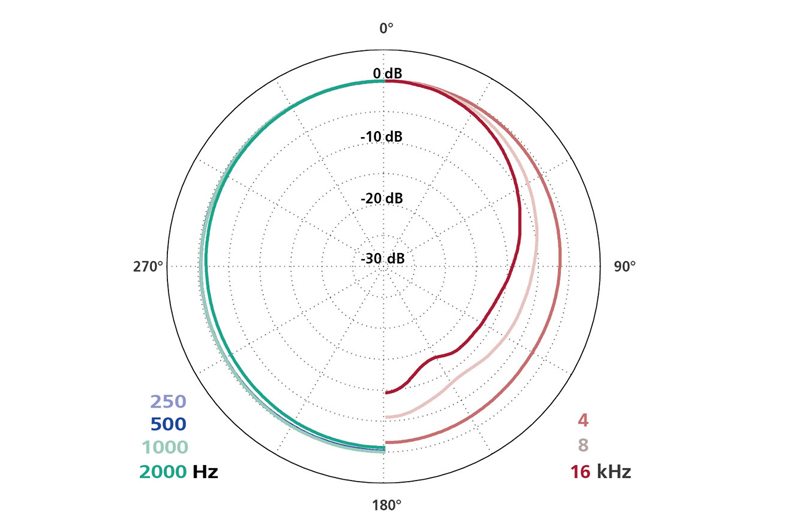

The CCM 2 is meant to be placed in close proximity to the sound source. The sonic impression never becomes overly brilliant or harsh. Please note that there is some directivity at high frequencies due to the physics of sound. Thus even with an omnidirectional microphone, it still matters which way the capsule is “aimed”.

Specifications

Frequency range see corresponding capsule
Sensitivity see corresponding capsule
Maximum sound pressure level (THD < 0.5 %)
  • 135 dB-SPL (P48)
  • 127 dB-SPL (P12)
Maximum output voltage 2,6 V (8,3 dbV) with 2 kΩ load
Low cut filter 20 Hz, 12 dB/Okt.
Output impedance 90 Ω @ 1 kHz
Maximum cable length > 400 m
SCHOEPS RFI Shield No
Powering standard / Valid range
  • P48 / > 40 V
  • P12 / > 10 V
Current consumption
  • 4 mA (P48)
  • 3,6 mA (P12)
Common mode rejection ratio (at 1 kHz) > 55 dB
Minimum recommended load impedance 2 kΩ
Output Lemo (CCM-L) or XLR-3M (CCM-U), analog, 1 channel
Length 46 mm (CCM-L)
Diameter 20 mm
Weight 33 g (CCM-L)
