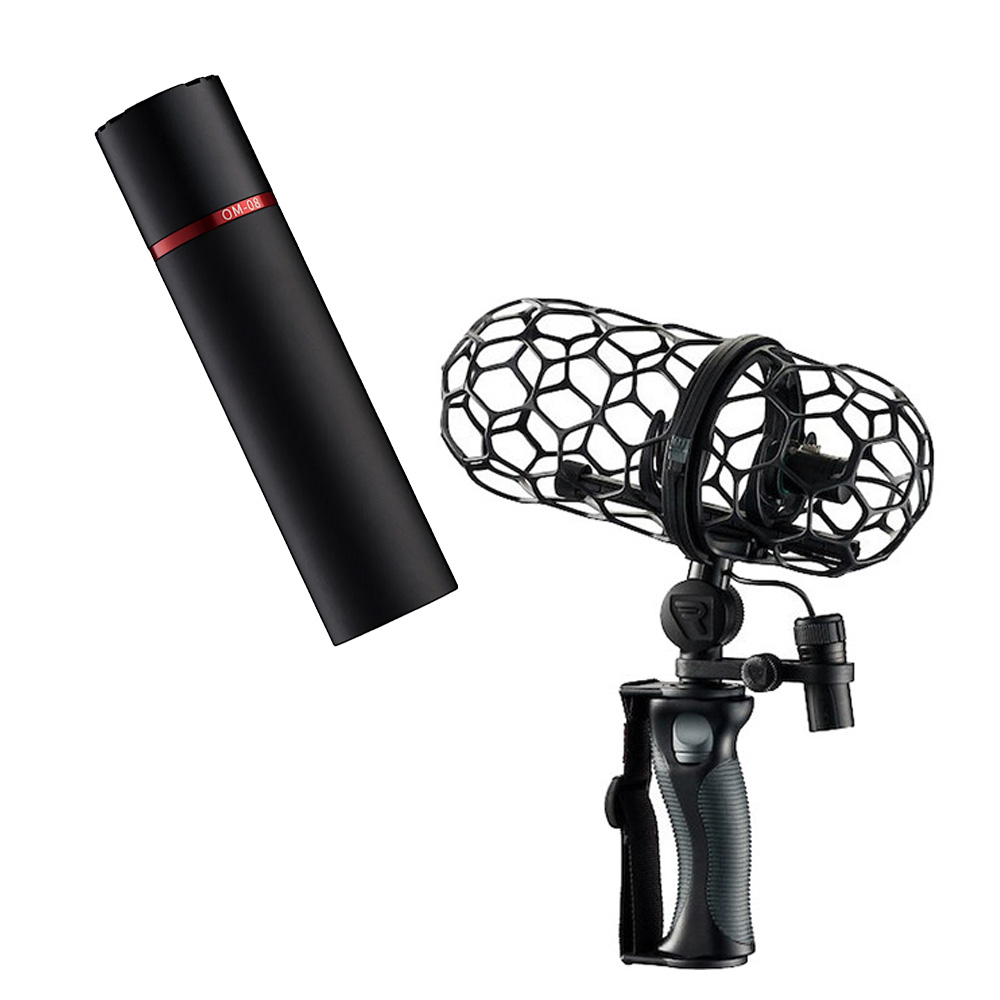

Rycote OM-08 Omnidirectional Mic + Nano Shield Kit NS1-BA Bundle

  • Omnidirectional pencil condenser with 11 dB-A self-noise
  • Rycote’s smallest and lightest full windshield kit
  • Low-profile XLR cable with RF filter and 80 Hz low-cut

$931.90 USD

In Stock

Brand: Categories: , , , Tag: Trew SKU: TRB.RYCOM08NS0AA MPN: 979005

Rycote OM-08 Omnidirectional Mic + Nano Shield Kit NS1-BA Bundle

The Rycote OM-08 bundle pairs Rycote’s compact omnidirectional pencil microphone with the Nano-Shield Kit NS1-BA windshield and suspension system. The Nano Shield’s Advanced Lyre mounts are softer than standard Lyres to suit light microphones, so they isolate the OM-08 from handling noise without a full-length blimp’s size and weight. Mic, suspension, and wind protection go onto the boom as one low-profile package for dialog, effects, and ambience recording on location.

The OM-08 is a professional pencil condenser with an omnidirectional pickup pattern and solid low-frequency response. Its range is 10 Hz to 20 kHz, with virtually no drop-off at 20 Hz. With no rear signal reaching its diaphragm, the omni capsule sounds natural in every direction and keeps the low end that directional mics roll off. It suits ambience, atmospheres, and wide sound effects. It uses the same low-noise machined brass preamp as the rest of Rycote’s pencil range, with an individually fine-tuned back electret capsule in a machined aluminum body, and reaches 11 dB-A self-noise. Fine-tuned mechanical RF shielding guards against digital wireless systems and walkie-talkies. The OM-08 runs on 24 to 48 V phantom power and ships with a hard case, mic clamp, and foam windscreen.

The Nano Shield Kit NS1-BA is sized for microphones up to 122 mm long, which covers Rycote’s 8 cm pencil mics. It is roughly 30% lighter than Rycote’s Modular Windshield kits and more acoustically transparent, with large hexagonal pockets for less high-frequency loss and an oval basket with non-parallel sides for less internal resonance. The two basket halves lock together with magnets and sliders. Other basket sizes are available, so the kit can fit other microphones later. The mounting bar and swivel arm adjust by thumbwheel with no tools, and the kit works with Rycote’s PCS quick release. The low-profile XLR cable carries an RF filter and a switchable 80 Hz low-cut, while a 360-degree reversible XLR holder points outward for a wireless transmitter or inward for a direct cable run. A Windjammer and protective case complete the kit.

Features

  • Rycote OM-08 omnidirectional pencil condenser microphone
  • 11 dB-A self-noise with response down to 10 Hz
  • Fine-tuned mechanical RF shielding
  • Gold-plated Neutrik XLR connector
  • Nano Shield Kit NS1-BA windshield and suspension system
  • Advanced Lyre mounts tuned for lightweight microphones
  • Tool-free mounting bar and swivel arm adjustment
  • Low-profile XLR cable with RF filter and switchable 80 Hz low-cut
  • Windjammer and protective case included
  • Part numbers: Rycote OM-08 979005, Rycote Nano Shield Kit NS1-BA 086301

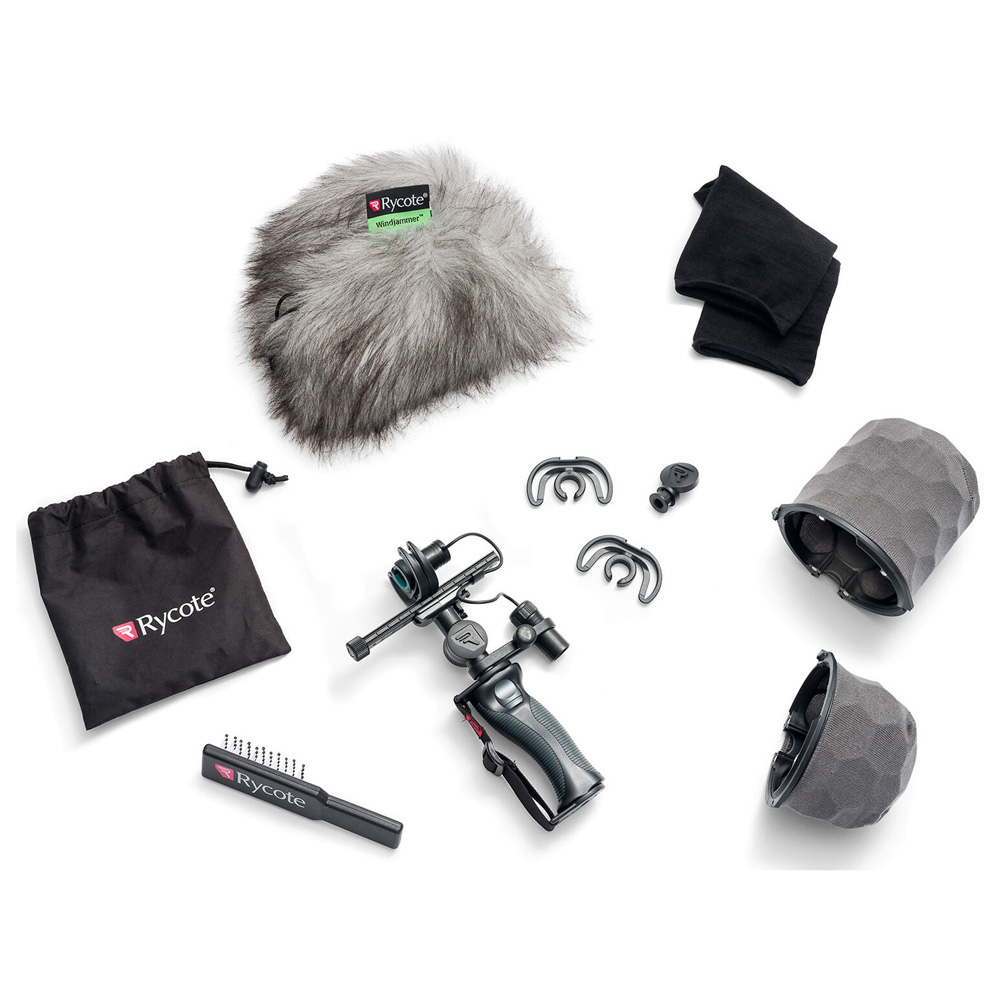

What's Included

  • Rycote OM-08 microphone
  • Microphone hard case
  • Microphone clamp
  • Foam windscreen
  • Nano-Shield Kit NS1-BA: 2 magnet-locking basket halves
  • Nano-Shield Kit NS1-BA: 3D-Tex covers
  • Nano-Shield Kit NS1-BA: Windjammer
  • Nano-Shield Kit NS1-BA: Lyre mounts
  • Nano-Shield Kit NS1-BA: Mounting bar with friction-brake swivel arm
  • Nano-Shield Kit NS1-BA: PCS-compatible tip and 3/8-inch adapter
  • Nano-Shield Kit NS1-BA: Low-profile XLR cable with RF filter and 80 Hz low-cut
  • Nano-Shield Kit NS1-BA: Protective case

Specifications

Microphone Rycote OM-08
Polar Pattern Omnidirectional
Capsule Type Back electret condenser
Frequency Range 10 Hz to 20 kHz
Output Sensitivity 23.0 mV/Pa (−32.7 dB)
Self-Noise 11.0 dB(A) (±2 dB)
Signal-to-Noise Ratio 81 dB typical (1 kHz/Pa, A-weighted)
Max Output Voltage 4 Vp
Output Impedance 100 Ω
Min Load Impedance 1 kΩ
CMRR (1 kHz) Over 60 dB
Max Cable Length 100 m (328 ft)
Powering P48 (24 to 48 V; max SPL reduced at 24 V)
Current Consumption 3.0 mA
Max SPL 133 dB SPL (1 kHz, 1.0% THD); 127 dB SPL (1 kHz, 0.5% THD)
RFI Shield Yes
Connector XLR-3M
Weight 69 g (2.43 oz)
Color Matte black
