Rycote InVision USM-VB Universal Shock Mount – Extra Large
- Lyre shock mount for mics 55 to 68 mm wide
- Holds up to 900 g vertically
- No elastic to sag or rethread
$92.95 USD
Rycote InVision USM-VB Universal Shock Mount – Extra Large

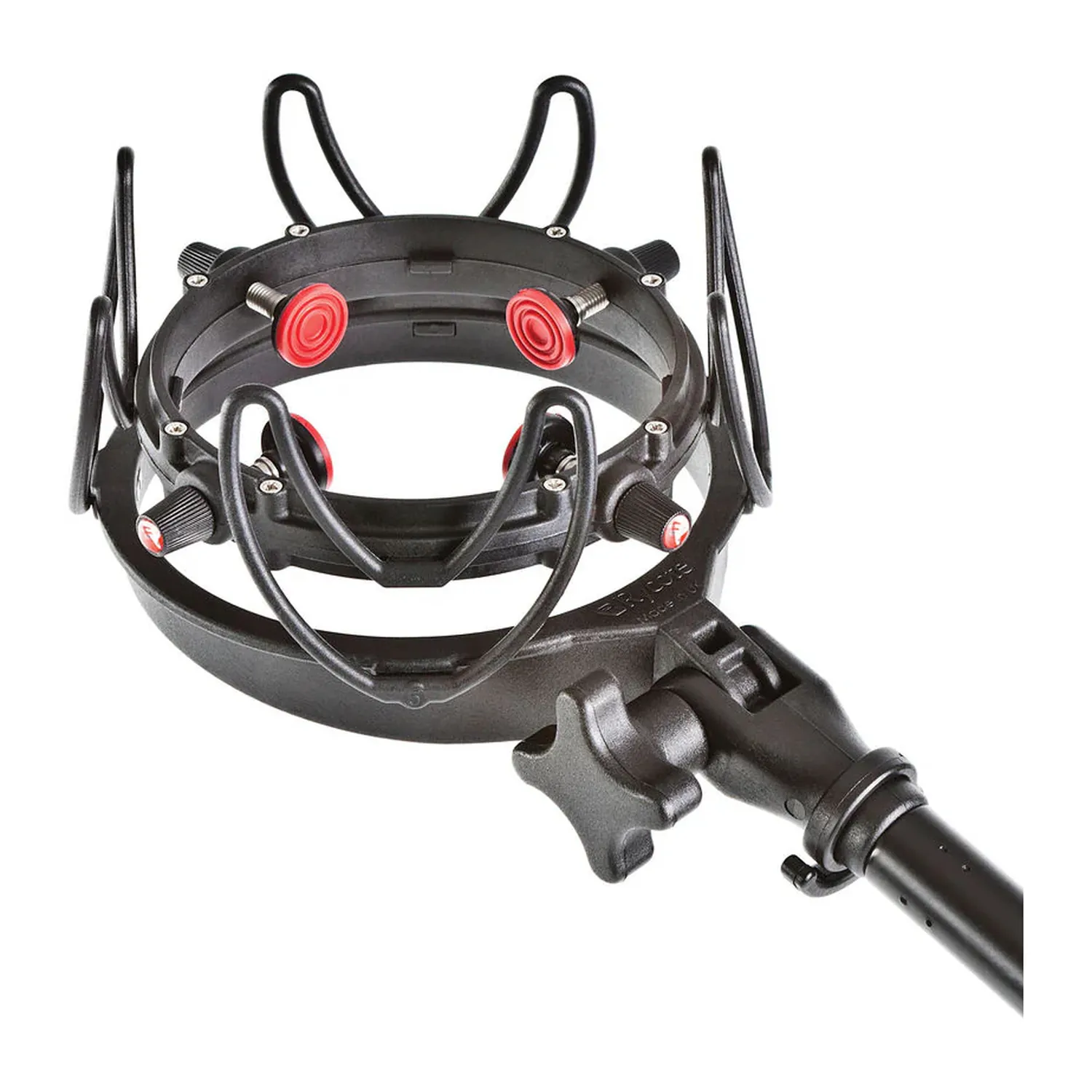

The Rycote InVision USM-VB is a universal Lyre shock mount for very large studio microphones, from 55 to 68 mm in diameter.
A central tension ring sits on W-shaped Lyres made of tough Hytrel thermoplastic. With no elastic bands, the mount never sags or needs rethreading, and it holds up to 900 g vertically.
The USM design gives up to twice the isolation of a traditional elastic suspension. It ships with a universal screw for stand mounting.
Features
- Lyre shock mount for large-diaphragm studio mics
- For mic diameters of 55 to 68 mm
- Holds up to 900 g vertically
- Hytrel Lyres, no elastic bands
- Up to twice the isolation of elastic suspensions
- Universal screw included
What's Included
- InVision USM-VB shock mount
- Universal screw
Specifications
| Physical Dimensions | ||
|---|---|---|
| Width | 4.72 in | 120 mm |
| Length | 6.69 in | 170 mm |
| Height | 2.75 in | 70 mm |
| Weight | 5.64 oz | 0.16 kg |
| Compatibility | ||
| Microphone Diameter Range | 0.70 – 2.67 in | 18 – 68 mm |
| Maximum Microphone Length | Up to 11.81 in | Up to 300 mm |
| Load Capacity | ||
| Maximum Weight (Vertical) | 1.98 lb | 900 g |
| Maximum Weight (Horizontal) | 1.10 lb | 500 g |
| Adjustment | ||
| Suspension Rotation (Maximum) | 175° | |
