Remote Audio SpeakEasy v4BT Monitor with Blue Tooth

375.00 USD

Compact and powered monitor speaker by two internal 9V batteries, the Remote Audio SpeakEasy v4BT monitor has all the features of previous models, plus two important additions.

Available for Purchase

Call for Details: 800-241-8994

Quantity:

SKU: REM.SPKEZV4BT Categories: , Tags: , ,

Description

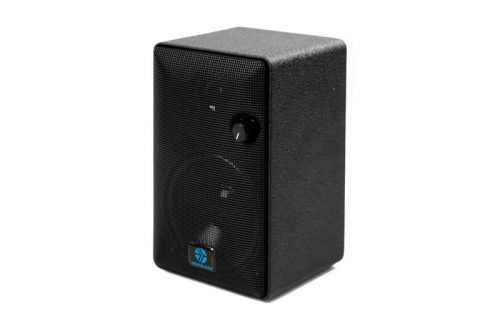

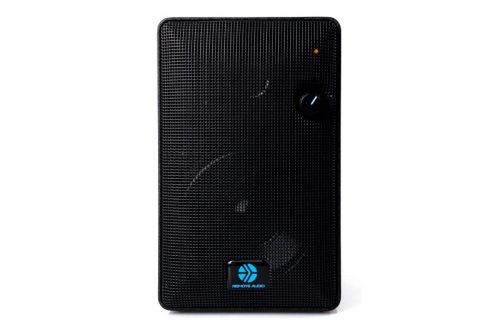

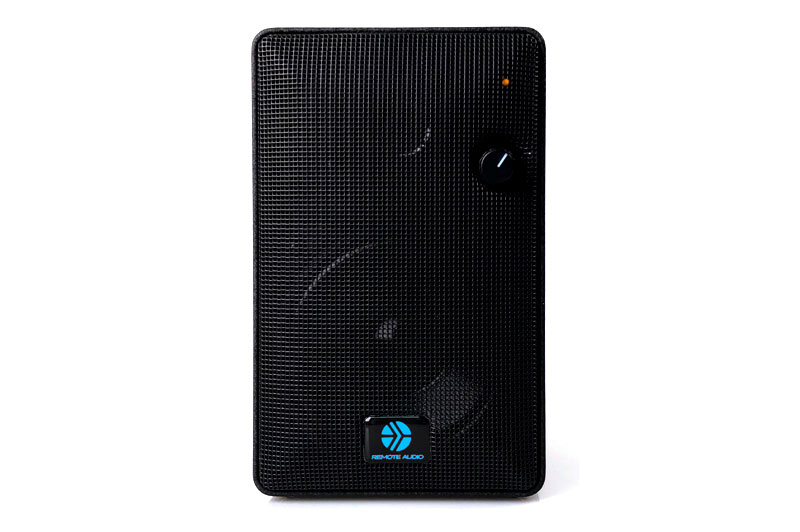

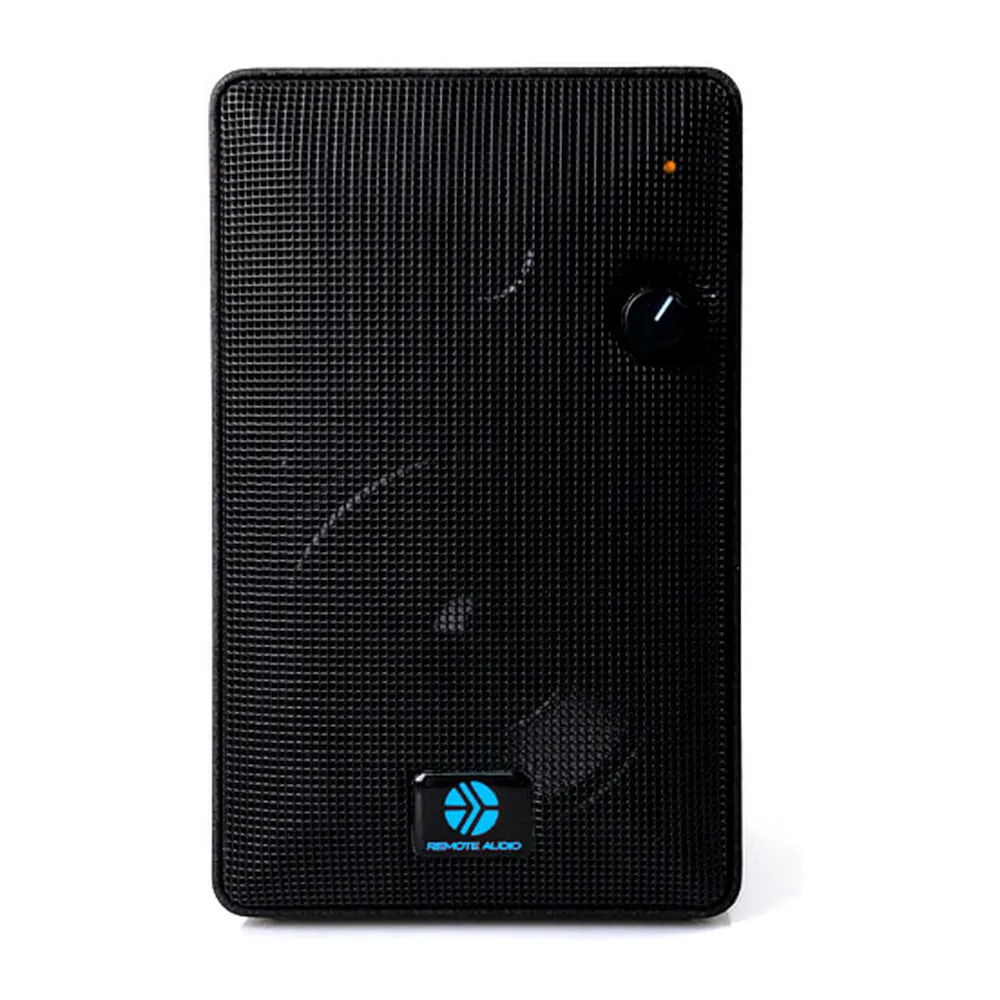

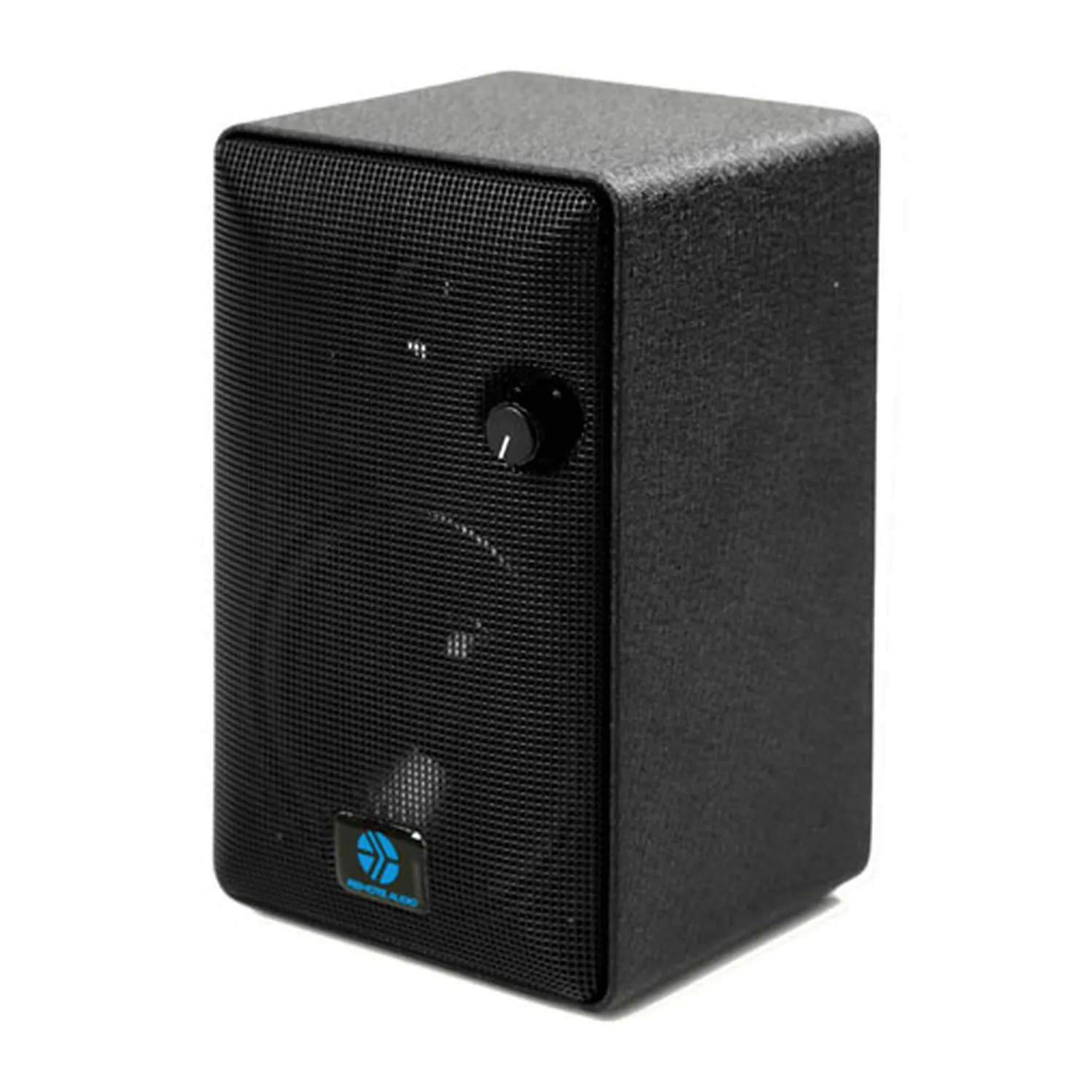

The SpeakEasy™ v4BT is much like the v3b, with Blue Tooth connectivity and is bi-amped for higher fidelity. It is housed in a cast aluminum enclosure with a durable black finish. At under 5 pounds, the unit is small enough to hide on set and rugged enough to pack in a case with the rest of your gear.

Flexible Inputs

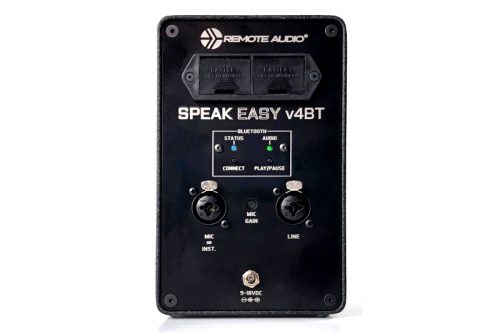

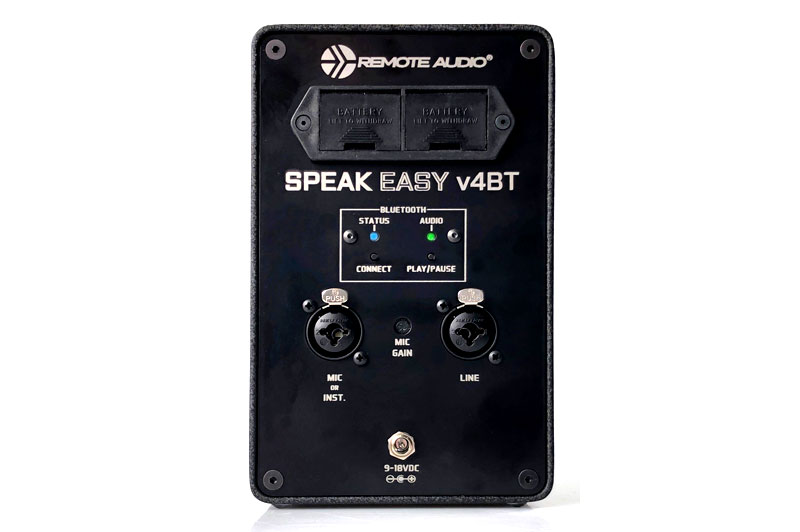

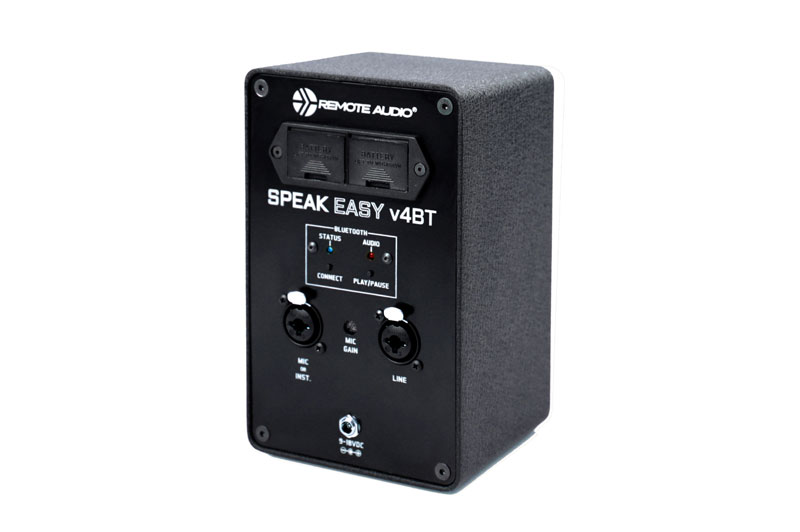

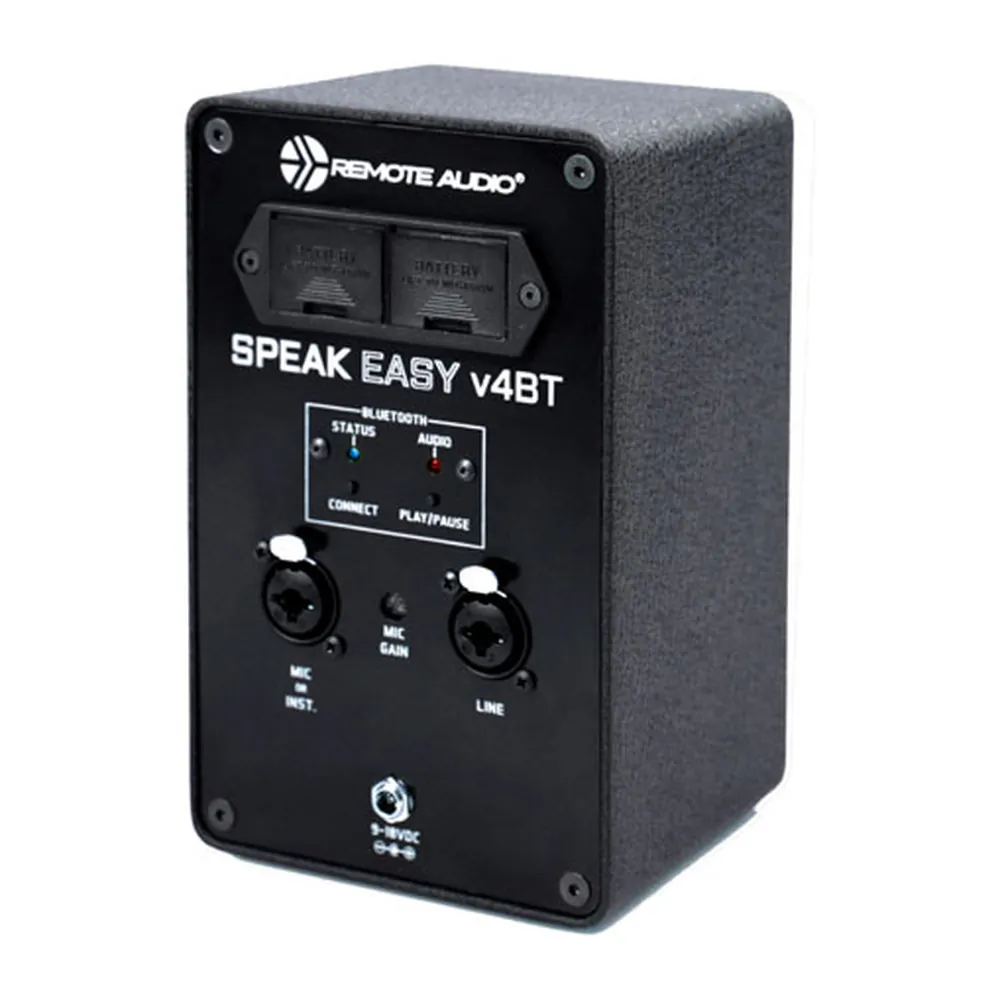

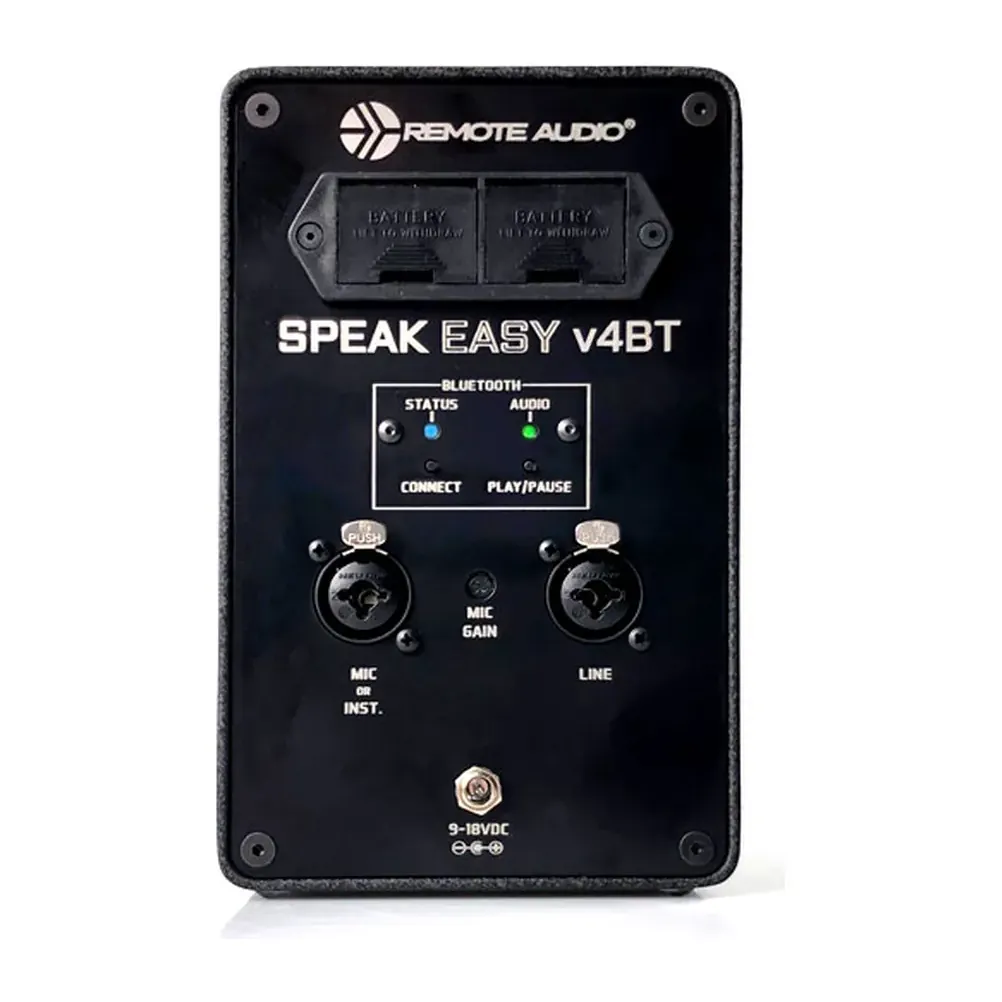

The back of the unit has the Blue Tooth indicators and controls and two combo jacks for connecting mic, line or instrument level inputs. The mic trim provides up to 40dB of amplification. The inputs are isolated from one another so they can be used at the same time. The battery compartment accepts two 9V batteries. A 2.1mm coaxial connector (center pin +) accepts external 9-18VDC. A circuit protects against reverse polarity.

Efficient Power

SpeakEasy powered speakers are very efficient. With an idle current drain of less than 100ma, the SpeakEasy™ v4BT will operate on a pair of 9V batteries up to 8 hours of intermittent use without Blue Tooth, or 4 hours, typically, with Blue Tooth in use. Typical intermittent use allows a pair of 9V batteries to last a full production day.

An optional DC adapter is also available:

Applications:

  • Use on your cart to listen without headphones.
  • Place it anywhere on set (Blue Tooth range typically exceeds 50 feet) for cueing and stage announce.
  • Plant it in a car during tow scenes so the director can talk to actors (when used with PTT mic).
  • Connect one (or two for stereo) to your computer or iPod for remote listening and editing.
  • Monitor programming during remote radio and television broadcasts.
  • Plant it inside a piano for realistic track playback.

Specifications

XLR Mic input for common balanced mic level signals Does not provide phantom mic power
XLR/1/4″ Line input for balanced +4dB signals (unbalanced ok also)
Internal Power: Two 9V batteries
External Power: 9 – 18VDC power source on its coaxial power connector (center positive)
Dimensions: 4.6×4.5×7.3 inches
Weight: 4.4 pounds
Idle power drain: ~70mA (10mA when sleeping)
Amplifier Power: 12W @ 8 Ohm nominal speaker impedance
Maximum SPL: 98dB (1kHz @ 1m)
Battery life: More than a full day of typical intermittent use

Downloads

SpeakEasy v4BT Users Manual
