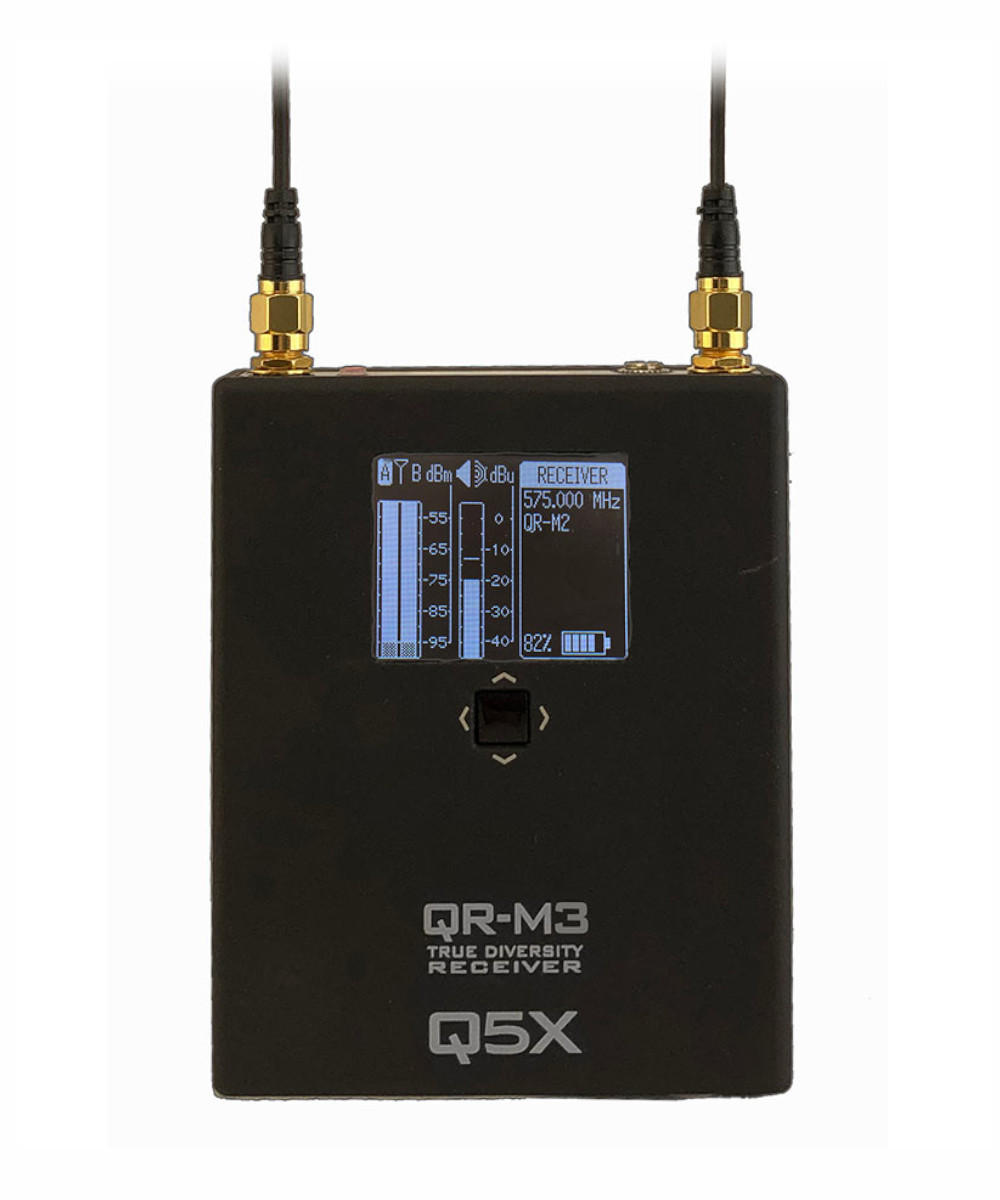

Q5X QR-M3 Mobile Receiver
1,795.00 USD
Q5X QR-M3 — One-channel, true dual-diversity, mobile receiver (ENG), in a commercial grade aluminum case, tunable to 9120 frequencies. (available in 25kHz blocks from 470MHz – 700MHz)
Share on:
Description
Q5X QR-M3 Mobile Receiver
One-channel, true dual-diversity, mobile receiver (ENG), in a commercial grade aluminum case, tunable to 9120 frequencies. (available in 25kHz blocks from 470MHz – 700MHz)
Specs and Features:
- Dimensions: 112mm x 82mm x 24mm
- Q5X companding – compatible with QT-5100 and legacy QT-300 transmitters,
- XLR balanced output – Balanced: -18dBm (50mV)
- Headphone Jack (mini)
- SSMA antenna connectors – comes with 2 Water resistant SSMA antennas

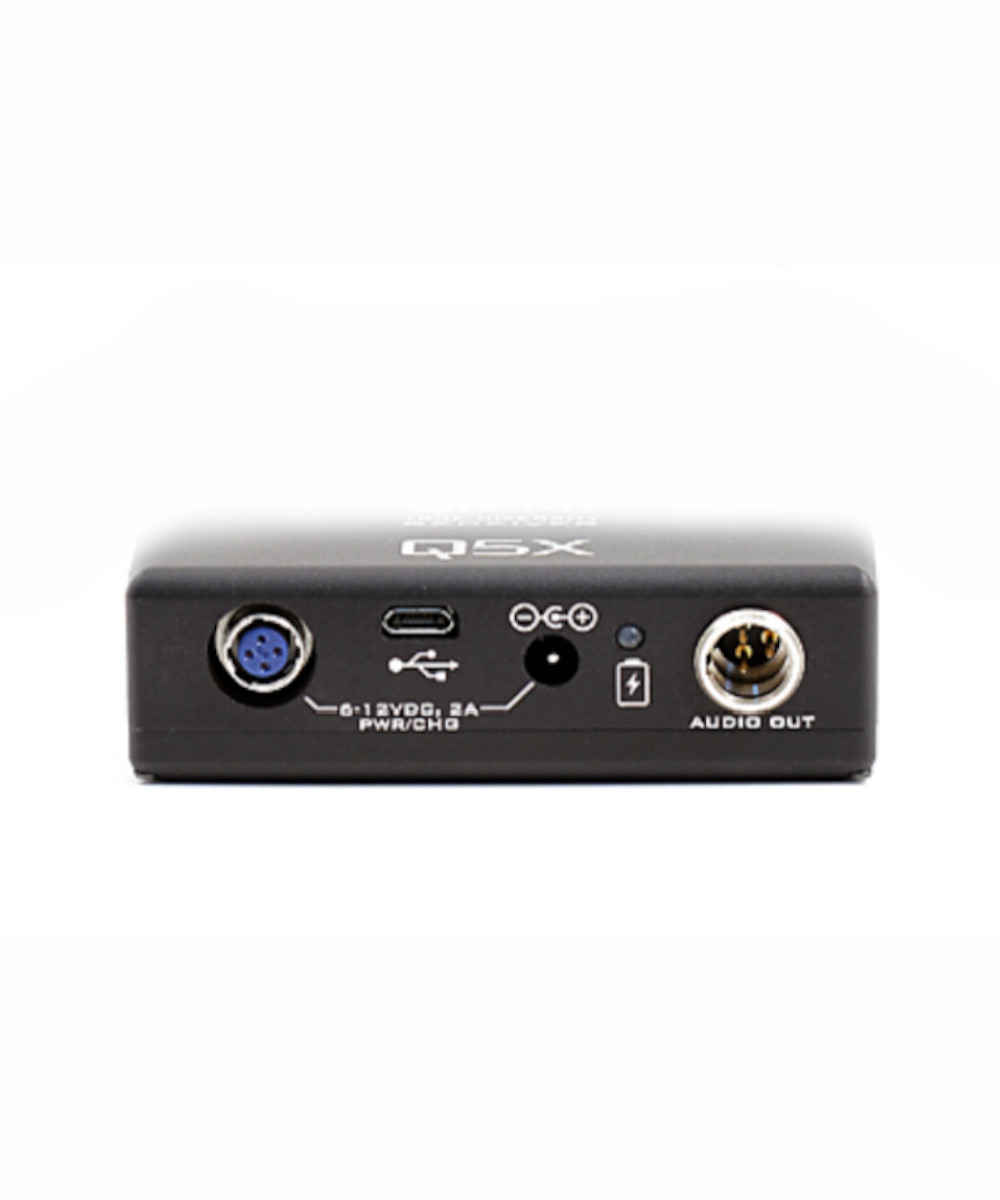

- DC input connector – comes with AC wall-wart power (6 – 12vDC)
- Rechargable lithium ion battery
- Available in frequency range of 470-700MHz
- Programmed in 25kHz steps

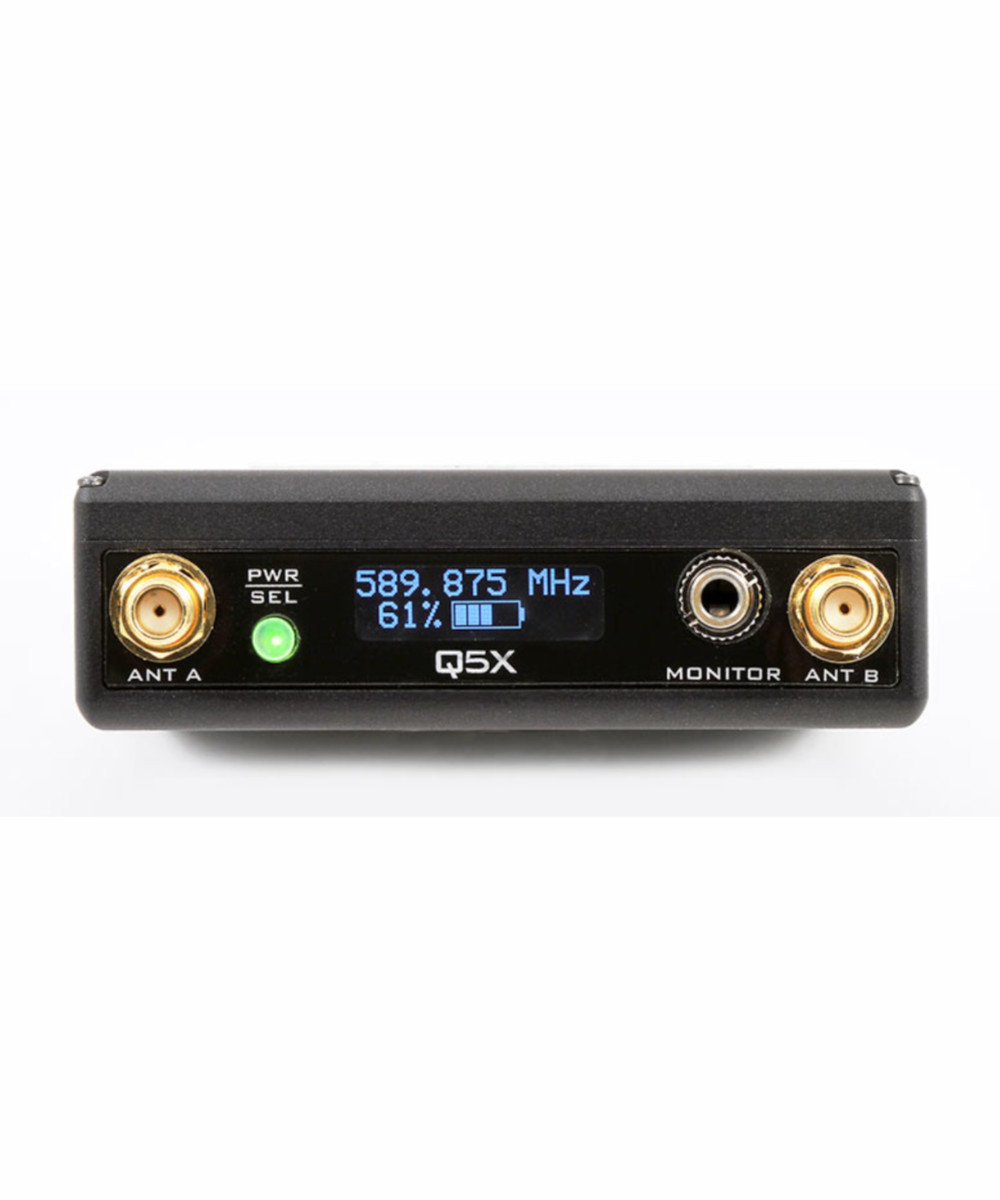

- OLED front and top display screens
- Frequency Stability – ±0.005%
- Sensitivity -100dBm at S/N ratio > 80dB
- Image rejection – > 80dB
- S/N Ratio – > 108dB
