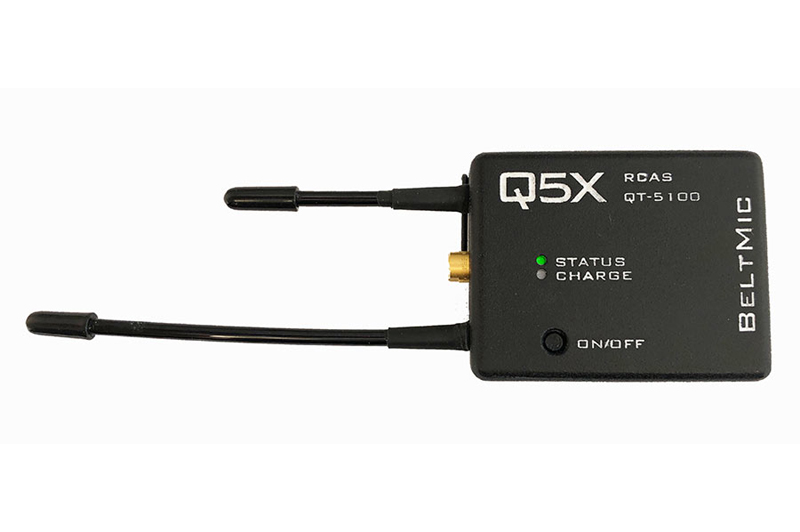

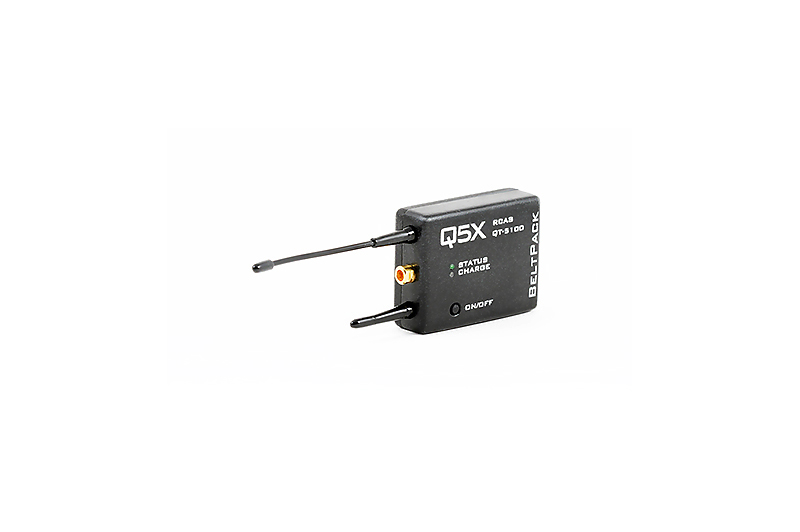

Q5X BeltMic QT-5100

Micro-sized transmitter in an impact-resistant hard nylon case. Internal lithium-polymer rechargeable battery and LEMO connector for a removable lavalier mic.

Belt pack style
8 hr run time @ 50mW
Power output range 10 – 100mW

Comfortable and Concealable

The Q5X QT-5100 BeltMic has a tough, composite, hard case with belt clip. This transmitter is the RCAS enabled version of our worlds smallest belt bodypack, the QT-300 BeltMic. Weighing less than 2 ounces and only a 1/2 inch thick, the QT-5100 BeltMic joins the QT-5100 series as the most comfortable audio transmitters in the industry.

The QT-5100 BeltMic utilizes the RCAS™ (Remote Control Audio System) a revolutionary way to remotely control transmitter settings from a central computer or handheld remote control.

3000 Channels

The QT-5100 BeltMic offers approximately 3,000 channels per frequency block. Available in 3 frequency blocks — tunable from 470 to 700 MHz in 25 kHz steps.

Technical Data

Dimensions: 53mm x 42mm x 19mm
RF output power: 10 to 100mW (user selectable, country restrictions apply)
Number of channels: approx. 3,000
UHF frequency range 470 to 700 MHz in 3 frequency blocks
Switching bandwidth: 75MHz (25 kHz steps)
Modulation: FM
Nominal deviation: +/- 40 kHz
Peak deviation: +/- 54 kHz
Pre-emphasis: 50 us
Compander: Q5X DCS-QT
Signal to Noise: 105dB (A) RMS
Frequency stability: +/- 0.001%
Spurious Emission: <- 60 dBc
Total harmonic distortion (THD): 0.3% at nominal deviation
Frequency response: 50 Hz to 17,000 Hz NOTE: System frequency response is dependent on the microphone element
Audio connector: 1 pin Lemo
Antenna: 1/4 wave flex
Battery: Internal lithium-polymer
Operating time: (Battery) estimated 8 hrs @ 50mW
Operating Temperatures: -10C to +45C
Approvals: FCC, CE, Industry Canada
