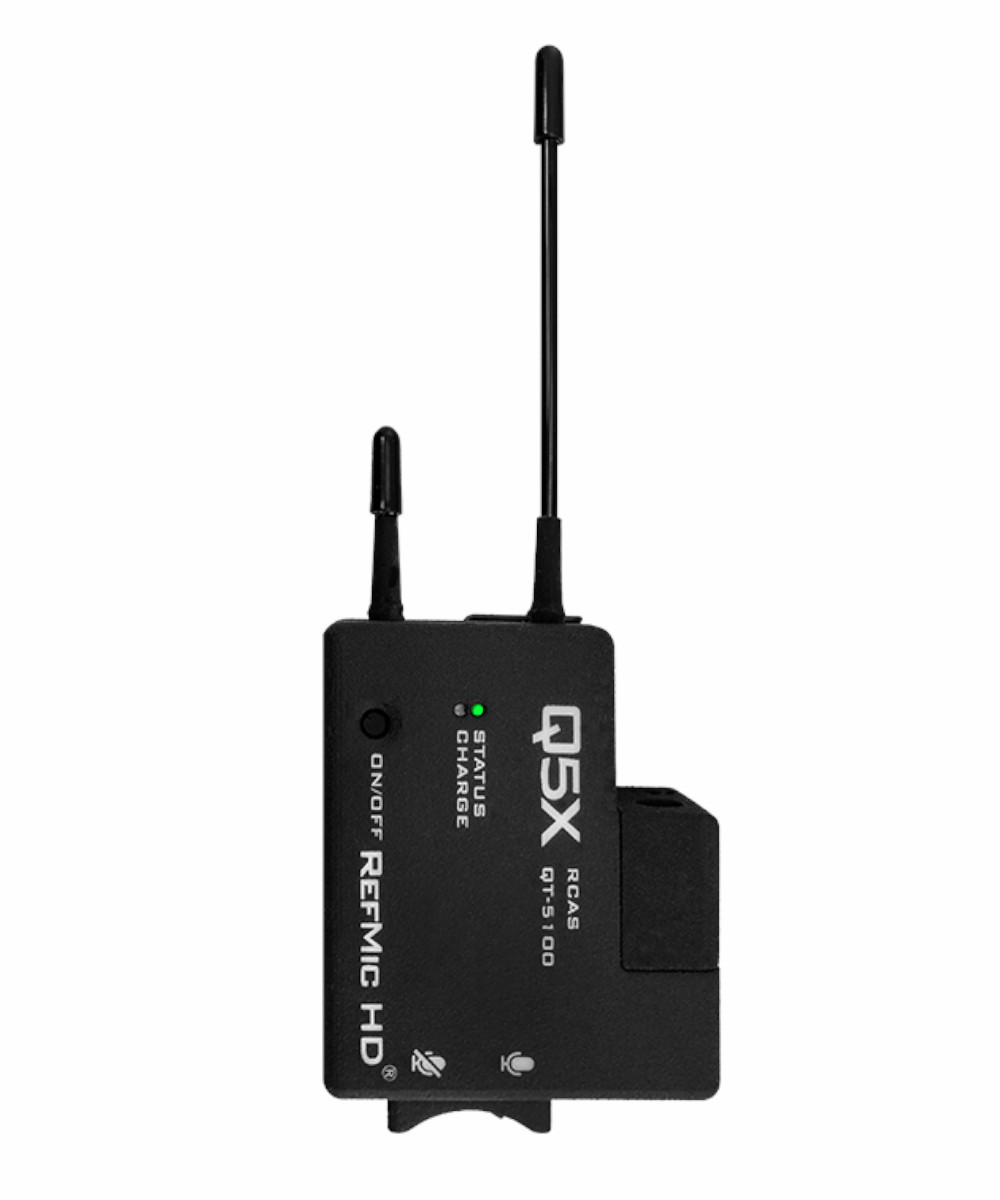

Q5X RefMicHD QT-5100
2,995.00 USD
Q5X RefMicHD — Micro-sized transmitter in an impact resistant nylon case. Protective cover over Lemo mic connector for extra ruggedness. Internal lithium-polymer rechargeable battery
- Belt pack style
- 8 hr run time @ 50mw
- RF output settings 10 – 100mw
Choice of frequency block and additional compatibility mode. (All Q5X QT-5100 transmitters come with 2 default Q5X modes.)
Share on:
Description
Q5X RefMicHD QT-5100
The analog Q5X RefMicHD (Heavy Duty) is a micro-sized transmitter in an impact resistant nylon case. Protective cover over Lemo mic connector for extra ruggedness. Internal lithium-polymer rechargeable battery.
- Belt pack style
- 8 hr run time @ 50mW
- Power output range 10 – 100mW
Audio Mute Switch
The RefMicHD incorporates a non-popping, audio mute switch. This enables the wearer to mute and unmute the audio without causing any audible popping. This transmitter is ideal for Referees, Umpires and a variety of officials who only need audio for brief announcements.
Remote Control Audio System
The QT-5100 RefMicHD utilizes RCASâ„¢ (Remote Control Audio System), a revolutionary way to remotely control transmitter settings from a central computer or hand held remote control. The remote functions allow technicians to control; on/off, monitor status and battery level and make on-the-fly adjustments of frequency, mic gain, RF power level, mode and grouping, all wirelessly.
3000 Channels
The RefMicHD offers approximately 3,000 channels per frequency block. It is remotely tunable from 470 to 700 MHz in 25 kHz steps.
Comfortable and Concealable
The QT-5100 RefMic has a tough nylon case with belt clip. This transmitter weighs less than 2 ounces and is only 1/2″ thick. The QT-5100 RefMicHD joins the Q5X family as the most comfortable audio transmitters in the industry.
Technical Data
- Dimensions: 66.5mm x 57.5mm x 20mm
- Housing: Nylon case
- RF output power: 10 to 100mW (user selectable, country restrictions apply)
- Number of channels: approx. 3,000 per frequency block
- RF frequency range: 470 to 700 MHz
- Switching bandwidth: 75MHz (25 kHz steps)
- Modulation: FM
- Nominal deviation: +/- 40 kHz
- Peak deviation: +/- 54 kHz
- Pre-emphasis: 50 us
- Compander: Q5X DCS-QT
- Signal to Noise: 105dB (A) RMS
- Frequency stability: +/- 0.001%
- Spurious Emission: <- 60 dBc
- Total harmonic distortion (THD): 0.3% at nominal deviation
- Frequency response: 50 Hz to 17,000 Hz NOTE: System frequency response is dependent on the microphone element
- Audio connector: 1 pin Lemo
- Antenna: 1/4 wave flex
- Battery: Internal Lithium Polymer
- Operating time: (Battery) estimated 8 hrs @ 50mW
- Operating Temperatures: -10C to +45C
- Approvals: FCC, CE, Industry Canada
