Q5X Incognito QT-5100 Analog
- Two-piece analog bodypack transmitter
- Detachable battery hides apart from the transmitter
- RCAS remote control, 470 to 700 MHz
$2,595.00 USD
Q5X Incognito QT-5100 Analog

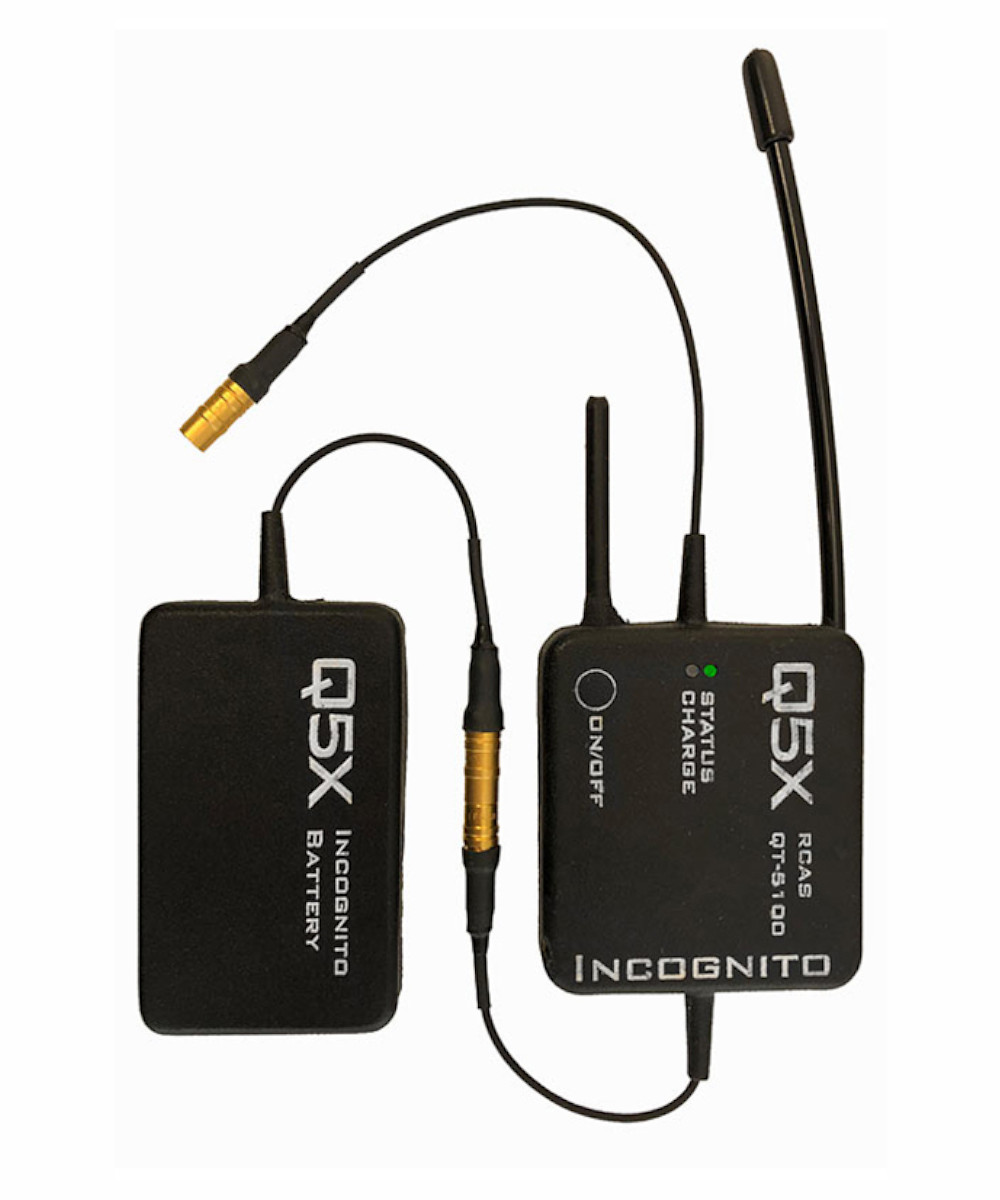

The Q5X Incognito is a two-piece QT-5100 analog bodypack transmitter, with the transmitter and its detachable battery in separate flexible, water-resistant rubber cases.
Two Pieces to Hide
Its two pieces can be hidden in wigs, undergarments, or almost any costume or stage prop. The transmitter measures 47.5 by 43 by 10.5 mm and weighs 29.8 g without its battery, and a removable lavalier plugs into its 1-pin Lemo connector.
The plug-in lithium-polymer battery pack changes quickly. Q5X makes it in three sizes, rated at about 4, 8, and 16 hours at 50 mW.
Frequency Bands
It tunes from 470 to 700 MHz in three frequency blocks, and its RF output power is selectable at 10, 25, 50, or 100 mW. Besides Q5X receivers, it works with one other maker’s analog receivers. The compatibility mode for Lectrosonics UCR and SRc receivers is chosen when the transmitter is ordered.
Remote Control
Q5X’s RCAS remote control runs from a QG-H2 MicCommander or a QG-N3 Network Gateway, over a 2.4 GHz link that passes through clothing and walls. From either one, an operator sets power on or off, frequency, mic gain, offset and mute, RF power, and groups, and checks battery level without handling the transmitter once it is worn.
Features
- Two-piece flexible, water-resistant rubber design
- Transmitter 47.5 x 43 x 10.5 mm, 29.8 g without battery
- Detachable lithium-polymer battery pack in three sizes
- Tunes from 470 to 700 MHz in three frequency blocks
- RF output power of 10, 25, 50, or 100 mW
- RCAS remote control from a QG-H2 or QG-N3
- Compatibility mode for Lectrosonics UCR and SRc receivers
- 1-pin Lemo connector for a removable lavalier
What's Included
- Carrying pouch
- Incognito transmitter
- Micro USB charging cable
Specifications
| Frequency Range | 470 to 700 MHz |
|---|---|
| Frequency Blocks | 3 |
| Tuning Steps | 25 kHz |
| RF Output Power | 10, 25, 50, or 100 mW (selectable) |
| Modulation | FM |
| Compander | Q5X DCS-QT |
| Signal-to-Noise Ratio | 105 dB (A) RMS |
| Total Harmonic Distortion | 0.3% at nominal deviation |
| Audio Connector | 1-pin Lemo |
| Antenna | 1/4 wave UHF and 2.4 GHz |
| Remote Control | RCAS over 2.4 GHz (QG-H2 MicCommander or QG-N3 Network Gateway) |
| Battery | Detachable lithium-polymer pack |
| Small Battery | About 4 hours at 50 mW; 18.5 g; 43 × 29 × 10 mm |
| Medium Battery | About 8 hours at 50 mW; 30.4 g; 49 × 38.5 × 10 mm |
| Large Battery | About 16 hours at 50 mW; 48.3 g; 58.5 × 39 × 13.5 mm |
| Transmitter Dimensions | 47.5 × 43 × 10.5 mm |
| Transmitter Weight | 29.8 g (without battery) |
| Housing | Polymer |
| Approvals | FCC, CE, Industry Canada |
Compatibility
| Mode | Works With |
|---|---|
| Q5X | Q5X receivers, such as the QR-M3 |
| Mode 3 | Lectrosonics UCR and SRc receivers |
Analog receivers Q5X lists as compatible:
| Maker | Receiver |
|---|---|
| Lectrosonics | UCR411a |
| Lectrosonics | SRc Series |
| Lectrosonics | Venue2 |
| Wisycom | MCR54-DUAL |
| Wisycom | MCR54 |
| Wisycom | MRK16 |
| Sennheiser | ew 500 G4-945-AS |
