Q5X CoachMic QT-5100 Analog

$2,795.00 USD

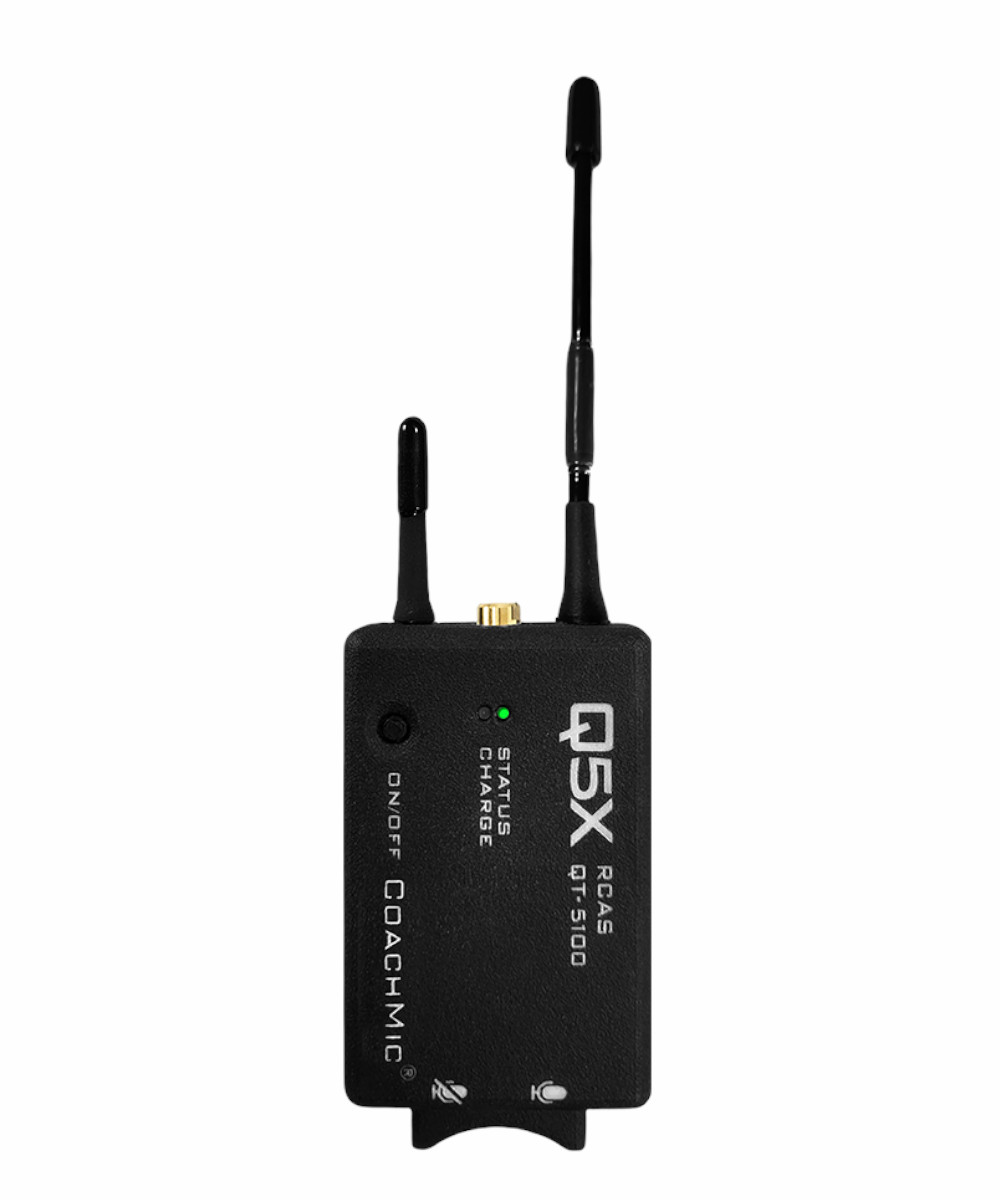

Q5X CoachMic QT-5100 Analog — Micro-sized transmitter in an impact-resistant hard nylon case. Integrated rocker-style mute switch with LED indicator light for mute/live status.

  • Belt pack style
  • 8 hr run time @ 50mW
  • RF output range 10 – 100mW

Choice of frequency block and additional compatibility mode. (All Q5X QT-5100 analog transmitters come with 2 default Q5X modes.)



Available on Backorder

(Lead times may vary)

Call for Details: 800-241-8994

Quantity:

SKU: Q5X.QT5100C Categories: , , Tags: , ,

Description

Q5X CoachMic QT-5100 Analog

Micro-sized transmitter in an impact-resistant hard nylon case. Has a large, easy-to-use integrated rocker-style mute switch with an LED indicator light for mute/live status.  Internal lithium-polymer rechargeable battery and LEMO connector for a removable lavalier.

  • Belt pack style
  • 8 hr run time @ 50mW
  • RF output range 10 – 100mW

Audio Mute Switch

The Q5X CoachMic QT-5100 incorporates an easy-access rocker-style audio mute switch. This enables the wearer to mute and unmute the audio without causing any audible popping. This transmitter is ideal for referees, umpires, and a variety of officials who only need audio for brief announcements. This is also a good solution for corporate presenters who need a top quality audio experience where they can choose to mute the audio for confidential side conversations.

Remote Control Audio System

The Q5X CoachMic QT-5100 utilizes RCAS™ (Remote Control Audio System) a revolutionary way to remotely control transmitter settings from a central computer or handheld remote control. The remote functions allow technicians to control; on/off, monitor status and battery level and make on-the-fly adjustments of frequency, mic gain, RF power level, mode and grouping, all wirelessly.

3000 Channels

The QT-5100 CoachMic is offered in 3 tuning blocks that span 470 to 700 MHz in 25 kHz steps, with approximately 3000 channels per block.

Comfortable and Concealable

The QT-5100 CoachMic has a tough nylon case with 2 belt clip options allowing the transmitter to be worn either vertically in a jacket pocket or horizontally on a belt. Weighing 2 ounces and only 3/4″ thick, the QT-5100 CoachMic joins the QT family as the most comfortable and functional wearer mutable audio transmitter in the industry.

Technical Data

  • Dimensions: 65.5 mm x 42 mm x 18.5 mm
  • Weight (including battery):  58.1 g
  • Housing Material: Nylon Case
  • RF output power: 10mW to 100mW (user selectable, country restrictions apply)
  • UHF frequency range 470 to 700 MHz in 3 frequency blocks
  • Tunable bandwith: Varies by frequency block (25 kHz steps)
  • Modulation: FM
  • Nominal deviation: +/- 40 kHz
  • Peak deviation: +/- 54 kHz
  • Pre-emphasis: 50 us
  • Compander: Q5X DCS-QT
  • Signal to Noise: 105dB (A) RMS
  • Frequency stability: +/- 0.001%
  • Spurious emission: <- 60 dBc
  • Total harmonic distortion (THD): 0.3% at nominal deviation
  • Frequency response: 50 Hz to 17,000 Hz
    • NOTE: System frequency response is dependent on the microphone element
  • Audio connector: 1 pin Lemo
  • Antenna: 1/4 wave UHF and 2.4 GHz
  • Battery: Internal Lithium Polymer
  • Operating time: (Battery) estimated 8 hrs @ 50mW
  • Operating temperatures: -10⁰C to 45⁰C
  • Approvals: FCC, CE, Industry Canada
