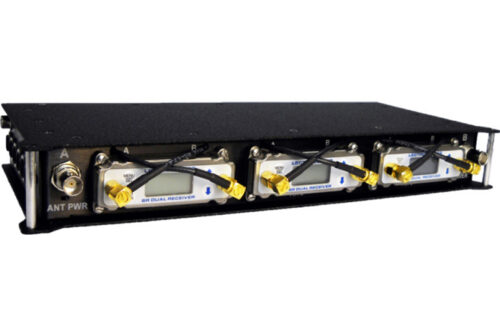

PSC RF Six Pack Slot Receiver

$1,330.50

The PSC Slot Receiver Six Pack has been designed to provide a convenient and compact way of utilizing three slot receivers made by various manufacturers.

Clear
SKU: N/A Categories: , Tag:

Description

PSC RF Six Pack Slot Receiver

PSC is pleased to announce that the RF Six Pack is now shipping. These two new versions of the industry standard RF Six Pack offer two different versions to allow operation with today’s new legal frequency blocks.

Recent changes to the legal operational frequency spectrum have led to the development of these two new models. The “Single Band” model is primarily designed for use outside of the USA and the new “Dual Band” model is primarily designed for use in the USA. The “Single Band” unit has an operational frequency range of 470Mhz to 700Mhz. The “Dual Band” model has an operational frequency range of 470Mhz to 618Mhz and also offers 940Mhz to 960Mhz for use with the new Lectro 941 Block as used in the USA.

  • Provides Power Distribution
  • Provides Low Noise RF Distribution
  • DTV Band-pass limited
  • Can be used Independently in ENG bags or on Cart Based systems
  • Compact and Light Weight

The PSC Slot Receiver Six Pack has been designed to provide a convenient and compact way of utilizing three slot receivers made by various manufacturers. The PSC RF Multi SR Six Pack provides power and diversity RF distribution to the three receivers. It has been designed to be used as a stand-alone unit with other ENG-style mixers or for use by cart based sound recordists. The PSC RF Multi SR Six Pack provides bandwidth limited, super low noise RF distribution. It has been designed with two BNC antenna inputs and offers switchable antenna powering for use with powered antennas and remote amplifiers. The RF signal is input level limited, amplified to prevent signal loss though the unit, band-pass filtered and then split to the three receivers. RF outputs are delivered to the receivers via six right-angle, cable-mounted SMA connectors. The state of the art RF amplifier features a very low noise figure for exceptional performance in the field. It can also be powered via the standard 4 pin Hirose power connection and offers six individual mini XLR audio output connectors. The unit is housed in a robust, aircraft aluminum housing which has been anodized and texture powder coated. This product is made in the U.S.A.

Aaton Integration

Aaton has developed a special interface PCB for the RF Six Pack that will allow the RF Six Pack to interface directly to their Cantar and Cantar Mini Recorders. This interface will allow the Cantar user to monitor RF performance of the slot receivers (Lectrosonics, Wisycom and Audio Limited) directly on the Cantar recorder. The interface will connect to the Cantar recorders via a USB cable. This new interface PCB will be available sometime toward the end of 2018. It will be offered as an option on any of the RF Six Packs at the time of purchase. Additionally, the current second-generation PSC RF Six Packs will
have an upgrade path so that they can be upgraded to include the Aaton Interface.

** PLEASE NOTE** This upgrade kit will only be available through Aaton dealers and will not be
available from PSC.

Reviews

There are no reviews yet.

Be the first to review “PSC RF Six Pack Slot Receiver”

Size 12.25” wide x 5.25” deep x 1.625” high
Weight 2 Lbs
RF Bandwidth 470Mhz to 870Mhz
RF Amp Noise Figure 2.0dB
IP3: +39
Output Isolation 24dB
Power [email protected] 75mA
RF Inputs BNC, 50 ohms
RF Outputs R.A. SMA, 50 ohms
Chassis Aircraft Aluminum
Finish Anodize and powder coat
Warranty 1 year, Limited
