PSC Cart Power II DC Power Distribution
- Filtered DC power for a small sound cart
- Runs on AC, a battery, or both
- Switches to battery without a break when AC is cut
$801.50 USD

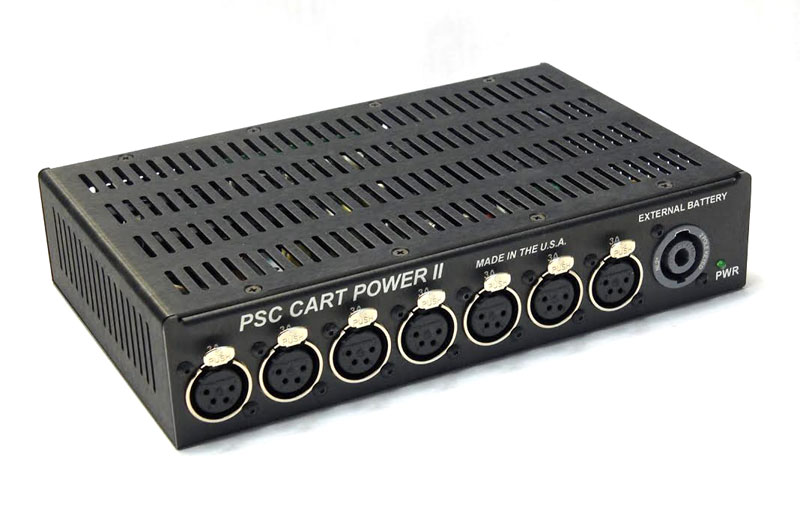

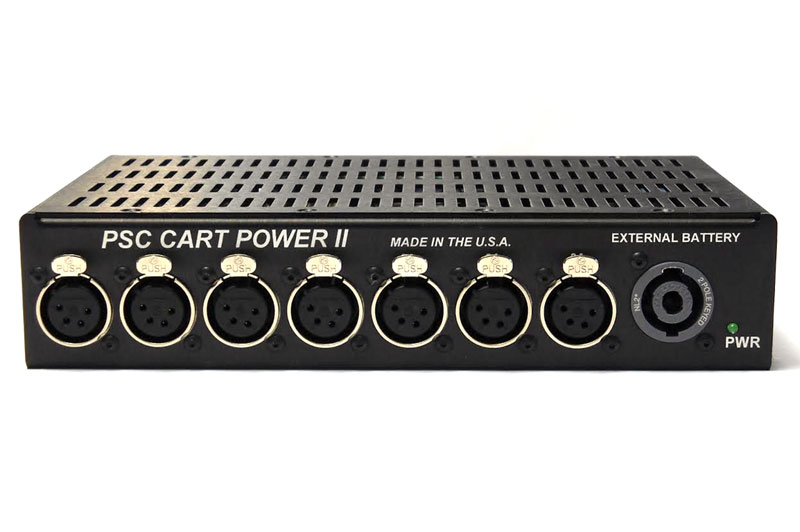

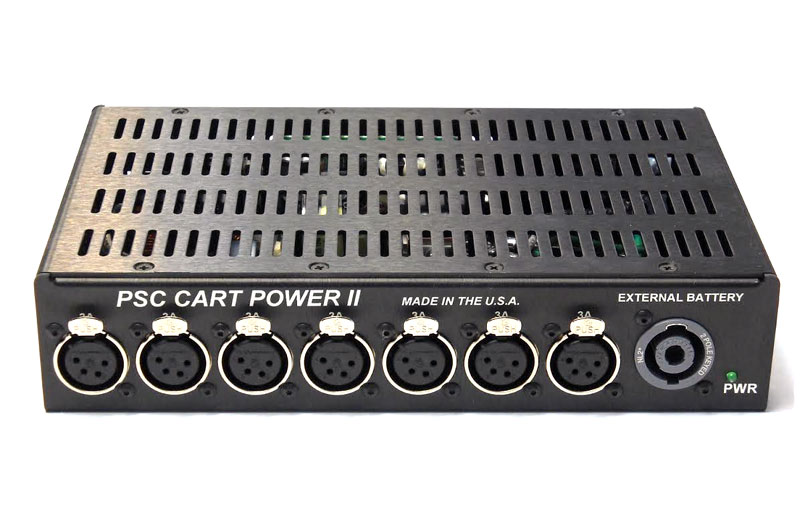

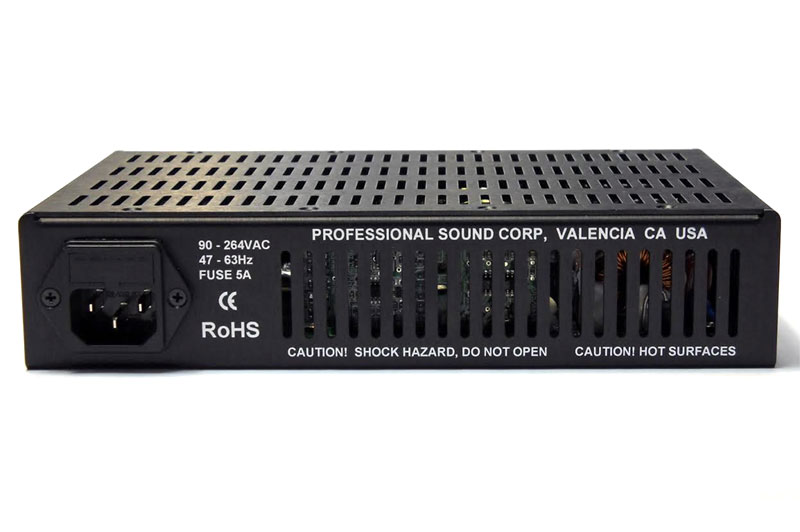

PSC Cart Power II DC Power Distribution
The PSC Cart Power II distributes filtered DC power to the equipment on a small sound cart, from AC power, a battery, or both at once.
It runs on AC power anywhere in the world without adjustment and supplies up to 10 A of DC at 14.8 V. A 2-pole SpeakOn input takes an external LiFePO4, Li-ion, or sealed lead acid battery. With AC and a battery both connected, it works as an uninterruptible supply: it runs on AC while AC is there and switches to the battery seamlessly and quietly if AC is cut.
Each output has a PSC Quiet Power Technology filter that blocks intermodulation noise from today’s equipment. An automatically resetting polyfuse on each output protects it against short circuits. The outputs are 4-pin female XLRs rated at 3 A each.
Features
- Worldwide AC input, 90 to 264 VAC, no adjustment
- Up to 10 A of DC output
- External battery input on a 2-pole SpeakOn
- Uninterruptible switchover from AC to battery
- PSC Quiet Power Technology filter on each output
- Resettable polyfuse on each output
- 4-pin XLR outputs, 3 A each
Specifications
| Power | |
|---|---|
| AC Input | 90 to 264 VAC, 47 to 63 Hz |
| Output Voltage | 14.8 VDC on AC |
| Battery Input | LiFePO4, Li-ion, or SLA, 12 V nominal |
| Battery Connector | 2-pole SpeakOn |
| Outputs | |
| Output Current | 3 A per output, 10 A total |
| Output Connector | 4-pin XLR female; pin 1 negative, pin 4 positive |
| General | |
| Size | 8.5 × 5.5 × 1.75 in (21.6 × 14 × 4.4 cm) |
| Weight | 2.2 lb (1 kg) |
| Warranty | 1 year, limited, parts and labor |
| Latest Specifications | Specifications are subject to change without prior notice. For current information, visit www.professionalsound.com. |
