PSC Baby Zeus Power Distribution System
- AC supply, charger, and 20 Ah LiFePO4 battery in one unit
- Eight filtered, fused outputs and USB charging
- Half-rack width for small carts and stage boxes
$2,262.25 USD
PSC Baby Zeus Power Distribution System
The PSC Baby Zeus puts an AC supply, a charger, a 20 Ah LiFePO4 battery, and filtered power distribution in one compact rack unit for small sound carts and stage boxes.
Half the width of a standard rack, it fits where a full cart system will not, such as a stage box of Lectrosonics DSQD receivers and other Dante gear broken off from the main cart. The 300 W AC supply charges the 12.8 V, 256 Wh battery in about 1.5 hours and runs the outputs from AC alone (12 A) or from the battery (20 A).

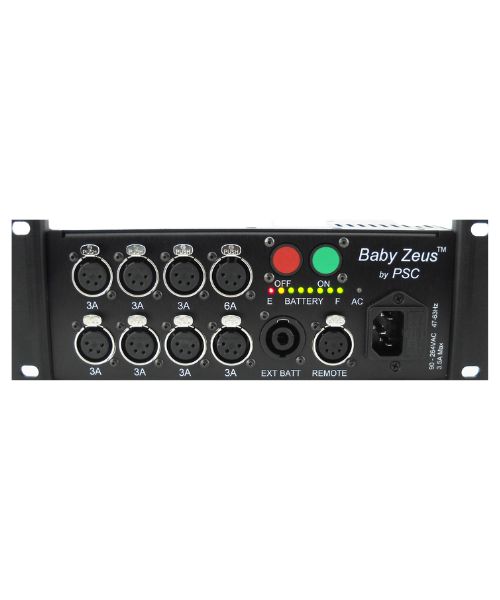

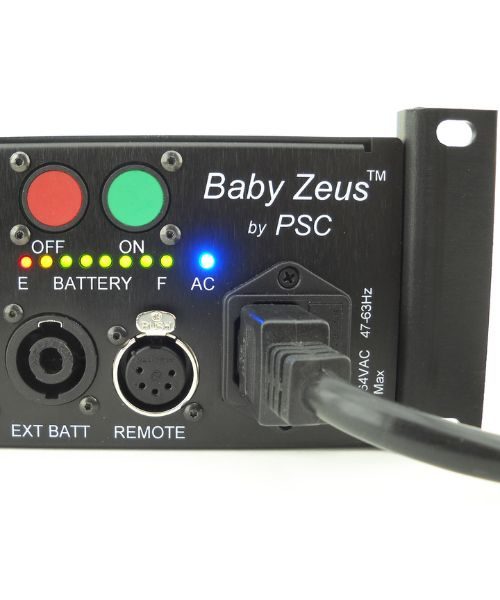

Eight fused outputs (one 6 A and seven 3 A) carry PSC Silent Power filtering, and two USB ports give 4 A of charging power. A remote control box adds on and off control, a second battery meter, and two more USB ports. A 2-pole SpeakOn takes an external battery. The rack brackets are reversible and can be offset.
Features
- Built-in 12.8 V 20 Ah (256 Wh) LiFePO4 battery with cell balancing
- 300 W AC supply and charger, about 1.5 hours to charge

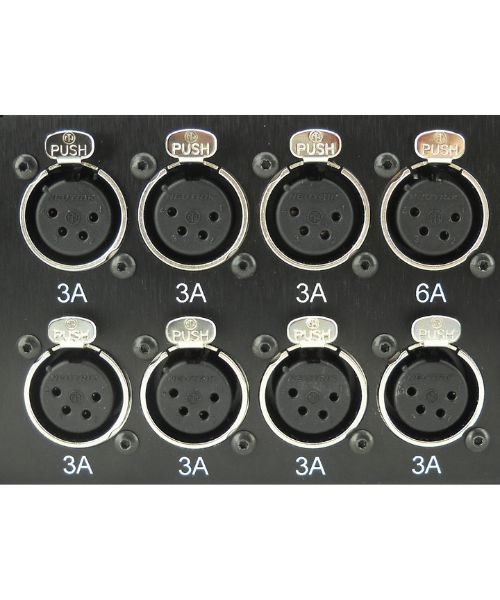

- One 6 A and seven 3 A filtered outputs
- 4 A of USB charging

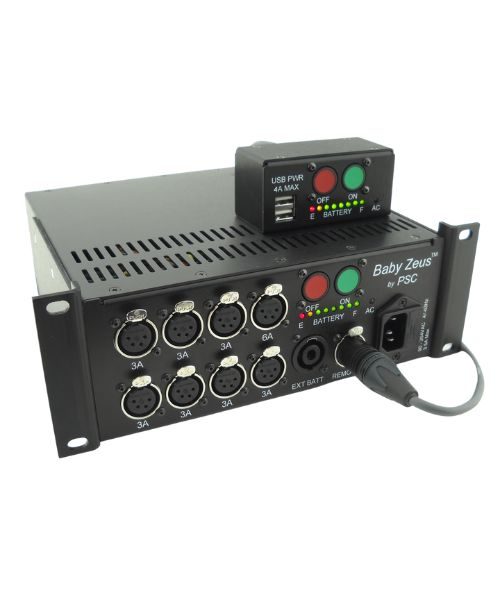

- Remote control box with on and off, battery meter, and USB

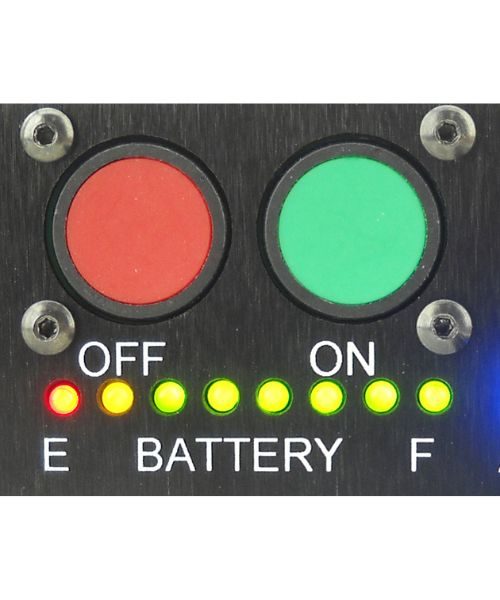

- Multicolor battery fuel gauge

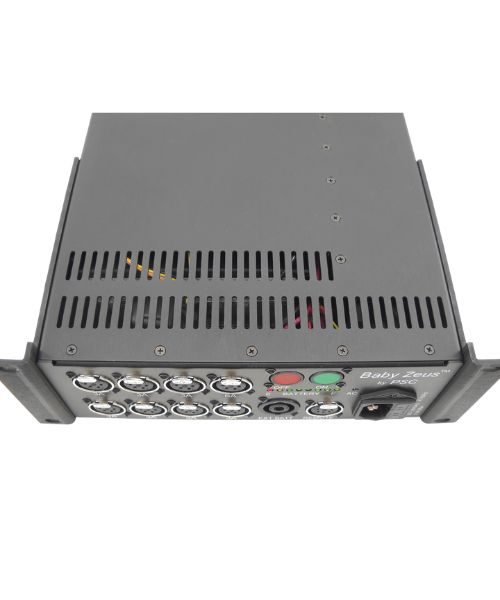

- Half-rack width, reversible offset rack brackets
What's Included
- Baby Zeus power distribution system
- Remote control box
Specifications
| General | |
|---|---|
| Size | 8.5 × 8.5 × 3.5 in (22 × 21 × 9 cm), W x D x H |
| Weight | 9 lb (4 kg) |
| Operating Temperature | −4 to +124 °F (−20 to +50 °C), within battery limits |
| Power | |

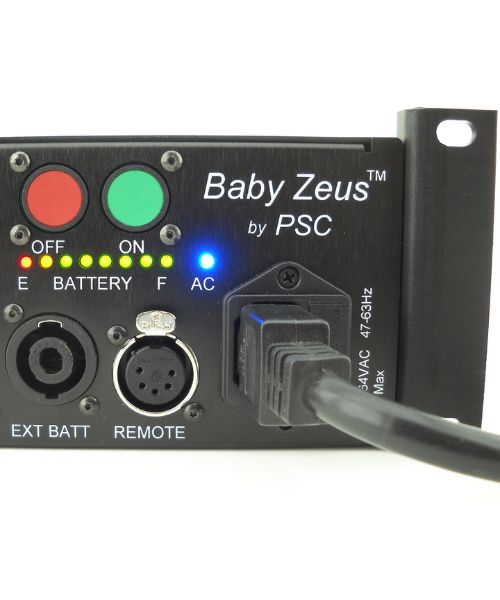

| AC Input | 90 to 260 VAC, 47 to 63 Hz |
| Battery | LiFePO4, 12.8 V, 20 Ah (256 Wh) |
| Charging Time | About 1.5 hours, typical cart, no load |

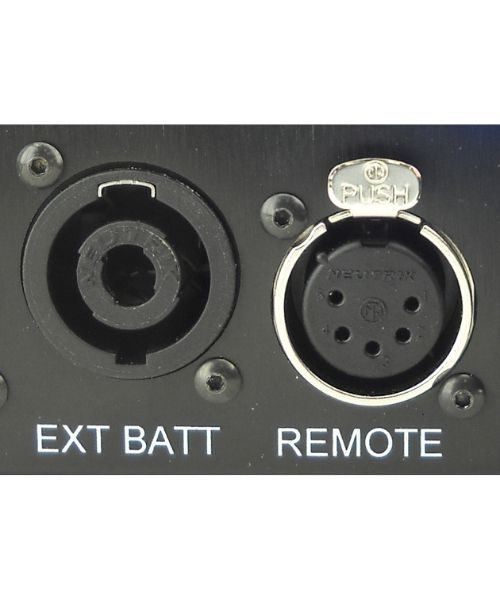

| Battery Connector | 2-pole SpeakOn (mates with Neutrik NL2FC) |
| Outputs | |
| DC Outputs | 1 × 6 A, 7 × 3 A |
| Output Voltage | 12.8 VDC nominal |
| Output Current | 20 A on battery, 12 A on AC only |
| USB Charging | 2 ports, 5 VDC, 4 A total |
| Warranty | 1 year, limited, parts and labor |
| Latest Specifications | Specifications are subject to change without prior notice. For current information, visit www.professionalsound.com. |
