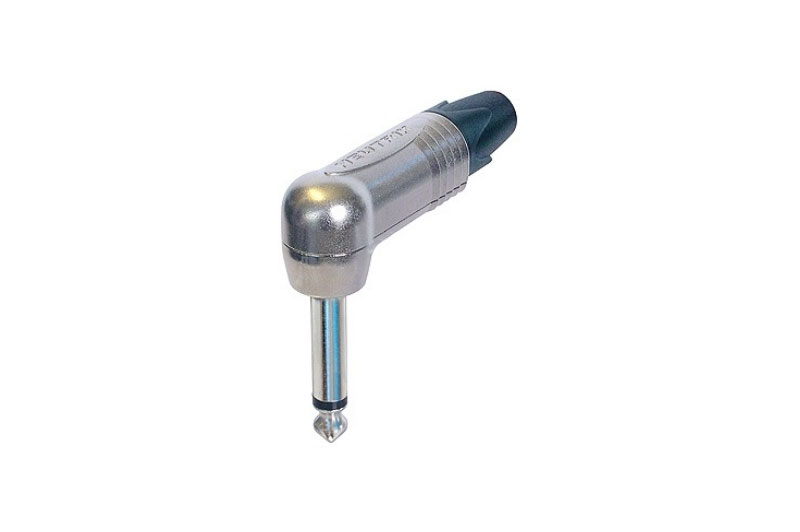

Neutrik NP2RX 2-Pole Right-Angle 1/4-Inch Phone Plug

With a slim metal shell only 14.5 mm wide, the Neutrik NP2RX is a 2-pole right-angle 1/4-inch phone plug built for dense jackfields with a 15.88 mm jack pitch.

It suits guitar and audio cables, snakes, speakers, amplifiers, and mixers. Its one-piece tip contact is precision machined with no rivets, so the tip does not catch in a socket or break off. The housing is all metal, with no plastic cover, for durability and EMI protection.

A chuck-type strain relief holds cable from 4 to 7 mm in outer diameter, and the brass contacts take wire up to 1 mm² (18 AWG) on solder terminations. Neutrik makes colored boots and colored rings with a label surface for it, and a large bushing for thicker cable. Trew Audio carries it with a nickel housing and nickel contacts, or a black housing and gold contacts.

Features

• 2-pole right-angle 1/4-inch phone plug
• Slim diecast metal shell 14.5 mm wide
• For jackfields with a 15.88 mm jack pitch
• All-metal housing for durability and EMI protection
• Precision-machined one-piece tip contact with no rivets
• Chuck-type strain relief for cable from 4 to 7 mm
• Solder terminations for wire up to 1 mm² (18 AWG)
• Nickel housing with nickel contacts, or black housing with gold contacts
