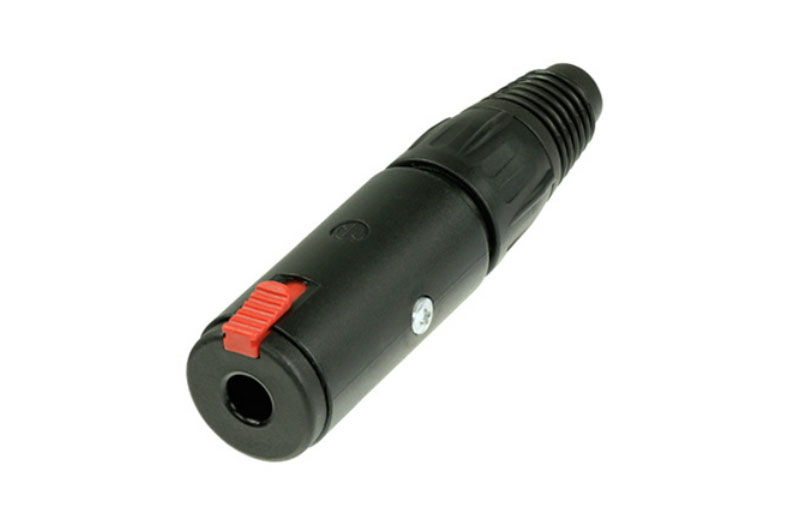

Neutrik NJ3FC6 3-Pole Locking 1/4-Inch Cable Jack
- 3-pole locking 1/4-inch cable jack
- Latches with A-gauge mono or stereo plugs
- Red release tab and metal shell
From $10.95 USD
Neutrik NJ3FC6 3-Pole Locking 1/4-Inch Cable Jack
The Neutrik NJ3FC6 is a 3-pole locking 1/4-inch cable jack for secure in-line connections where accidental disconnects, shock, or vibration can occur.
It latches with standard A-gauge mono or stereo plugs to EIA RS-453. A plug locks in automatically when it mates, with a locking force over 80 N, and comes out only when you press the red release tab.
The metal shell takes the same cable retention and boot as Neutrik’s XLR connectors, for cable from 3.5 to 8 mm in outer diameter, and the contacts are solder terminals. Boots in 10 colors are available for coding and marking. Trew Audio carries it with a black housing.
Features
- 3-pole locking 1/4-inch cable jack
- Mates with A-gauge mono and stereo plugs to EIA RS-453
- Locks automatically and releases with a red tab
- Locking force over 80 N
- Metal shell with the cable retention and boot of Neutrik’s XLR connectors
- Solder terminals with silver contacts
- Rated for over 10,000 mating cycles
- Black housing
Specifications
| General | |
|---|---|
| Connection Type | Jack, cable |
| Poles | 3 |
| Gender | Female |
| Locking Device | Latch lock |
| Electrical | |
| Contact Resistance | 6 mΩ max. (initial) |
| Dielectric Strength | 1 kV DC |
| Insulation Resistance | 1 GΩ min. at 500 V DC |
| Rated Current per Contact | 10 A |
| Mechanical | |
| Cable O.D. | 3.5 – 8.0 mm 0.14 – 0.31 in |
| Insertion Force | Under 30 N |
| Withdrawal Force | Under 20 N |
| Lifetime | Over 10,000 mating cycles |
| Locking Force | Over 80 N |
| Wire Size | 1 mm² (18 AWG) |
| Wiring | Solder contacts |
| Material | |
| Boot | Polyurethane |
| Contact Plating | 2 µm Ag |
| Contacts | Brass (CuZn37) (Ground) |
| Insert | Polyamide (PA 6.6 30% GR) |
| Shell | Zinc diecast (ZnAl4Cu1) |
| Shell Plating (Nickel Housing) | Nickel |
| Shell Plating (Black Housing) | Black |
| Strain Relief | Polyacetal (POM) |
| Environmental | |
| Standard Compliance | EIA RS 453, IEC 60603-11 |
| Solderability | Complies with IEC 68-2-20 |
| Temperature Range | −25 to 70 °C −13 to 158 °F |
