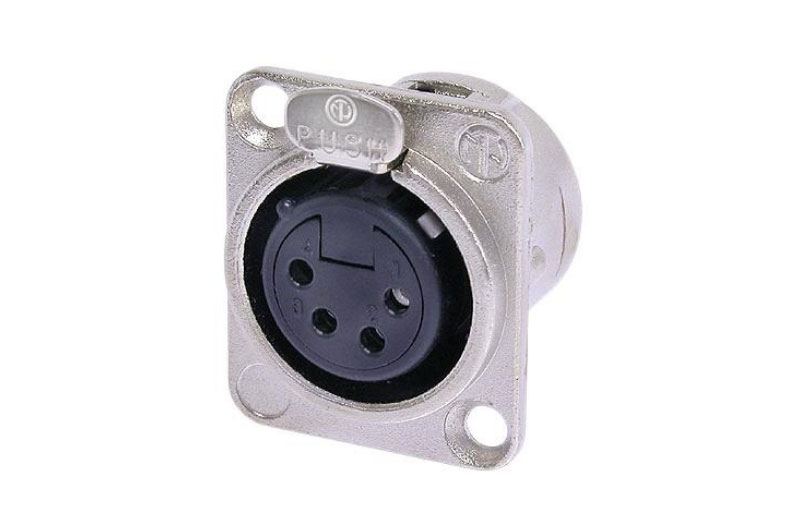

Neutrik NC4FD-L 4-Pole Female XLR Panel-Mount Receptacle
- 4-pole female XLR panel-mount receptacle
- D-size metal shell for a 24 mm panel cutout
- Black housing with gold contacts
From $8.46 USD
Neutrik NC4FD-L 4-Pole Female XLR Panel-Mount Receptacle
The Neutrik NC4FD-L brings a 4-pole female XLR connection to a panel, in a robust D-size metal shell that fits a standard 24 mm cutout.
It belongs to Neutrik’s D-size series of metal XLR panel-mount connectors and is a UL recognized component. It locks with a latch, and its brass contacts are rated at 10 A each and take wire up to 1.5 mm² (16 AWG).
Neutrik makes accessories for it, among them colored lettering plates, a rubber sealing cover, a hinged cover, and a soft plastic cover for the rear end. Trew Audio carries it with a black housing and gold contacts.
Features
- 4-pole female XLR panel-mount receptacle
- Robust D-size zinc diecast metal shell
- Fits a standard D-size 24 mm panel cutout
- Latch lock
- Solder cups for wire up to 1.5 mm² (16 AWG)
- Brass contacts rated at 10 A each
- UL recognized component
- Black housing with gold contacts
Specifications
| General | |
|---|---|
| Connection Type | XLR receptacle, panel mount |
| Poles | 4 |
| Gender | Female |
| Chassis Shape | D |
| Locking Device | Latch lock |
| Electrical | |
| Capacitance Between Contacts | 7 pF max. |
| Contact Resistance | 5 mΩ max. |
| Dielectric Strength | 1.5 kV DC |
| Insulation Resistance | Over 10 GΩ (initial) |
| Rated Current per Contact | 10 A |
| Rated Voltage | Under 50 V |
| Mechanical | |
| Insertion Force | 20 N max. |
| Withdrawal Force | 20 N max. |
| Lifetime | Over 1,000 mating cycles |
| Wire Size | 1.5 mm² (16 AWG) max. |
| Wiring | Solder contacts |
| Material | |
| Contacts | Brass (CuZn39Pb3) |
| Contact Plating (Silver Contacts) | 2 µm Ag over 2 µm Ni |
| Contact Plating (Gold Contacts) | 0.2 µm Au hard alloy over 2 µm Ni |
| Insert | Polyamide (PA66) |
| Locking Element | Steel Ck67 |
| Locking Element Plating | Nickel |
| Shell | Zinc diecast (ZnAl4Cu1) |
| Shell Plating (Nickel Housing) | Nickel |
| Shell Coating (Black Housing) | Black KTL |
| Environmental | |
| Approvals | UL |
| Flammability | UL 94 V-0 |
| Standard Compliance | IEC 61076-2-103 |
| Protection Class | IP40 |
| Solderability | Complies with IEC 68-2-20 |
| Temperature Range | −30 to 80 °C −22 to 176 °F |
