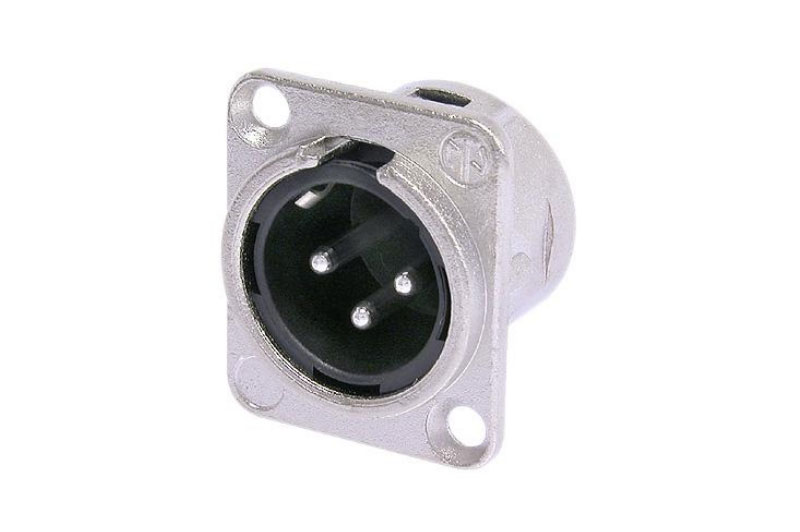

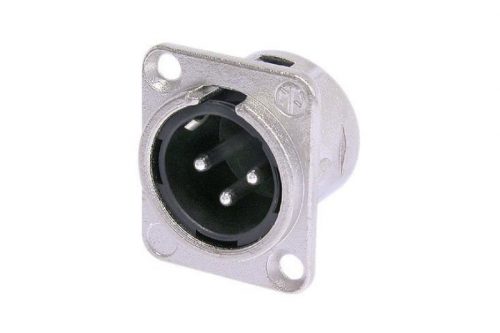

Neutrik NC3MD-L 3-Pole Male XLR Panel-Mount Receptacle
- 3-pole male XLR panel-mount receptacle
- D-size metal shell for a 24 mm panel cutout
- Black housing with silver or gold contacts
From $3.84 USD
Neutrik NC3MD-L 3-Pole Male XLR Panel-Mount Receptacle
Made for a standard D-size 24 mm panel cutout, the Neutrik NC3MD-L is a 3-pole male XLR receptacle with a robust metal shell and solder cups.
It belongs to Neutrik’s D-size series of metal XLR panel-mount connectors and is a UL recognized component. It mounts from the front of the panel and locks with a latch, and its brass contacts are rated at 16 A each.
Neutrik makes accessories for it, among them colored lettering plates, a rubber sealing cover, a hinged cover, and a soft plastic cover for the rear end. Trew Audio carries it with a black housing and silver or gold contacts.
Features
- 3-pole male XLR panel-mount receptacle
- Robust D-size zinc diecast metal shell
- Fits a standard D-size 24 mm panel cutout
- Front mounting
- Latch lock
- Solder cups on brass contacts rated at 16 A each
- UL recognized component
- Black housing with silver or gold contacts
Specifications
| General | |
|---|---|
| Connection Type | XLR receptacle, panel mount |
| Poles | 3 |
| Gender | Male |
| Chassis Shape | D |
| Mounting Direction | Front mounting |
| Locking Device | Latch lock |
| Electrical | |
| Capacitance Between Contacts | 4 pF max. |
| Contact Resistance | 5 mΩ max. |
| Dielectric Strength | 1.5 kV DC |
| Insulation Resistance | Over 10 GΩ (initial) |
| Rated Current per Contact | 16 A |
| Rated Voltage | Under 50 V |
| Mechanical | |
| Insertion Force | 20 N max. |
| Withdrawal Force | 20 N max. |
| Lifetime | Over 1,000 mating cycles |
| Wiring | Solder contacts |
| Material | |
| Contacts | Brass (CuZn35Pb2) |
| Contact Plating (Silver Contacts) | 2 µm Ag over 2 µm Ni |
| Contact Plating (Gold Contacts) | 0.2 µm Au hard alloy over 2 µm Ni |
| Insert | Polyamide (PA 6.6 30% GR) |
| Locking Element | Steel Ck67 |
| Shell | Zinc diecast (ZnAl4Cu1) |
| Shell Plating (Nickel Housing) | Nickel |
| Shell Coating (Black Housing) | Black KTL |
| Environmental | |
| Approvals | UL |
| Flammability | UL 94 HB |
| Standard Compliance | IEC 61076-2-103 |
| Protection Class | IP40 |
| Solderability | Complies with IEC 68-2-20 |
| Temperature Range | −30 to 80 °C −22 to 176 °F |
