Lectrosonics SMBATELIM Battery Eliminator for SM Series Transmitters
- Runs SM Series transmitters from 6 to 36 VDC
- Replaces the battery door, single or dual battery models
- Locking power connector, protected against shorts
Unavailable for shipping outside the United States and Canada.
$184.00 USD
In Stock
Lectrosonics SMBATELIM Battery Eliminator for SM Series Transmitters

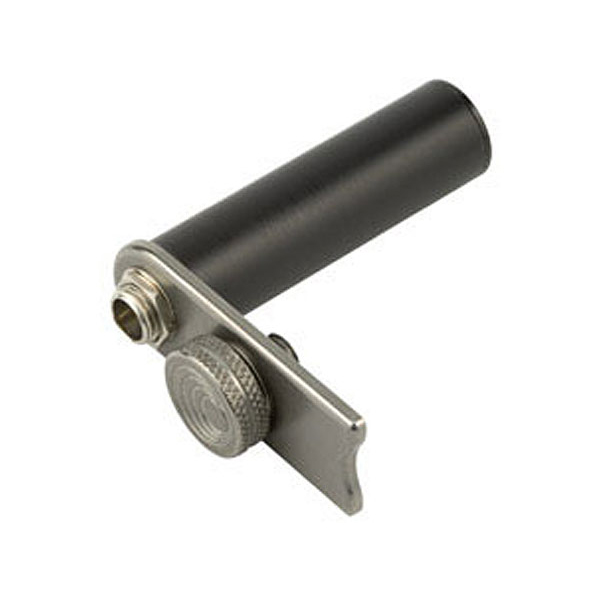

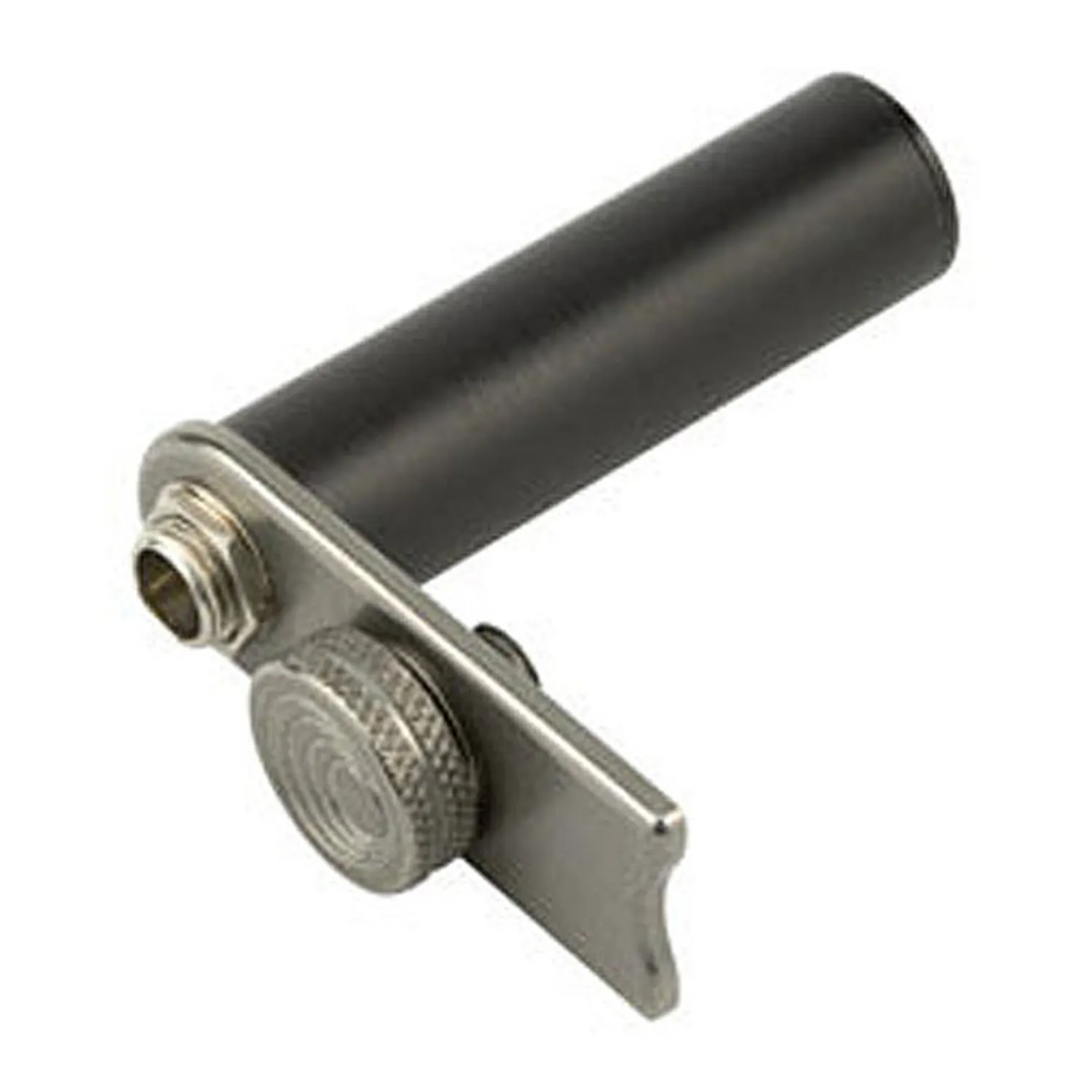

Taking the place of the battery door, the Lectrosonics SMBATELIM battery eliminator runs an SM Series transmitter from an external 6 to 36 VDC source.
It delivers a regulated 1.8 VDC at up to 1 A for extended or continuous operation. It has a locking power connector and is protected against shorts and reverse polarity. Its circuitry sits in a cylinder that fills the AA battery compartment, and a thumbscrew secures it just like the standard door.
It fits single and dual battery SM models. The eliminator’s panel is notched so a battery cannot be trapped in the unused compartment, and an insert seals that compartment against dust and moisture. The power supply is sold separately.
Features
- Runs SM Series transmitters from 6 to 36 VDC
- Replaces the battery door, single or dual battery models
- Locking power connector, protected against shorts
What's Included
- SMBATELIM battery eliminator
- Insert for the unused battery compartment (21542)
Specifications
| Battery Eliminator | |
|---|---|
| Input | 6.0 to 36 VDC; 400 mA minimum at 6 VDC |
| Output | 1.8 VDC regulated, 1.0 A maximum; current-limiting shutdown at 2.0 A |
| Connector | Coaxial, locking LZR (RL26AE) |
| Fits | SM Series transmitters, single and dual battery |
| Dimensions | 60.0 × 46.5 × 16.3 mm 2.375 × 1.830 × 0.642 in |
| Weight | 23 g (0.8 oz) |
| Latest Specifications | Specifications are subject to change without prior notice. For current information, visit lectrosonics.com. |
