Lectrosonics Quadpack for SR Series Receivers

751.00 USD

Designed for portable field production, the Quadpack simplifies the mounting and interconnection of two SRa Series compact receivers.

Unavailable for shipping outside of The United States and Canada.

Quantity:

Description

Special considerations may apply if this item is received outside of North America. Please read for details.

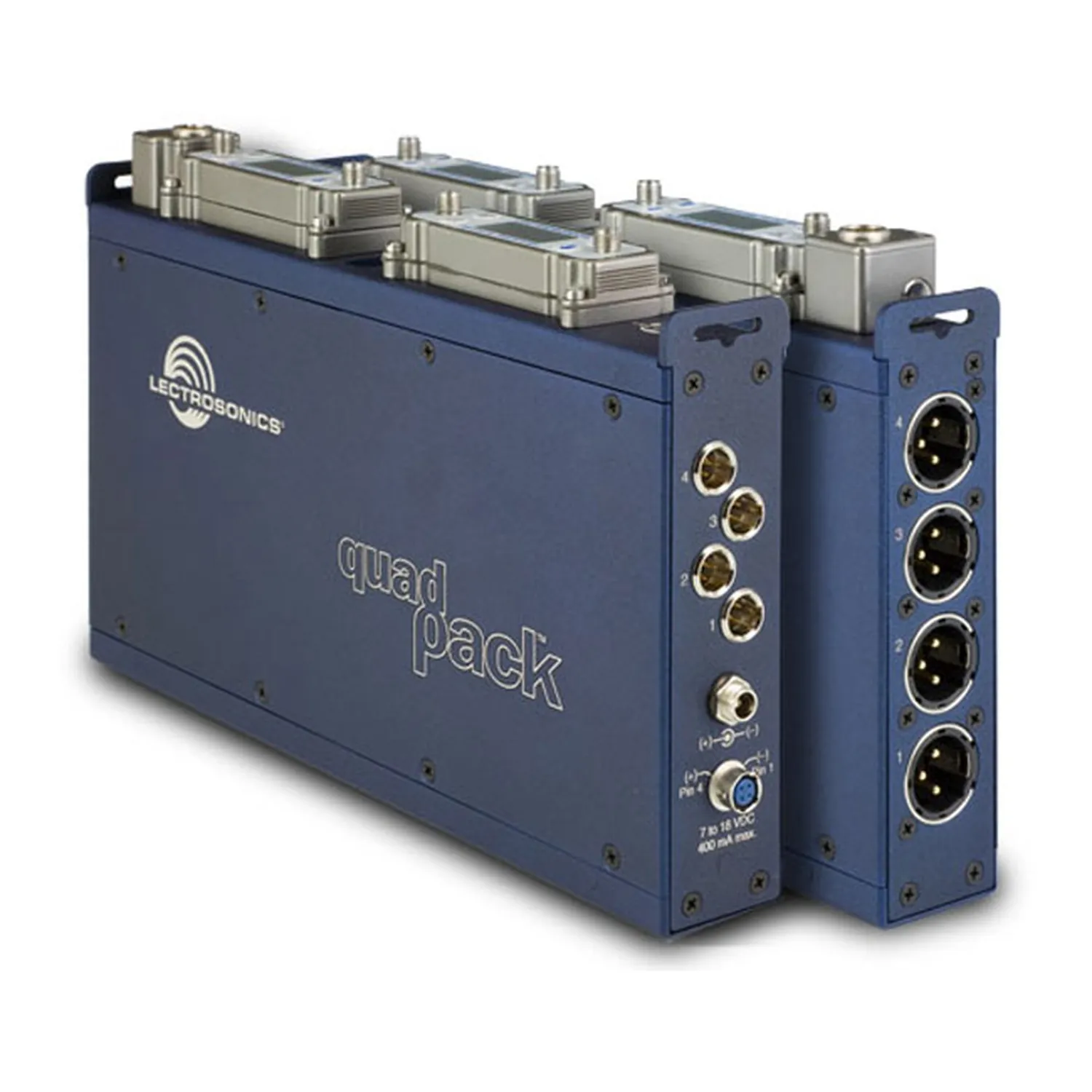

Lectrosonics Quadpack

The Lectrosonics Quadpack simplifies the mounting and interconnection of two SRa Series compact receivers. Designed for portable field production, the Quadpack is lightweight and rugged. It is perfectly at home in bag systems containing mixer, recorder, and wireless transmitters used for audio feed to cameras. One set of audio outputs is used to feed the recorder, and the other set feeds wireless transmitters.

Power is taken from an external DC source via one or both connectors. Circuitry is employed between the two jacks that takes power from the source with the higher voltage. This can be used to provide a backup power supply where the DC is automatically taken from the opposite jack if power is interrupted at one of them.

Features

  • Accepts two SRa or SRa5P receivers
  • Uses 25-pin Unislot adapter

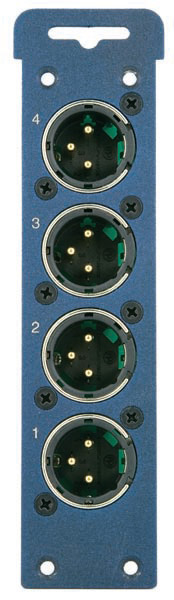

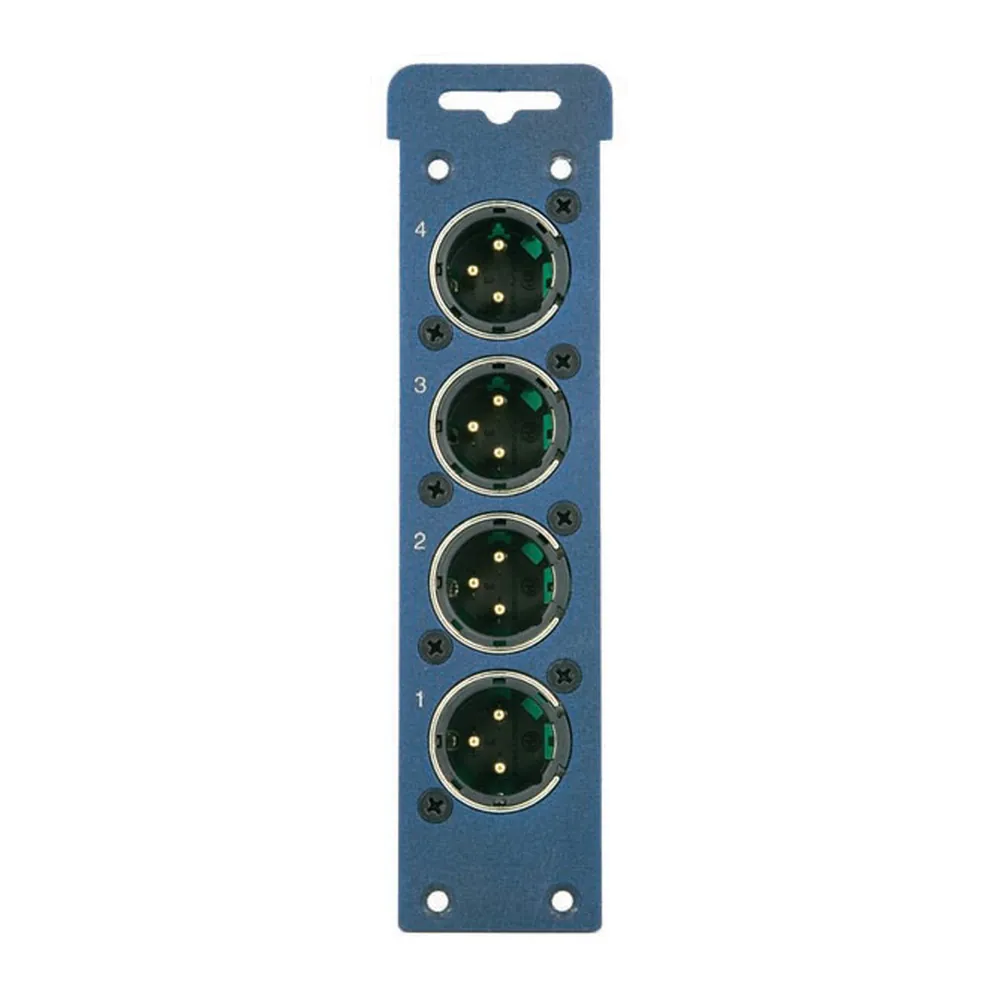

  • Balanced XLR audio outputs

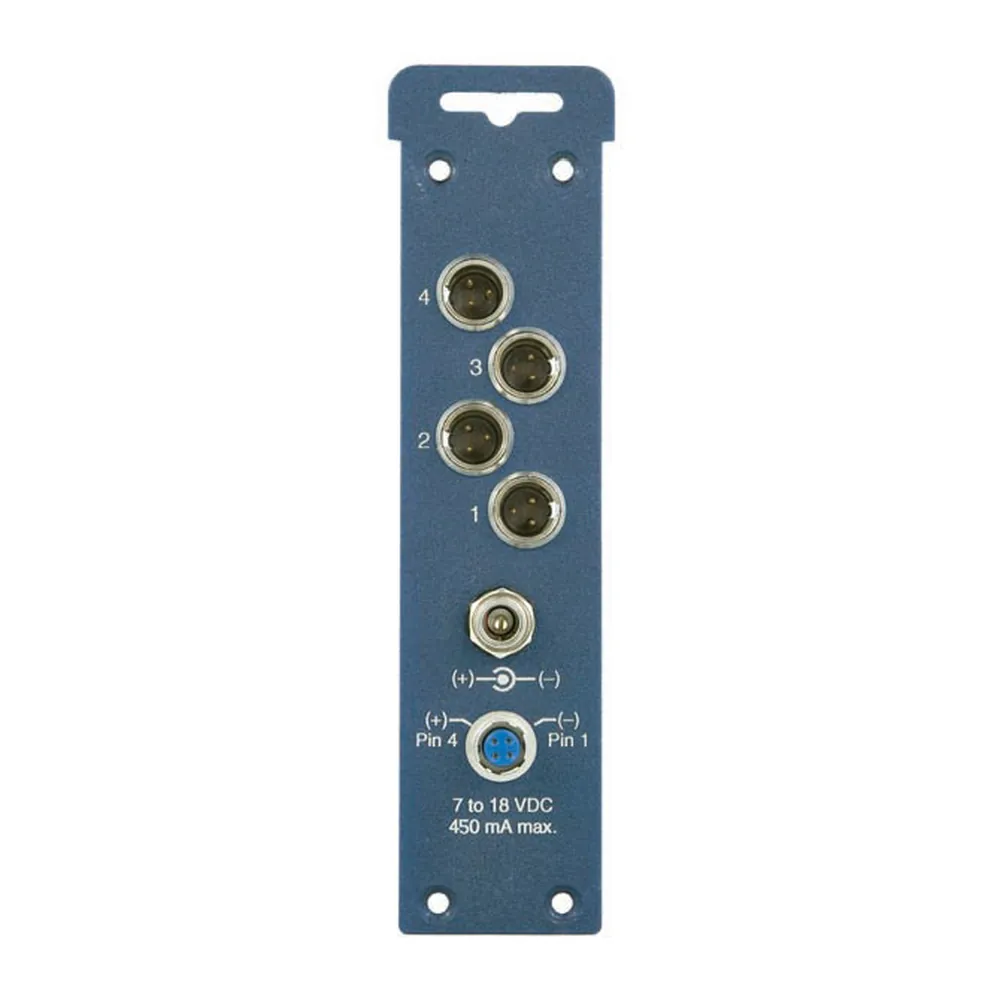

  • Balanced TA3M audio outputs
  • Output jack panels can be reversed
  • Locking coaxial DC power connector
  • 4-pin Hirose DC power connector
  • Powder coated aluminum housing

Reviews

There are no reviews yet.

Be the first to review “Lectrosonics Quadpack for SR Series Receivers”

DIMENSIONS: H 4.95" x W 9.40" x D 1.40"
WEIGHT:
  • Assembly only: 1 lbs., 5 ozs. (0.6614 kg)
  • With 2-SRa5P receivers: 2 lbs., 3 ozs. (1.031 kg)
  • With 2-SRa5P receivers: 2 lbs., 4 ozs. (1.077 kg)
POWER INTERFACE CONNECTOR: dB-25 (Unislot)
AUDIO OUTPUTS: 4 Balanced XLR-Male 4 Balanced TA3-Male
POWER: Hirose 4-pin Coaxial (LZR)
POWER REQUIREMENTS: 7 to 18 VDC 400 mA max

Download the Lectrosonics Quadpack Manual (816K PDF)
