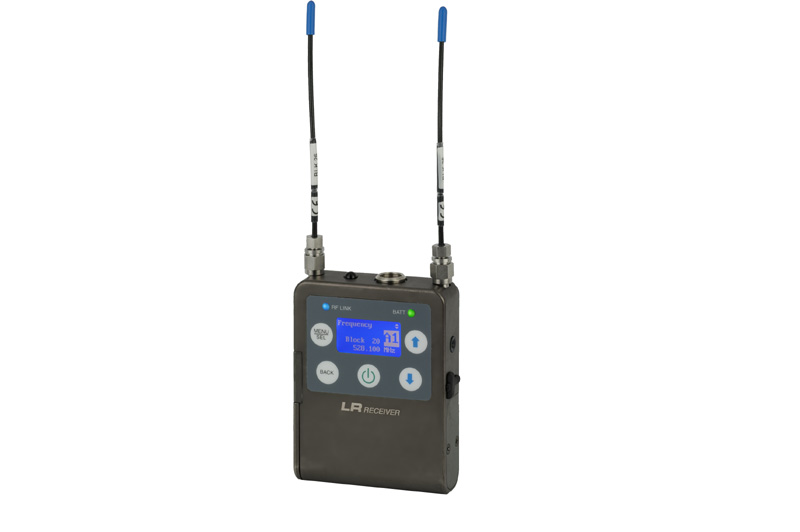

Lectrosonics LR Compact Digital Hybrid Wireless Receiver
- Compact Digital Hybrid Wireless receiver
- Tracking filters and RF spectrum scanning
- Runs on two AA batteries
From $1,910.00 USD
Lectrosonics LR Compact Digital Hybrid Wireless Receiver
The Lectrosonics LR brings Digital Hybrid Wireless reception to ENG and DSLR camera rigs in a compact housing that runs on two AA batteries.
Tracking front-end filters block interference from strong signals on nearby channels, which preserves the operating range. The receiver tunes over a 75 MHz range in 100 kHz or 25 kHz steps. SmartDiversity combines the receiver’s two antennas, and SmartSquelch mutes noise automatically as the transmitter moves near or far.
The receiver scans the RF spectrum on its LCD in single or multiple blocks to find clear frequencies, and SmartTune speeds up that search on site. The IR port sends the chosen settings to a transmitter. Compatibility modes cover Lectrosonics 100, 200, and 300 Series and IFB transmitters as well as Digital Hybrid models.
The balanced TA3M output adjusts from -50 to +5 dBu in 1 dB steps, and firmware updates load through the USB port. The housing is machined from a solid aluminum billet, and a hinged aluminum battery door keeps firm contact with the batteries. The LRBATELIM battery eliminator runs the receiver from external DC, and the supplied wire belt clip also holds the optional LRSHOE camera shoe mount.
Features
- Digital Hybrid Wireless with compatibility modes
- Tracking front-end filters
- Tunes over 75 MHz in 100 kHz or 25 kHz steps
- RF spectrum scanning on the LCD
- SmartDiversity and SmartSquelch
- Balanced TA3M output, -50 to +5 dBu
- IR sync port and USB firmware updates
- Two AA batteries or the LRBATELIM eliminator
Available Options
| Frequency | Model |
|---|---|
| Band A1: 470.100 – 537.575 MHz | LR-A1 |
| Band B1: 537.600 – 614.375 MHz | LR-B1 |
| Band C1: 614.400 – 691.175 MHz | LR-C1 |
What's Included
- 2 × AA batteries
- 2 × AMJ antennas for the frequency band
- 26895 wire belt clip (installed)
Specifications
| RF | |
|---|---|
| Frequency Bands | Band A1: 470.100 to 537.575 MHz Band B1: 537.600 to 614.375 MHz Band C1: 614.400 to 691.175 MHz |
| Frequency Steps | 100 kHz or 25 kHz, selectable |
| Receiver Type | Dual conversion superheterodyne |
| Frequency Stability | ±0.001% |
| Front-End Bandwidth | 20 MHz at −3 dB |
| Sensitivity | 20 dB SINAD: 1.0 µV (−107 dBm), A-weighted 60 dB quieting: 2.2 µV (−100 dBm), A-weighted |
| Diversity | SmartDiversity phased antenna combining |
| Antenna Inputs | 50 Ω, SMA female |
| Audio | |
| Audio Output | TA3M (mini XLR), balanced |
| Output Level | −50 to +5 dBu in 1 dB steps |
| Frequency Response | 32 Hz to 20 kHz (±1 dB), receiver only |
| THD | 0.2% typical in Digital Hybrid mode |
| Compatibility Modes | Digital Hybrid; Lectrosonics 100, 200, and 300 Series; Lectrosonics IFB |
| Power and Physical | |
| Power | Two AA batteries |
| Runtime | 4 hours (Duracell Quantum alkaline) |
| Operating Temperature | −20 to +50 °C |
| Weight | 7.1 oz (221 g) with two AA lithium batteries and antennas |
| Dimensions | 3.21 × 2.45 × 0.84 in (82 × 62 × 21 mm) |
| Latest Specifications | Specifications are subject to change without prior notice. For current information, visit lectrosonics.com. |
