Lectrosonics SR9VBP 9 V Battery Adapter for SRBATTSLED and Octopack

The Lectrosonics SR9VBP mounts on an SRBATTSLED battery sled or in an Octopack multicoupler and powers SR Series receivers from two 9 V batteries.

It uses the same sled connections as a rechargeable video camera battery. It works as the main power source or as backup for an external supply. Two 9 V alkaline batteries give about 5 hours, and two lithium polymer 9 V rechargeables about 6 hours. Use two batteries of the same type, and never connect the adapter to a battery charger. It cannot supply enough current for the DSR or DSR4 receivers.

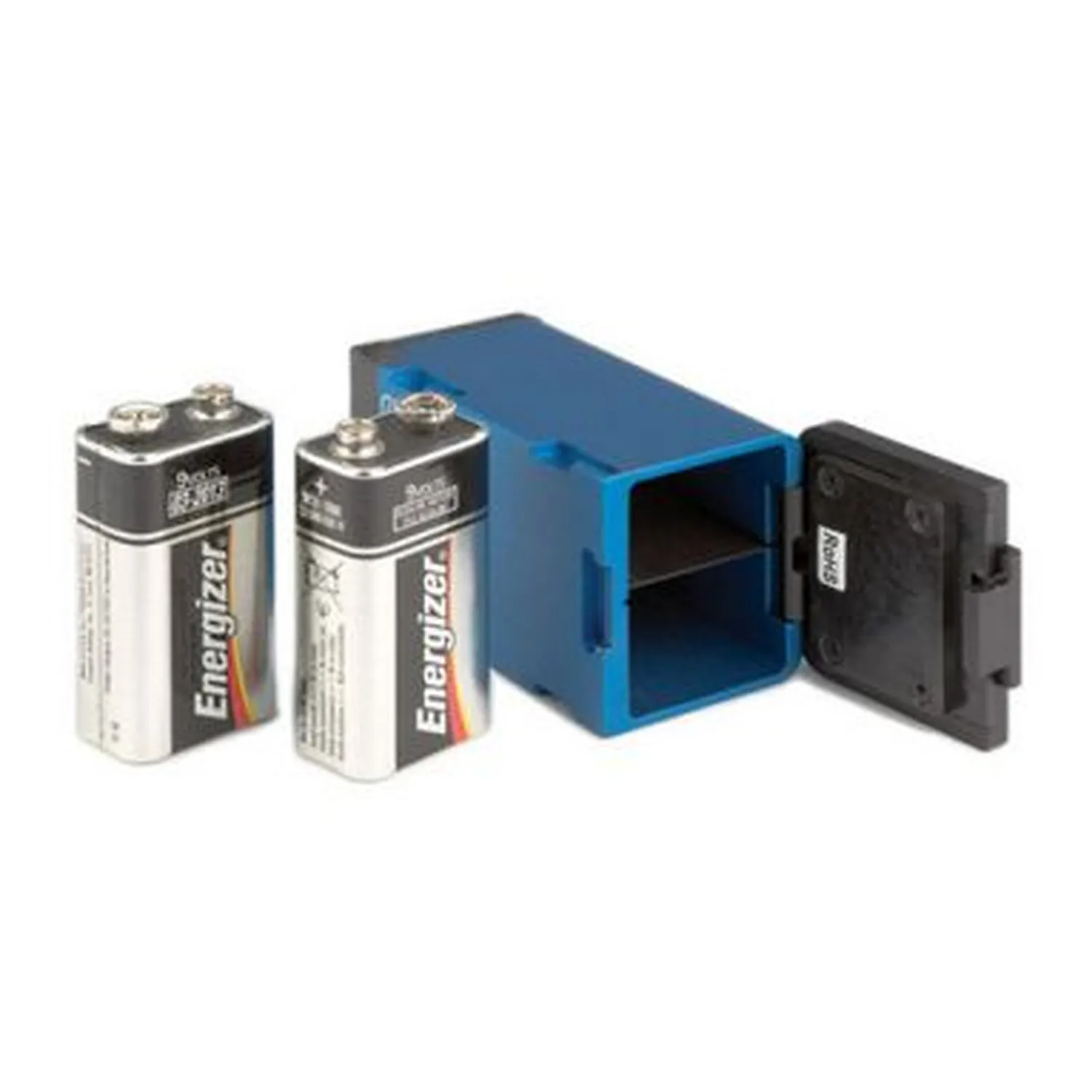

The housing and door are machined aluminum. A latch plate opens the door to two battery compartments, each with a polarity barrier, and a pressure plate on the door keeps the contacts tight. The circuit is fused with diode protection. Batteries are not included.

Features

• Two 9 V batteries power an SR receiver
• Fits the SRBATTSLED and Octopack
• Fused, with diode protection
