Lectrosonics SRHARNESS Audio and Power Adapter for SR Receivers

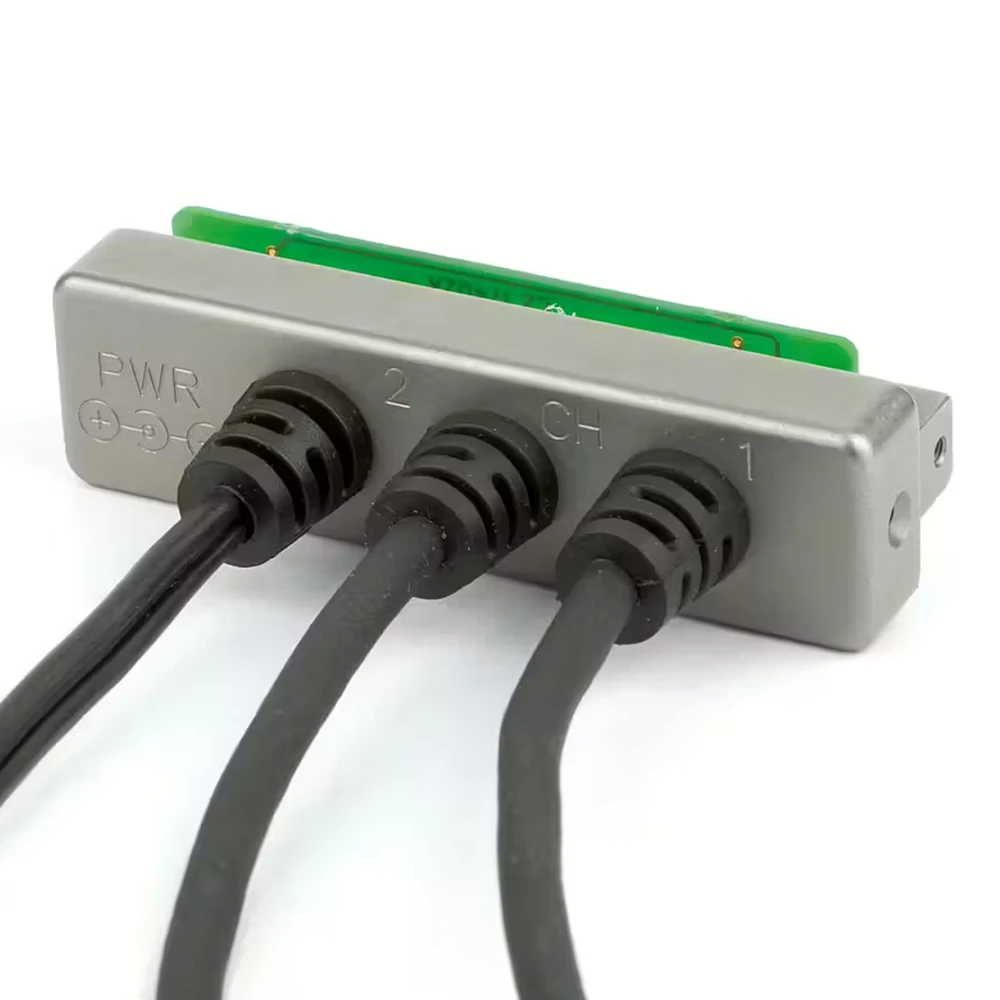

The Lectrosonics SRHARNESS gives an SR Series receiver two balanced audio outputs and a power input on 6 ft cables with bare ends, for stand-alone use.

The audio cables are shielded, the power cable takes 6 to 18 VDC, and rugged strain reliefs secure the cables to the panel.

The panel fits like the receiver’s other rear panel adapters: two Phillips screws hold it to the sides of the housing, and miniature connectors join it to the main circuit board. Spare screws sit in the panel’s unused holes.

Features

• Two balanced audio outputs on 6 ft cables
• 6 ft power cable, 6 to 18 VDC
• No connectors fitted

About Lectrosonics

Lectrosonics has built professional audio gear in New Mexico since 1971, today in Rio Rancho, and has kept its production in the United States. Its wireless IFB system, introduced in 1998, came into wide use in broadcast and film, and its Digital Hybrid Wireless line followed in 2002. Lectrosonics equipment carries a one-year factory warranty against defects in materials and workmanship, and its own factory service center handles repairs.
