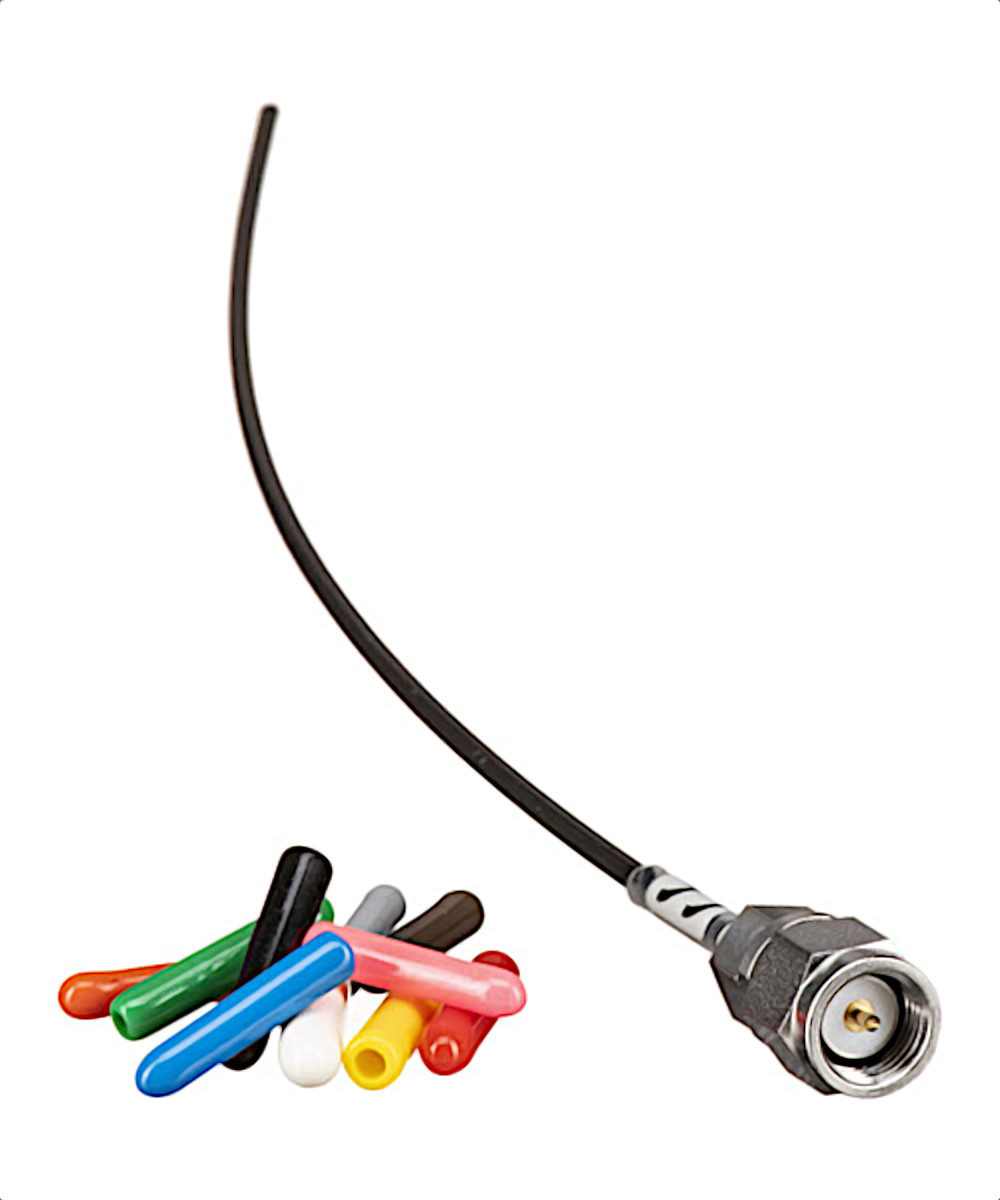

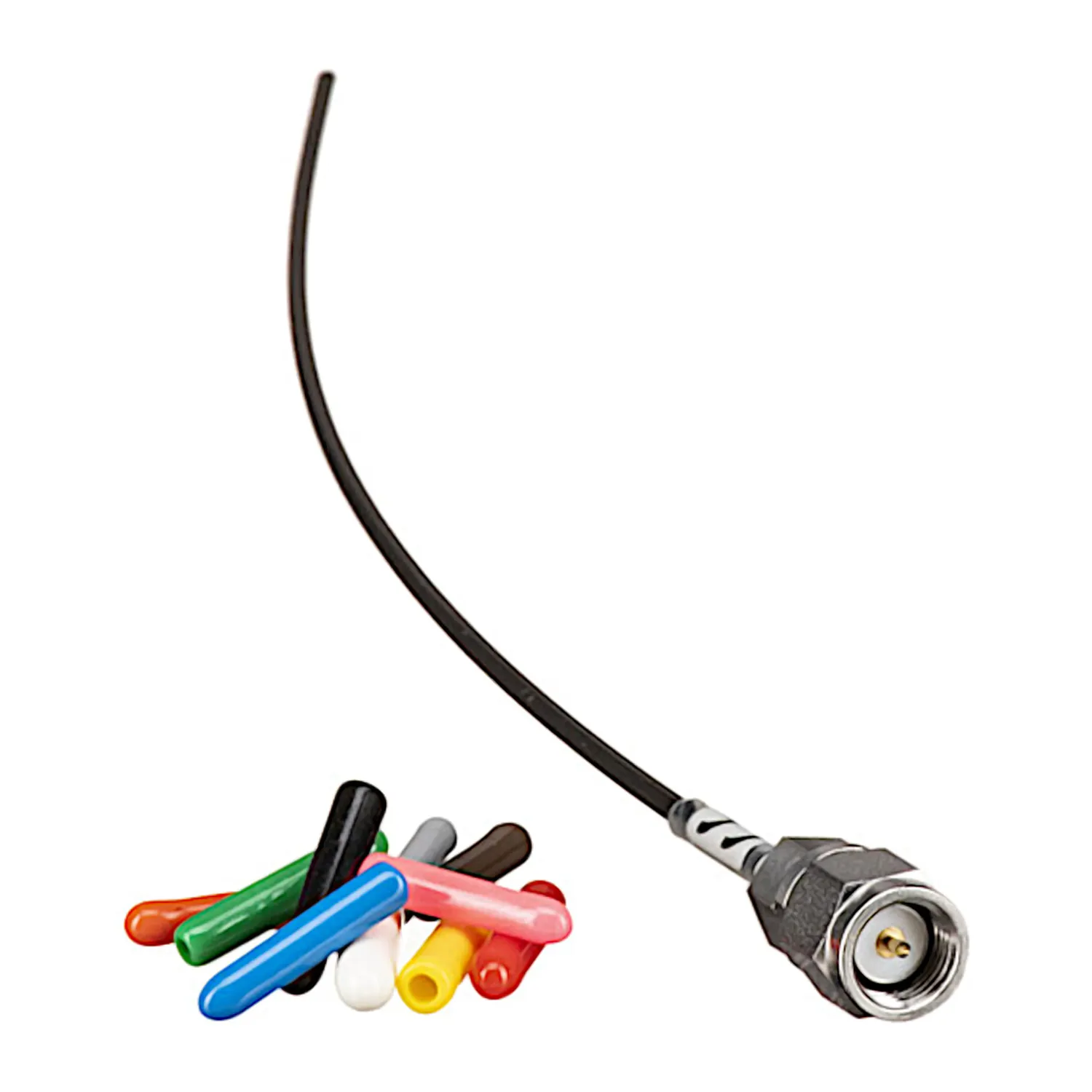

Lectrosonics AMM Whip Antenna Kit with SMA Connector: The steel wire whip antenna with its SMA connector and color caps.

Lectrosonics AMM Whip Antenna Kit with SMA Connector

  • Steel wire rope whip antenna with an SMA connector
  • Cut to length for the block you use
  • Color-coded caps and a cutting template in the kit

$79.00 USD

In Stock

Brand: Categories: , , Trew SKU: LEC.AMMKIT MPN: AMM-KIT

Lectrosonics AMM Whip Antenna Kit with SMA Connector

The Lectrosonics AMM is a whip antenna kit with an SMA connector and a steel wire rope whip that you cut to length for the block you use.

It fits UM belt packs, newer SM Series belt packs, and newer SR receivers. Its connector is stainless steel. Cut the whip at the full-size template’s mark with rugged wire cutters, then identify it with a color-coded cap on the tip, as a sleeve by the connector, or both.

The Sizing tab gives the length and color for each block. The kit does not include the frequency-range label that factory precut AMM antennas carry.

Features

  • Steel wire rope whip antenna with an SMA connector
  • Cut to length for the block you use
  • Color-coded caps and a cutting template in the kit

About Lectrosonics

Lectrosonics has built professional audio gear in New Mexico since 1971, today in Rio Rancho, and has kept its production in the United States. Its wireless IFB system, introduced in 1998, came into wide use in broadcast and film, and its Digital Hybrid Wireless line followed in 2002. Lectrosonics equipment carries a one-year factory warranty against defects in materials and workmanship, and its own factory service center handles repairs.

What's Included

  • Steel wire rope whip antenna with stainless steel SMA connector
  • Color-coded caps
  • Cutting template

Specifications

Antenna
Whip Steel wire rope
Connector Stainless steel SMA
Length Cut to the block’s length (see the Sizing tab)
Latest Specifications Specifications are subject to change without prior notice. For current information, visit lectrosonics.com.

Sizing

Block Frequency Range (MHz) Cap or Sleeve Color Whip Length
470 470.100 to 495.600 Black 5.67 in
19 486.400 to 511.900 Black 5.23 in
20 512.000 to 537.500 Black 4.98 in
21 537.600 to 563.100 Brown 4.74 in
22 563.200 to 588.700 Red 4.48 in
23 588.800 to 614.300 Orange 4.24 in
24 614.400 to 639.900 Yellow 4.01 in
25 640.000 to 665.500 Green 3.81 in
26 665.600 to 691.100 Blue 3.62 in
27 691.200 to 716.700 Violet (pink) 3.46 in
28 716.800 to 742.300 Gray 3.31 in
29 742.400 to 767.900 White 3.18 in
30 768.000 to 793.500 Black 3.08 in
31 793.600 to 819.100 Black 2.99 in
32 819.200 to 844.700 Black 2.92 in
33 844.800 to 865.000 Black 2.87 in
740 740.100 to 751.900 White 3.18 in
779 779.125 to 787.875, 797.125 to 805.875, 806.125 to 809.750 Black 3.00 in
944 944.100 to 951.900 Black 2.62 in
