Lectrosonics ALP500 Log Periodic Directional Antenna

Built for fixed indoor installations, the Lectrosonics ALP500 is a log periodic antenna that gives wireless receivers a directional pickup pattern across 450 to 862 MHz.

Its log periodic dipole array (LPDA) design keeps a directional pattern over a wide bandwidth. Unlike many narrowband gain antennas, it suits multi-channel and frequency-agile wireless systems. It adds 4 dBd of gain over a dipole for longer reach.

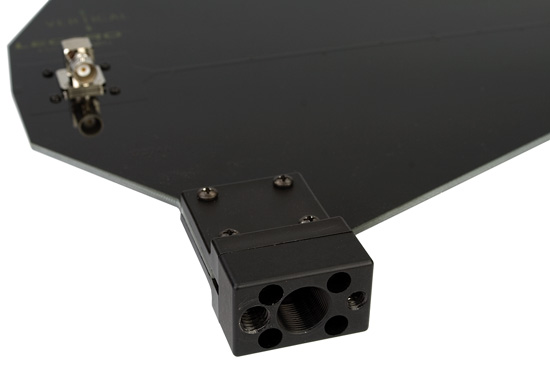

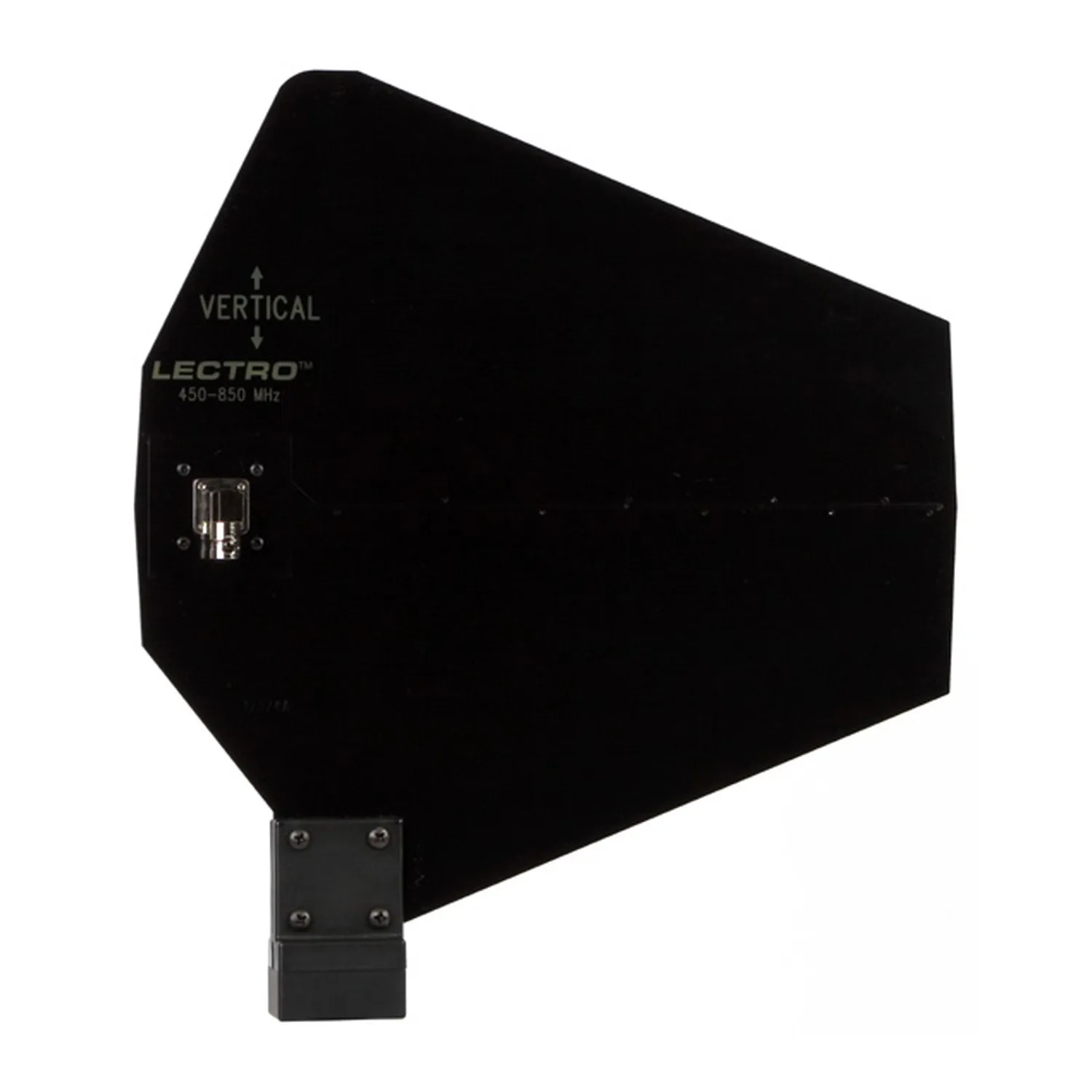

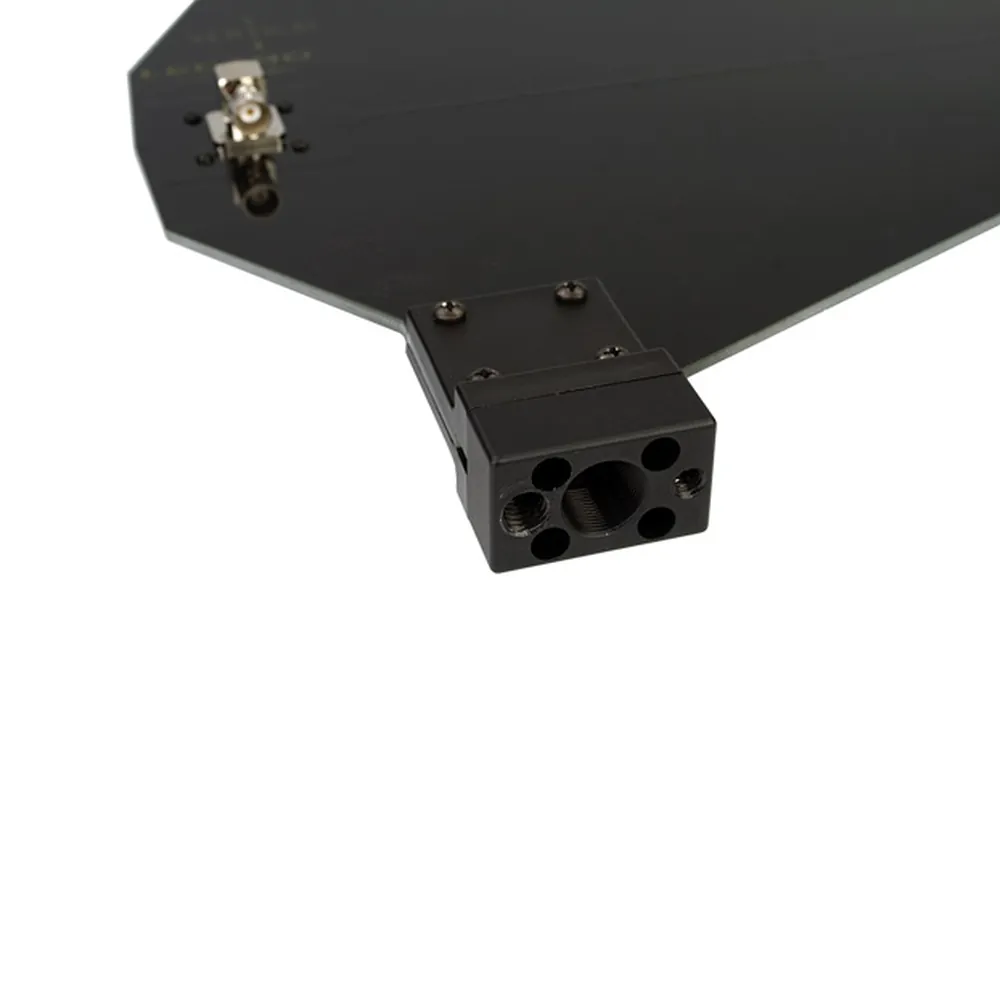

The body is 1/8 in FR4 fiberglass circuit board, and the connector is a 50 ohm BNC. The mounting block takes 1/4-20 and 3/8-16 tripod threads and 5/8-27 mic stand threads. Four screws let the block move for vertical or horizontal mounting. Mount it vertically, in the same plane as the transmitter antennas, and away from reflective surfaces.

Features

• Directional log periodic dipole array design
• 450 to 862 MHz, VSWR below 2:1
• 4 dBd (7 dBi) pattern gain
• 1/8 in FR4 fiberglass board
• 50 ohm BNC connector
• Mounting block for tripod and mic stand threads
• Vertical or horizontal mounting
