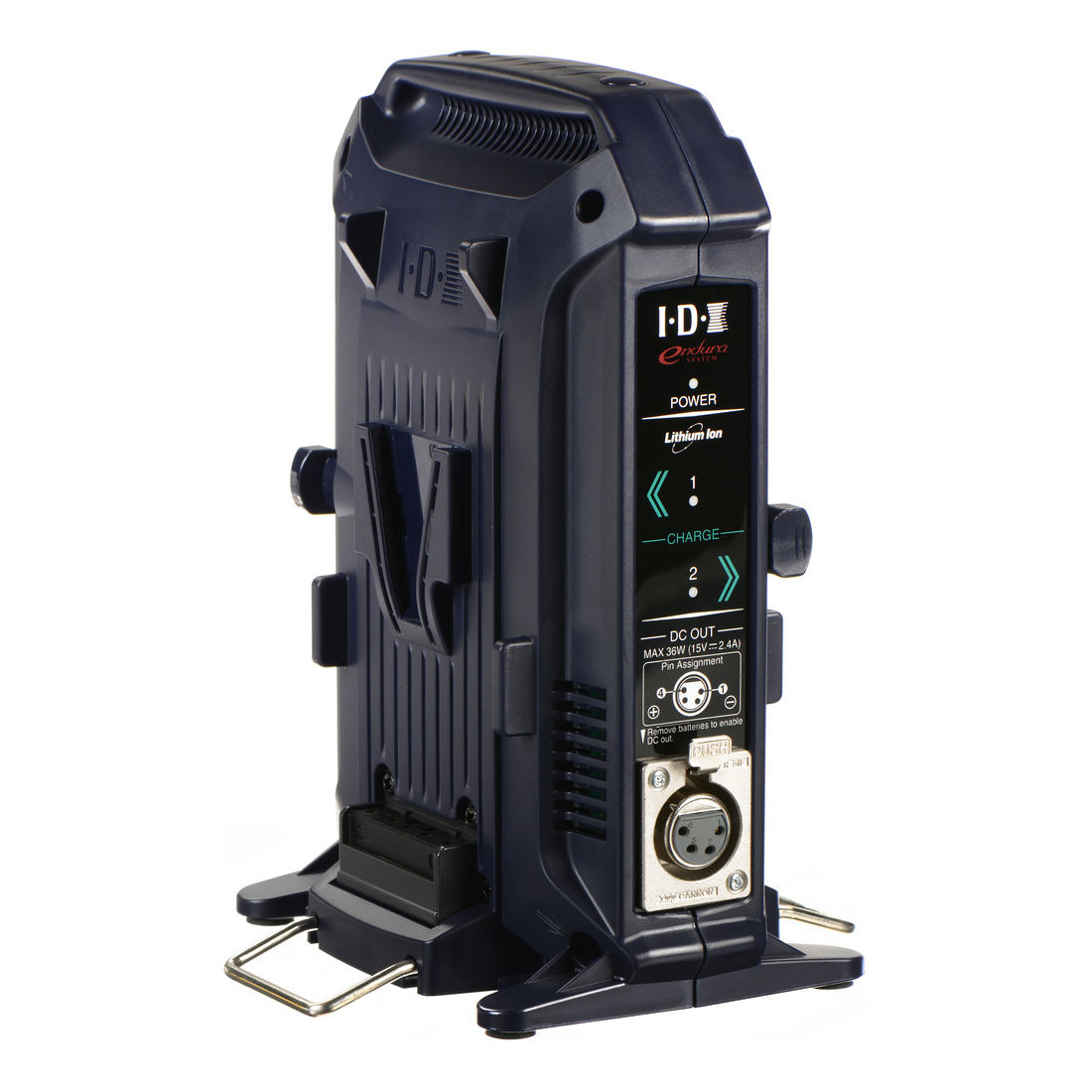

IDX VL-2X 2-Channel V-Mount Battery Charger
- 2-channel sequential V-Mount battery charger
- Built-in 36 W 4-pin XLR power supply
- Fanless, quiet operation
$223.00 USD
In Stock
IDX VL-2X 2-Channel V-Mount Battery Charger
Slim and light, the IDX VL-2X is a fanless 2-channel V-Mount battery charger that doubles as a 36 W power supply.
The VL-2X charges one battery at a time, moving to the second when the first is done, and handles both Li-ion and Ni-Cd batteries. When it is not charging, its 4-pin XLR DC output supplies 36 W at 15 V to run other equipment.
Its external AC adapter lets the charger run without a fan, so it charges quietly. Recovery Charge mode brings a deeply drained battery back with a low pre-charge current until its voltage is safe for full charging, which limits damage to the cells. The VL-2X powers down when it sits idle, and at 0.95 lb it packs easily for travel. It charges the IDX CUE-J V-Mount batteries.
Features
- Two V-Mount channels, charged in sequence
- Li-ion and Ni-Cd batteries
- 36 W 4-pin XLR DC output
- Fanless, quiet operation
- Recovery Charge for drained batteries
- Automatic power-down when idle
Specifications
| VL-2X | |
|---|---|
| Channels | 2, sequential |
| Mount | V-Mount |
| Battery Type | Li-ion and Ni-Cd |
| AC Input Voltage | 100 to 240 V, 50/60 Hz (external AC adapter UT60-150400) |
| Power Consumption | 140 VA max |
| Charge Current | 1.9 A, 2.7 A max |
| Charge System | Constant current, constant voltage |
| DC Output | 4-pin XLR, 36 W max (15 V, 2.4 A) |
| Operating Temperature | 32 to 104 °F (0 to 40 °C) |
| Weight | 0.95 lb (430 g) |
| Dimensions (W x H x D) | 3.44 × 7.22 × 4.98 in (87.4 × 183 × 126 mm) |
