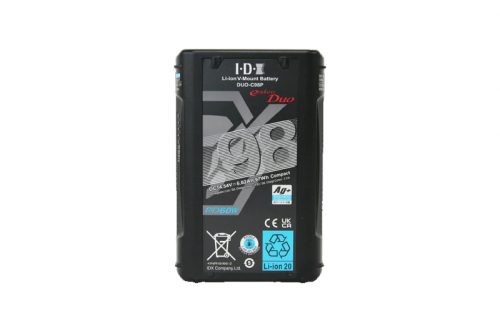

IDX DUO-C98P V-Mount Li-Ion Battery with USB-C PD
- 97 Wh V-Mount lithium-ion battery, under 100 Wh
- Two D-Taps and a two-way USB-C PD port
- SMBus battery data on ARRI and RED cameras
$279.00 USD
IDX DUO-C98P V-Mount Li-Ion Battery with USB-C PD
The IDX DUO-C98P is a 97 Wh V-Mount Li-ion battery with two D-Taps and a USB-C PD port, made for handheld gimbal and aerial setups.
The DUO-C98P follows the DUO-C98. At 97 Wh it stays under 100 Wh for air travel. It delivers up to 10.5 A.
Two D-Tap outputs of 80 W each power accessories, and the USB-C PD port works both ways: it powers USB-C devices and charges the battery, at up to 60 W. Besides a V-Mount charger, the DUO-C98P charges through its USB-C port from the IDX UC-PD1, or through its D-Tap Advanced port from the IDX VL-DT1.
Through SMBus, ARRI and RED cameras show the battery’s information in the viewfinder, and a V-Torch LED lights the mount for swaps in the dark. Five LEDs show the charge left.
Features
- 97 Wh V-Mount lithium-ion battery
- Under 100 Wh for air travel
- Two 80 W D-Tap outputs, one a D-Tap Advanced charge port
- USB-C PD port for power in or out, 60 W max
- SMBus battery data on ARRI and RED cameras
- V-Torch LED for swaps in the dark
- Five-LED fuel gauge
Specifications
| DUO-C98P | |
|---|---|
| Capacity | 97 Wh (14.54 V, 6.62 Ah) |
| Nominal Voltage | 14.54 V DC |
| Max Output Voltage | 16.8 V DC |
| End Voltage | 11 V |
| Max Discharge Current | 10.5 A |
| Max Power | 115 W |
| Mount | V-Mount |
| D-Tap Outputs | 2 (1 D-Tap, 1 D-Tap Advanced), 80 W each |
| USB-C PD | Input and output, 5 V, 9 V, 12 V, 15 V, or 20 V at 3 A, 60 W max |
| Charging | V-Mount charger, UC-PD1 (USB-C PD), or VL-DT1 (D-Tap Advanced) |
| Camera Communication | SMBus; IB or SB modes |
| Power Indicator | 5 LEDs |
| Battery Protection | Over-charge, over-discharge, over-current, thermal |
| Charge Temperature | 32 to 104 °F (50 to 86 °F recommended) |
| Discharge Temperature | −4 to 113 °F (50 to 104 °F recommended) |
| Storage Temperature | −4 to 122 °F (less than 1 month) |
