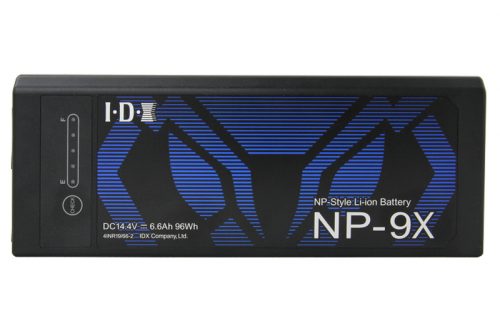

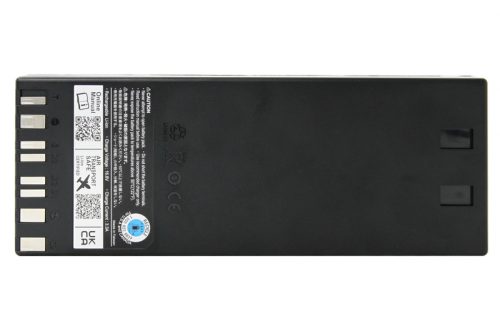

IDX NP-9X NP-1 Style Lithium Ion Battery
- 96 Wh NP-1 style lithium-ion battery
- Two D-Tap outputs, one a D-Tap Advanced charge port
- Five-LED fuel gauge in 10% steps
$223.00 USD
Availability: In Stock
IDX NP-9X NP-1 Style Lithium Ion Battery
The IDX NP-9X is a 96 Wh NP-1 style lithium-ion battery that powers audio bags, carts, and other equipment built around the NP battery slot.
The NP-9X replaces the NP-L7S, long the standard NP-style battery for audio equipment, and keeps its shape. The battery cups, holders, and chargers made for the NP-L7S, including the IDX JL-2PLUS charger, take the NP-9X as well.
Two D-Tap outputs on the battery power accessories directly, at up to 50 W each. One of the two is a D-Tap Advanced port, which also charges the NP-9X from the IDX VL-DT1 D-Tap charger.
Five LEDs show the charge left in 10% steps, and circuit protection guards the cells against over-charge, over-discharge, over-current, and heat. At 96 Wh the NP-9X stays under 100 Wh, so it meets the passenger aircraft carry-on limit for lithium-ion batteries.
Features
- 96 Wh NP-1 style lithium-ion battery
- Fits the NP-L7S’s cups, holders, and chargers
- Two 50 W D-Tap outputs
- D-Tap Advanced port for charging with the IDX VL-DT1
- Five-LED fuel gauge in 10% steps
- Under 100 Wh for air travel
What's Included
- NP-9X battery
- Terminal cover
Specifications
| NP-9X | |
|---|---|
| Capacity | 96 Wh (14.4 V, 6.6 Ah) |
| Nominal Voltage | 14.4 V DC |
| Max Output Voltage | 16.8 V DC |
| End Voltage | 11 V |
| Max Discharge Current | 4.6 A (main connector and D-Taps together) |
| D-Tap Outputs | 2 (1 D-Tap, 1 D-Tap Advanced), 50 W each |
| D-Tap Advanced Charging | With the IDX VL-DT1 charger only |
| Power Indicator | 5 LEDs, 10% steps |
| Battery Protection | Over-charge, over-discharge, over-current, thermal |
| Charge Temperature | 32 to 104 °F (50 to 86 °F recommended) |
| Discharge Temperature | −4 to 113 °F (50 to 104 °F recommended) |
| Storage Temperature | −4 to 104 °F |
