Glensound AoIP4O Dante Audio Interface with 4 Outputs
- 4 balanced analog outputs from a Dante or AES67 network
- Powered by PoE over one network cable
- Redundant power with a 12 V DC input
$560.00 USD
Glensound AoIP4O Dante Audio Interface with 4 Outputs
The Glensound AoIP4O takes four channels from a Dante or AES67 network and plays them out as balanced analog audio, from a small, rugged box that runs on power from the network cable.
It is made for outside broadcast, theater, and location work, where existing analog equipment has to take a feed from the network quickly. PoE carries power and audio on one cable from a PoE network switch or a midspan PoE injector. A 12 V DC supply can also power it, and with both connected, power is redundant: the AoIP4O keeps working if either source is lost. A blue rear LED shows that it is on.
Audio and Network
The outputs are electronically balanced on Neutrik XLRs and can be wired unbalanced, with a maximum level of +18 dBu. On Dante, the AoIP4O carries all four channels at 44.1 or 48 kHz, or two channels at 88.2 or 96 kHz, and AES67 runs at 48 kHz.
Stick-on rubber feet keep it from sliding on a desk or workbench.
Features

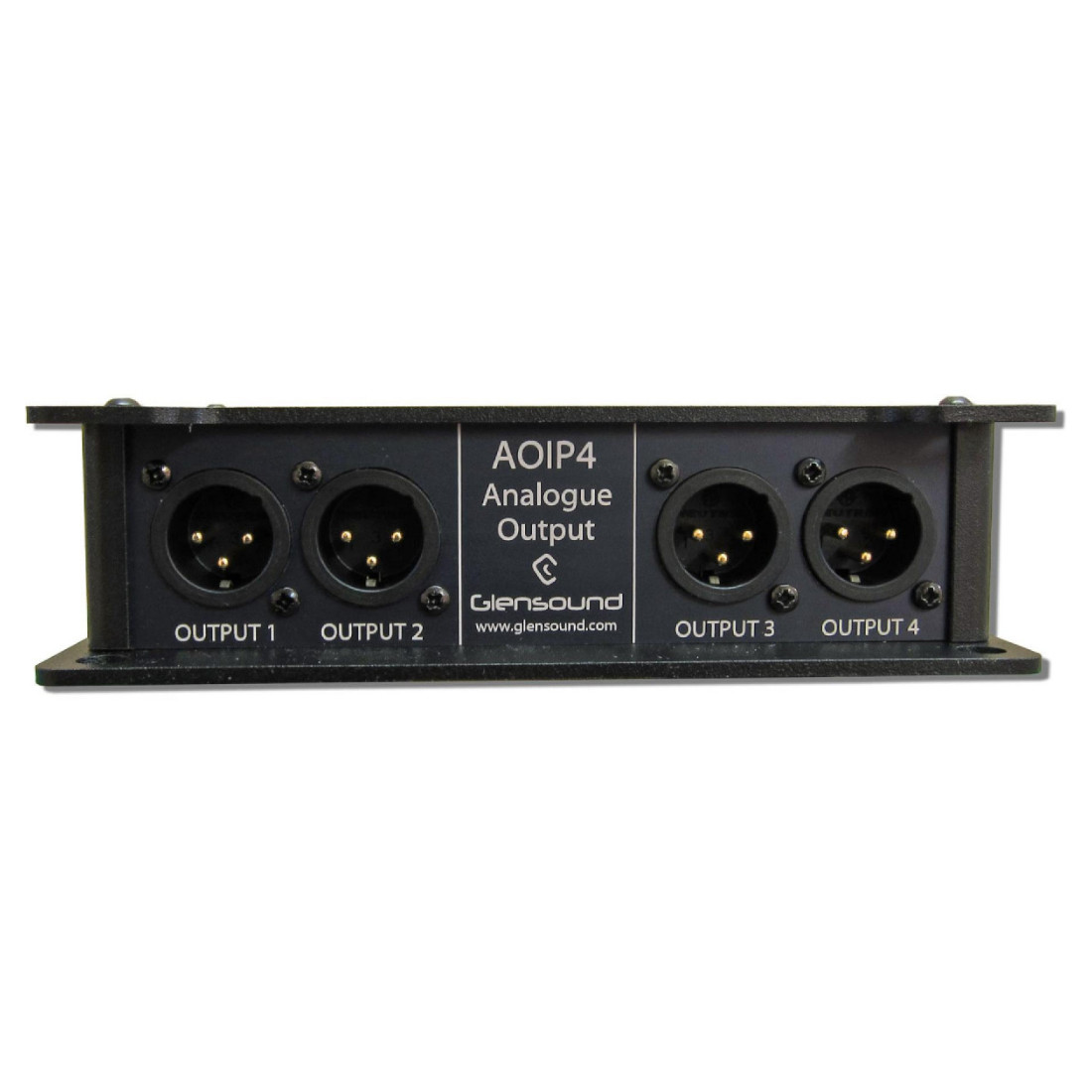

- 4 balanced analog outputs on Neutrik XLRs
- Dante and AES67 network audio
- 4 channels at 44.1 or 48 kHz, or 2 channels at 88.2 or 96 kHz
- Maximum output level +18 dBu
- Neutrik etherCON network connector that mates with RJ45
- Powered by PoE (IEEE 802.3af, Class 0)
- 12 V DC input for redundant power
- Blue power LED
- Four stick-on rubber feet included
What's Included
- Glensound AoIP4O audio interface
- Printed handbook
- RJ45 network cable (2 m, Cat5)
- 4 stick-on rubber feet
Specifications
| Audio Outputs | 4, electronically balanced (can be wired unbalanced), Neutrik 3-pin XLR female |
|---|---|
| Maximum Output Level | +18 dBu |
| Output Impedance | 50 ohms |
| Frequency Response | 20 Hz to 22 kHz, within ±0.25 dB |
| Distortion (Dante in to analog out) | 0.0026% THD+N at 1 kHz, ref +18 dBu |
| Noise (residual, at 0 dBu) | −92 dBu |
| Dynamic Range | 108 dB |
| Crosstalk (0 dBu, 1 kHz) | −135 dBu |
| Networks | Dante (uncompressed, low latency) and AES67 |
| Network Connector | Neutrik etherCON (also mates with standard RJ45 plugs), 100BASE-TX |
| Dante Sample Rates | 4 channels at 44.1 or 48 kHz; 2 channels at 88.2 or 96 kHz |
| AES67 Sample Rate | 48 kHz |
| Resolution | Up to 24-bit |
| Digital Full Scale | +18 dBu = 0 dBFS |
| DC Input | 2.5 mm barrel, center positive, 9 to 15 V |
| PoE | IEEE 802.3af-2003, Class 0 |
| Power LED | Blue, rear panel |
| Dimensions (W x D x H) | 153 × 105 × 41 mm (6.02 × 4.13 × 1.61 in) |
| Weight | 420 g (0.93 lb) |
| Operating Temperature | 0 to 50 °C (32 to 122 °F) |
| Storage Temperature | −20 to 70 °C (−4 to 158 °F) |
| Relative Humidity | 0 to 95%, non-condensing |
