Glensound AoIP4I Dante Audio Interface with 4 Inputs
- 4 balanced analog inputs to a Dante or AES67 network
- Powered by PoE over one network cable
- Redundant power with an external supply
$560.00 USD
Glensound AoIP4I Dante Audio Interface with 4 Inputs
The Glensound AoIP4I puts four balanced analog audio inputs onto a Dante or AES67 network, from a small, rugged box that takes its power from the network cable.

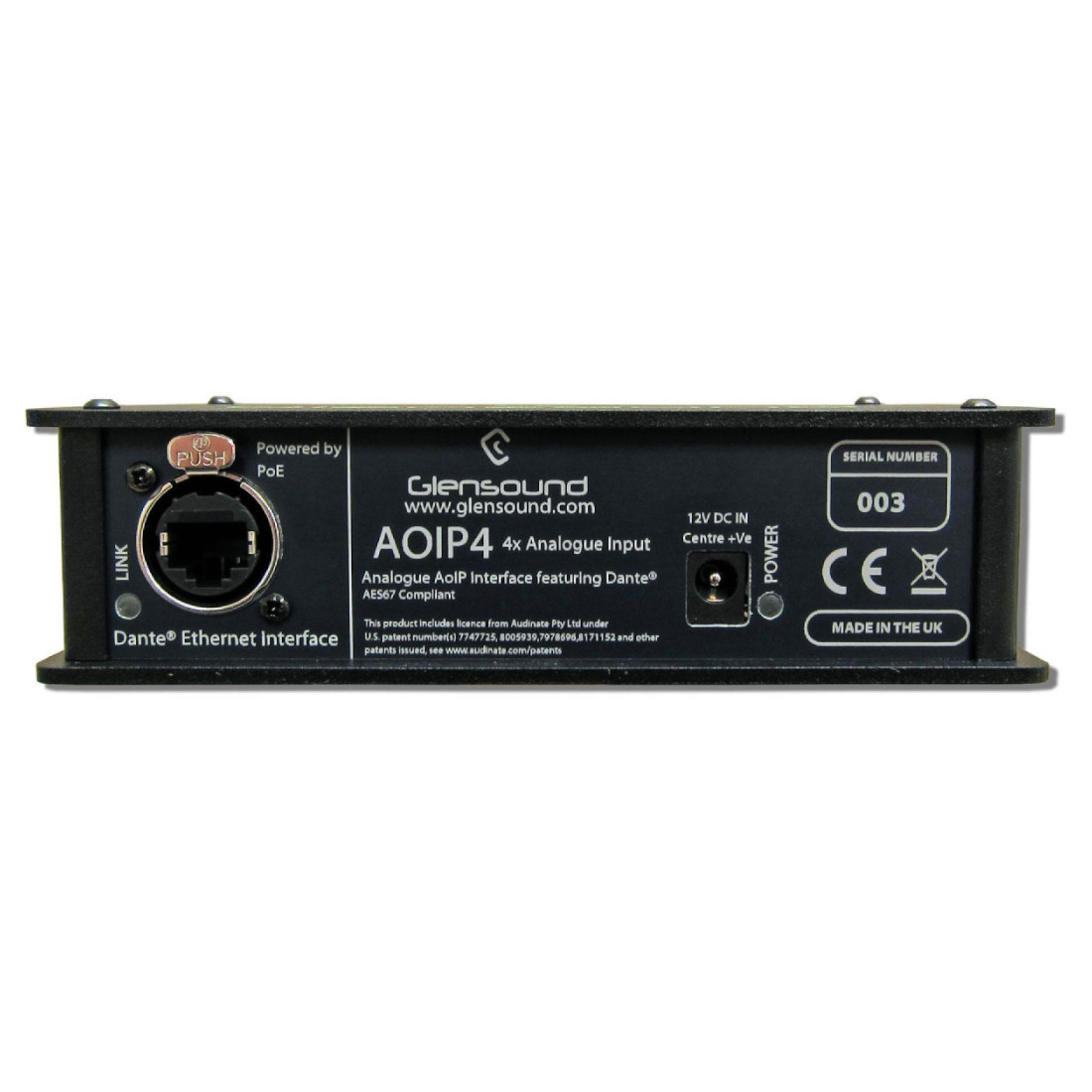

It is made for outside broadcast, theater, and location work, where existing analog equipment has to join the network quickly. PoE carries power and audio on one cable from a PoE network switch or a midspan PoE injector. With an external supply also connected, power is redundant, and the AoIP4I keeps working if either source is lost. A blue rear LED shows that it is on.
Audio and Network
The inputs are electronically balanced on gold-plated Neutrik XLRs and can be wired unbalanced, each taking up to +18 dBu before clipping. On Dante, the AoIP4I carries all four channels at 44.1 or 48 kHz, or two channels at 88.2 or 96 kHz, and AES67 runs at 48 kHz.
Mounting

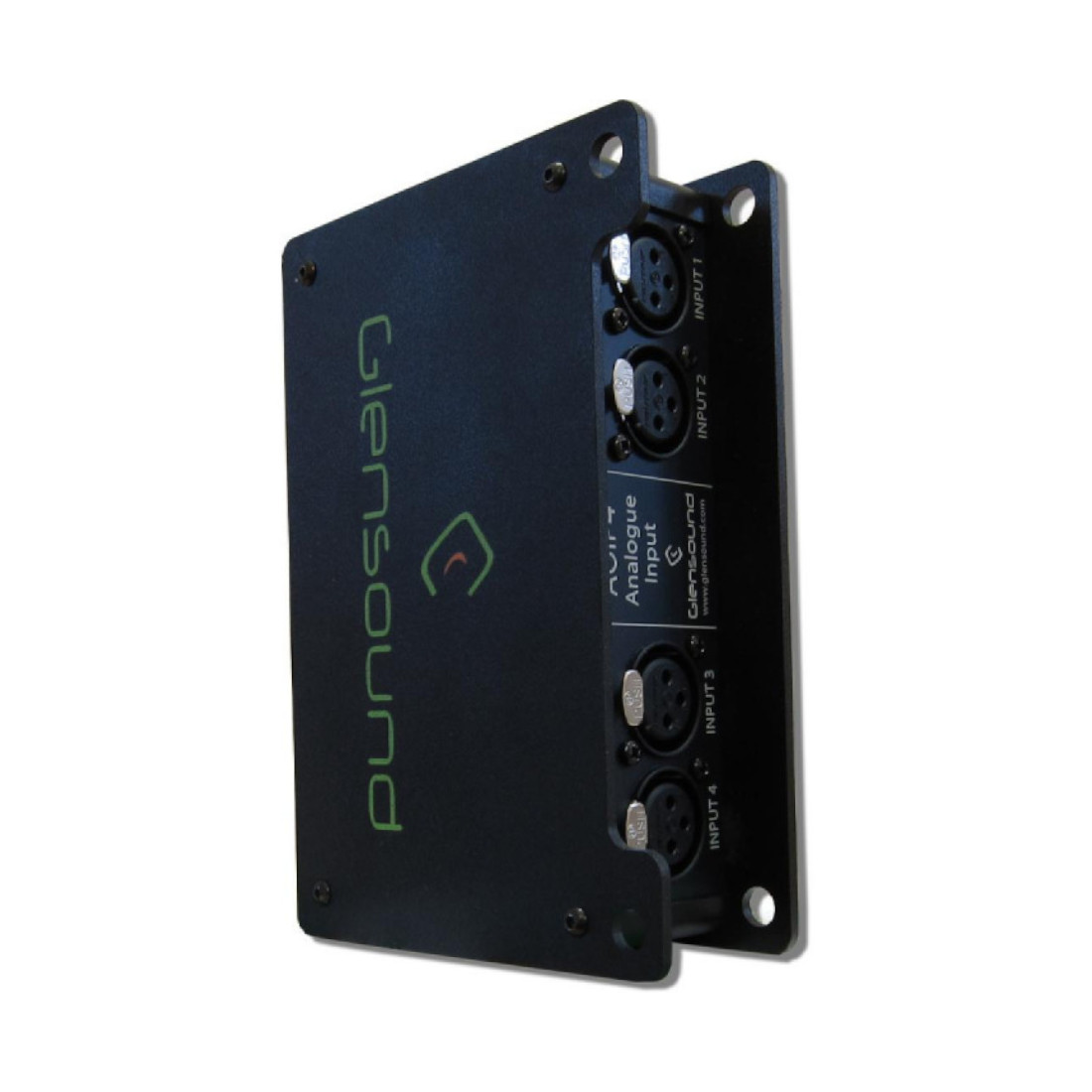

Stick-on rubber feet come with it for use on a desk or workbench. Large holes at the corners take cable ties, or screws to mount it permanently.
Features

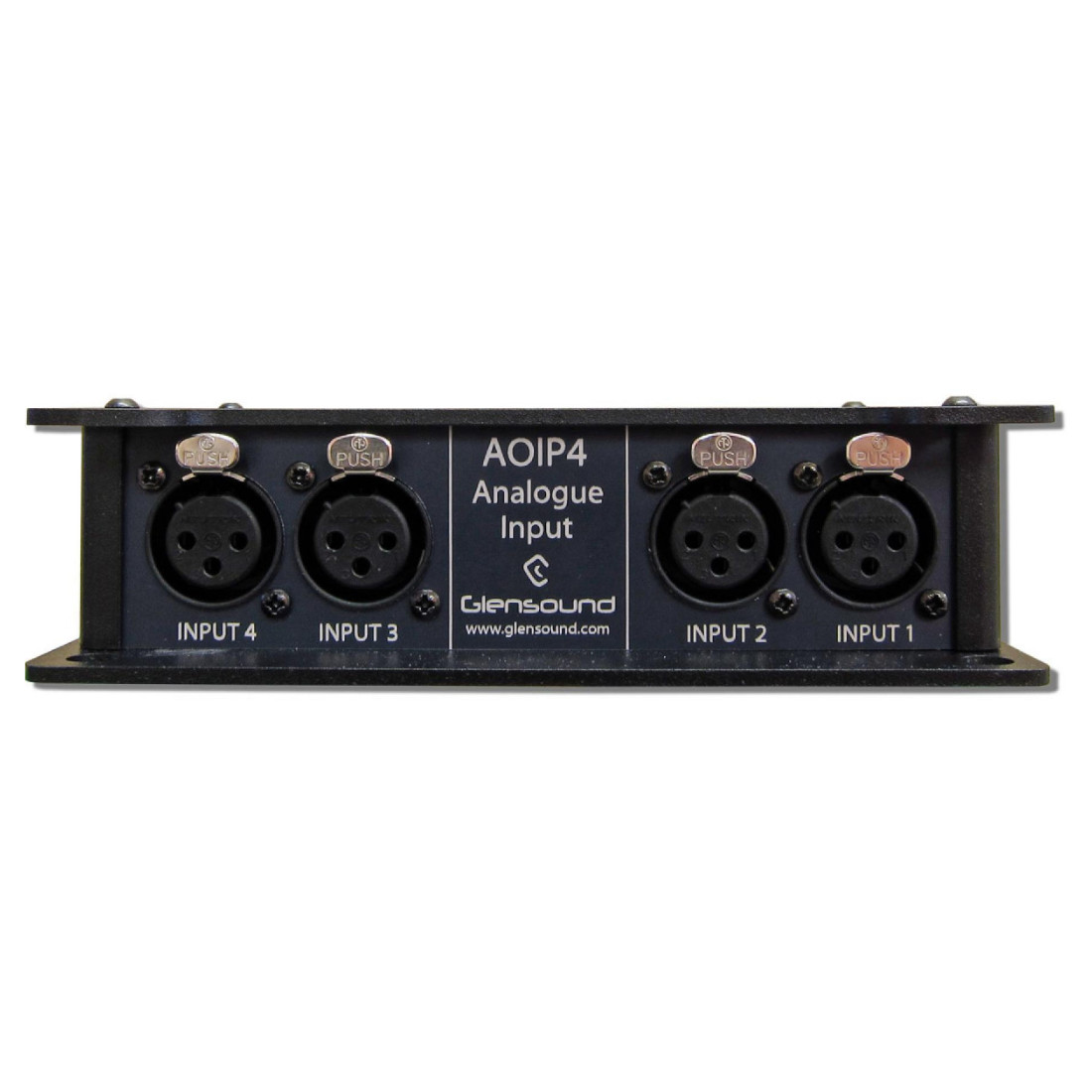

- 4 balanced analog inputs on gold-plated Neutrik XLRs
- Dante and AES67 network audio
- 4 channels at 44.1 or 48 kHz, or 2 channels at 88.2 or 96 kHz
- Up to +18 dBu input before clipping
- Neutrik etherCON network connector that mates with RJ45
- Powered by PoE (IEEE 802.3af, Class 0)
- Redundant power with an external supply
- Blue power LED
- Corner holes for cable ties or screws
- Four stick-on rubber feet included
What's Included
- Glensound AoIP4I audio interface
- Printed handbook
- RJ45 network cable (2 m, Cat5)
- 4 stick-on rubber feet
Specifications
| Audio Inputs | 4, electronically balanced (can be wired unbalanced), Neutrik 3-pin XLR male |
|---|---|
| Maximum Input Before Clipping | +18 dBu |
| Input Impedance | Greater than 20 kOhms |
| Frequency Response | 20 Hz to 22 kHz, ±0.25 dB |
| Distortion (analog in to Dante out) | 0.0013% THD+N at 1 kHz, ref +18 dBu |
| Noise (residual, at 0 dBu) | −92 dBu |
| Dynamic Range | 108 dB |
| Crosstalk (0 dBu, 1 kHz) | −135 dBu |
| Networks | Dante (uncompressed, low latency) and AES67 |
| Network Connector | Neutrik etherCON (also mates with standard RJ45 plugs), 100BASE-TX |
| Dante Sample Rates | 4 channels at 44.1 or 48 kHz; 2 channels at 88.2 or 96 kHz |
| AES67 Sample Rate | 48 kHz |
| Resolution | Up to 24-bit |
| Digital Full Scale | +18 dBu = 0 dBFS |
| PoE | IEEE 802.3af-2003, Class 0 |
| Power LED | Blue, rear panel |
| Dimensions (W x D x H) | 153 × 105 × 41 mm (6.02 × 4.13 × 1.61 in) |
| Weight | 420 g (0.93 lb) |
| Operating Temperature | 0 to 50 °C (32 to 122 °F) |
| Storage Temperature | −20 to 70 °C (−4 to 158 °F) |
| Relative Humidity | 0 to 95%, non-condensing |
