DPA N-BP1 Bodypack Transmitter
- Digital bodypack transmitter for DPA N-Series
- More than 8 hours on AA batteries
- MicroLock or 3-pin LEMO input
From $630.00 USD
DPA N-BP1 Bodypack Transmitter
The DPA N-BP1 is the bodypack transmitter of DPA’s N-Series digital wireless system, lightweight and shaped to the contours of the body for comfort over long wear.
The versions here are for the US (region B), tuning 470 to 608, 614 to 616, and 653 to 663 MHz in 25 kHz steps. It runs more than eight hours on standard AA batteries, or on DPA’s optional LBPBP1 rechargeable pack, and the batteries load easily.
Stacked converters and optimized input and A/D circuitry give the system a 126 dB dynamic range, so there is no gain to set on the transmitter. Levels are balanced at the receiver with digital trim from -20 to +40 dB. The bodypack transmits at 1, 5, 10, 20, or 50 mW, with latency under 2.9 ms.

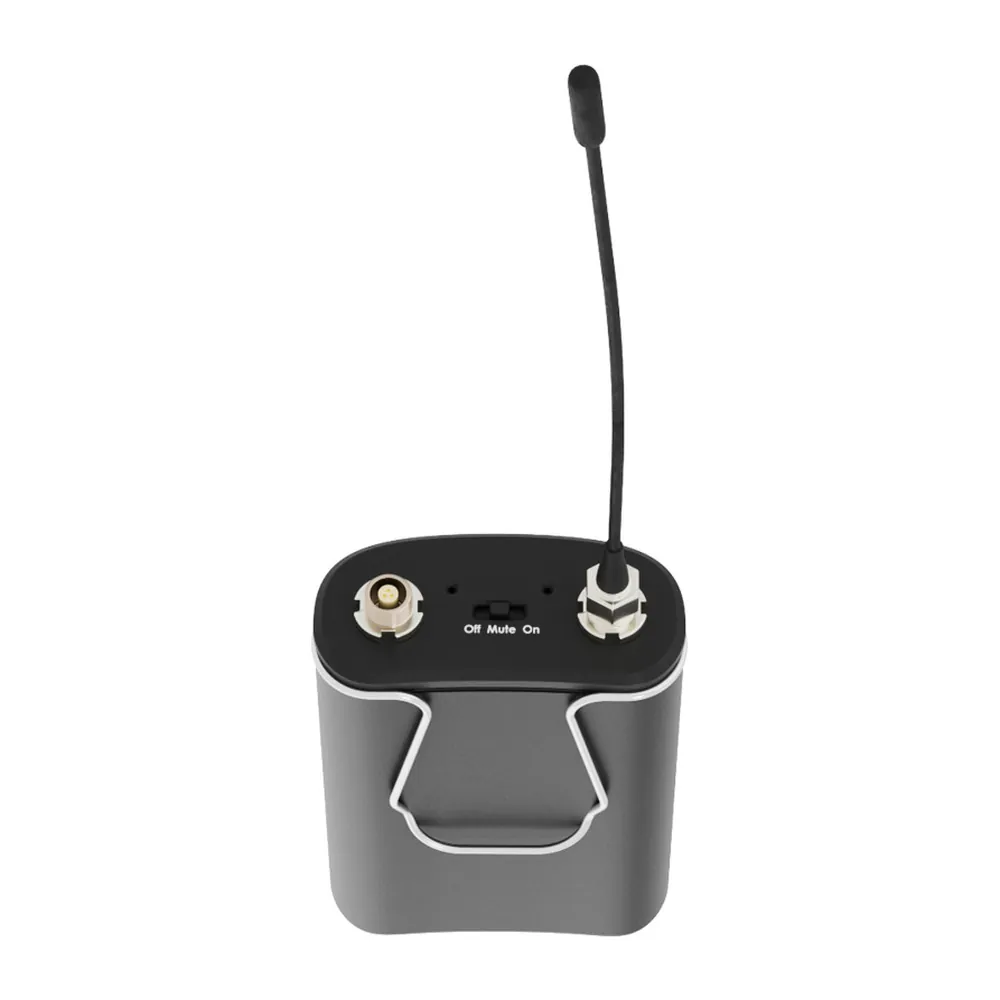

It comes with a MicroLock input for 2-wire DPA mics, or a 3-pin LEMO input that takes 2-wire and 3-wire mics. The housing is zinc alloy, with an SMA antenna connector.
Features
- N-Series digital bodypack transmitter
- Contoured, lightweight shape
- More than 8 hours on AA batteries
- Optional LBPBP1 rechargeable pack
- No input gain to set; 126 dB system dynamic range
- 1 to 50 mW transmit power
- MicroLock or 3-pin LEMO input
- Latency under 2.9 ms
Specifications
| RF | |
|---|---|
| RF Frequency Range | 470 to 870 MHz platform; US region B: 470 to 608, 614 to 616, 653 to 663 MHz |
| RF Tuning Steps | 25 kHz |
| RF Power | 1, 5, 10, 20, or 50 mW (follows region) |
| RF Sensitivity | −96 dBm at 10^−5 BER |
| Occupied Bandwidth | Below 200 kHz |
| Working Range | 100 m (330 ft), depending on the RF environment |
| Antenna | 1/4 wave, SMA connector |
| Audio | |
| Audio Frequency Response | 20 Hz to 20 kHz (±1 dB) |
| System Dynamic Range | 126 dB (analog and digital) |
| Latency | Below 2.9 ms |
| Max. Input Level (below 1% THD at 1 kHz) | 1.8 Vrms |
| Audio Input Impedance | 5 kΩ |
| Audio Bias Voltage | 5 VDC |
| Audio Input Connector | MicroLock (N-BP1-90, 2-wire) or 3-pin LEMO (N-BP1-03, 2- and 3-wire) |
| Digital Audio Trim | −20 to +40 dB at the receiver, in 1 dB steps |
| Power and Physical | |
| Batteries | LR6 AA |
| Battery Runtime at 10 mW | More than 8 hours |
| Housing | Zinc alloy |
| Operating Temperature | −10°C to 50°C (14°F to 122°F) |
| Dimensions (H × W × D) | 87 × 53 × 24 mm (3.4 × 2.1 × 0.9 in) |
| Weight | 153 g (5.4 oz) |
| Latest Specifications | Specifications are subject to change without prior notice. For current information, visit www.dpamicrophones.com. |
