DPA 4661 CORE+ Heavy Duty Lavalier Microphone

DPA 4661 CORE+ — Heavy-duty miniature omnidirectional lavalier microphones with DPA’s advanced CORE+ technology. Loud SPL (144 dB peak).

The 4661 heavy-duty mic is intended for situations that require maximum security and where the visual size of the mic is less important. Featuring a stainless steel housing, a heavy-duty cable relief, and a thick 2.2 mm (0.09 in) cable.

CORE+ microphones are available with MicroLock connectors. MicroLock adapters are available for compatibility with a variety connector types.

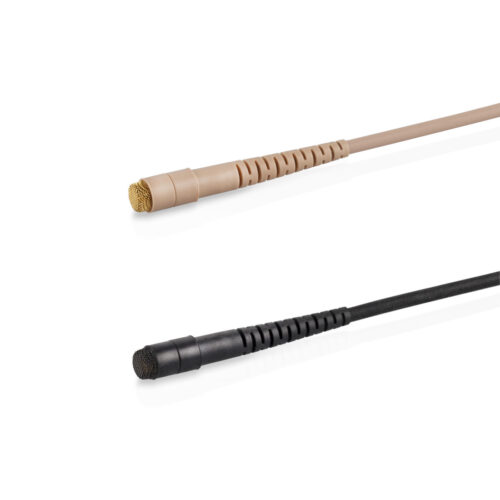

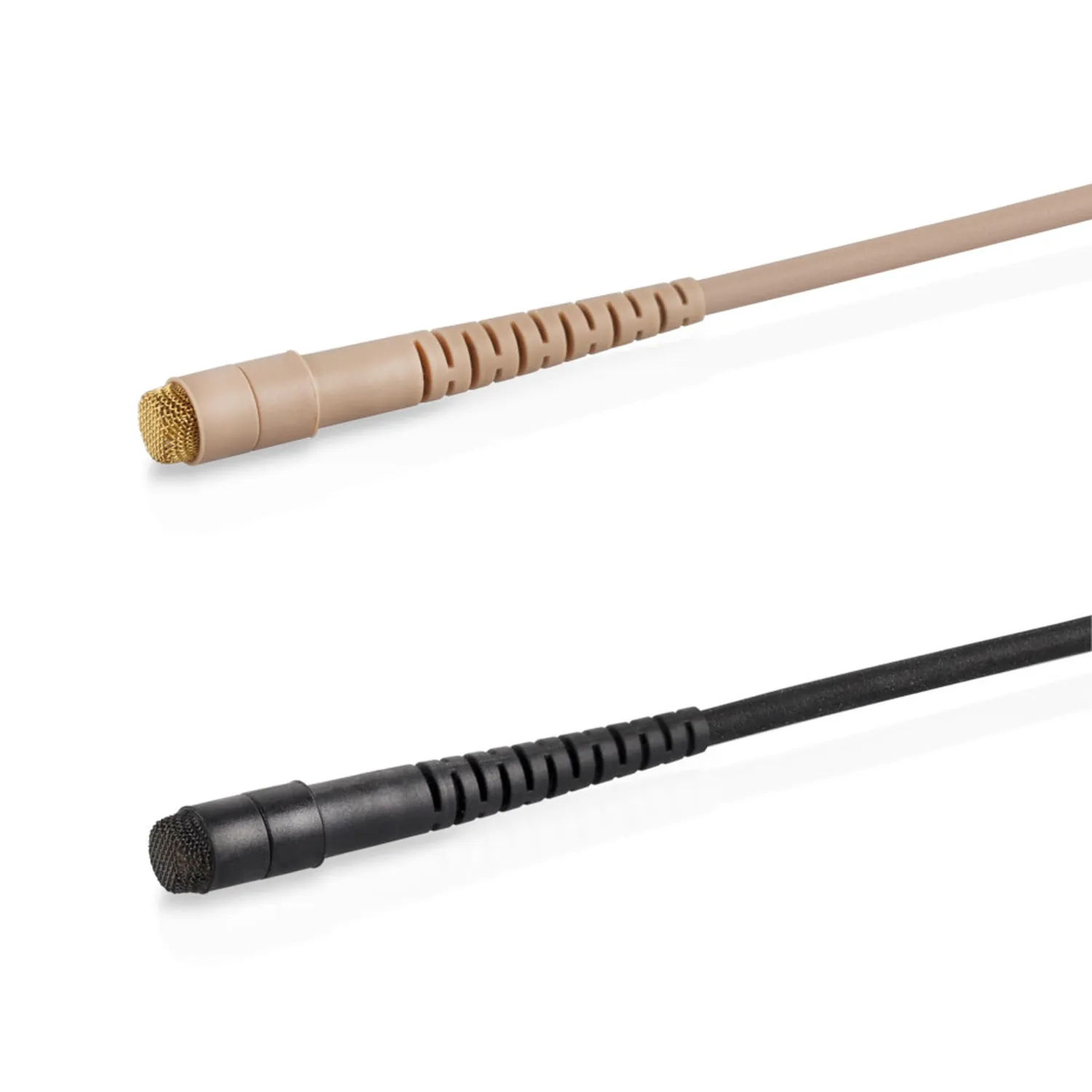

4661 CORE+ color options: Black and Beige.

4661 CORE+ available connector types: MicroLock and 3-pin Lemo (3-pin Lemo is currently only available in Black color).

Core+ Overview

Microphones with CORE+ provide even more clarity across the entire dynamic range, from low to high sound pressure levels.

Miniature microphones with CORE+ provide unheard levels of openness. While the original CORE allows mics to handle higher SPLs without significant artifacts up to 1% THD, CORE+ eliminates those artifacts completely.

MicroLock Connector

Core+ mics are available with MicroLock connectors. MicroLock is a dependable, secure locking microphone connector with limitless flexibility and reassuring reliability. MicroLock features a more durable construction and a newly designed locking mechanism that provides a quick, easy, and secure connection, as well as an extra layer of protection against accidentally disconnecting during use.

Specifications

Directional pattern	Omnidirectional
Principle of operation	Pressure
Cartridge type	Pre-polarized condenser
Frequency response	20 Hz – 20 kHz
Effective frequency range ±2 dB	Soft boost grid: 20 Hz – 20 kHz, 3 dB soft boost at 8 – 20 kHz High boost grid: 20 Hz – 20 kHz, 10 dB boost at 12 kHz
Sensitivity, nominal, ±3 dB at 1 kHz	4060: 20 mV/Pa; -34 dB re. 1 V/Pa 4061: 6 mV/Pa; -44 dB re. 1 V/Pa
Equivalent noise level, A-weighted	4060: Typ. 23 dB(A) re. 20 uPa (max. 26 dB(A)) 4061: Typ. 26 dB(A) re. 20 µPa (max. 28 dB(A))
Equivalent noise level, ITU-R BS.468-4	4060: Typ. 35 dB (max. 38 dB) 4061: Typ. 38 dB (max. 40 dB)
Distortion, THD < 0.5%	4060: 125 dB SPL RMS, 128 dB SPL peak 4061: 127 dB SPL RMS, 130 dB SPL peak
Distortion, THD < 1%	4060: 126 dB SPL RMS, 129 dB SPL peak 4061: 134 dB SPL RMS, 137 dB SPL peak
Dynamic range	4060: Typ. 106 dB 4061: Typ. 111 dB
Max. SPL, THD 10%	4060: 134 dB SPL peak 4061: 144 dB SPL peak
Power Supply for Full Performance	For wireless systems: Min. 5 V – max. 10 V through DPA adapter; With DAD6001-BC: P48 (Phantom Power). Will work from 12 V
Current Consumption	Typ. 1.5 mA (microphone). 3.5 mA with DAD6001
Rated output impedance	30 – 40 Ohms
Microphone diameter	5.4 mm (0.21 in)
Microphone length	12.7 mm (0.5 in)
Cable length	1.8 m (5.9 ft)
Temperature range	-40°C to 45°C (-40°F to 113°F)
Relative humidity (RH)	Up to 90%
Sensitivity selection tolerance (at 1kHz)	±1.5 dB
