DPA 4017C Compact Shotgun Microphone
- Compact shotgun, only 154 mm and 70 g
- Highly directional with smooth off-axis response
- Immune to RF and humidity
$2,050.00 USD
In Stock

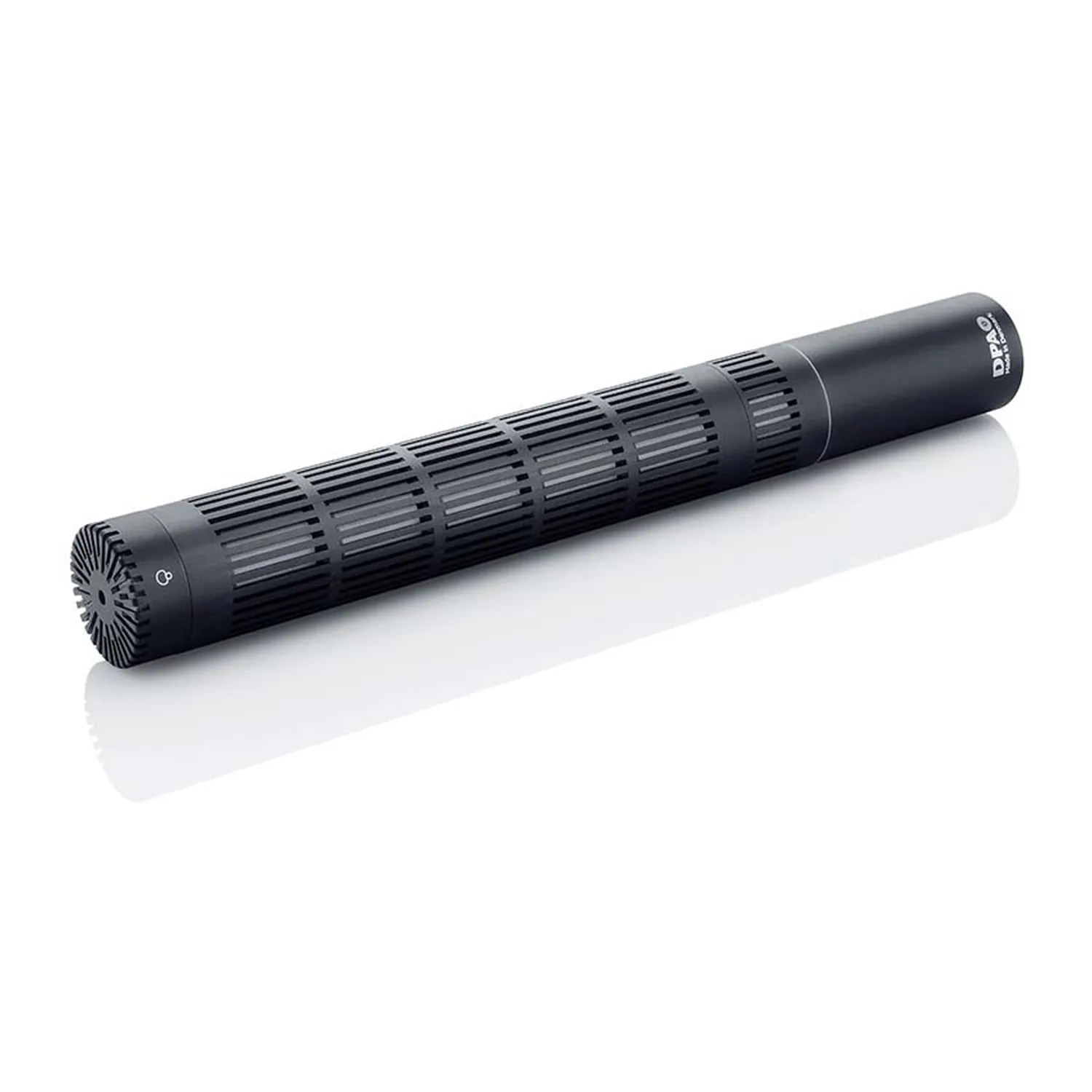

DPA 4017C Compact Shotgun Microphone
At 154 mm (6.1 in) and 70 g (2.5 oz), the DPA 4017C is a compact shotgun microphone for camera systems, fixed positions at sports venues, and broadcast, ENG, and film booming.
A supercardioid capsule behind an interference tube gives a highly directional pickup with excellent off-axis rejection, for noisy surroundings or when you cannot get the mic close to the source. DPA worked to smooth the uneven side-lobe response common to shotguns, so off-axis sound stays even.
The 19 mm condenser cartridge is immune to RF and works in very humid places and in extreme heat and cold, from deserts to the arctic. Its short body makes booming easier in cars and low-ceilinged rooms.
Features
- Highly directional shotgun pickup
- Smooth off-axis response
- 154 mm long, 70 g
- 13 dB(A) self-noise
- Immune to RF and humidity
- P48 phantom power, XLR-3M
Specifications
| Acoustic | |
|---|---|
| Directional Pattern | Supercardioid, lobe-shaped |
| Principle of Operation | Pressure gradient with interference tube |
| Cartridge Type | Pre-polarized condenser |
| Frequency Response | 20 Hz to 20 kHz |
| Effective Frequency Range (±2 dB, at 60 cm) | 40 Hz to 18 kHz with 3 dB soft boost at 15 kHz (typical) |
| Sensitivity (±2 dB at 1 kHz) | 19 mV/Pa (−34.4 dB re 1 V/Pa) |
| Equivalent Noise Level (A-weighted) | 13 dB(A) typical (15 dB(A) max) |
| Equivalent Noise Level (ITU-R BS.468-4) | 24 dB typical (26 dB max) |
| Distortion, THD below 1% | 134 dB SPL RMS, 137 dB SPL peak |
| Dynamic Range | 124 dB typical |
| Max. SPL (THD 10%) | 146 dB SPL peak |
| Electrical | |
| Rated Output Impedance | 100 Ω |
| Cable Drive Capability | 100 m (328 ft) |
| Output Balance Principle | Impedance balancing with Active Drive |
| Common Mode Rejection Ratio | Over 50 dB |
| Maximum Output Voltage (RMS) | 4.5 V |
| Power Supply | P48 phantom power |
| Current Consumption | 2.8 mA |
| Physical | |
| Connector | XLR-3M |
| Microphone Diameter | 19 mm (0.75 in) |
| Capsule Diameter | 19 mm (0.75 in) |
| Microphone Length | 154 mm (6 in) |
| Weight | 70 g (2.5 oz) |
| Temperature Range | −40°C to 45°C (−40°F to 113°F) |
| Relative Humidity | Up to 90% |
| Latest Specifications | Specifications are subject to change without prior notice. For current information, visit www.dpamicrophones.com. |
