Name: DPA 2061 Omnidirectional Lavalier Microphone
Brand: DPA Microphones
SKU: DPA2061
Availability: InStock

DPA 2061 Omnidirectional Lavalier Microphone

The DPA 2061, an omnidirectional lavalier microphone, gives clear, consistent speech in broadcast and electronic news gathering (ENG), theater, houses of worship, event venues, and content creation.

Its accurate omni pattern needs no aiming, so the mic can go on the chest, forehead, or cheek and still give a natural voice that is easy to shape with EQ. The sturdy construction repels sweat, and the mic is IP57 certified against water.

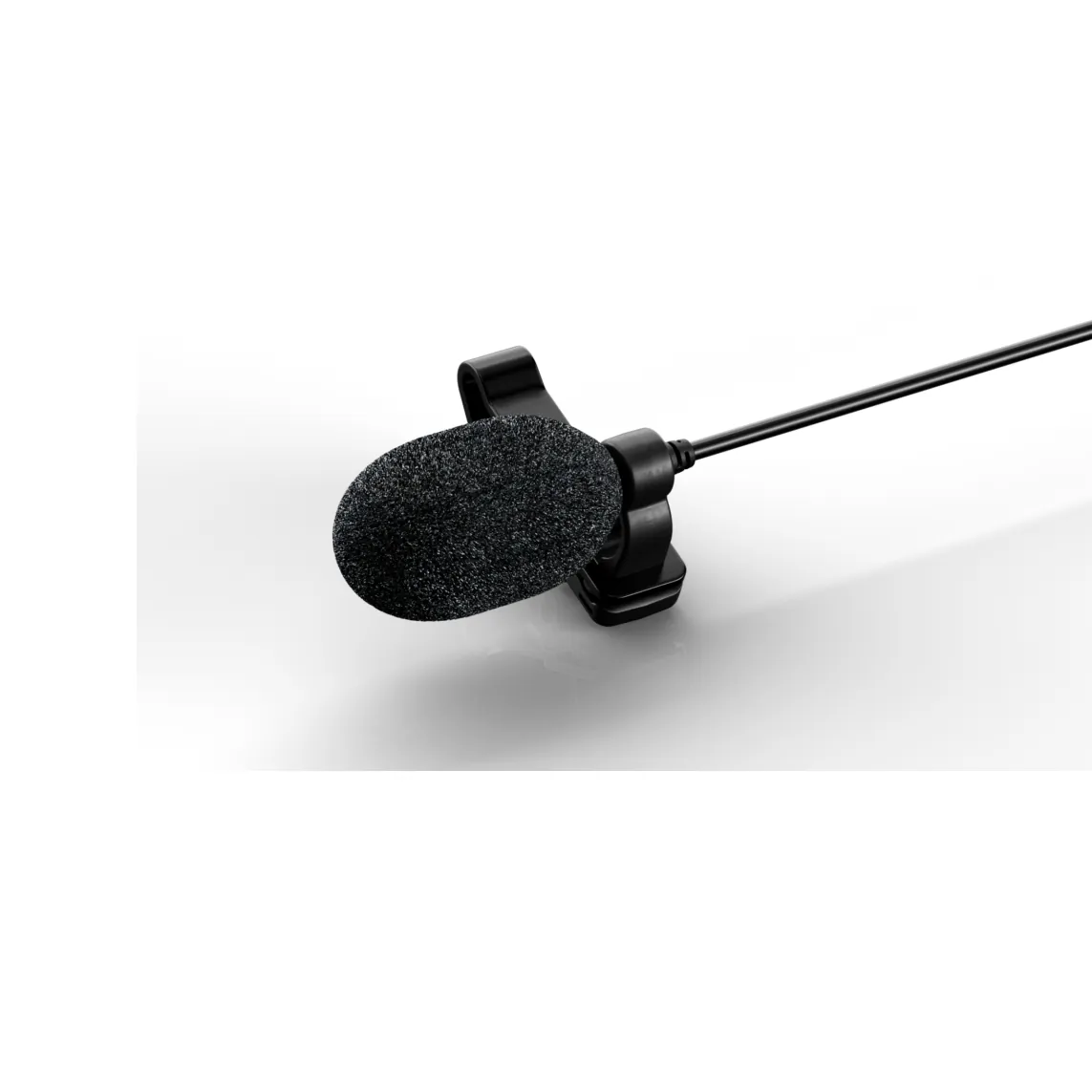

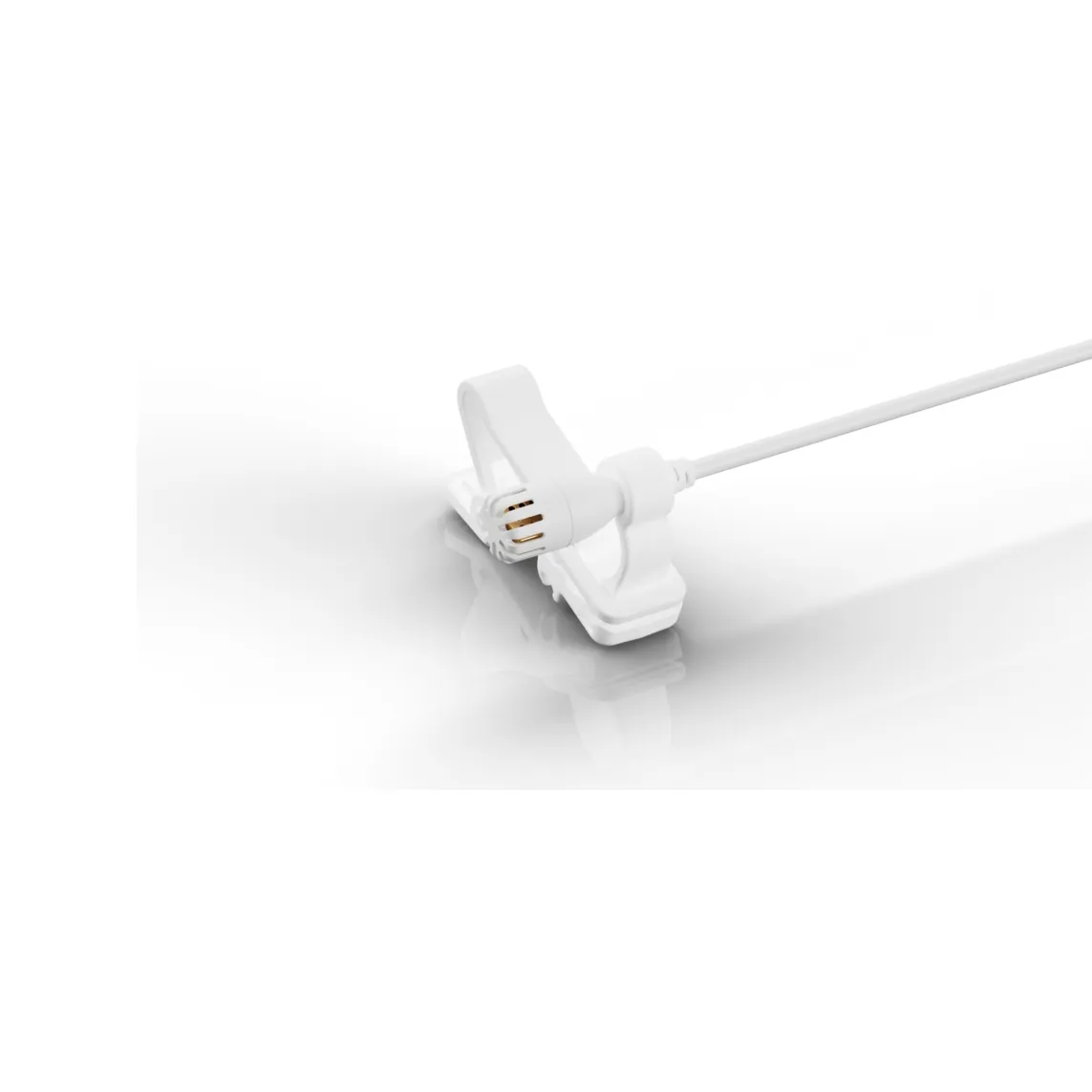

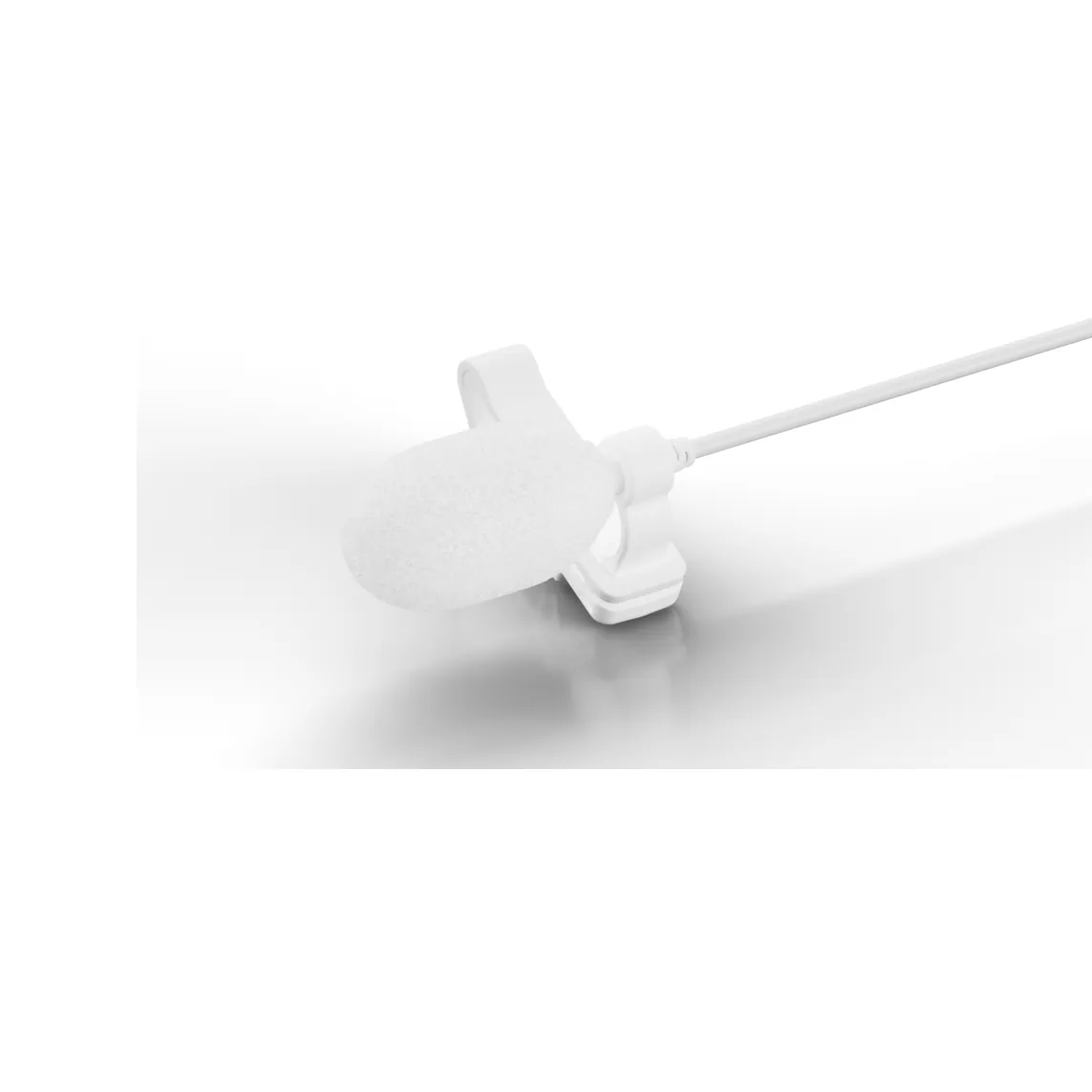

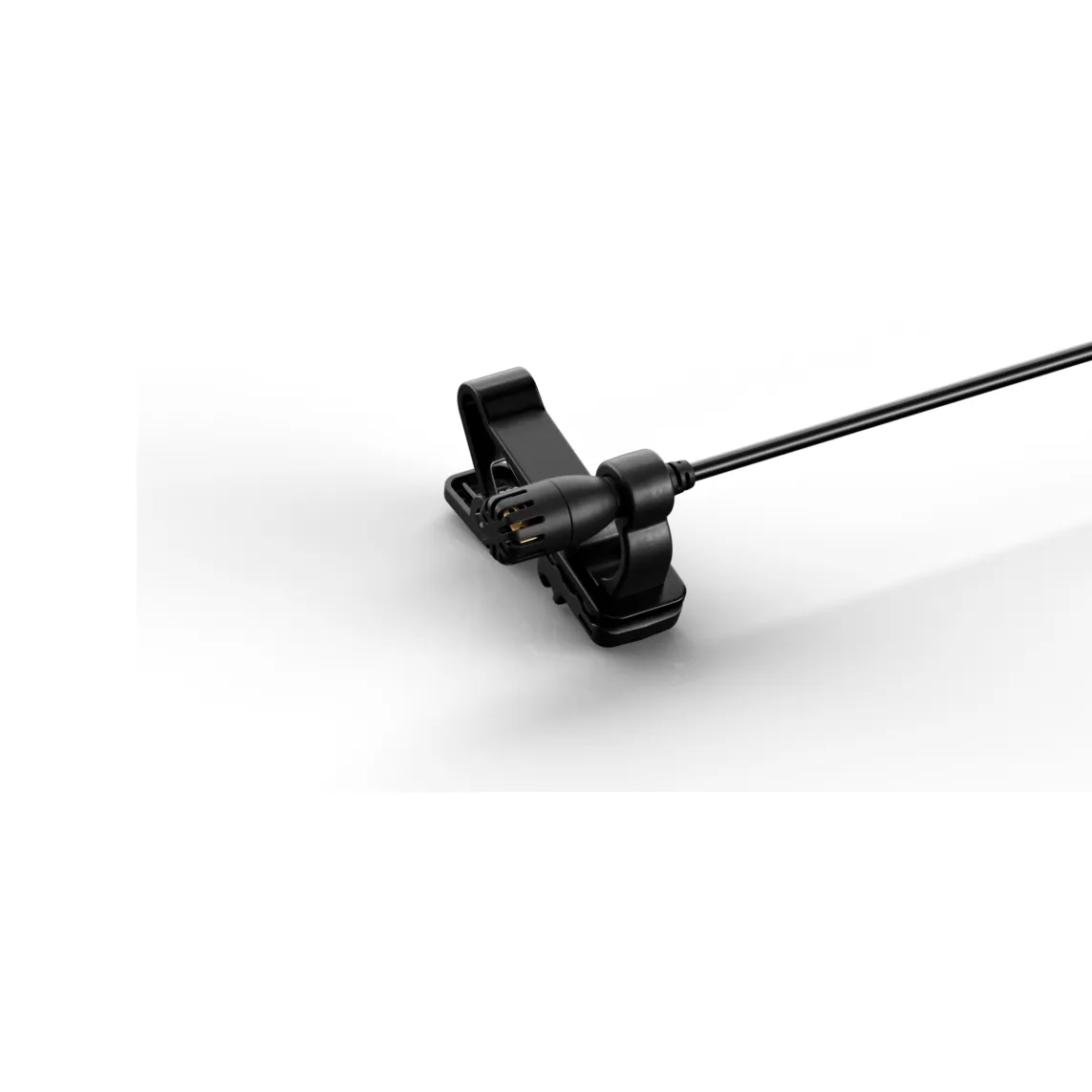

The 2061 has a fixed 3-pin LEMO, TA4F Mini-XLR, or Mini-Jack connector, in black, white, beige, or brown. The black and white versions come with an SCM0035 clip, a foam windscreen, and five DUA0593 mic mounts for the clip.

Features

Clear, natural speech with little coloration
Accurate omni pattern needs no aiming
Sweat-repelling, IP57 water resistant
Robust mechanical construction
Up to 137 dB SPL peak
Fixed 3-pin LEMO, TA4F, or Mini-Jack connector

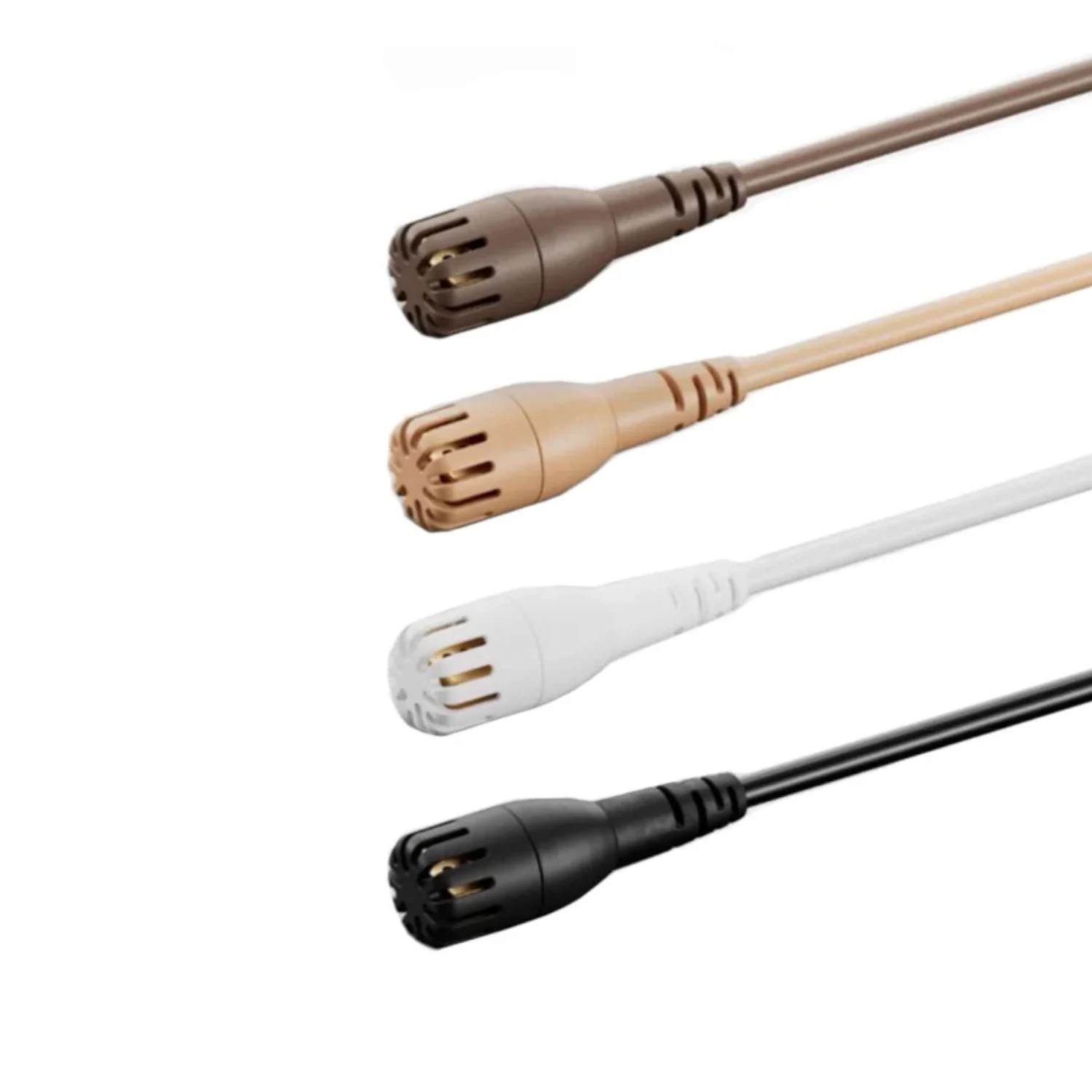

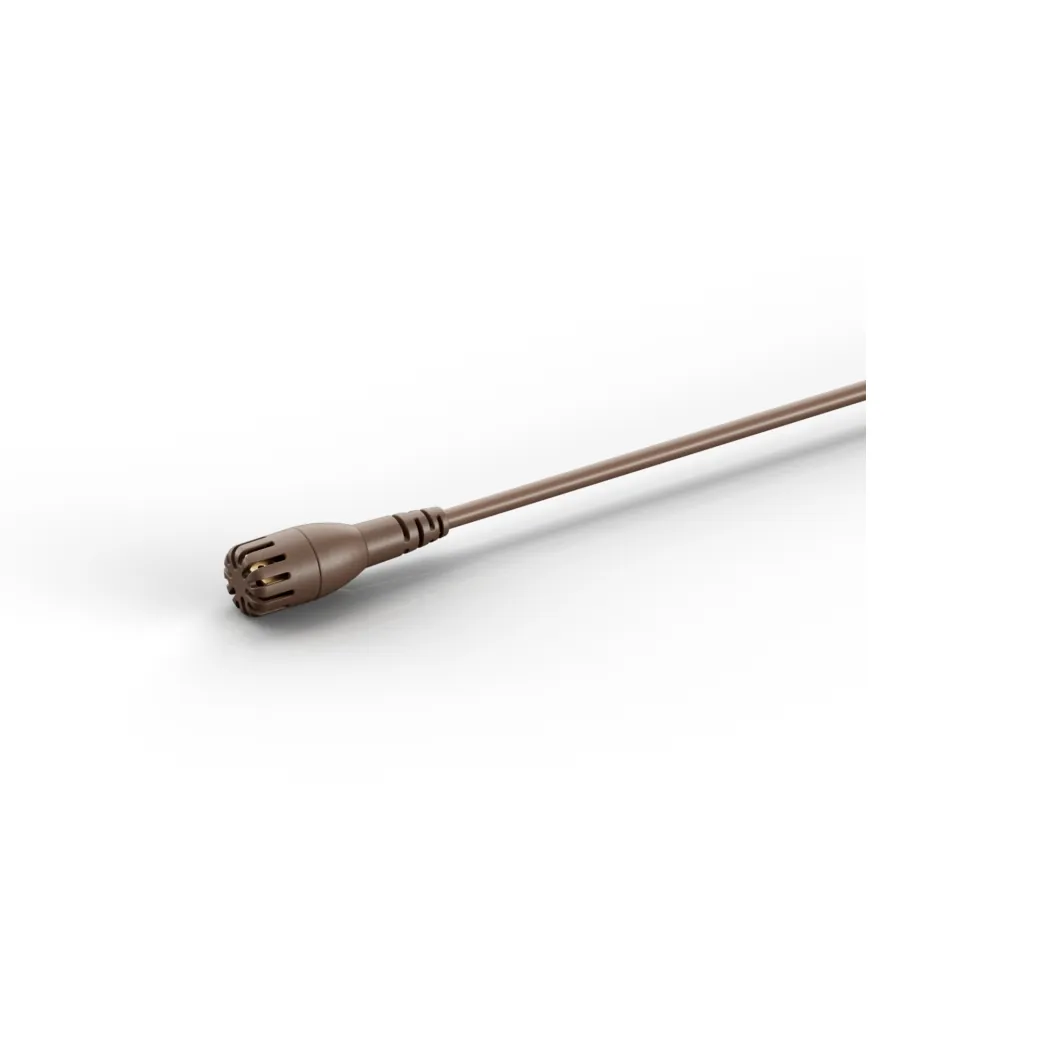

Black, white, beige, or brown
Black and white versions include a clip and windscreen

Available Options

Color	Connectors	Accessories
Black	3-pin LEMO, TA4F, and Mini-Jack	SCM0035 clip, foam windscreen, 5 DUA0593 mic mounts
White	3-pin LEMO, TA4F, and Mini-Jack	SCM0035 clip, foam windscreen, 5 DUA0593 mic mounts
Beige	3-pin LEMO, TA4F, and Mini-Jack	None
Brown	3-pin LEMO, TA4F, and Mini-Jack	None

What's Included

Color	In the Box
Black and white	2061 microphone, SCM0035 clip, foam windscreen, 5 × DUA0593 mic mounts
Beige and brown	2061 microphone

Specifications

Acoustic
Directional Pattern	Omnidirectional
Principle of Operation	Pressure
Cartridge Type	Pre-polarized condenser

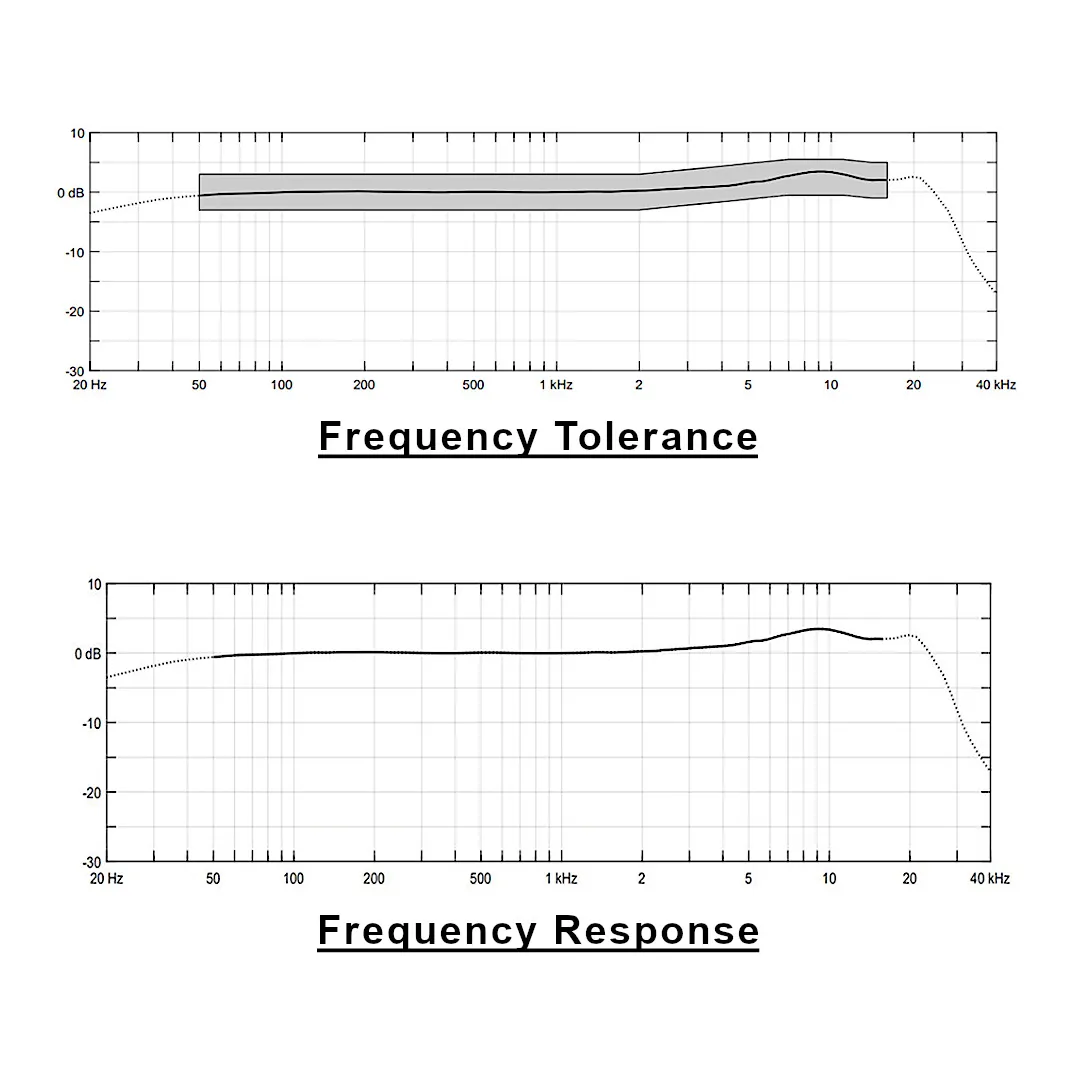

Frequency Response	20 Hz to 20 kHz
Effective Frequency Range (±3 dB)	50 Hz to 16 kHz, 3 dB soft boost at 8 to 16 kHz
Sensitivity (±3 dB at 1 kHz)	6 mV/Pa (−44 dB re 1 V/Pa)
Equivalent Noise Level (A-weighted)	26 dB(A) typical (28 dB(A) max)
Distortion, THD below 0.5%	120 dB SPL RMS, 123 dB SPL peak
Distortion, THD below 1%	125 dB SPL RMS, 128 dB SPL peak
Dynamic Range	102 dB typical
Max. SPL (THD 10%)	137 dB SPL peak
Electrical
Rated Output Impedance	112 Ω
Power Supply	Wireless systems: 5 to 10 V
Current Consumption	0.6 mA typical
Maximum Output Voltage (RMS)	1.6 V
Physical
Connector	TA4F Mini-XLR, 3-pin LEMO, or Mini-Jack
Microphone Diameter	5.5 mm (0.22 in)
Microphone Length	9.7 mm (0.38 in)
Cable Length	1.5 m (4.9 ft)
Cable Diameter	1.6 mm (0.06 in)
Weight	10 g (0.35 oz)
Colors	Black, brown, beige, or white
Temperature Range	−40°C to 45°C (−40°F to 113°F)
Relative Humidity	Up to 90%
Latest Specifications	Specifications are subject to change without prior notice. For current information, visit www.dpamicrophones.com.
