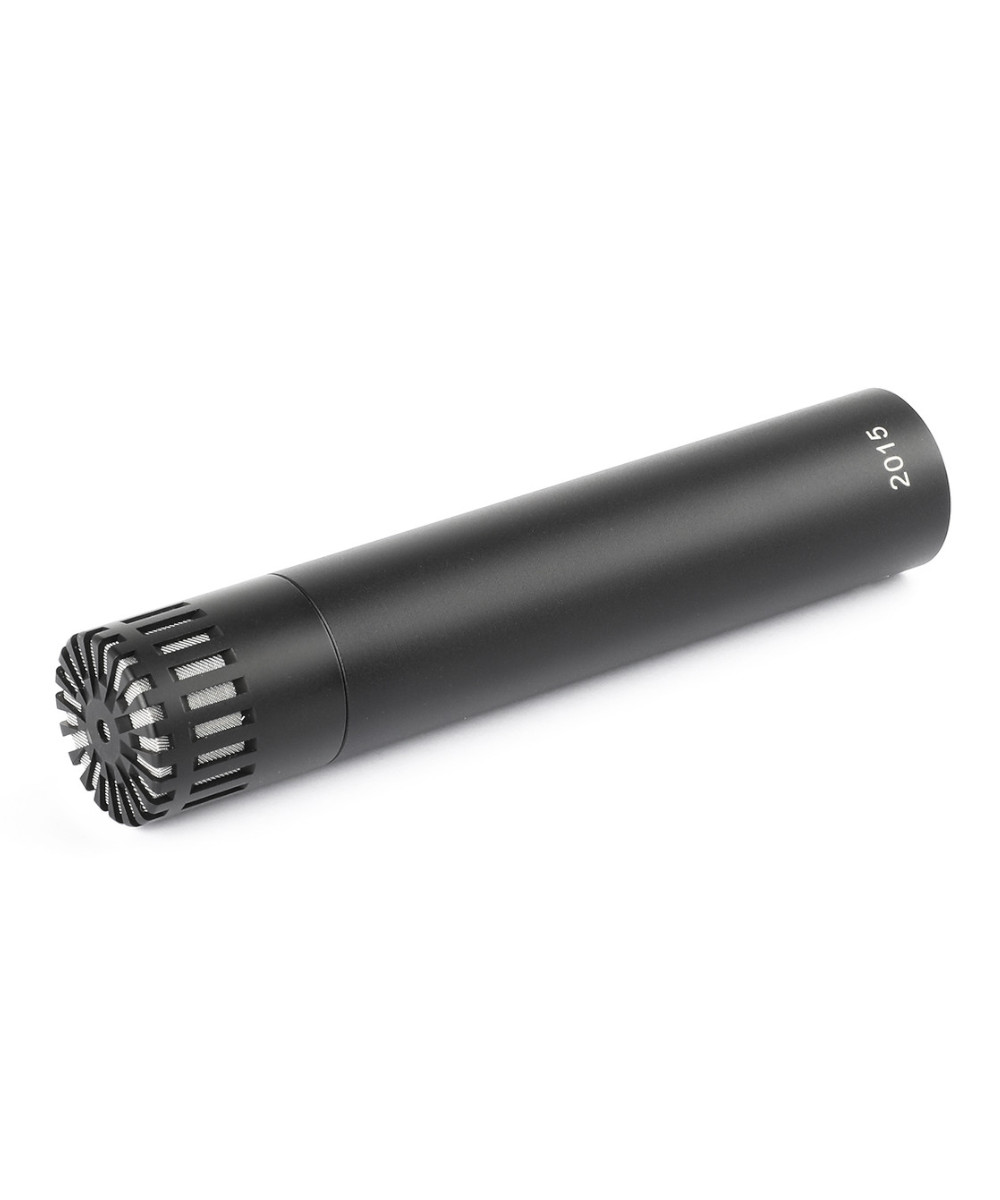

DPA 2015 Wide Cardioid Microphone

  • Wide cardioid pencil mic for drum overheads and groups
  • Flat off-axis response, high gain before feedback
  • Single or matched stereo pair

From $895.00 USD

Brand: Categories: , , Trew SKU: DPA2015

DPA 2015 Wide Cardioid Microphone

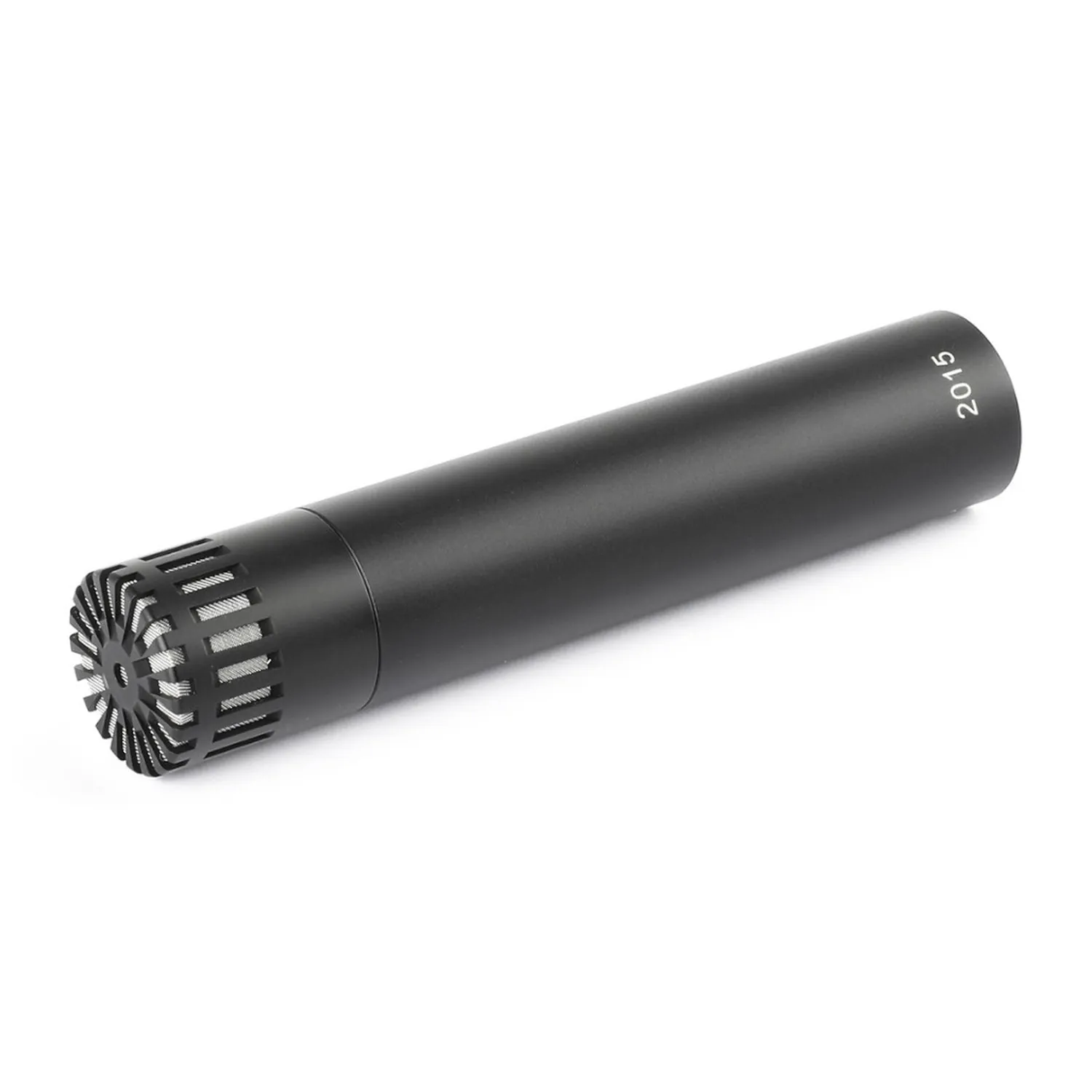

The DPA 2015, a wide cardioid pencil microphone, captures the spacious, natural sound of a whole drum kit or another group of instruments.

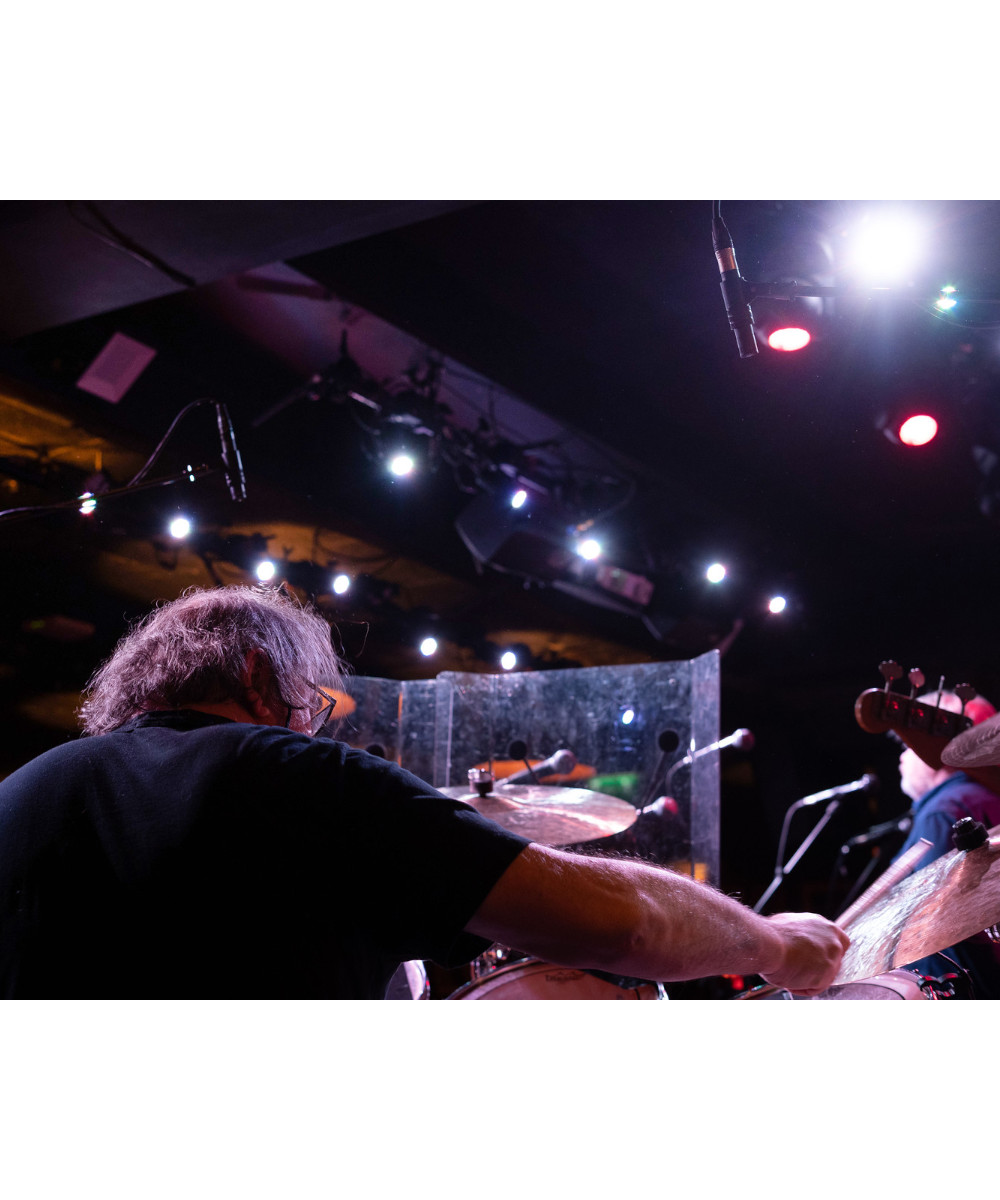

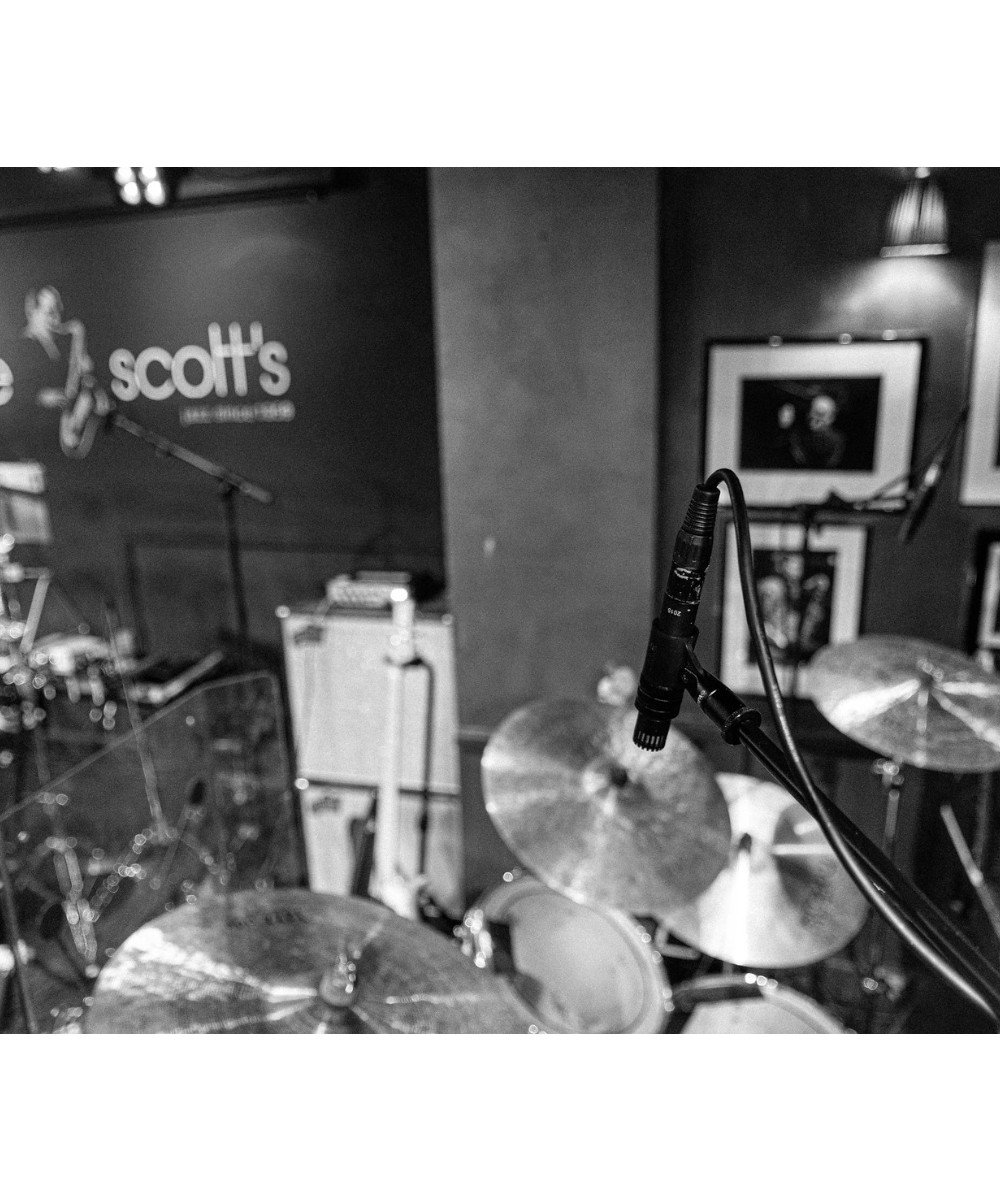

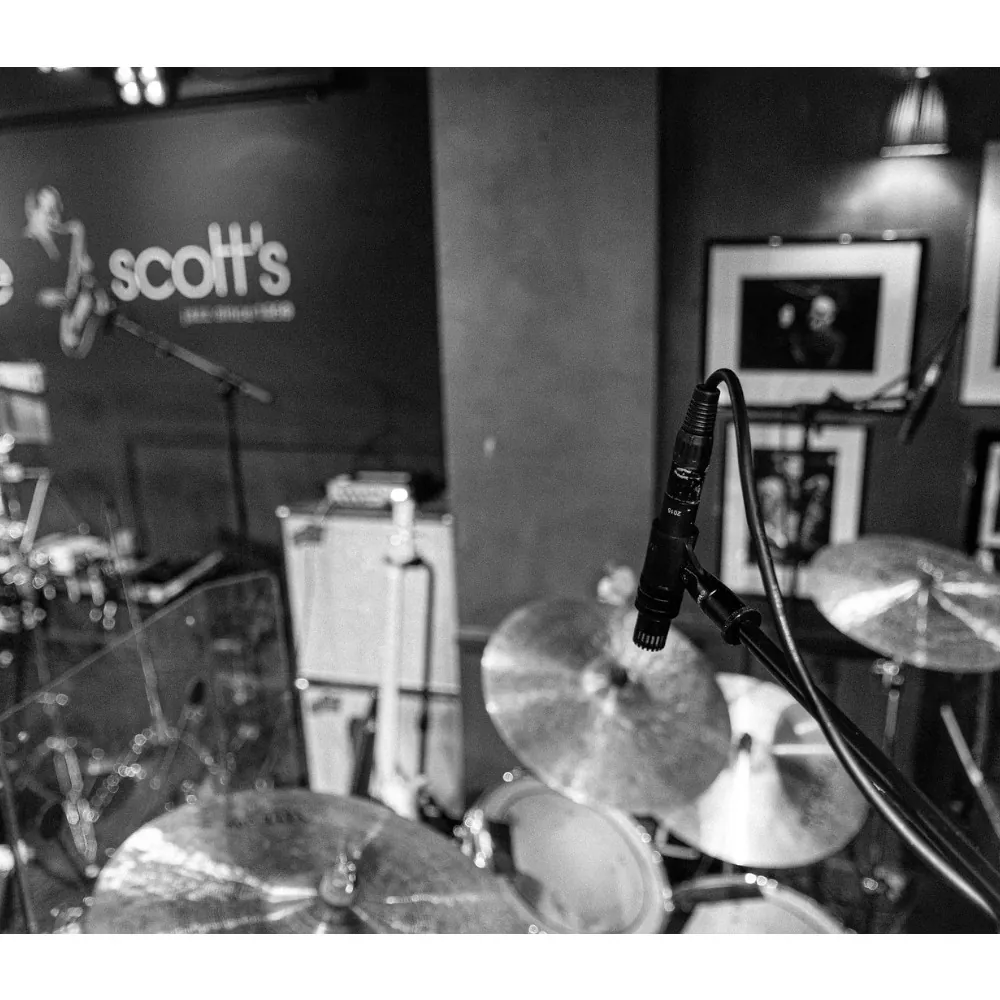

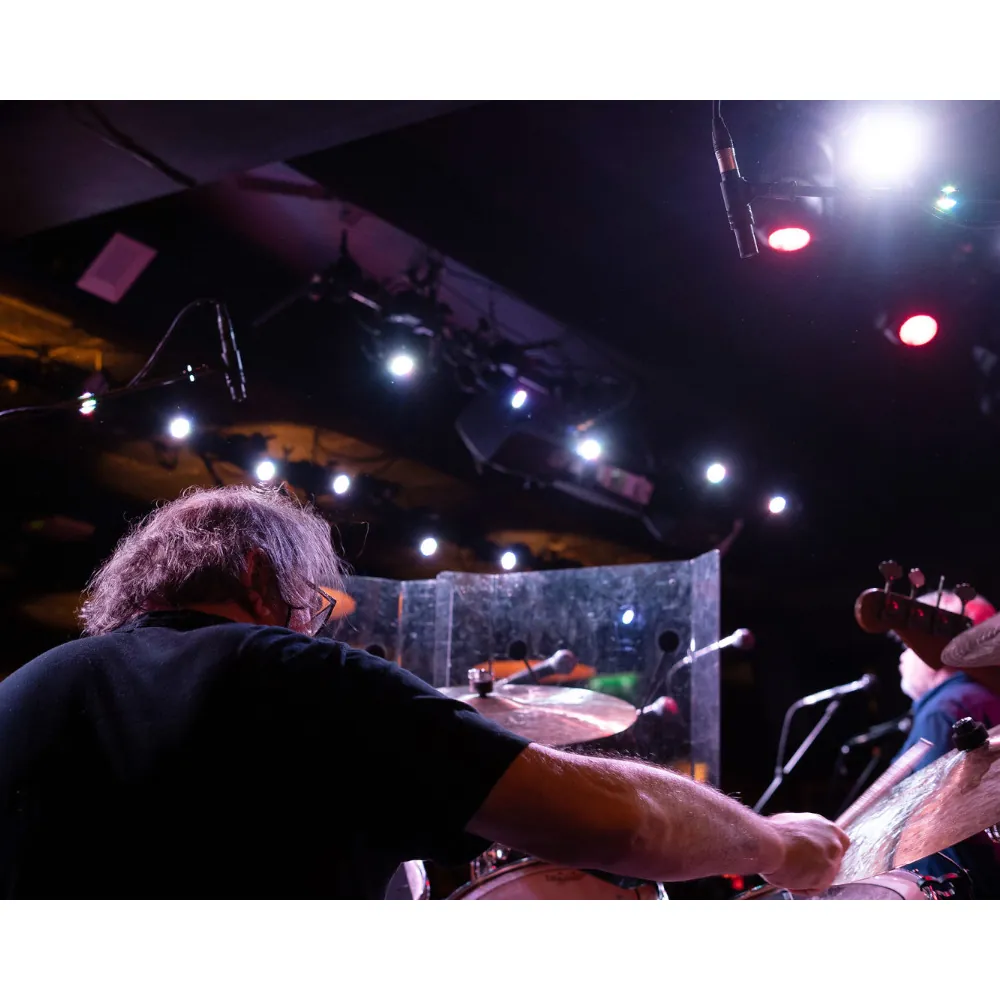

When a standard cardioid is not open enough on a live stage, a pair of 2015s works well as drum overheads and gives a balanced picture of the whole kit. They can sit closer to the kit than usual overheads and still capture it evenly, for a stronger signal and less bleed from the rest of the stage. The wide cardioid pattern, also called subcardioid or hypocardioid, covers a broad angle on instrument groups with complex radiation patterns. Besides drum overheads, the 2015 suits grand piano, horn sections, vibraphones, xylophones, large marimbas, and other large instruments.

The flat off-axis response gives high gain before feedback and makes bleed from nearby instruments easier to manage. A thick brass body resists corrosion and metal fatigue, and the handle and grille have a protective black chrome finish for rough handling on busy stages.

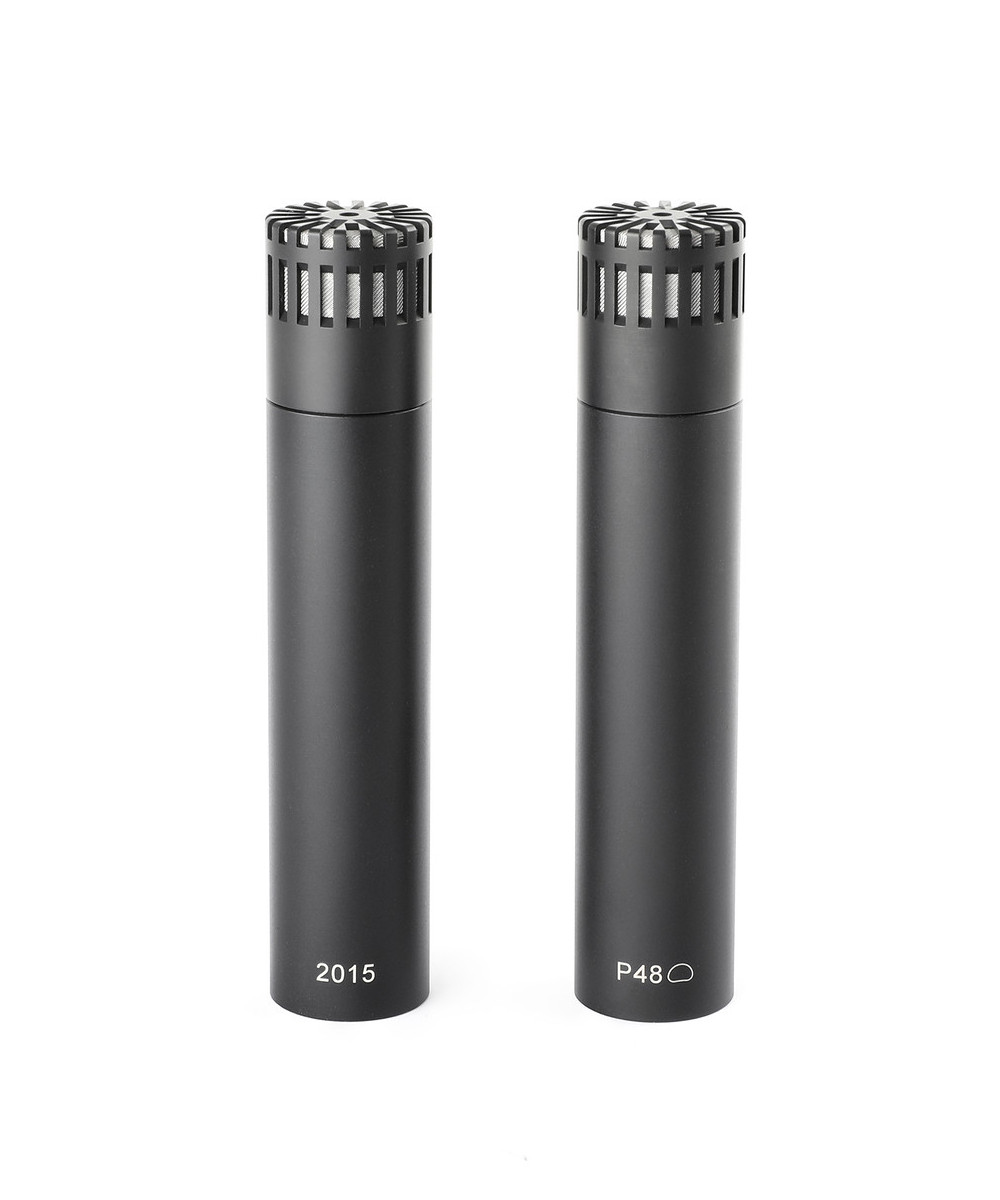

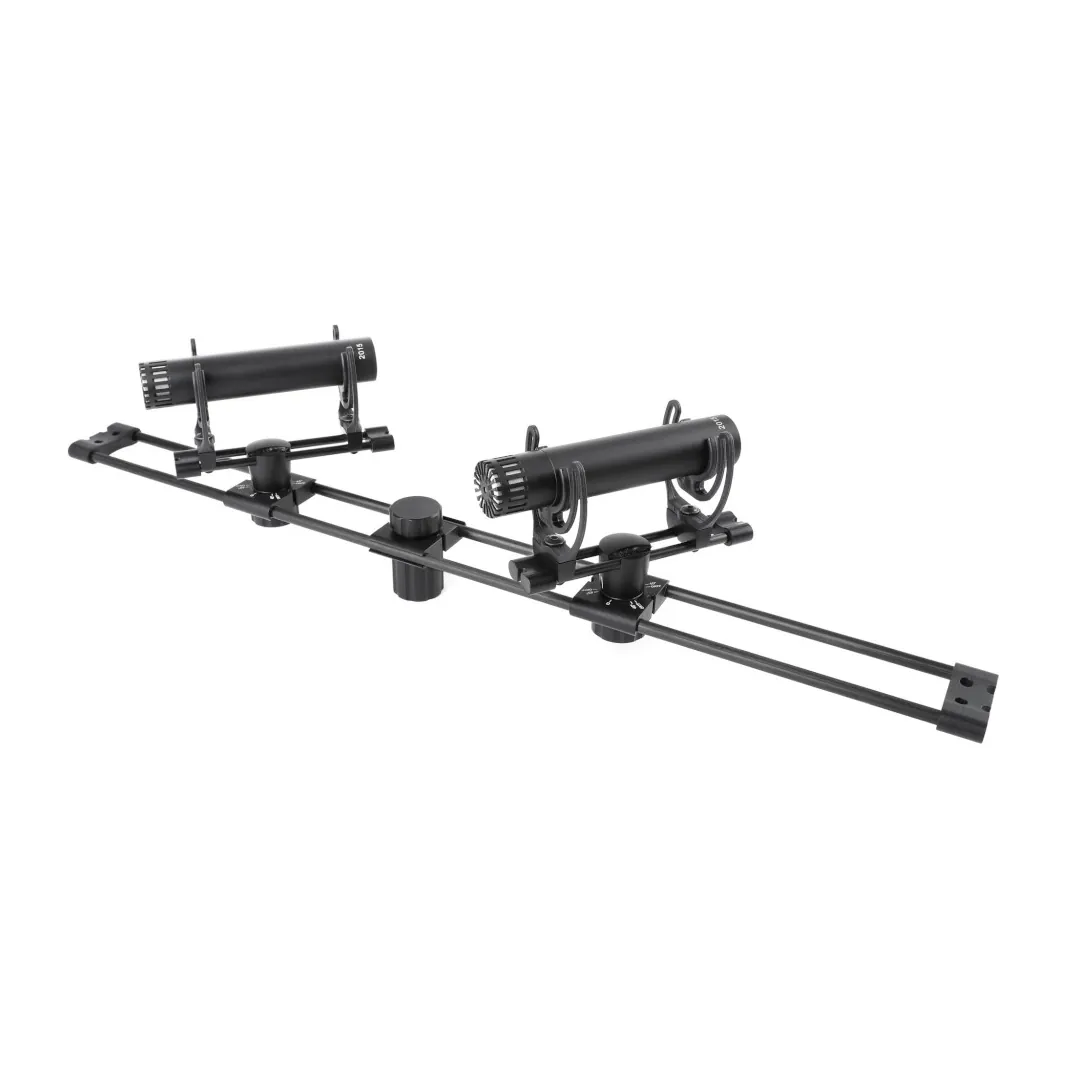

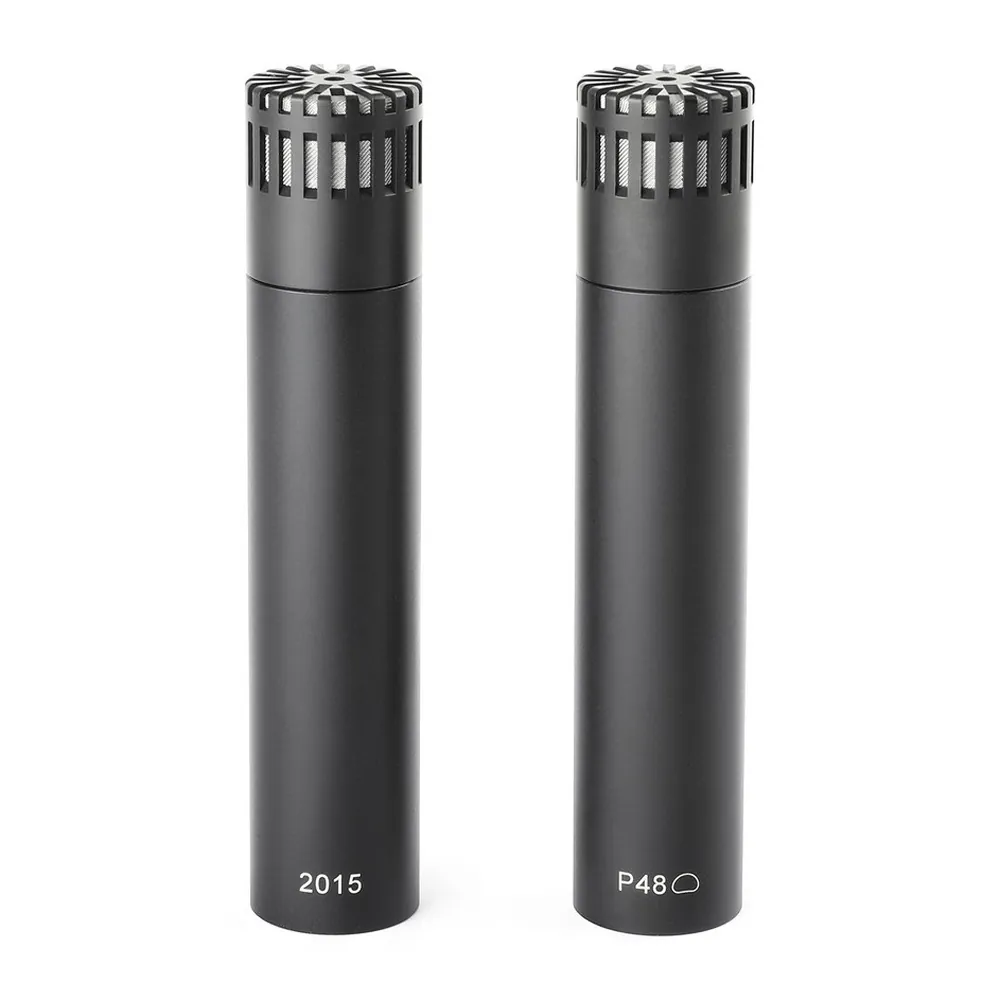

The 2015 comes as a single mic or as a stereo pair matched to within ±1.5 dB sensitivity.

Features

  • Wide cardioid pickup for drum kits and instrument groups
  • Flat off-axis response, high gain before feedback
  • Thick brass body with a black chrome finish
  • Compact for unobtrusive stage placement
  • Matched stereo pairs within ±1.5 dB
  • P48 phantom power

What's Included

Version In the Box

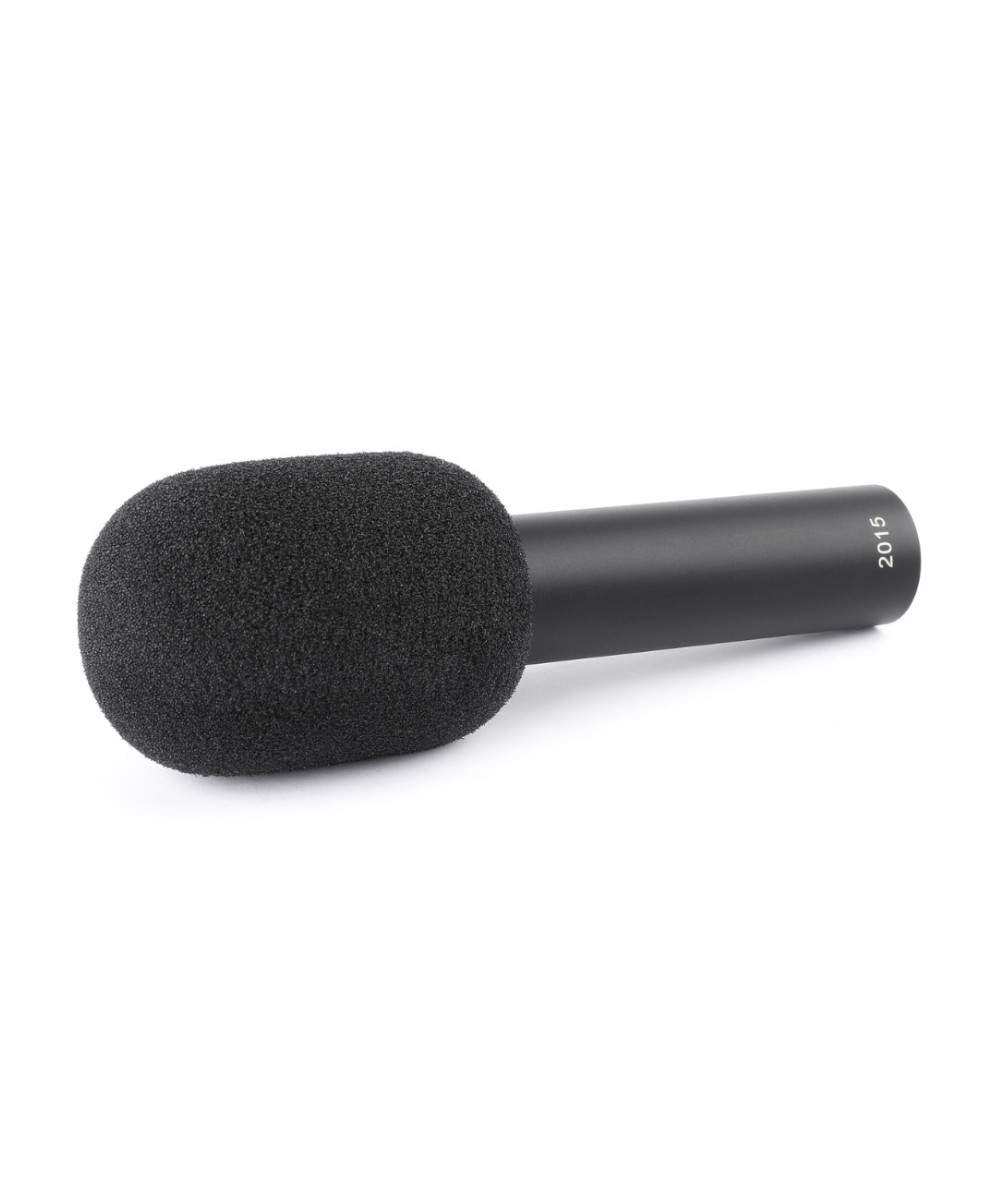

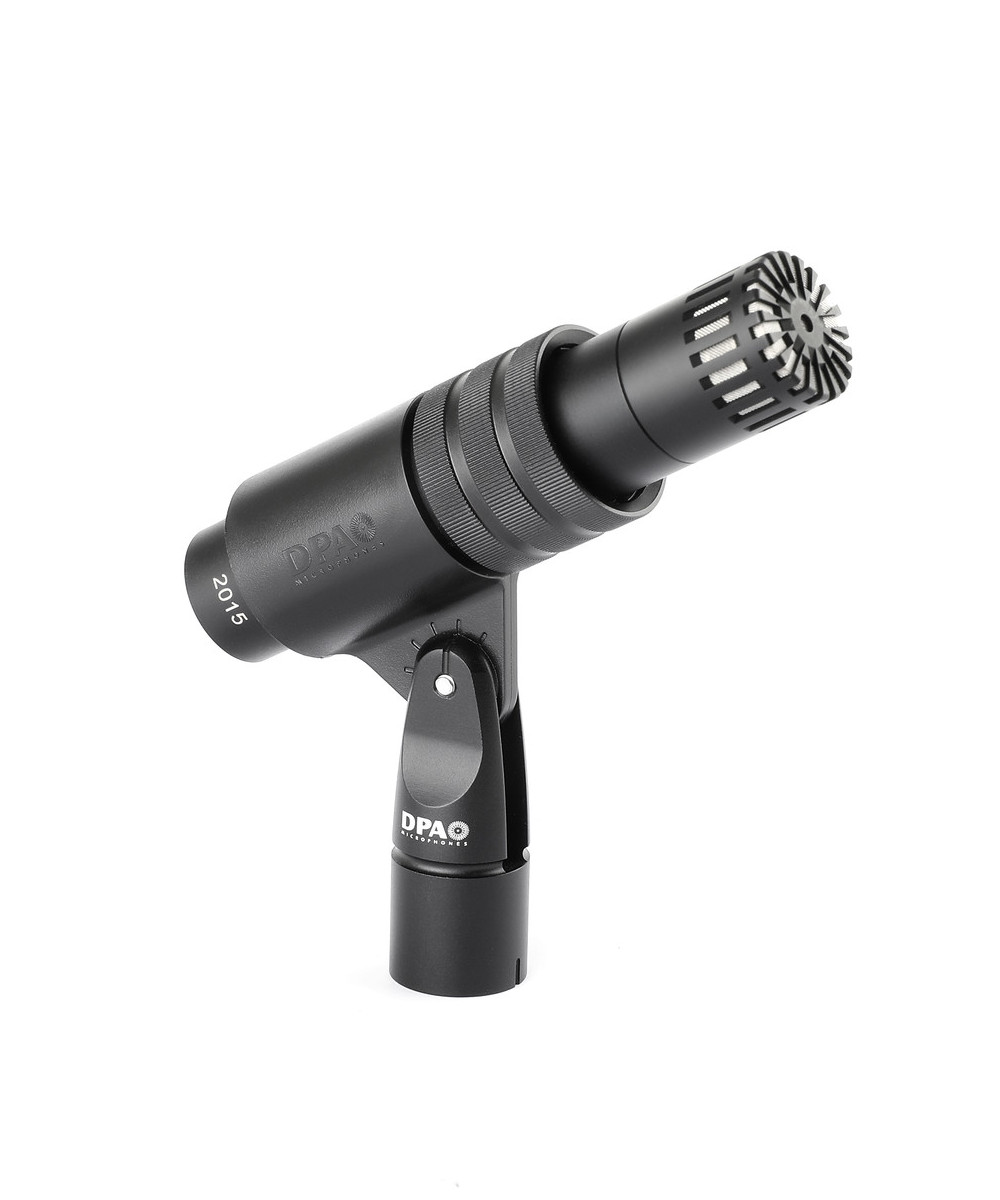

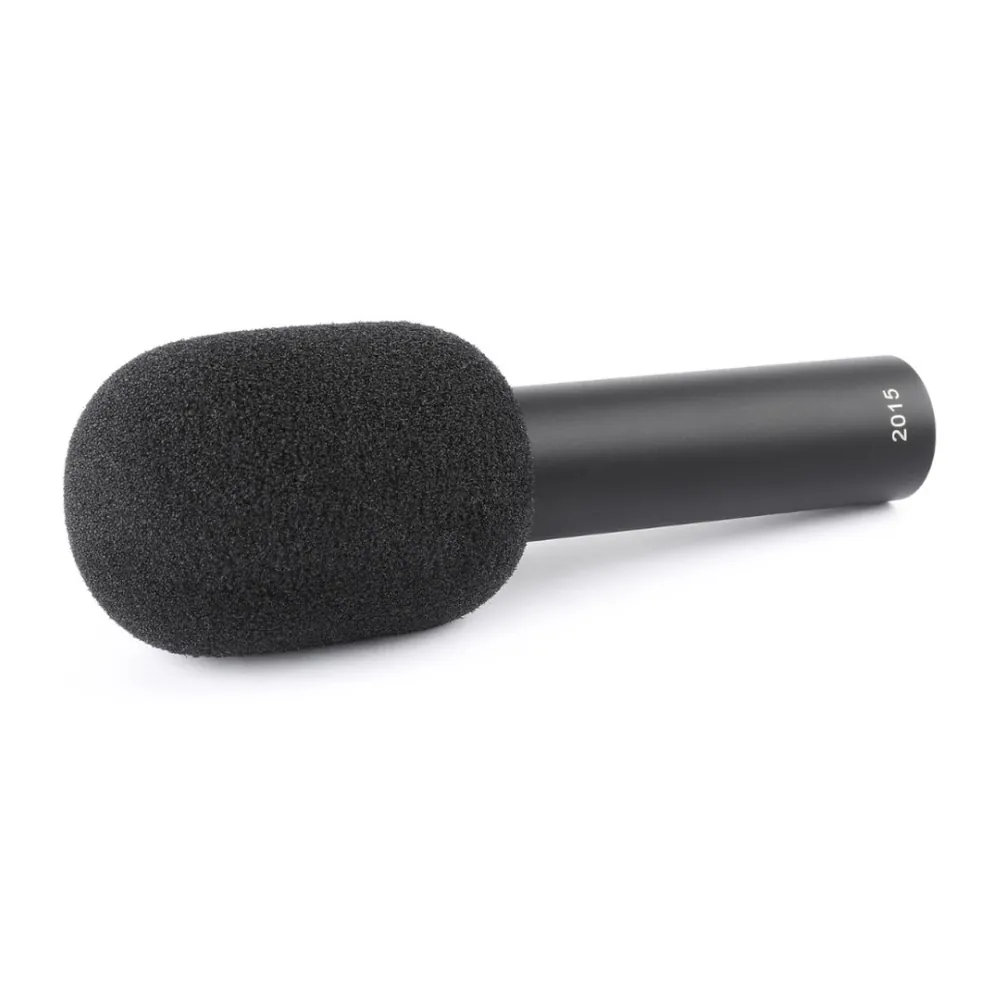

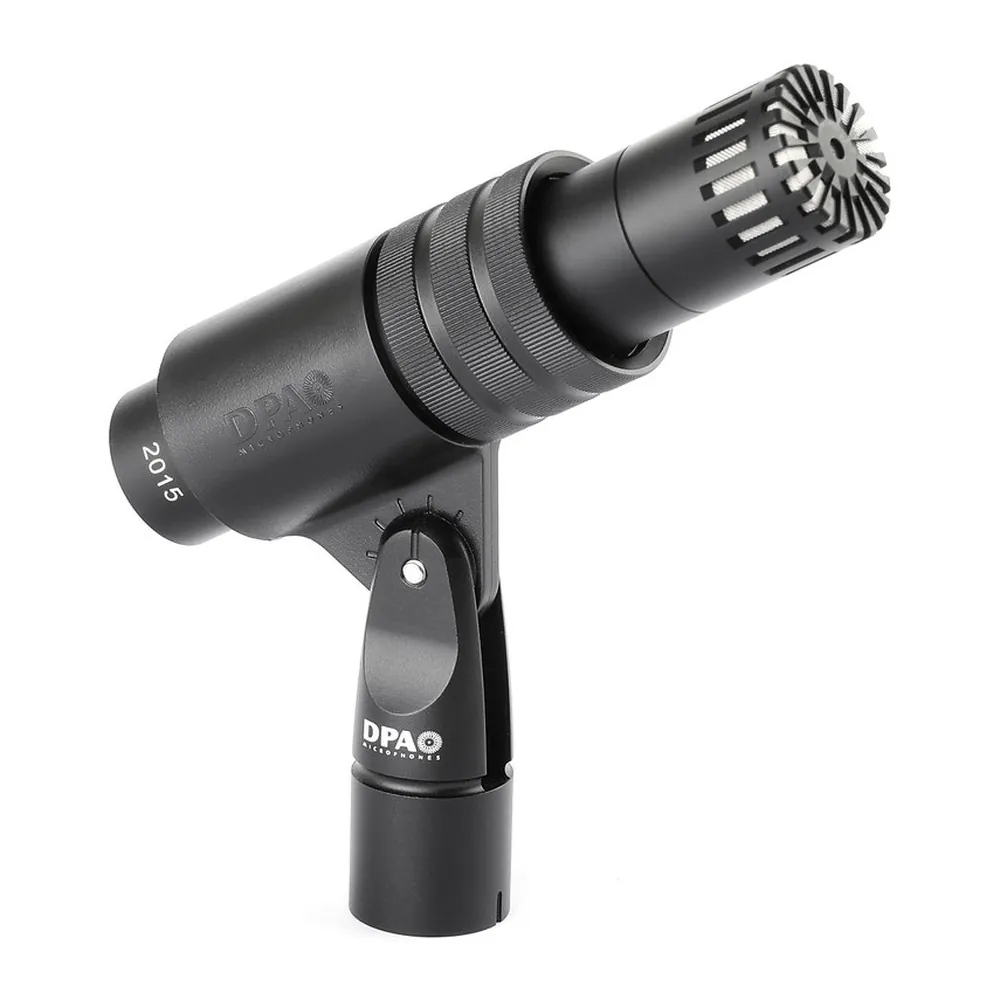

Single 2015 microphone, UA0961 microphone holder, DUA0020 foam windscreen

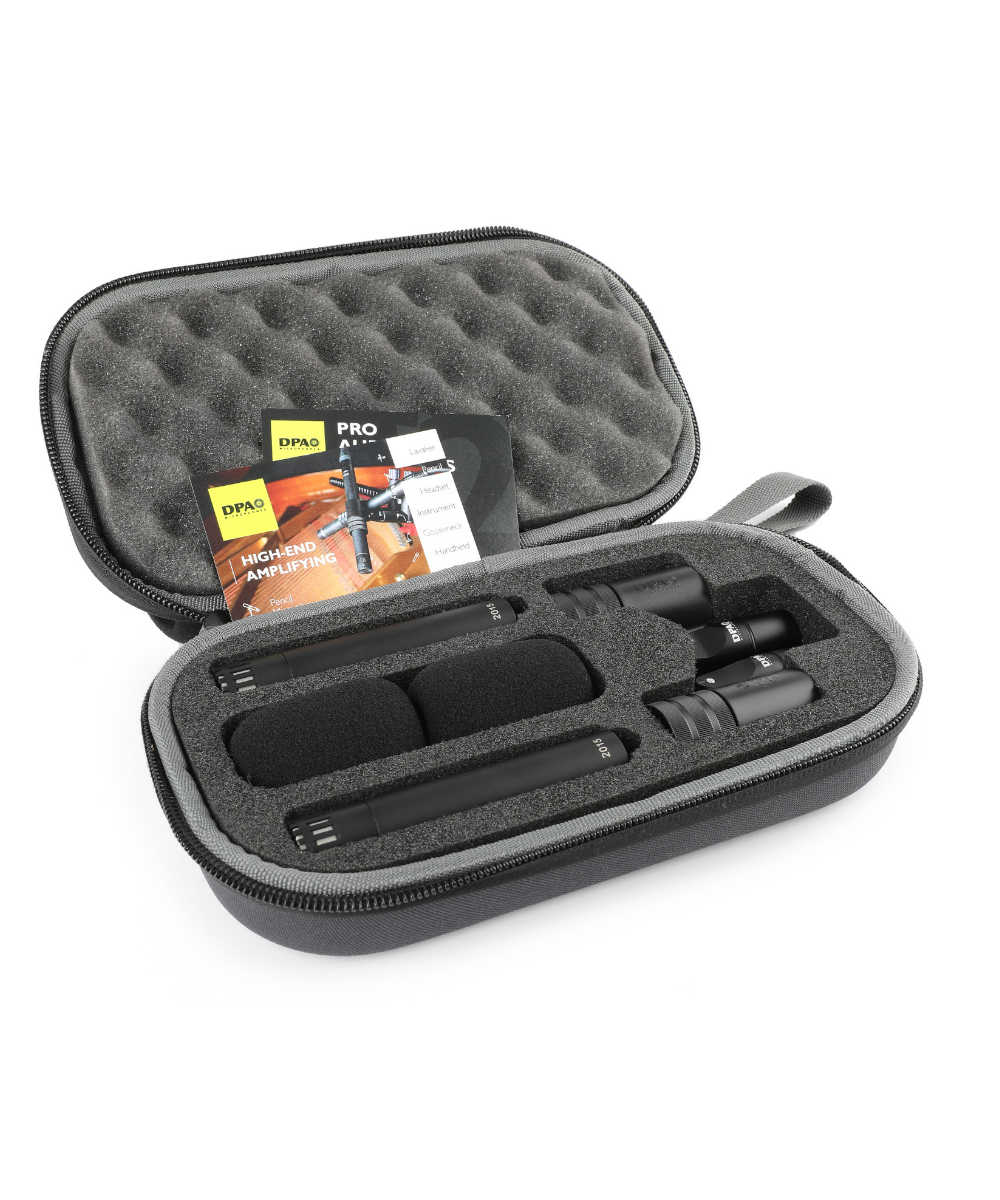

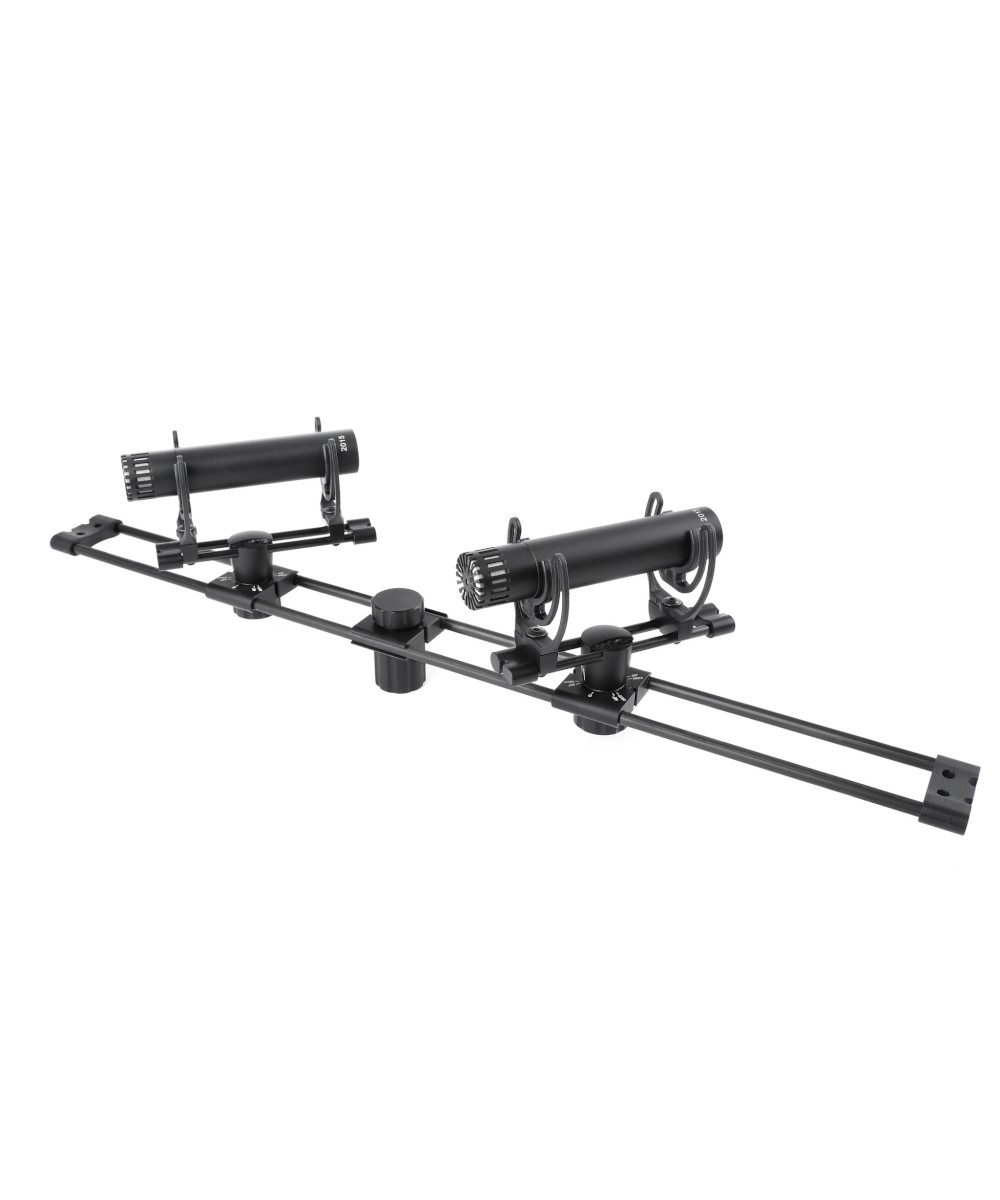

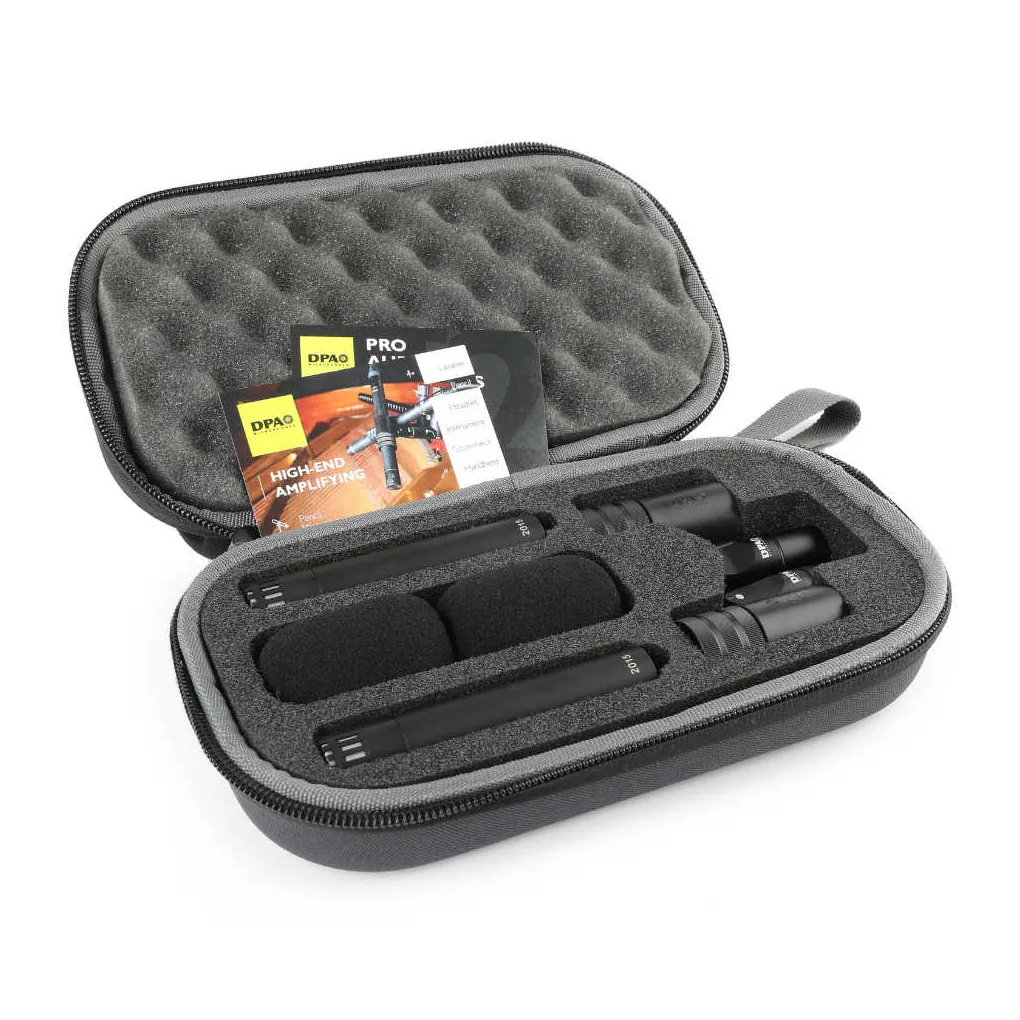

Stereo Pair Matched pair of 2015 microphones with holders and windscreens

Specifications

Acoustic

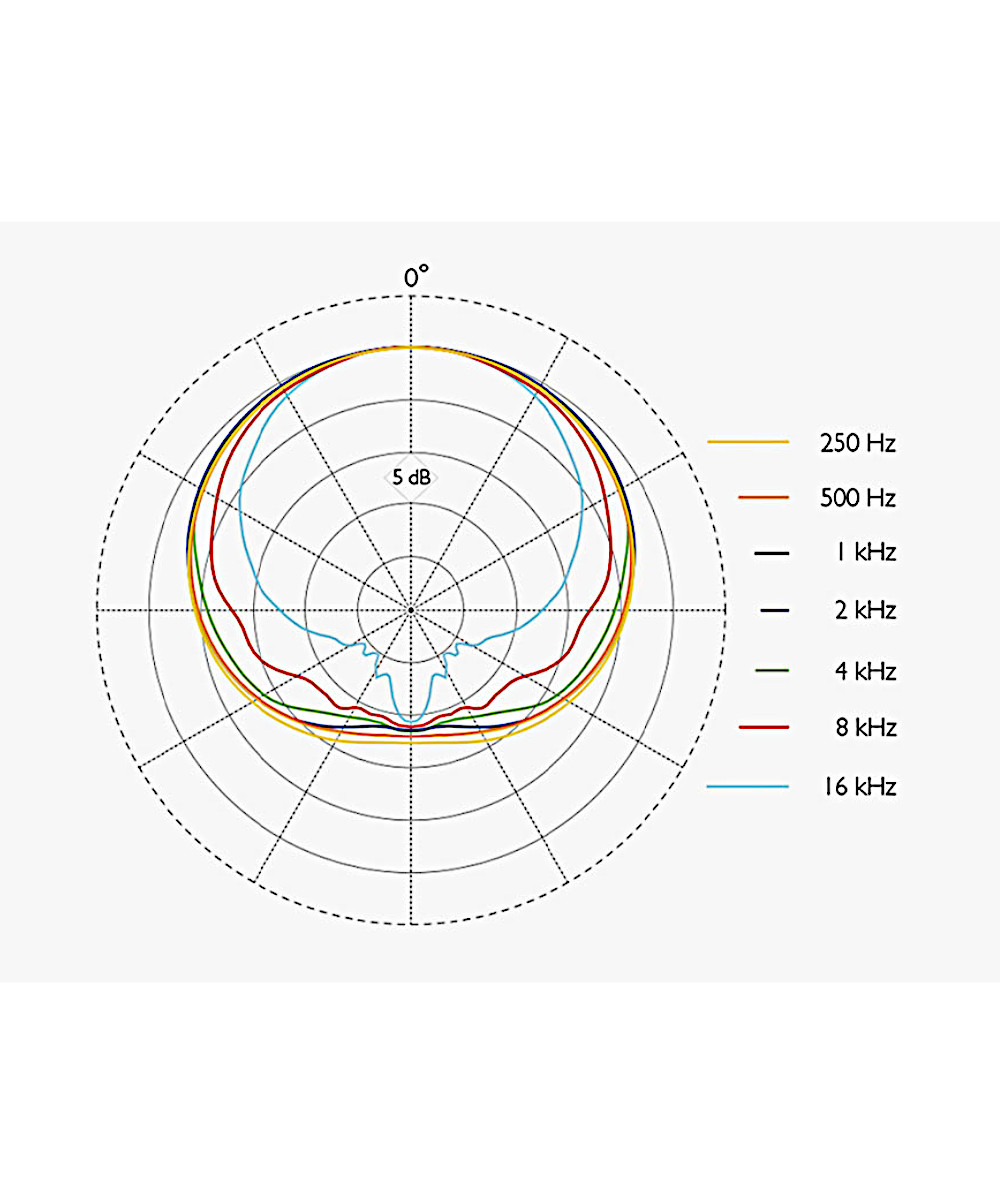

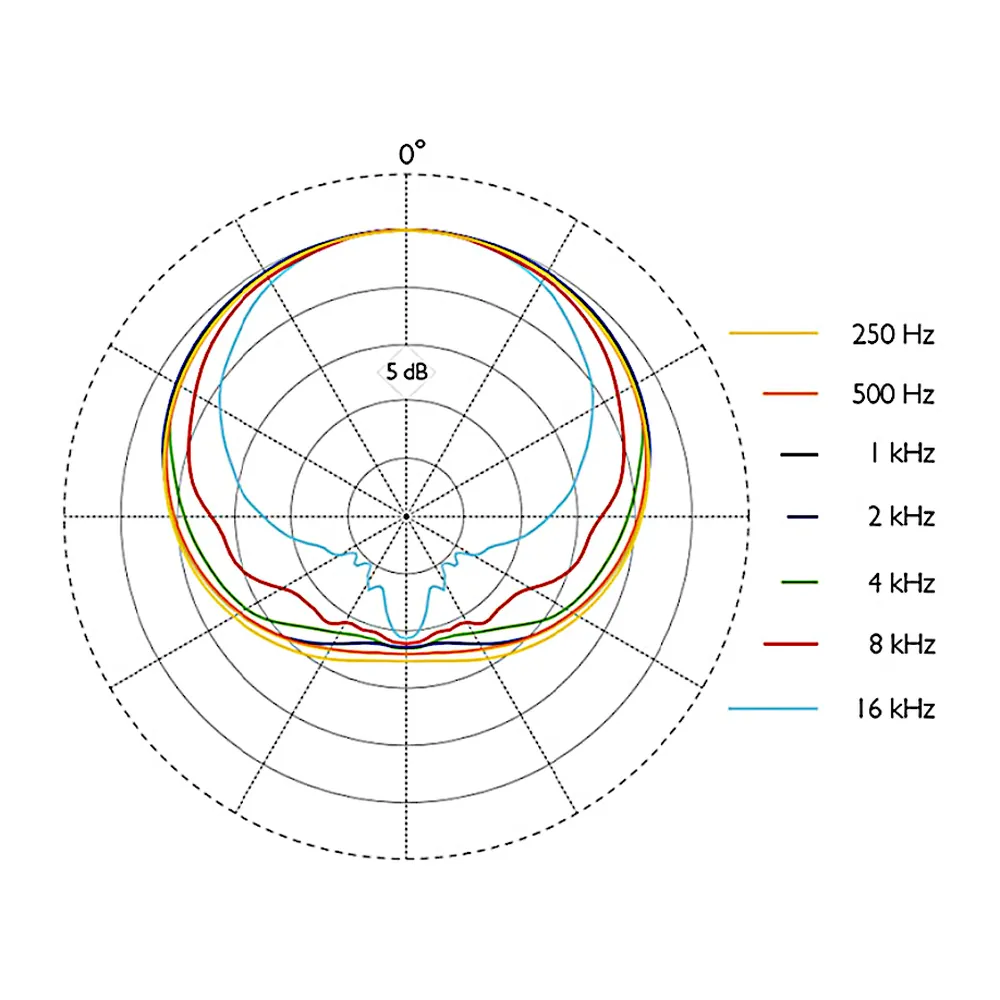

Directional Pattern Wide cardioid
Principle of Operation Pressure gradient
Cartridge Type Pre-polarized condenser
Frequency Response 20 Hz to 20 kHz
Effective Frequency Range (±2 dB at 30 cm) 40 Hz to 18 kHz
Sensitivity (±2 dB at 1 kHz) 12 mV/Pa
Equivalent Noise Level (A-weighted) 18 dB(A) typical (20 dB(A) max)
Distortion, THD below 1% 147 dB SPL RMS, 150 dB SPL peak
Dynamic Range 132 dB typical
Max. SPL (THD 10%) 153 dB SPL peak
Electrical
Rated Output Impedance 60 Ω
Cable Drive Capability 100 m (328 ft)
Output Balance Principle Impedance balancing with Active Drive
Common Mode Rejection Ratio Above 60 dB
Power Supply P48 phantom power
Current Consumption 0.7 mA
Maximum Output Voltage (RMS) 8.7 V (21 dBu)
Physical
Connector XLR-3M (pin 1 shield, pin 2 + phase, pin 3 − phase)
Microphone Diameter 19 mm (0.75 in)
Capsule Diameter 17 mm (0.67 in)
Microphone Length 94 mm (3.7 in)
Weight 83 g (2.9 oz)
Color Black
Temperature Range −40°C to 45°C (−40°F to 113°F)
Relative Humidity Up to 90%
Latest Specifications Specifications are subject to change without prior notice. For current information, visit www.dpamicrophones.com.
