DPA 2012 Compact Cardioid Microphone
- Compact cardioid for close-miking on stage
- Handles up to 156 dB SPL peak
- Rugged brass body, single or stereo pair
From $895.00 USD
DPA 2012 Compact Cardioid Microphone

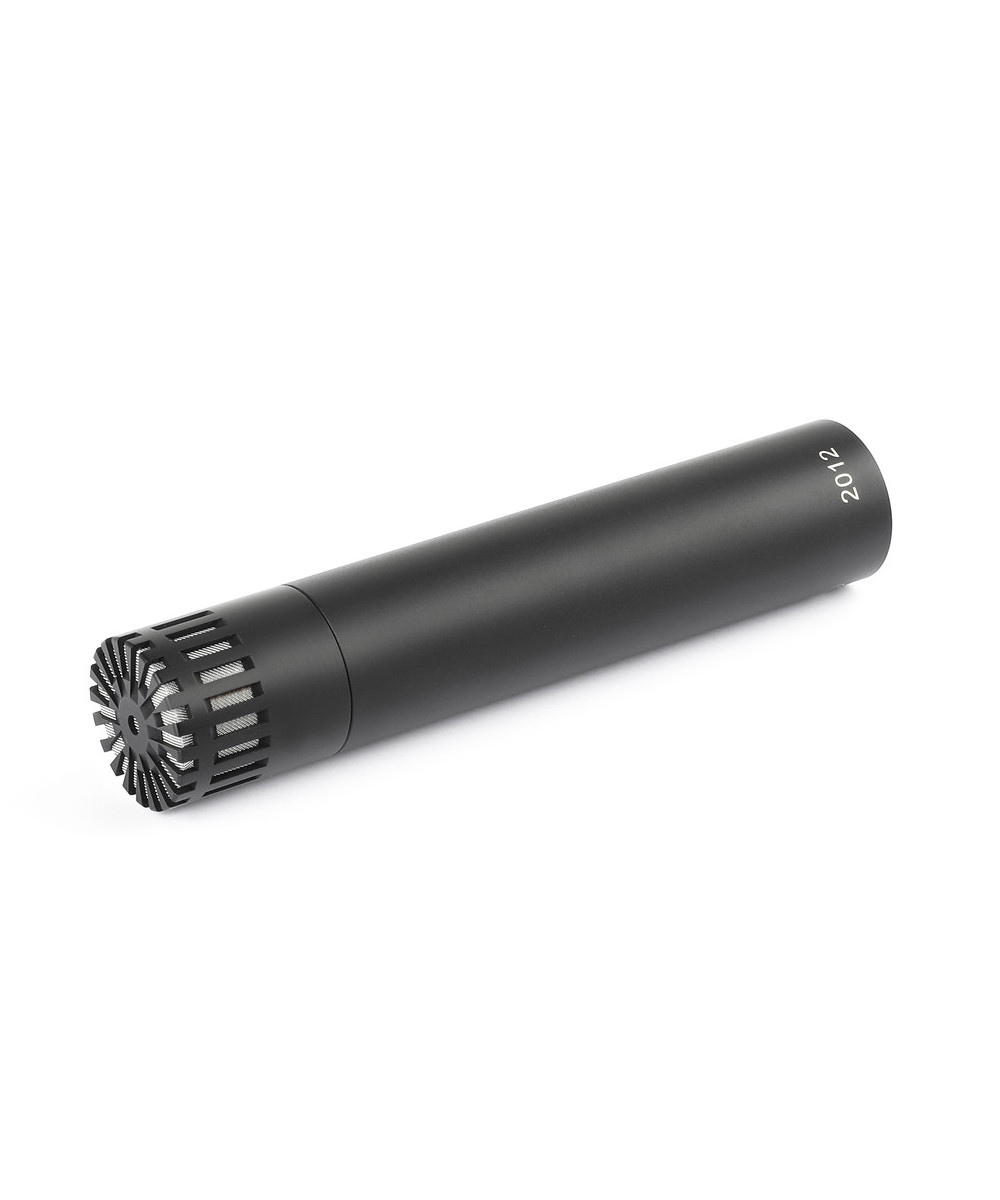

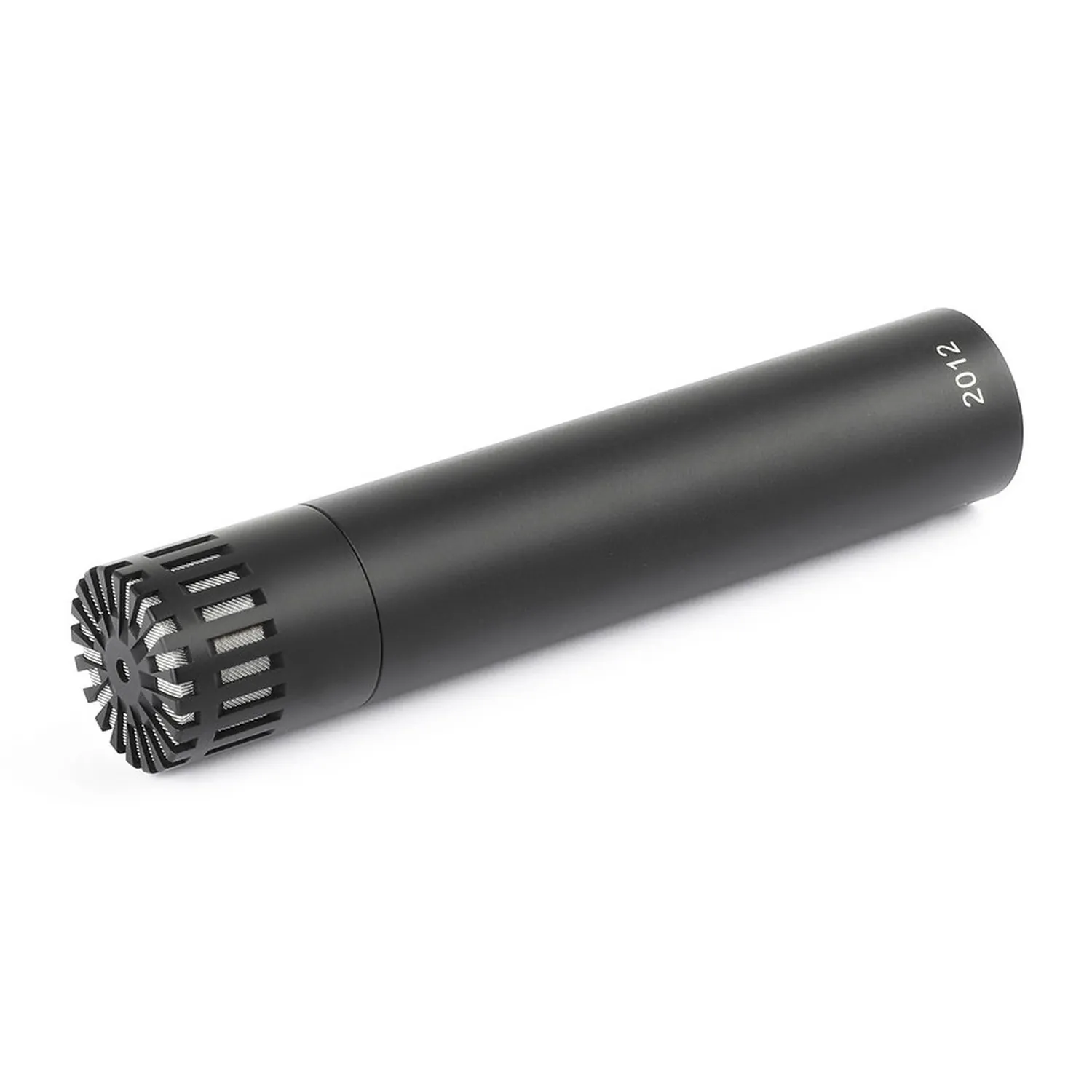

Made for close-miking instruments on the live stage, the DPA 2012 is a compact cardioid condenser microphone, sold singly or as a stereo pair.
It works on many instruments, especially those with plenty of high-frequency content, and its transient response is far better than a dynamic mic’s. Its cardioid capsule has DPA’s flat off-axis response, which gives high gain before feedback and makes bleed from nearby instruments easier to handle. Handling up to 156 dB SPL peak, it copes with the loudest drums, guitar cabinets, and horns.

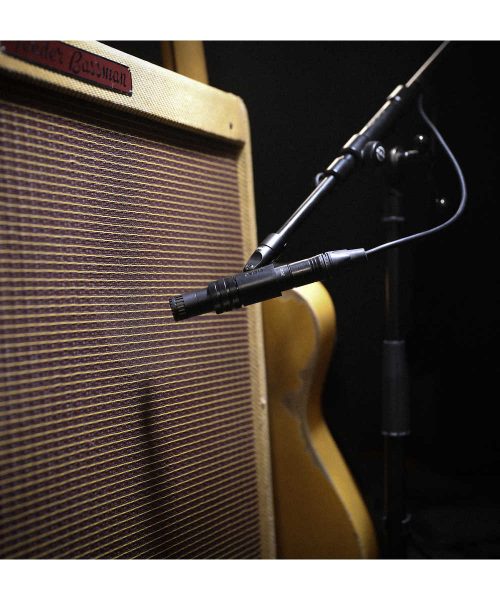

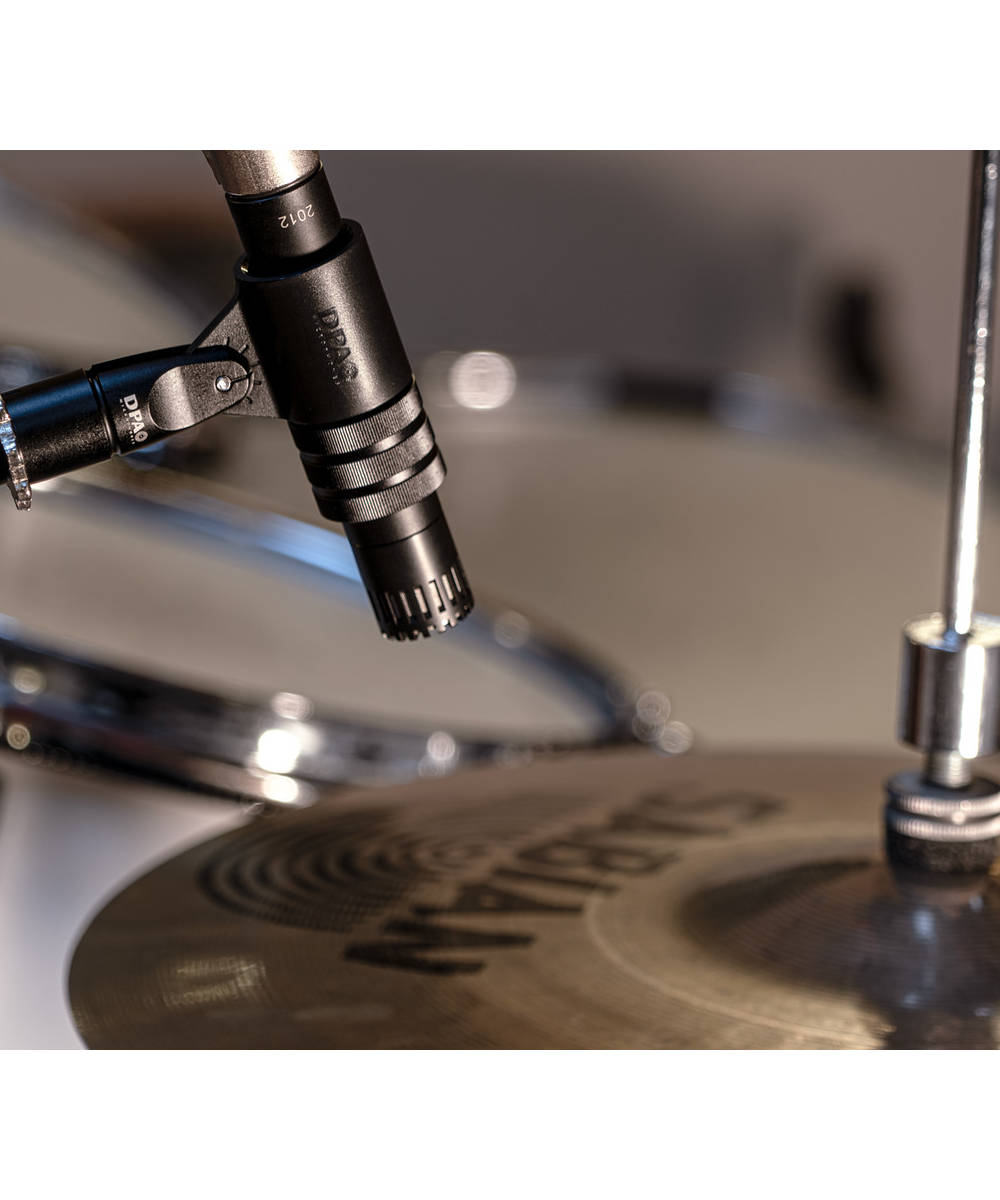

The thick brass body resists corrosion and metal fatigue, and the handle and grille have a protective black chrome finish for rough use on a hectic stage. Typical uses include snare, hi-hats, guitar cabinets, piano, percussion, congas and bongos, acoustic guitar, and horns.
Features

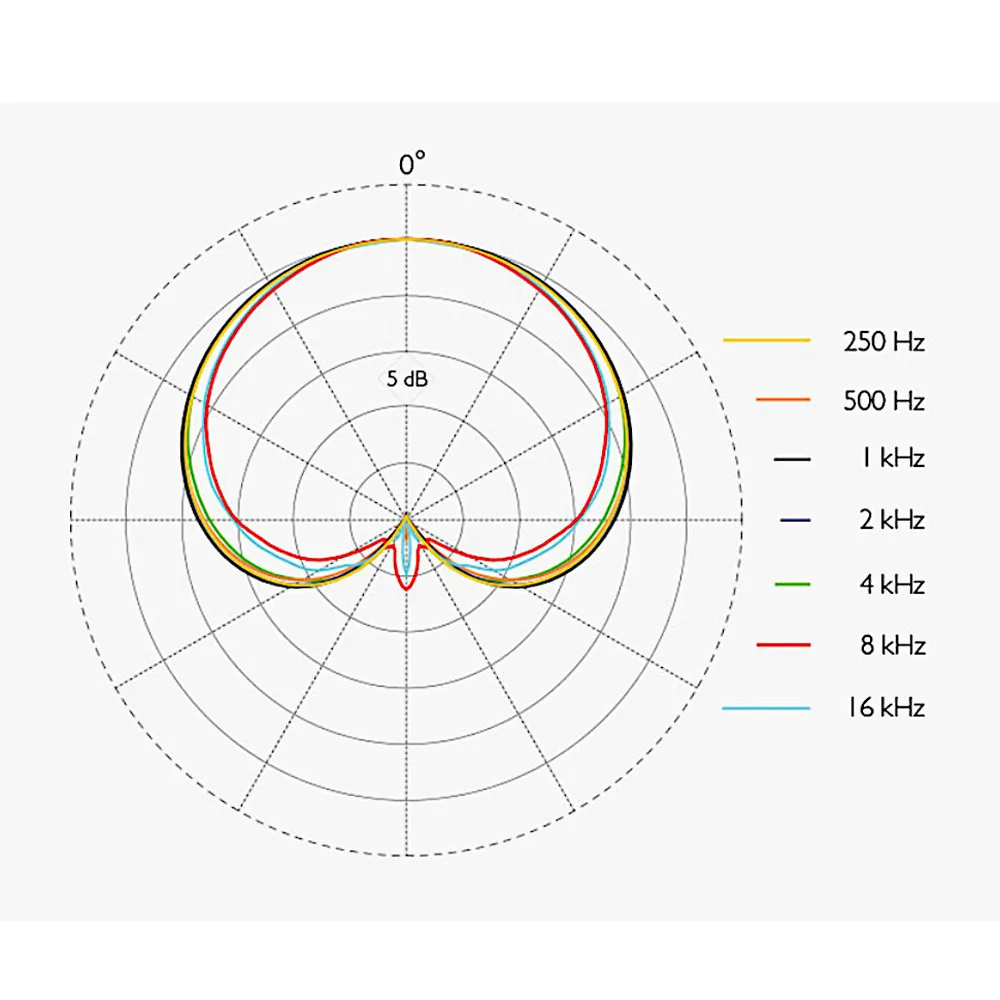

- Cardioid with flat off-axis response
- Excellent transient response
- Handles up to 156 dB SPL peak
- Durable brass body with a black chrome finish
- 94 mm long, 83 g

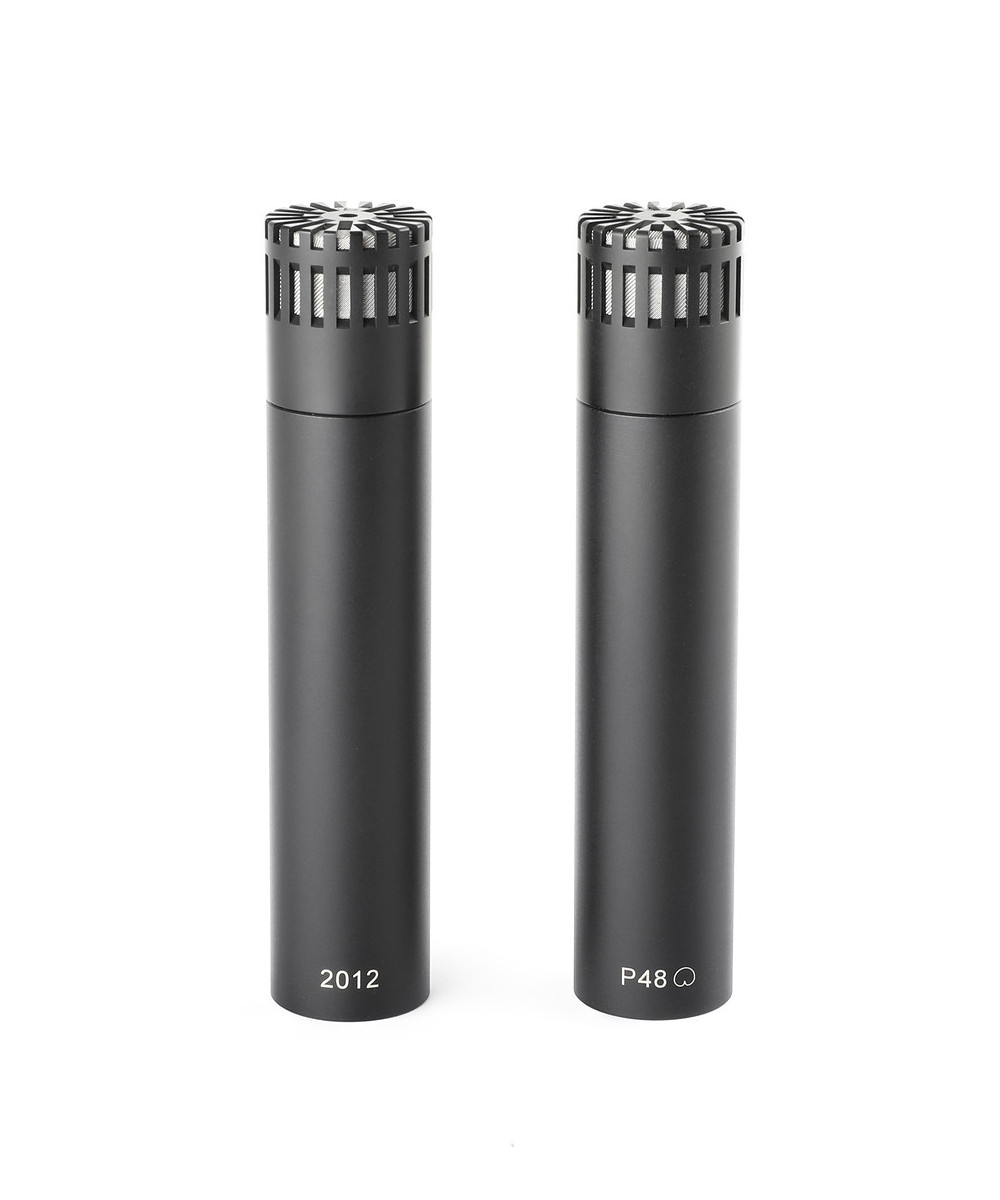

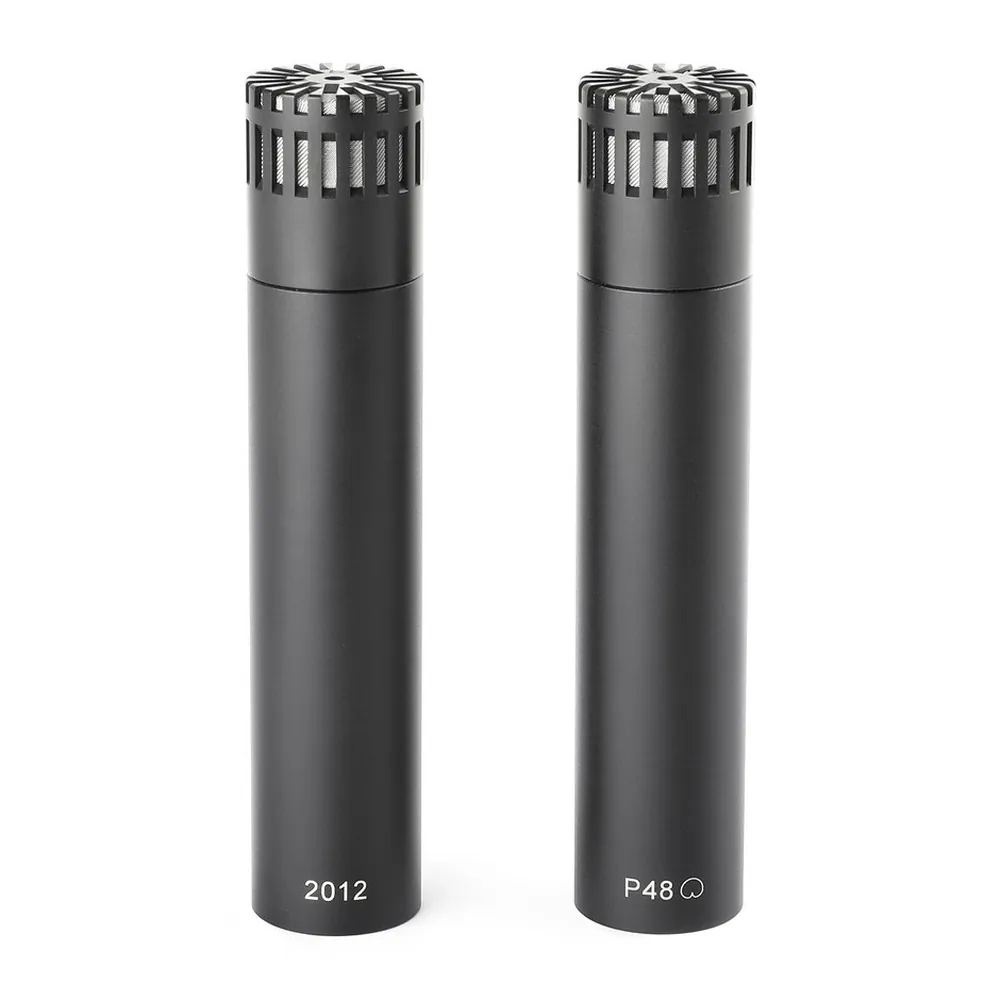

- Single or stereo pair
What's Included
| Option | Includes |
|---|---|

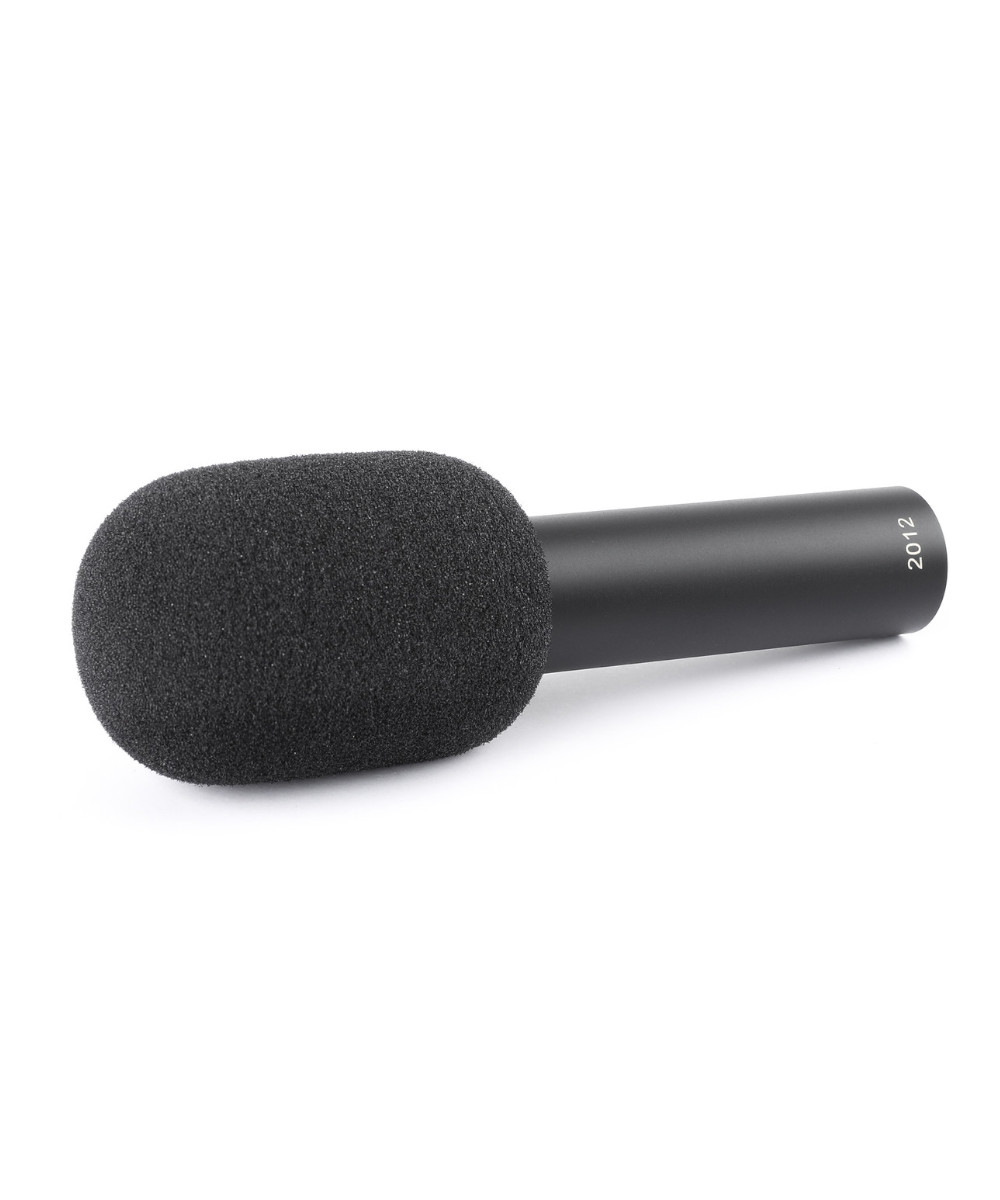

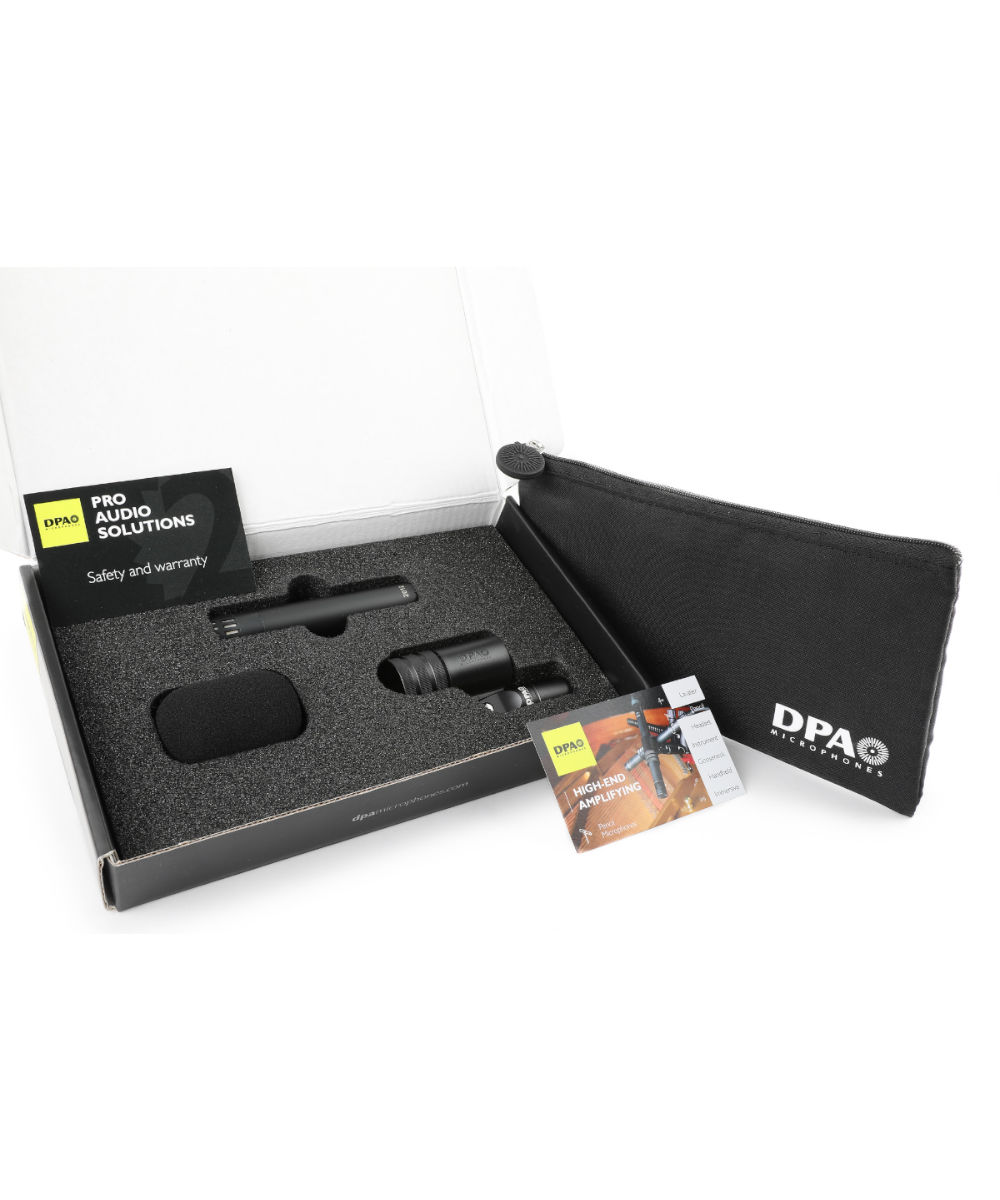

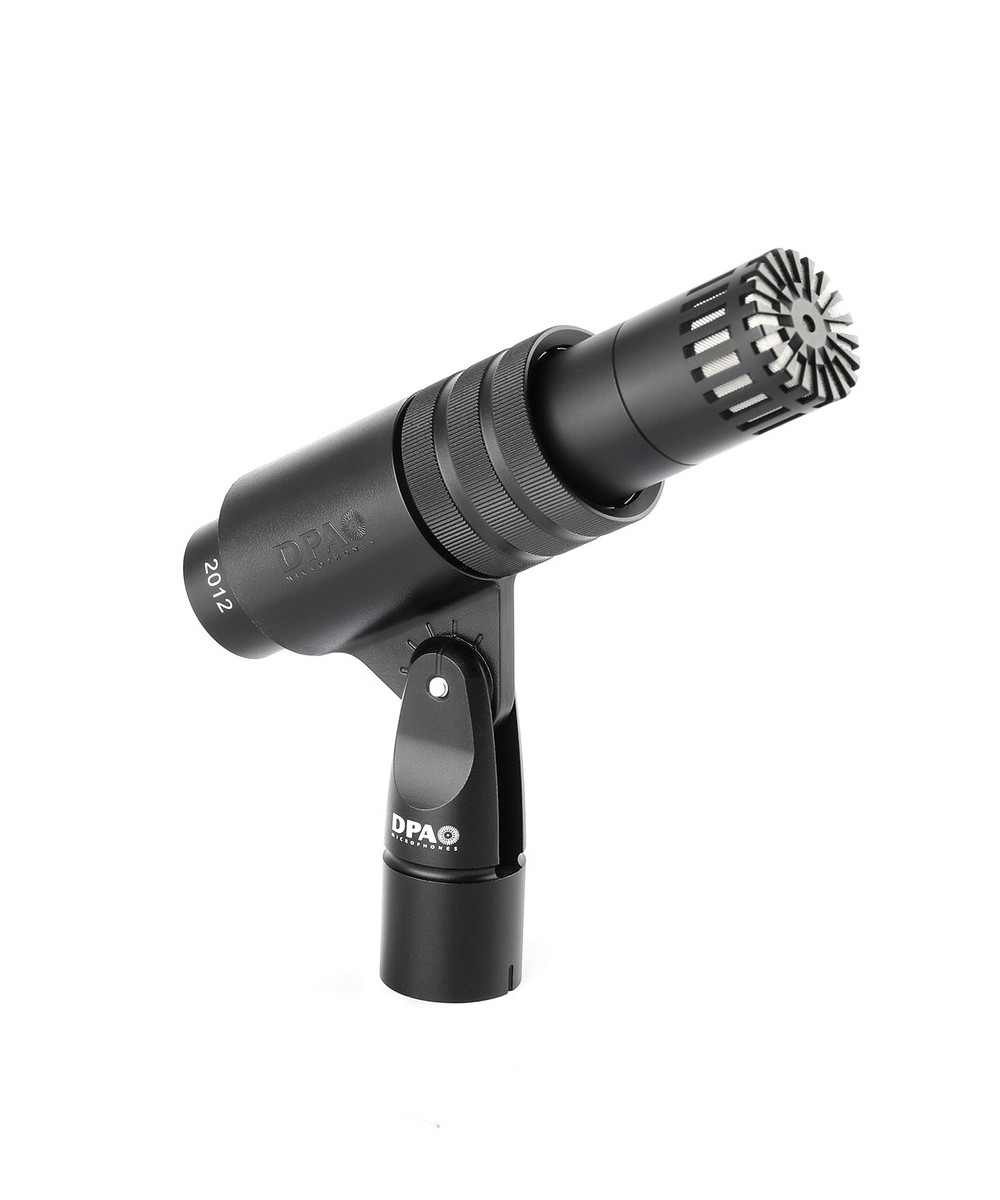

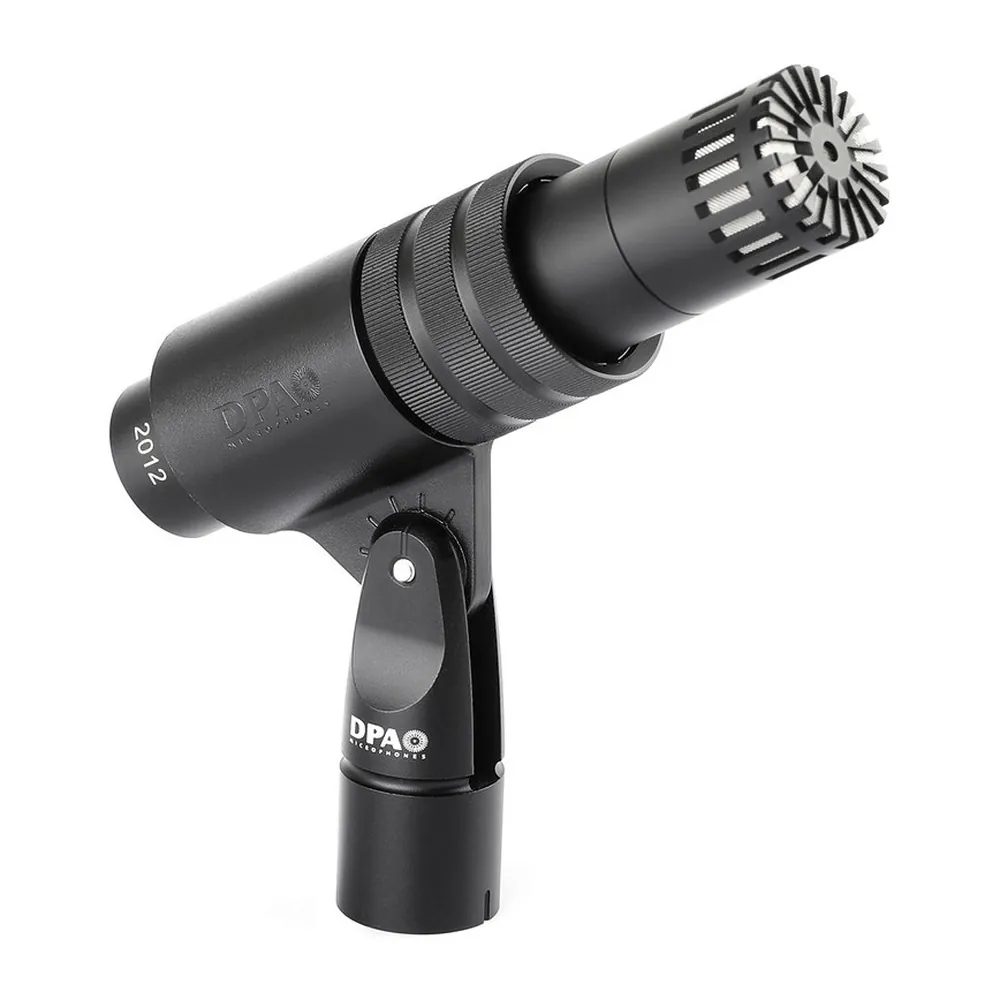

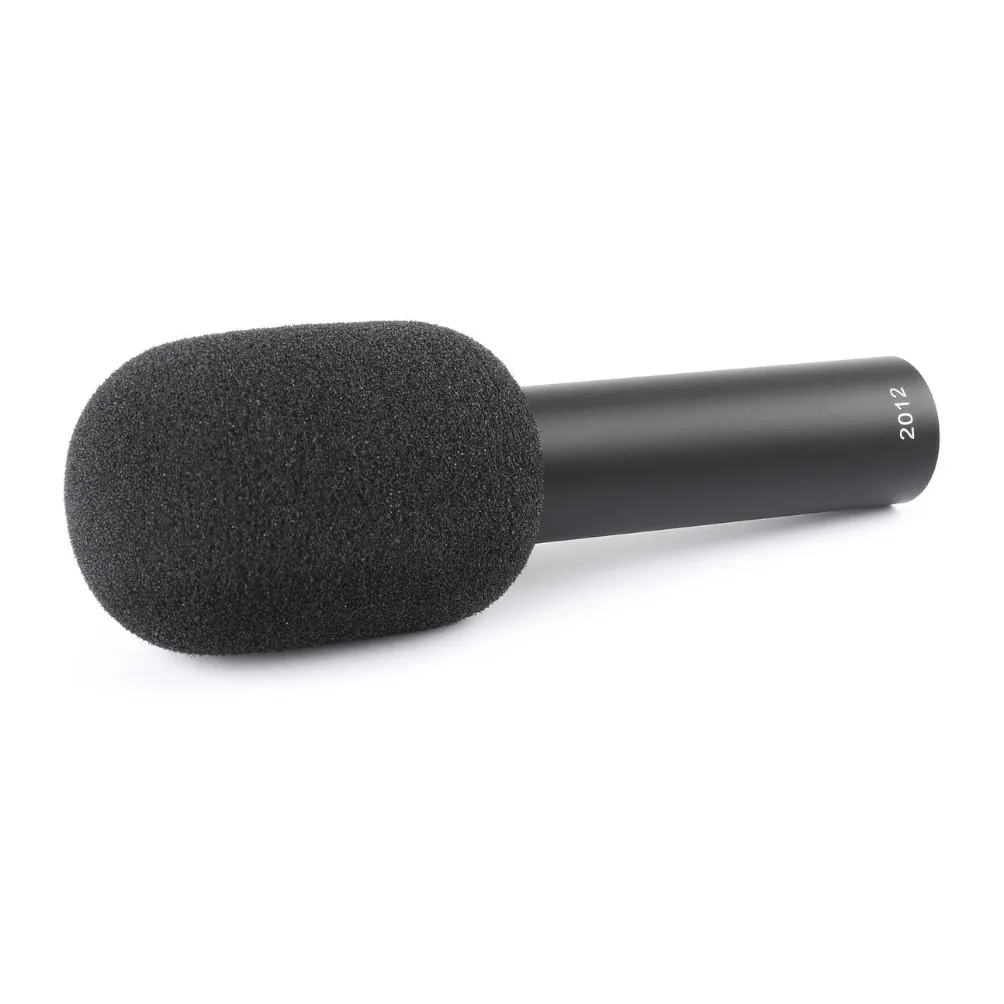

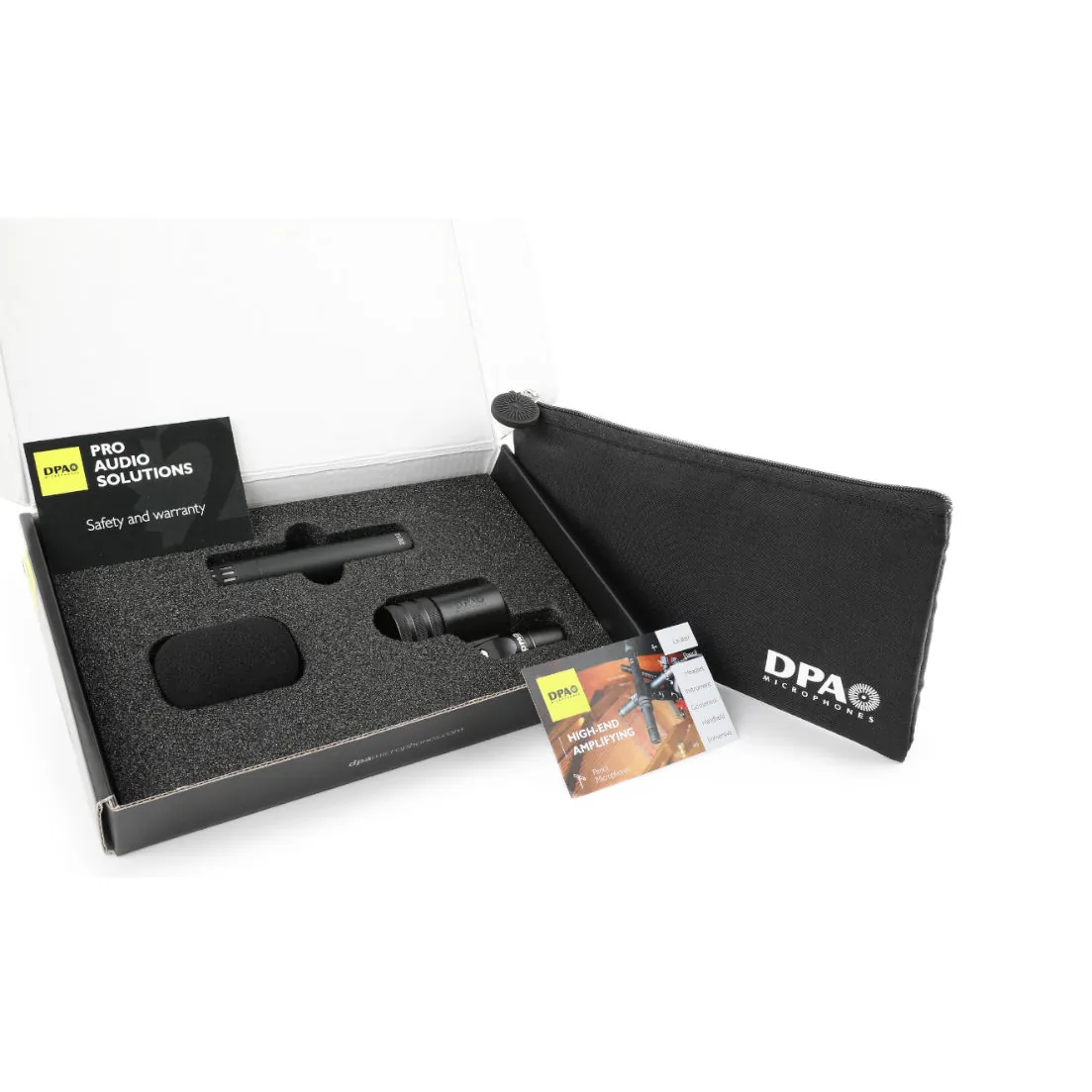

| Single | 2012 microphone, UA0961 microphone holder, DUA0020 foam windscreen |

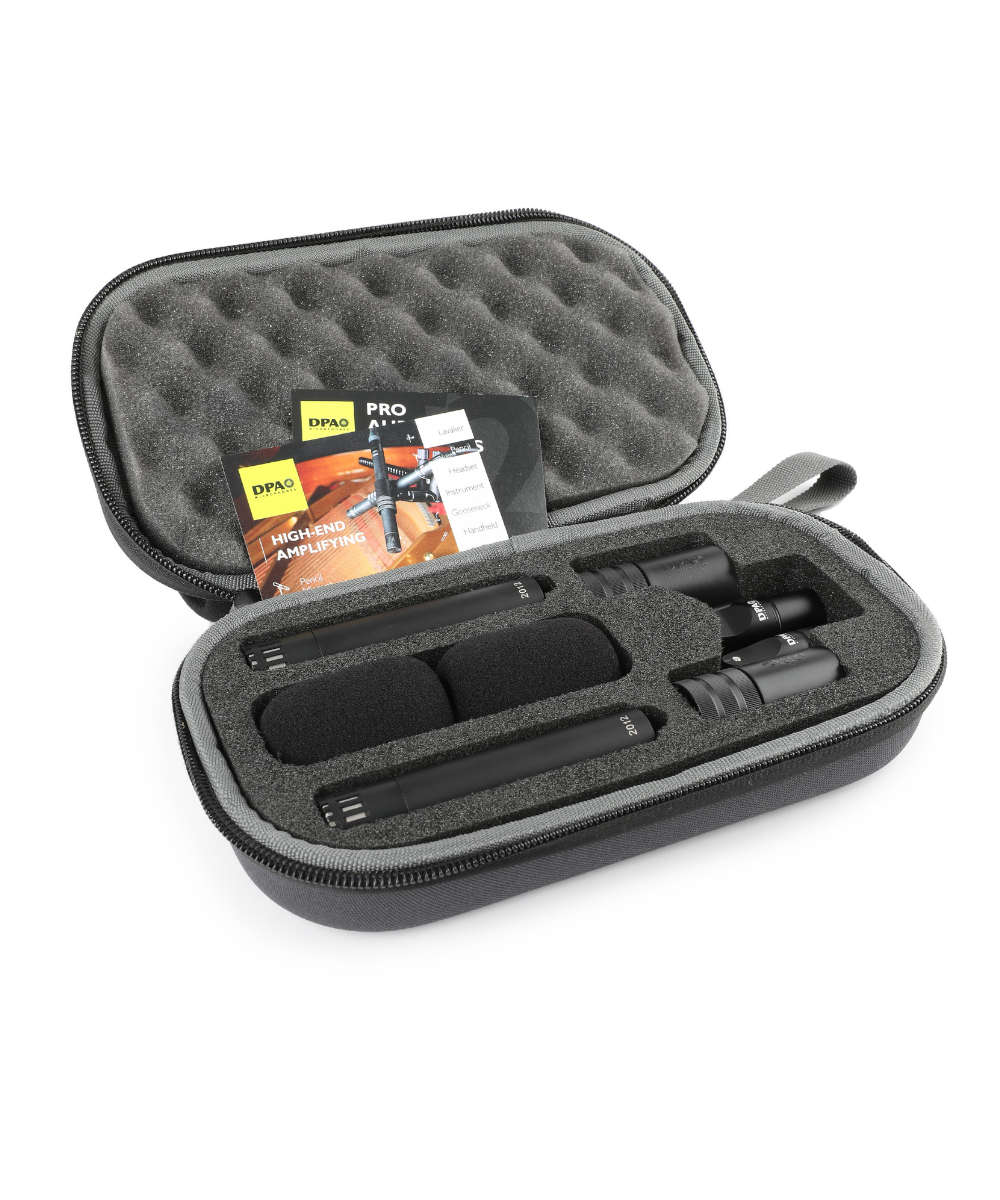

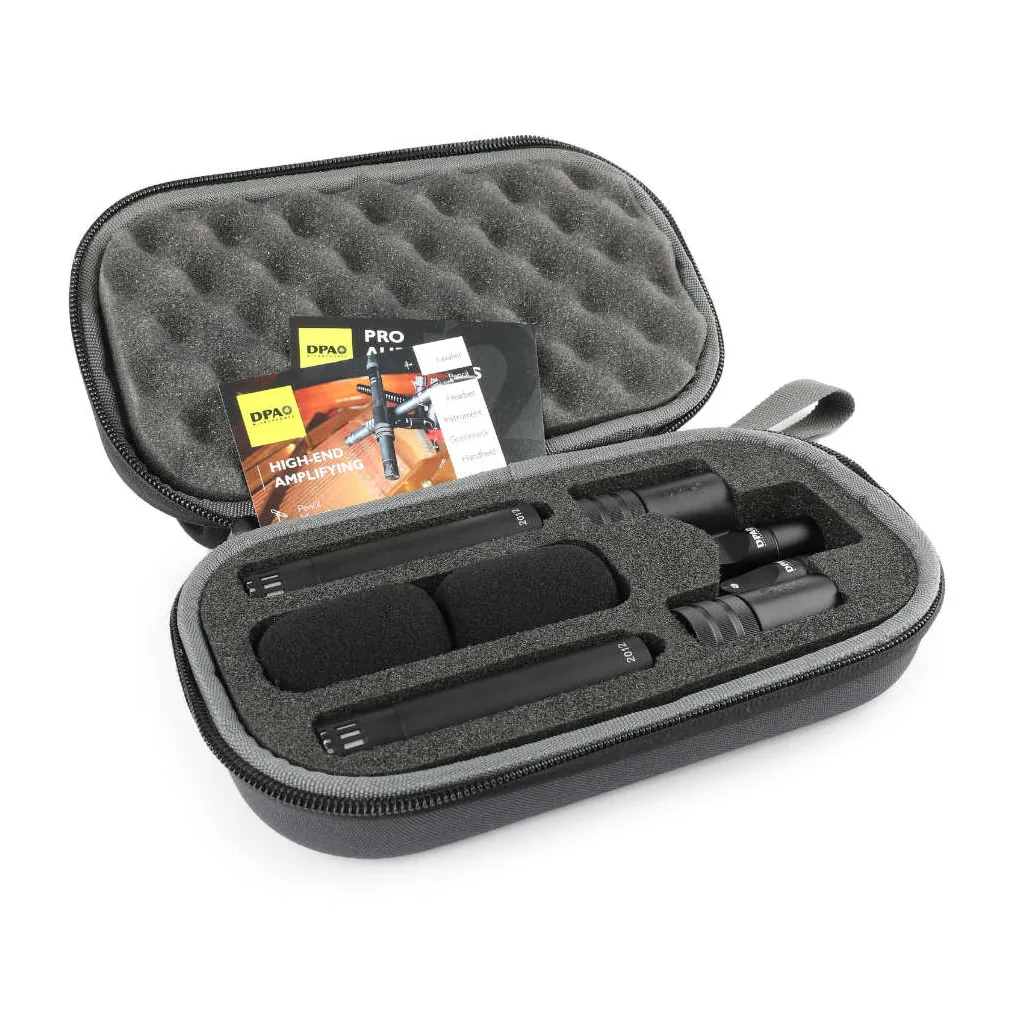

| Stereo Pair | 2 × 2012 microphone, 2 × UA0961 microphone holder, 2 × DUA0020 foam windscreen |
Specifications
| Acoustic | |
|---|---|

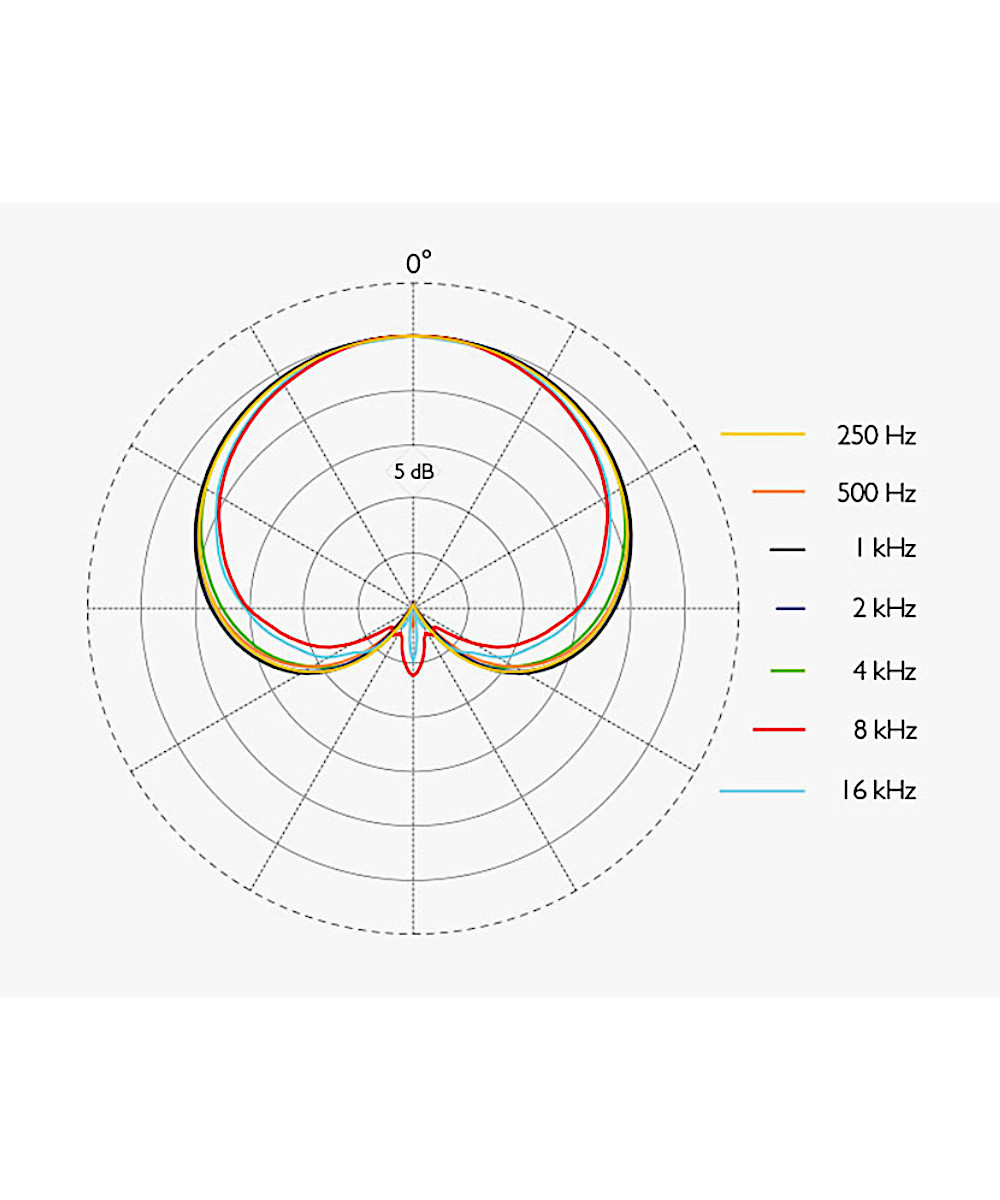

| Directional Pattern | Cardioid |
| Principle of Operation | Pressure gradient |
| Cartridge Type | Pre-polarized condenser |
| Frequency Response | 20 Hz to 20 kHz |
| Effective Frequency Range (±2 dB, at 30 cm) | 40 Hz to 20 kHz |
| Sensitivity (±2 dB at 1 kHz) | 8 mV/Pa |
| Equivalent Noise Level (A-weighted) | 20 dB(A) typical (22 dB(A) max) |
| Distortion, THD below 1% | 148 dB SPL, 151 dB SPL peak |
| Dynamic Range | 131 dB typical |
| Max. SPL (THD 10%) | 156 dB SPL peak |
| Electrical | |
| Rated Output Impedance | 60 Ω |
| Cable Drive Capability | 100 m (328 ft) |
| Output Balance Principle | Impedance balancing with Active Drive |
| Common Mode Rejection Ratio | Over 60 dB |
| Maximum Output Voltage (RMS) | 8.7 V (21 dBu) |
| Power Supply | P48 phantom power |
| Current Consumption | 0.7 mA |
| Physical | |
| Connector | XLR-3M |
| Microphone Diameter | 19 mm (0.75 in) |
| Capsule Diameter | 17 mm (0.67 in) |
| Microphone Length | 94 mm (3.7 in) |
| Weight | 83 g (2.9 oz) |
| Color | Black |
| Temperature Range | −40°C to 45°C (−40°F to 113°F) |
| Relative Humidity | Up to 90% |
| Latest Specifications | Specifications are subject to change without prior notice. For current information, visit www.dpamicrophones.com. |
