Deity HD-TX Plug-On Transmitter with Built-In Recorder
- Plug-on XLR transmitter with a built-in recorder
- +48 V phantom power and a 3.5mm input
- Headphone jack for monitoring and playback
$249.00 USD
In Stock

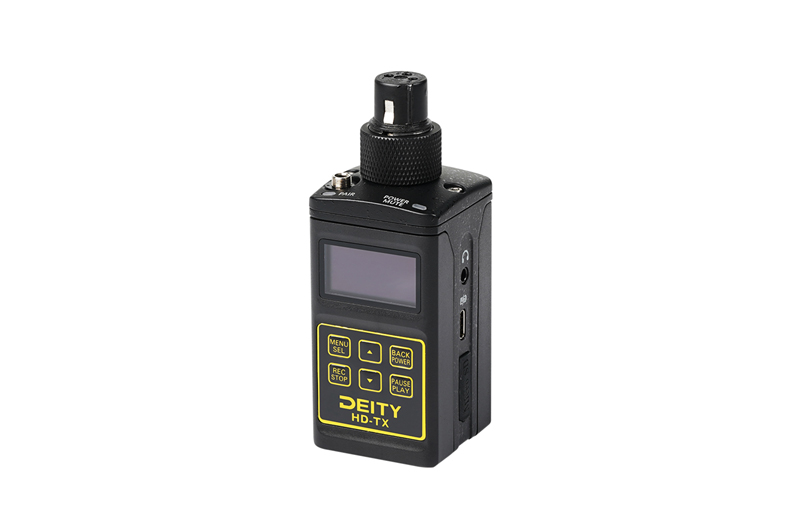

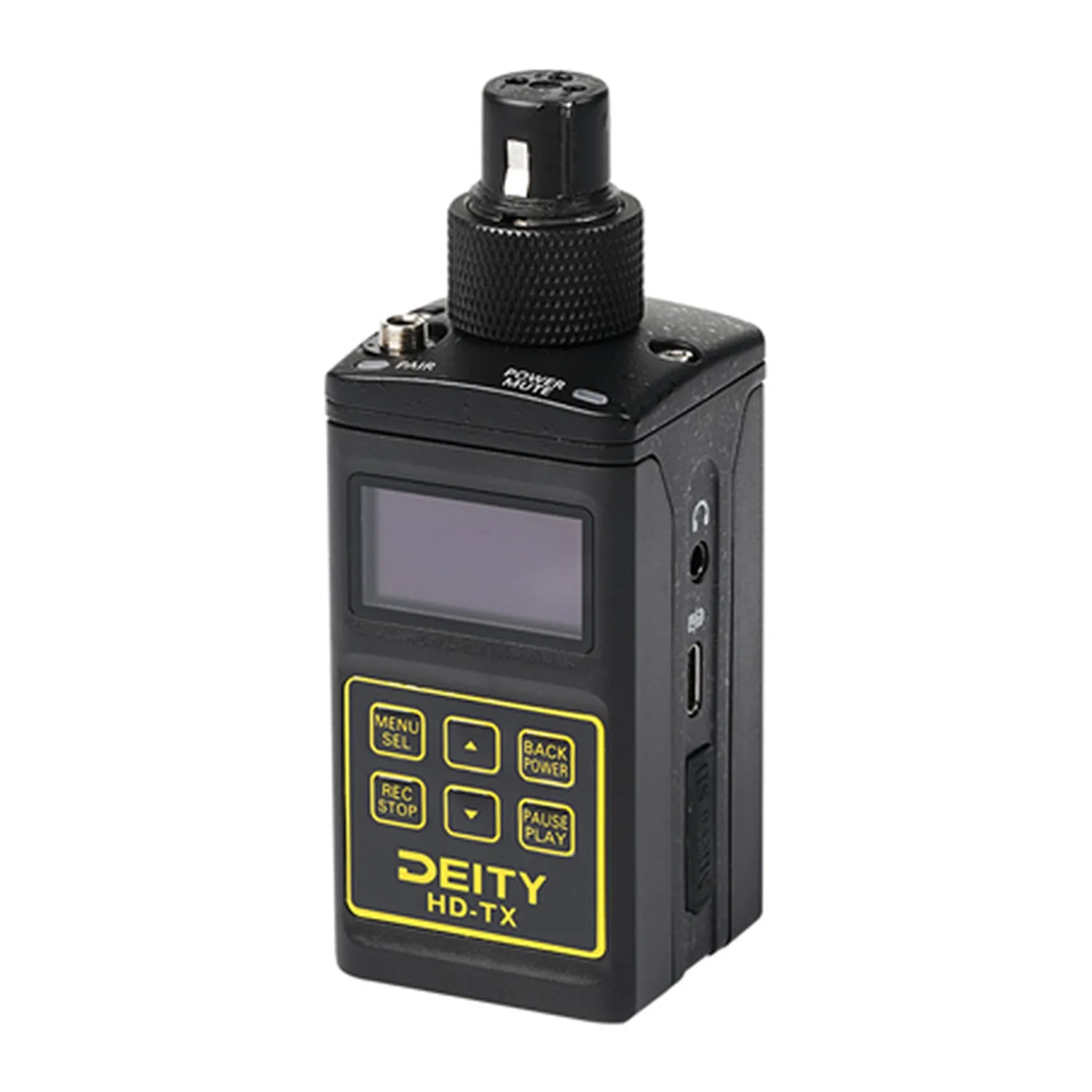

Deity HD-TX Plug-On Transmitter with Built-In Recorder
The Deity HD-TX is a plug-on transmitter for XLR microphones that sends 2.4 GHz digital wireless while its built-in recorder keeps a 24-bit, 48 kHz backup on a microSD card.

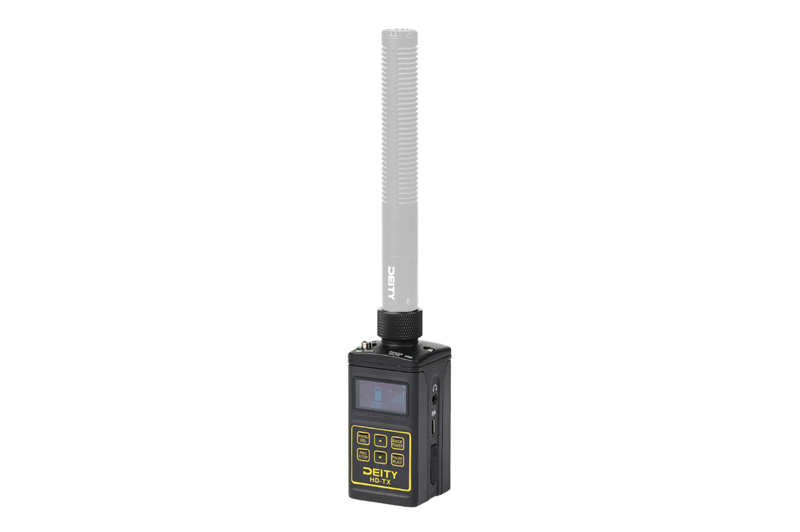

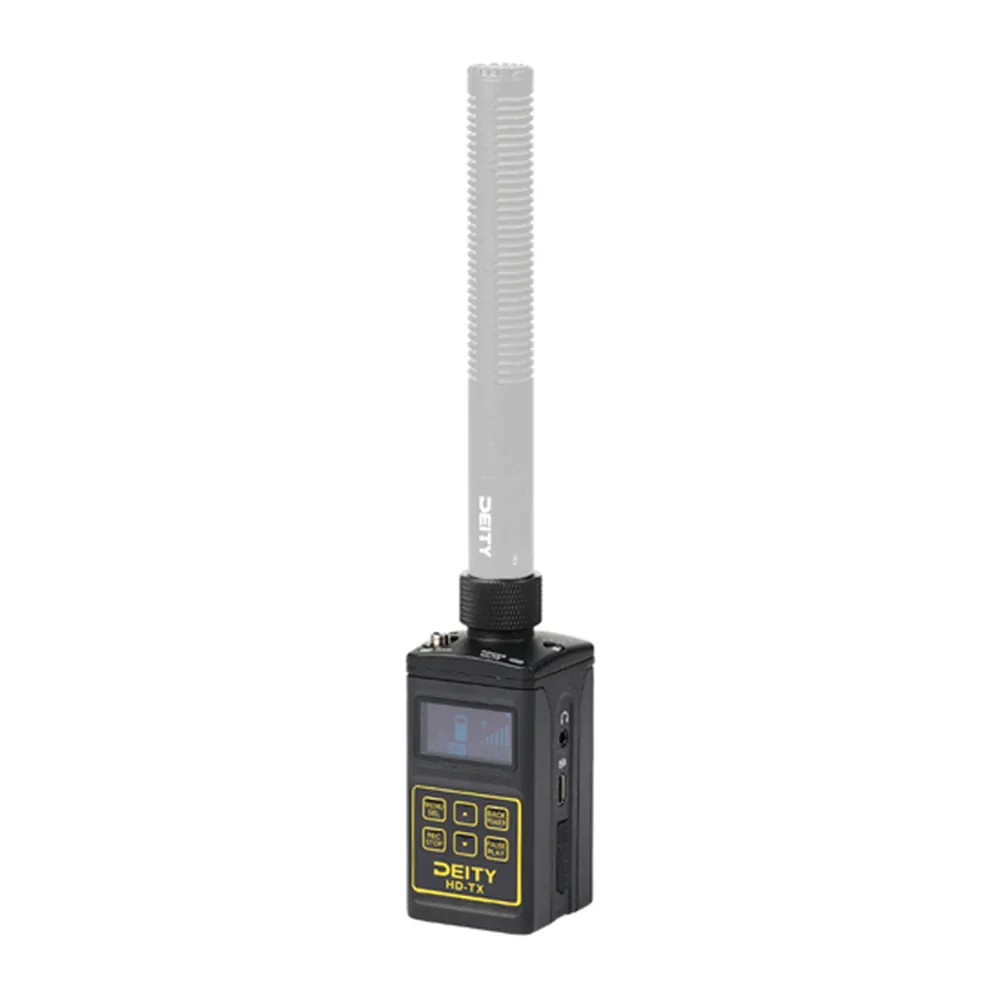

It is light enough for a boom pole. With a shotgun microphone, its recorder and headphone jack make a complete recording setup with no other sound gear.

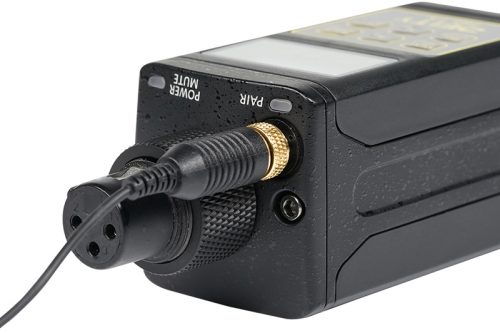

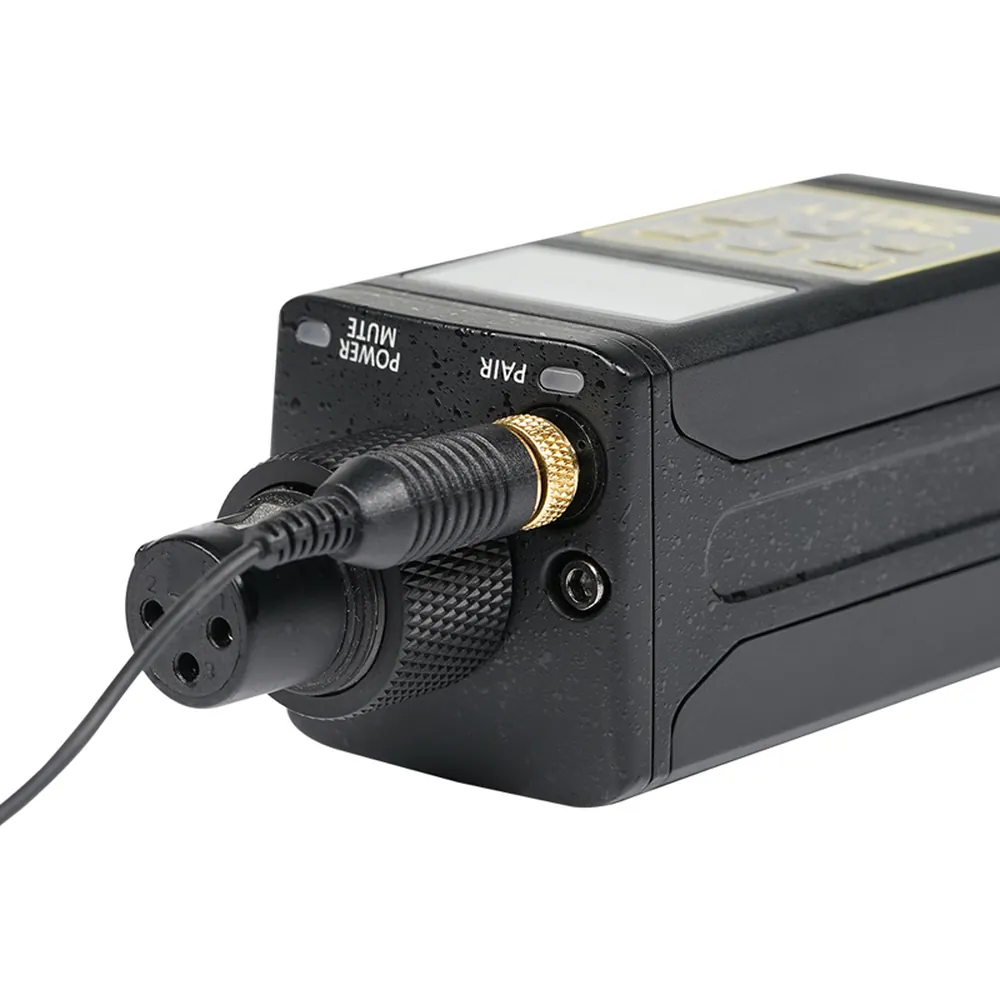

The XLR input supplies +48 V phantom power, and a locking 3.5mm input with 3 V plug-in power takes a lavalier. With the included belt clip case, the HD-TX can then work as a bodypack transmitter. RF output switches between 10, 25, 50, and 100 mW to balance range against battery life.
The recorder takes microSD cards of up to 128 GB (SanDisk cards are not compatible) and splits long takes into 2 GB files. Four safeguards protect the recording. The battery is built in, so it cannot fall out through an open battery door. When the unit is told to power down, it stops and saves the file, and the battery meter gives that command before the battery runs out. A lock screen keeps the buttons from being pressed by accident.
Files can be played back, renamed, and deleted on the unit, and they take their names from the HD-TX’s user ID, which keeps several units’ files apart in post. The microSD card can also be formatted from the menu, and files transfer to a computer over USB-C.
Features
- Plug-on XLR transmitter with +48 V phantom power
- Built-in 24-bit, 48 kHz recorder
- Locking 3.5mm input with plug-in power
- Headphone output for monitoring and playback
- 10 to 100 mW RF output
- Built-in rechargeable battery
- USB-C charging and sound card
What's Included
- HD-TX transmitter and recorder

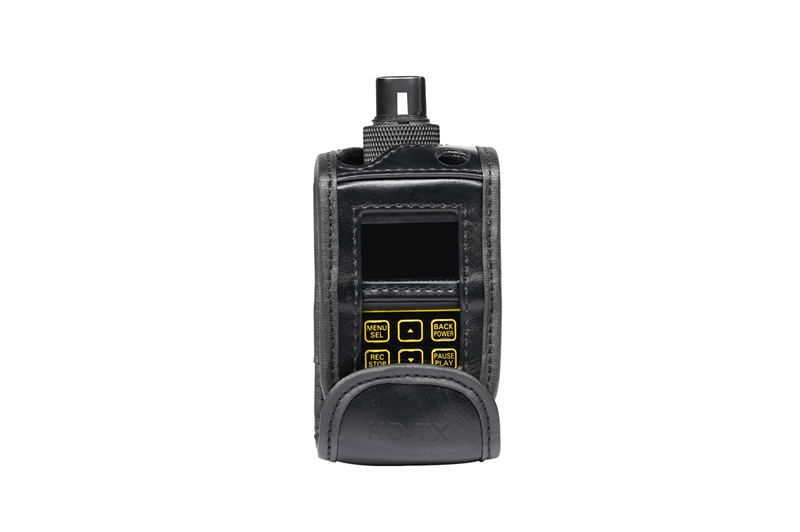

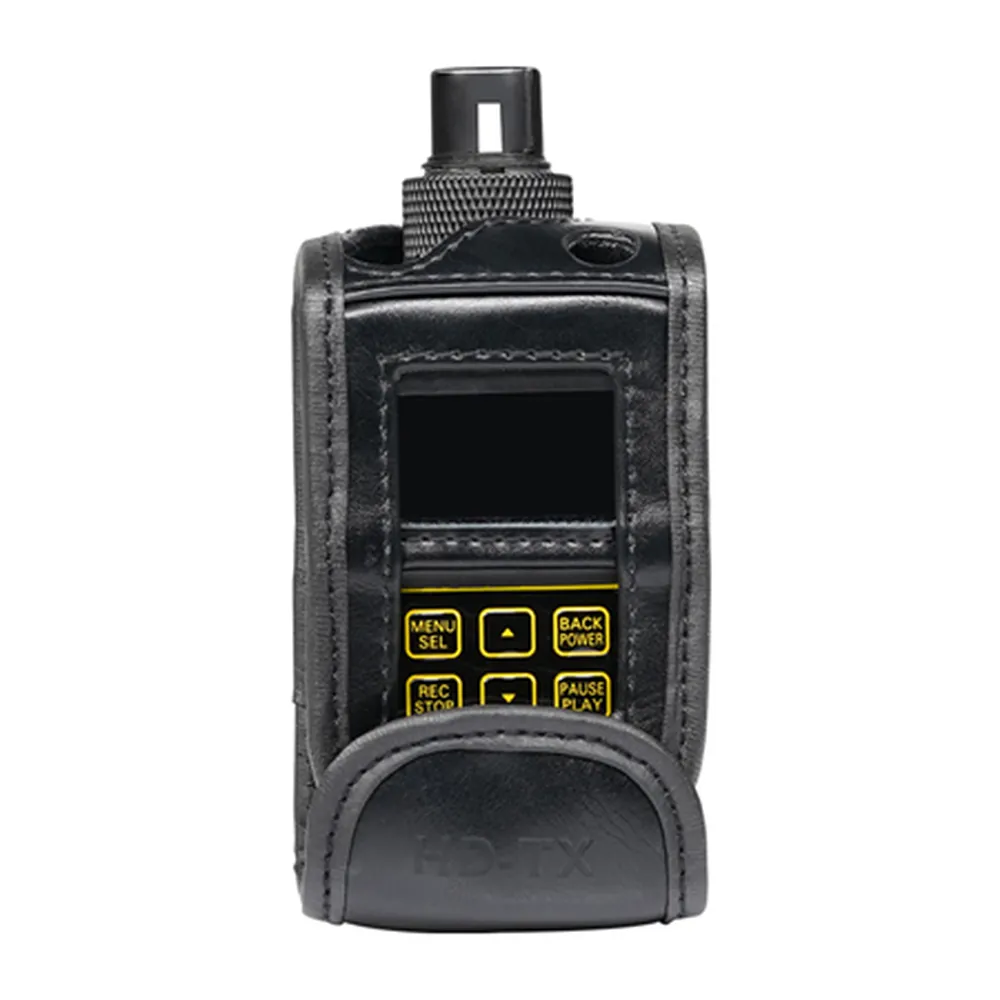

- Belt clip case
- USB-C to USB-A adapter
- Warranty card
- Manual
Specifications
| HD-TX | |
|---|---|
| Wireless Transmission | Digital 2.4 GHz, encrypted |
| Sample Rate | 48 kHz, 24-bit |
| Form Factor | Plug-on |
| RF Output Power | 10, 25, 50, or 100 mW (switchable) |
| Audio I/O | 1 x XLR 3-pin female balanced input (lockable) 1 × 3.5mm TRS female mic or line input (lockable) 1 × 3.5mm TRS female headphone output |
| Phantom Power | +48 V on the XLR input |
| Plug-In Power | 3 V on the 3.5mm input |
| Pad | Up to −12 dB |
| Gain Range | −12 to +36 dB |
| Signal Processing | High-pass filter: off, 20 to 200 Hz High-frequency boost: off, +1 to +10 dB at 7 kHz |
| Frequency Response | 20 Hz to 20 kHz |
| Antenna | 1/4 wave internal, fixed |
| Recording | 24-bit, 48 kHz WAV to microSD (up to 128 GB; SanDisk cards not compatible) |
| Power | Built-in rechargeable battery (2600 mAh) or USB bus power |
| Charge Time | 90 minutes |
| USB | 1 x USB-C (data transfer, charging, USB sound card) |
| Display | OLED, with mute, power, and pair LEDs |
| Operating Temperature | −10 to 45 °C (14 to 113 °F) |
| Dimensions | 42.5 × 112.3 × 42.5 mm (1.7 × 4.4 × 1.7 in) |
| Weight | 220 g (7.8 oz) |
