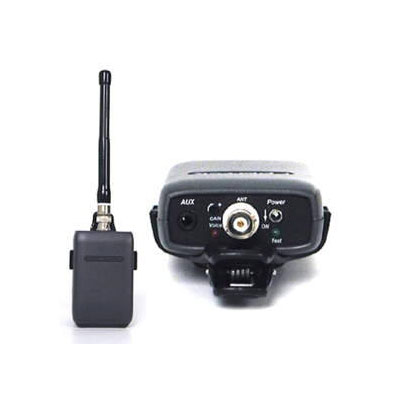

Comtek M-216 Option P7 Portable Transmitter
- Portable 216 MHz transmitter for program monitoring
- BNC antenna and aux/line input
- Up to 40 hours on a 9 V battery
$717.00 USD
Availability: In Stock
Comtek M-216 Option P7 Portable Transmitter
Built for location sound, the battery-powered Comtek M-216 Option P7 sends program audio from the mixer to PR-216 and PR-216 Option 7 receivers worn by the director, crew, and clients.
Compared with the standard M-216, the Option P7 drops the microphone jack and has a BNC antenna connector, a dedicated aux and line input on a stereo 3.5 mm jack, and extended low-frequency response. Its short, flexible SLW-216 whip antenna gives better RF transmission and more operating range. An adjustable gain control and a single LED VU meter make setting the input level quick.
Synthesized channel switches set the channel: channels 1 to 40 are standard narrow band channels, and channels 41 to 60 are high-fidelity companded channels. A 9 V alkaline battery runs it for up to 40 hours, and a 9 V Ni-MH rechargeable for up to 15 hours. New transmitters no longer charge Ni-MH batteries through the AUX jack as a standard feature; that capability is available on request.
The optional SLW-216B base-loaded whip antenna is made for bag use. Older transmitters need a modification by Comtek’s service department to get the best from it. The optional MBS-216 Mounting-Bracket Stand holds the transmitter upright with its antenna vertical.
Features
- Portable transmitter for the 216 to 217 MHz band
- BNC antenna connector with the SLW-216 whip
- Aux and line input on a stereo 3.5 mm jack
- Extended low-frequency response
- Adjustable gain with an LED VU meter
- Up to 40 hours on a 9 V alkaline battery
- Works with PR-216 and PR-216 Option 7 receivers
- CB-36 XLRF cable, belt clip, and carrying case included
What's Included
- Comtek M-216 Option P7 transmitter
- BC-216 belt clip
- CB-36 XLRF aux input cable with RF isolation
- SLW-216 loaded flexible helical antenna with BNC connector
- C-216 carrying case
Specifications
| Audio | |
|---|---|
| Audio Input | Aux/line, 10k ohm at 0 dB nominal |
| Frequency Response | 80 Hz to 10 kHz |
| RF | |
| Antenna System | BNC short loaded whip antenna |
| Modulation | 5 kHz deviation, channels 1 to 40 (non-companded); 10 kHz deviation, channels 41 to 60 (companded) |
| RF Power Output | 10 mW to the antenna system |
| Out-of-Band Emissions | Better than 45 dB below carrier |
| Connectors and Controls | |
| Connectors | Auxiliary: mini 3.5 mm stereo; audio: tip and sleeve; battery charging: tip and sleeve; external 9 V power: ring and sleeve |
| Controls and Indicators | Synthesized channel selection switches; power on/off switch; audio input gain control; power/battery test and voice level indicator |
| Power and Size | |
| Battery | 9 V alkaline, up to 40 hours; 9 V nickel-metal hydride rechargeable, up to 15 hours |
| Current Drain | 15 mA constant current |
| Weight | 4 oz (110 g) |
| Dimensions | 1.06 × 2.5 × 3.25 in (27 × 57 × 83 mm) |
| Warranty | 1 year, limited |
| Latest Specifications | Specifications are subject to change without prior notice. For current information, visit www.comtek.com. |
