BSRF AS-62 Compact Active Splitter

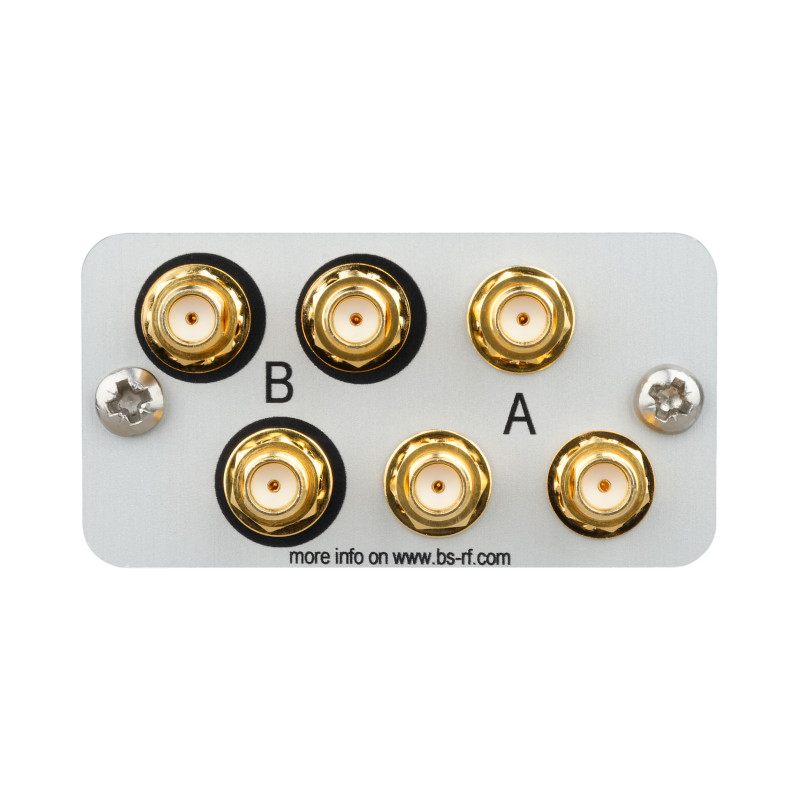

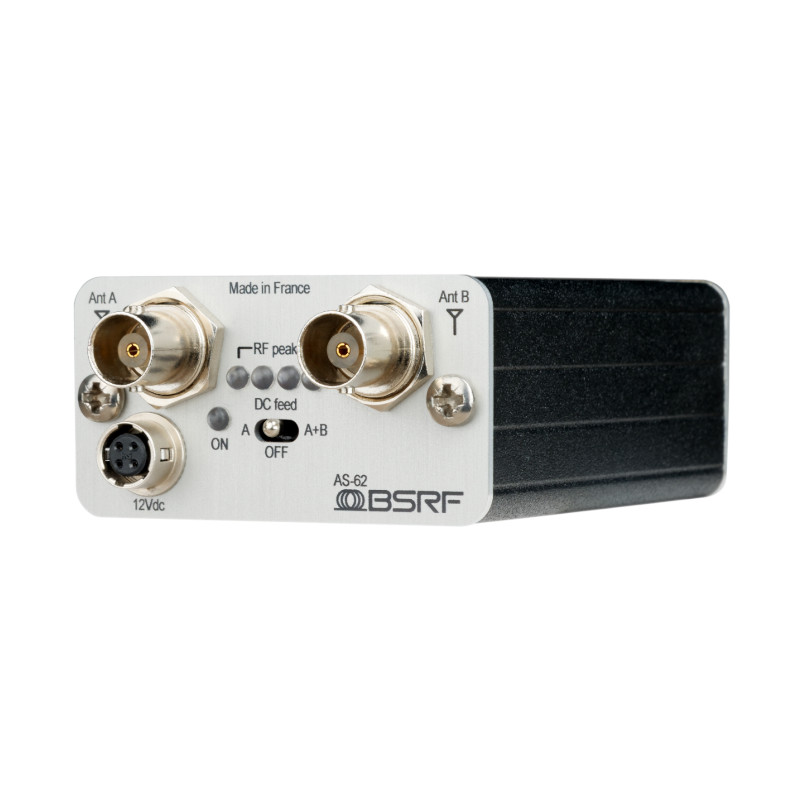

The BSRF AS-62 is a compact active antenna splitter that feeds up to three diversity receivers, with one BNC input and three SMA outputs per channel. Its rugged housing fits an audio bag or a sound cart.
The AS-62 is wideband, covering 470-700 MHz, so you are not limited by blocks. Its filtering circuits reject unwanted low band and high band signals, and a two-step RF peak indicator shows when the incoming RF signal is too strong.

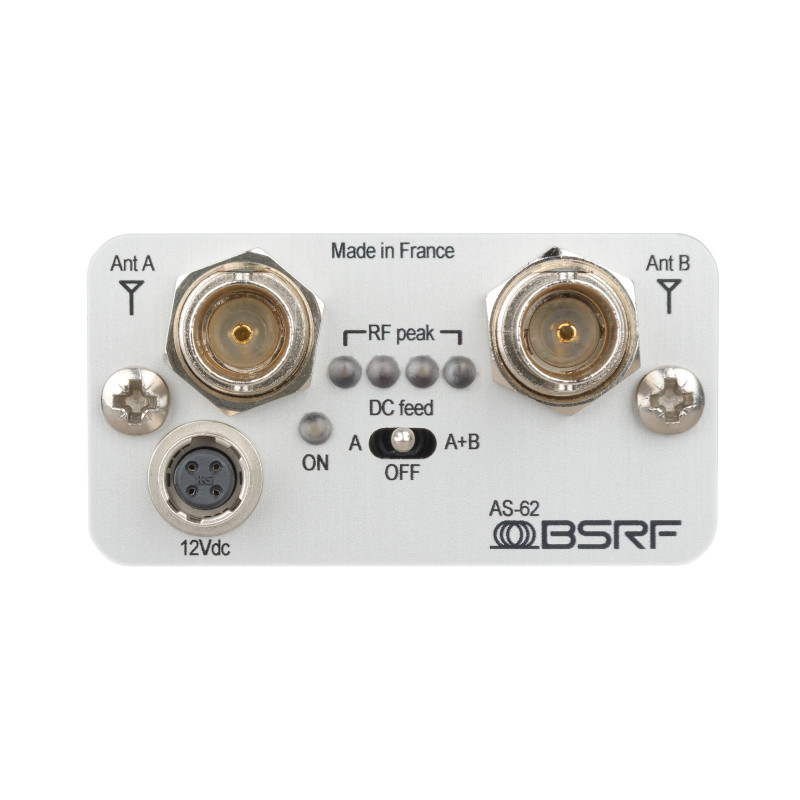

Passive and active antennas both plug into the BNC inputs. The DC feed is current limited on each input, which lets you detect a problem on the feed. Power comes from an external DC supply through a Hirose 4-pin connector, and the included stainless steel wire clip mounts the unit in four positions.
Features
- 1 BNC to 3 SMA per channel, for up to three diversity receivers
- Wideband 470-700 MHz coverage
- Two-step RF peak indicators
- DC feed for active antennas, current limited on each input
- Low noise circuits
- High output isolation
- Compatible with analog and digital modulation
- Stainless steel wire clip with four mounting positions
Specifications
| Bandwidth | 470 – 700 MHz |
|---|---|
| Gain | 0 dB (±1 dB) |
| Noise Figure | Under 2 dB |
| OIP3 | 39 dBm typical |
| Isolation Between Outputs | Over 25 dB |
| RF Inputs | 2 × BNC, 50 ohms |
| RF Outputs | 2 × 3 SMA, 50 ohms |
| DC Feed | 12 – 17 V, 200 mA |
| Current | 150 mA without active antennas |
| Power Input | Hirose 4-pin, 12 – 17 V |
| Dimensions | 3.27 × 2.36 × 1.22 in (83 × 60 × 31 mm) |
| Weight | 0.56 lb (255 g) |
