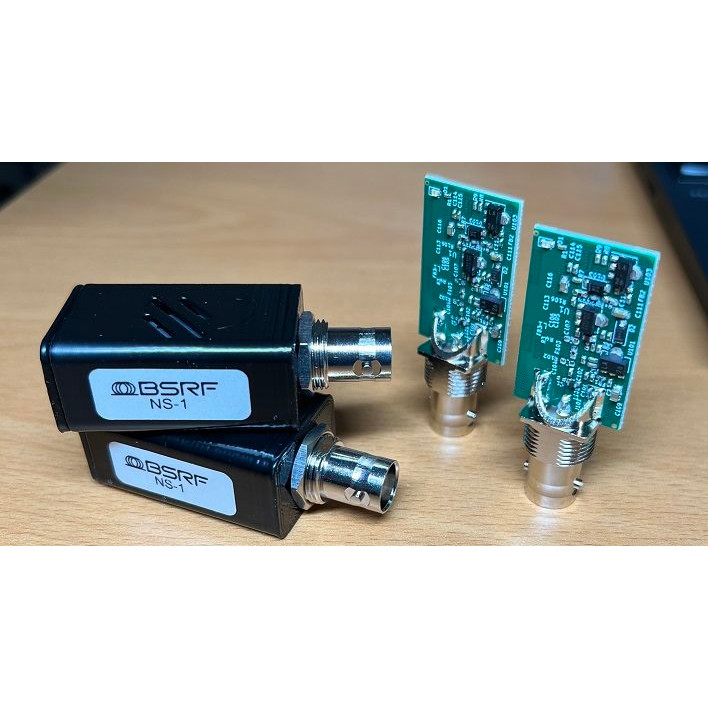

BSRF NS-1 Broadband Noise Source
- Generates white noise from 100 MHz to 1500 MHz
- Powered through DC feed at 10-18 V
- Tests path loss, coaxial cables, filtering, and DC feed with your receiver’s scan
$89.00 USD
BSRF NS-1 Broadband Noise Source
The BSRF NS-1 generates broadband white noise from 100 MHz to 1500 MHz, giving you a quick test of an RF channel.
Connect it at the antenna side, power it through DC feed, and run a scan on your receiver. The scan shows the bandwidth of the channel, so the NS-1 and your receiver together act as a spectrum analyzer with a tracking generator.
From that scan you can estimate loss on the path, check the overall state of a coaxial cable, validate filtering, and test the DC feed. It works through a coaxial cable, or with a filtered amplifier such as the BSRF FA-1 between the NS-1 and the receiver.
Features
- White noise from 100 MHz to 1500 MHz
- Variation of ±0.5 dB in the band
- Powered through DC feed at 10-18 V
- BNC connector, 50 ohms
- Tests path loss, coaxial cables, filtering, and DC feed
Specifications
| Bandwidth | 100 – 1500 MHz |
|---|---|
| Noise Floor | −75 dBm (200 kHz band) |
| Variation in the Band | ±0.5 dB |
| Supply | 10 – 18 V, 100 mA |
| RF Connector | 1 × BNC, 50 ohms |
| Dimensions | 2.24 × 0.98 × 0.71 in (57 × 25 × 18 mm) |
| Weight | 0.71 oz (20 g) |
