BSRF AS-122 Dual-Channel Active Splitter
- 1 BNC to 6 SMA per channel, for up to six diversity receivers
- 340-770 MHz bandwidth with an RF level LED on each channel
- DC feed for active antennas, current limited on each input
$1,547.21 CAD
BSRF AS-122 Dual-Channel Active Splitter
The BSRF AS-122 is a dual-channel active antenna splitter that feeds up to six diversity receivers, with one BNC input and six SMA outputs per channel. Its rugged, compact housing fits an audio bag or a sound cart.
The AS-122 covers 340-770 MHz, and an LED on each channel shows when the RF level is too high.
Passive and active antennas both plug into the BNC inputs. The DC feed is current limited on each input, which lets you detect a problem on the feed. Power comes from an external DC supply through a Hirose 4-pin connector, and the included stainless steel wire clip mounts the unit in four positions.
Features
- 1 BNC to 6 SMA per channel, for up to six diversity receivers
- 340-770 MHz bandwidth
- RF level LED on each channel
- DC feed for active antennas, current limited on each input
- Stainless steel wire clip with four mounting positions
Specifications
| Bandwidth | 340 – 770 MHz |
|---|---|
| Gain | 0 dB (±1 dB) |
| Noise Figure | 1.5 dB |
| OIP3 | 39 dBm |
| Isolation Between Outputs | 15 dB minimum |
| RF Outputs | 2 × 6 SMA, 50 ohms |
| DC Feed | 12 V, 200 mA |
| Current | 76 mA without active antennas |
| Power Input | Hirose 4-pin, 12 – 17 V |
| Dimensions | 3.46 × 3.31 × 1.73 in (88 × 84 × 44 mm) |
| Weight | 0.58 lb (265 g) |
Related products
-
RF Distribution

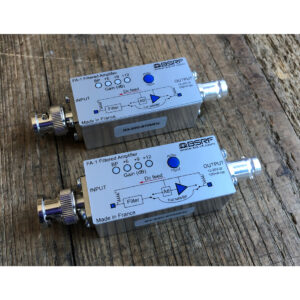

BSRF FA-1 Filtered Amplifier
