Betso En2 Hexapack Portable Rack System
- Portable rack for three Audio Ltd. En2 receivers
- Shares one antenna pair across six channels
- Filters out-of-band signals and powers active antennas
$705.00 USD
Betso En2 Hexapack Portable Rack System

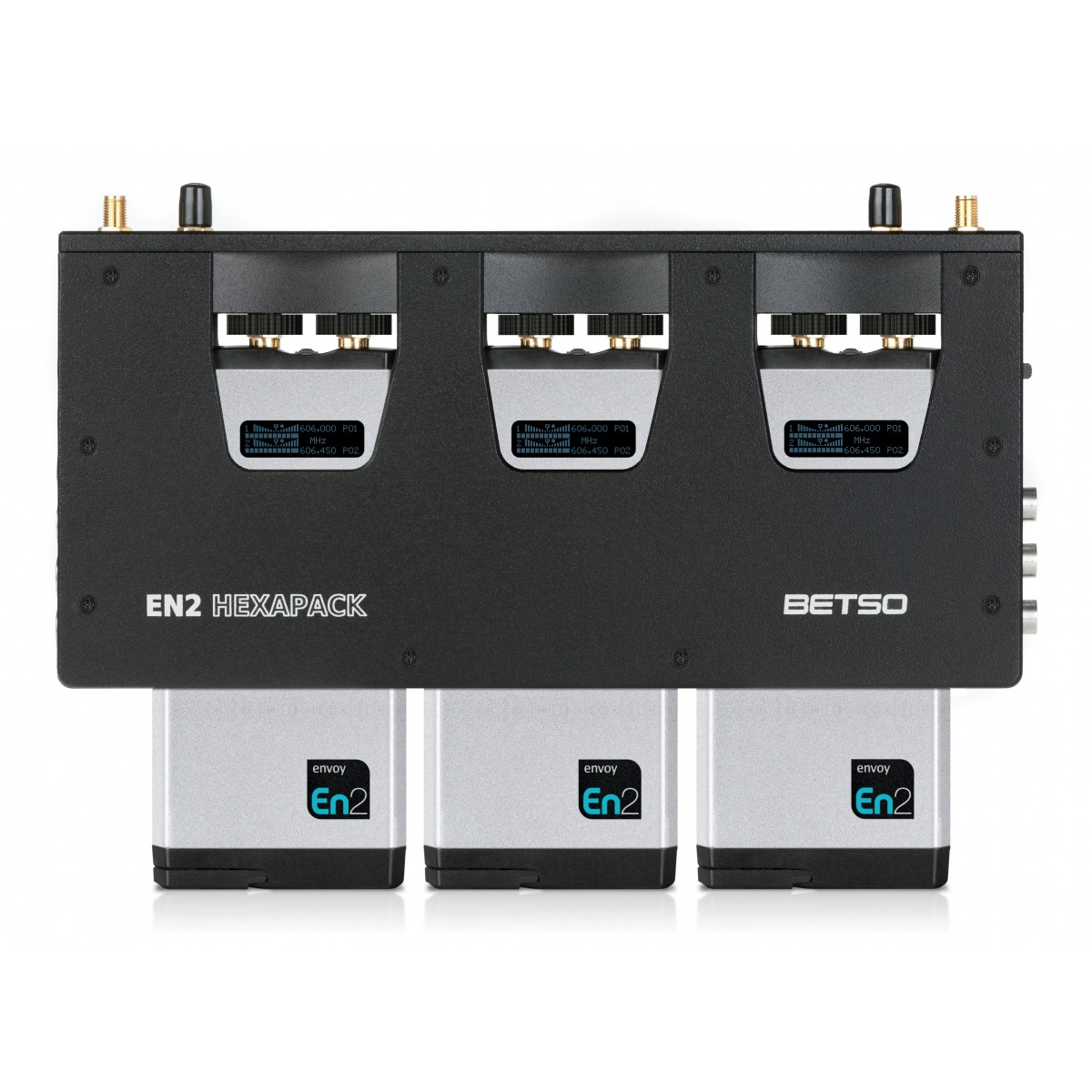

The portable Betso En2 Hexapack carries up to three Audio Ltd. En2 DX or DX2 receivers in one compact rack, giving up to six audio channels from one pair of antennas.
The RF from each antenna is split equally among the receivers in the rack. For more channels, antenna outputs pass the signal on to another Hexapack or other gear.
Input filters cut out-of-band signals such as walkie-talkies, FM radio, wireless intercoms, Wi-Fi, and Bluetooth devices before they reach the receivers, so the system sees fewer dropouts. For active antennas such as the Betso Sharkie or CPAA-18, switchable antenna power feeds them through the SMA connectors at up to 0.2 A.
The Hexapack runs from an external 6 to 18 V DC supply and powers the receivers from it. Parallel power connectors pass that supply on to up to two more devices, which keeps the rig’s wiring simple. Audio leaves on mini XLR outputs, and the CNC-milled aluminum frame keeps the whole rig compact and durable.
Features
- Holds up to three Audio Ltd. En2 DX or DX2 receivers
- Splits each antenna to every receiver
- Antenna outputs for linking more racks
- Input filters against out-of-band signals
- Switchable power for active antennas
- 6 to 18 V DC input with power pass-through for two devices

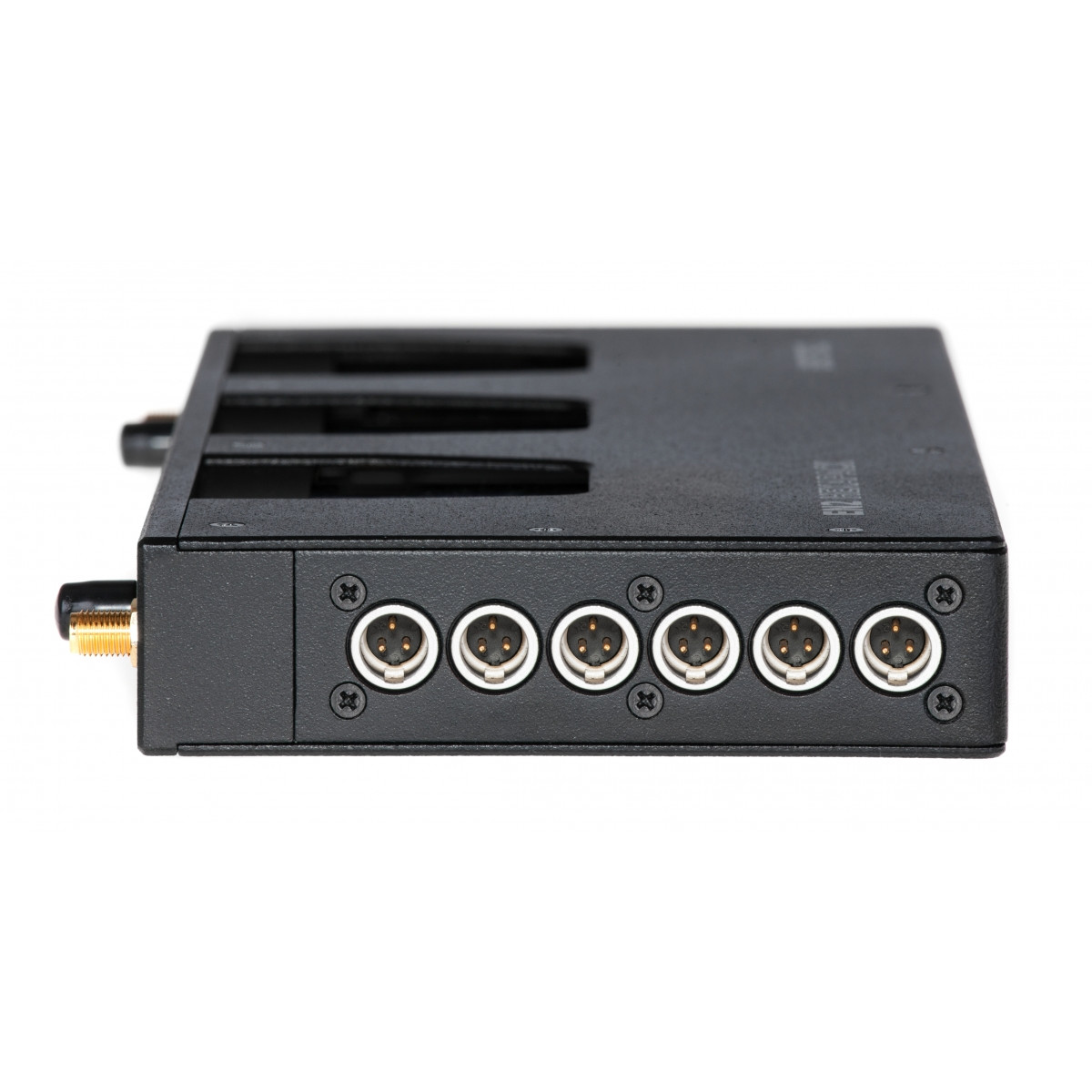

- Mini XLR audio outputs
- CNC-milled aluminum frame
Specifications
| RF | |
|---|---|
| Frequency Range | 470 to 850 MHz |
| Input Filter Attenuation | High below 450 MHz (for example −82 dB at 100 MHz); high above 870 MHz (for example −35 dB at 2.4 GHz) |
| Antenna Power Output | 0.2 A max., switchable |
| General | |
| Capacity | 3 Audio Ltd. En2 DX or DX2 receivers |
| Power | External, 6 to 18 V DC |
| Current Consumption | 30 mA at 12 V |
| Construction | CNC-milled aluminum alloy |
| Dimensions | 125 × 235 × 29 mm (4.9 × 9.25 × 1.14 in) |
| Weight | Approx. 564 g (1.24 lb) |
| Latest Specifications | Specifications are subject to change without prior notice. For current information, visit www.betso.eu. |
