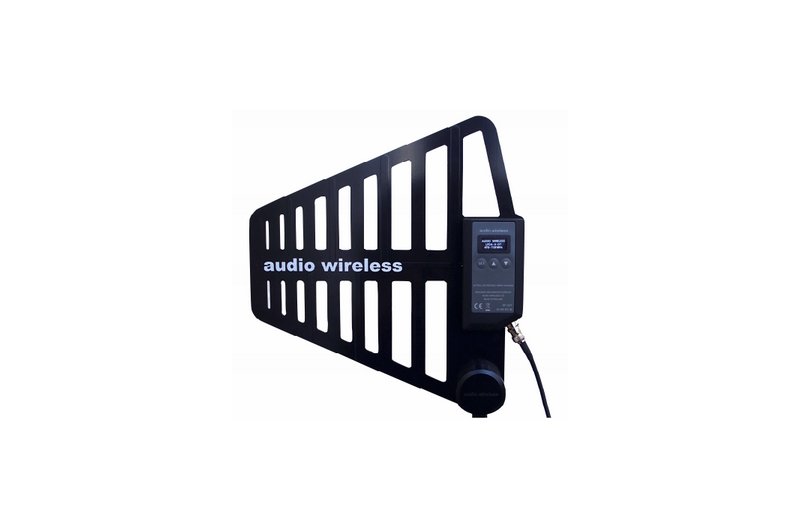

Audio Wireless LPDA-A-DT Antenna

1,120.00 USD

The Audio Wireless LPDA-A-DT (Log Periodic Dipole Array –Active – Digitally Tuned) antenna is designed to operate over the 470–718MHz tuning range.

Quantity:

SKU: AUD.LPDA ADT V2 Categories: , , Tag:

Description

The Audio Wireless LPDA-A-DT (Log Periodic Dipole Array –Active – Digitally Tuned) antenna is designed to operate over the 470–718MHz tuning range, the LPDA-A-DT consist of two components; the LPDA-P passive Log Periodic Array Antenna section and a digitally tuned Active Antenna booster.

The LPDA-A-DT has 3-modes of operation and all these can be selected by the user to suit individual application. User selectable; digitally tuned booster mode, by-pass mode and a “true” passive attenuator mode.

The booster section is a very highly selective digitally tuned band pass filter with 24MHz frequency window to reject all outer frequencies providing an excellent protection to the receiving system, the digitally tuned band pass filter is user tuneable in 8MHz steps via the OLED menu from 470 to 718MHz range. The active gain can be adjusted in 1.0dB steps to compensate long antenna extension cables. The booster section employs a very high dynamic range Low Noise RF amplifier offering a linear gain within the tuning range.

In the By-Pass Mode, the active booster section is turned off and by-passed; offering passive gain of 6dB which is inherent with the LPDA design. In applications where attenuation is required, the mode can set into “true” Passive Attenuator Mode; as in the by-pass mode and up to 20dB of attenuation can be adjusted in 1.0dB steps to suit individual applications, in both modes LPDA-P frequency range extends from 400-1100MHz.

The LPDA-A-DT’s unique design offers flexibility as well as additional front-end protection against interfering dirty RF, user adjustable gain to compensate long antenna extension cable losses hence increased distance between the transmitter and the receivers, finds its application in film making, documentaries, fixed installations as in studios, theatres and more. Compatible with any UHF wireless receiving systems (Digital or Analogue) providing a directional coverage pattern.

The antennas are constructed using advanced multi-layer PCB designs technique with copper-clad epoxy fibreglass to with-stand heavy-duty use of harsh environment, providing long life and consistent performance under difficult operating conditions, the booster box is a custom design machined aluminium, black anodised with water resistant O-ring mounting. Mounting made easy with integrated thread that directly mounts on to a tripod or with a supplied adaptor mounts directly on to a microphone stand. Powering is through coaxial cable power source of 10-18Vdc.

Key Features:

  • Digitally tuned filtering
  • Very high dynamic range RF amplifier
  • Tuning range 470-718MHz
  • User adjustable tuning in 8MHz steps
  • Tuning window 24MHz
  • User adjustable booster gain
  • Selectable BY-PASS mode(Passive Mode)
  • Selectable True-Attenuator Mode(Passive Mode)
  • Intuitive OLED display menu
  • Powered through coax cable
  • Integrated mount adaptor
  • CNC machined custom design

Reviews

There are no reviews yet.

Be the first to review “Audio Wireless LPDA-A-DT Antenna”

LPDA ANTENNA SECTION
Frequency Range 400 to 1.1GHz
Gain in BY-PASS Mode +6dB(passive gain)
Passive Attenuator Mode -4dB to -20dB (user adjustable in 1.0dB steps)
Output impedance 50 Ω
DIGITALLY TUNED FILTER SECTION
Frequency Range 470-718MHz
Tuning Step 8MHz
Bandwidth 24MHz (nominal)
Selectivity -38dB to -30dB@50MHz min. (across the whole tuning range)
Gain 12-14dB (user adjustable in 1.0dB steps)
OIP3 >+41dBm
CONNECTIONS
RF output 50 Ω Standard BNC-F
MOUNTING OPTIONS
3/8”-16 standard tripod mount
5/8”-27 adaptor supplied
POWERING
External Power 10-18Vdc, through coaxial cable (reverse power and short circuit protected)
Current consumption
  • @12Vdc 100mA +/- 10mA (in Digitally Tuned Mode)
  • 7mA +/- 2mA (in by-pass and true-attenuator mode)
OUTER CASE
Dimensions 270x290x90mm
Weight 490g
