Audio Wireless AD226-MB 6-Way Antenna Distribution System
- Feeds six diversity receivers from one pair of antennas
- 20 selectable filters from 470 to 832 MHz
- Six switched Hirose DC outputs
$1,580.00 USD
Audio Wireless AD226-MB 6-Way Antenna Distribution System
With 20 selectable filters across 470 to 832 MHz, the Audio Wireless AD226-MB is a 6-way antenna distribution system feeding up to six diversity receivers from one pair of antennas.
The filters are digitally tuned with a semi-broadband response, so the unit can be set to suit the receivers in use. They clean up the RF within the chosen band before it reaches the receivers. One pair of antennas takes the place of separate antennas on each receiver.

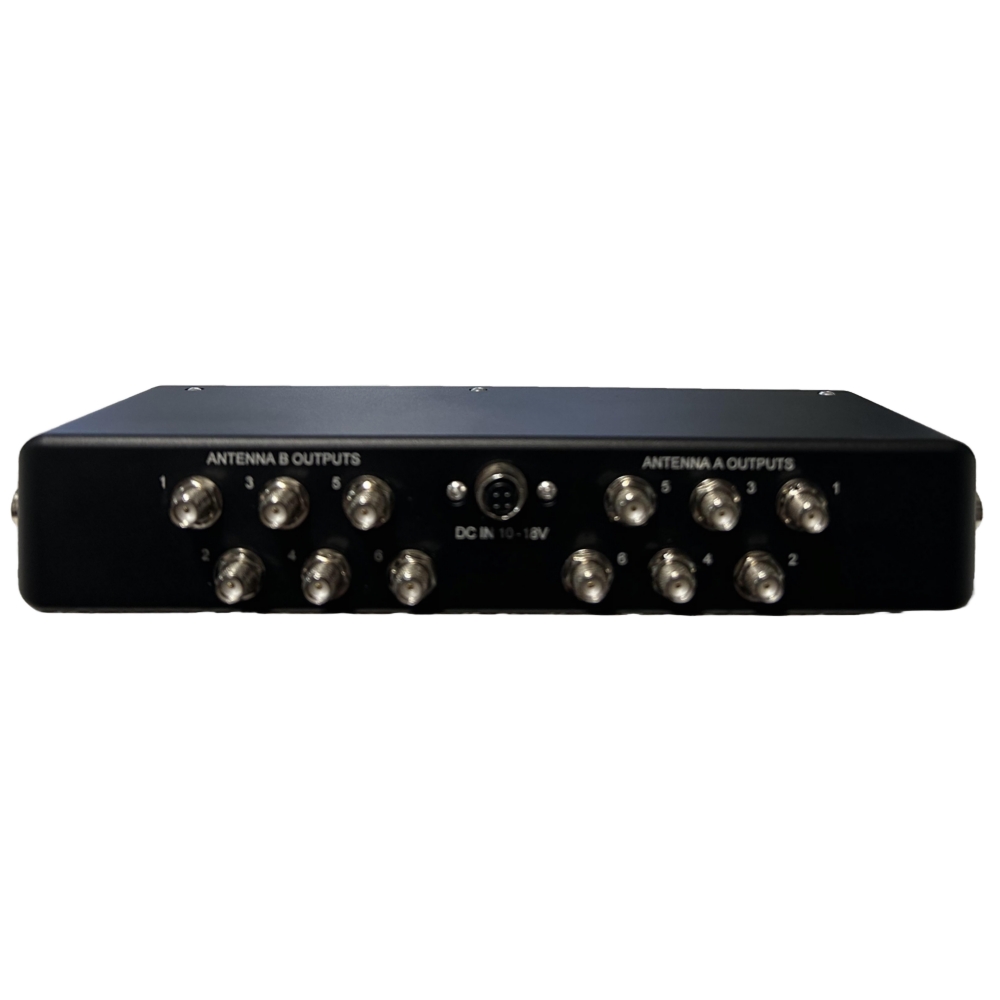

Two BNC inputs take standard low-loss coaxial extension cables, and 12 SMA outputs (2 × 6) feed the receivers. System gain is adjustable in 1 dB steps from +6 dB to -10 dB, and power to each active antenna switches on and off separately. It works with full-digital, digital-hybrid, and analog radio mic receivers.

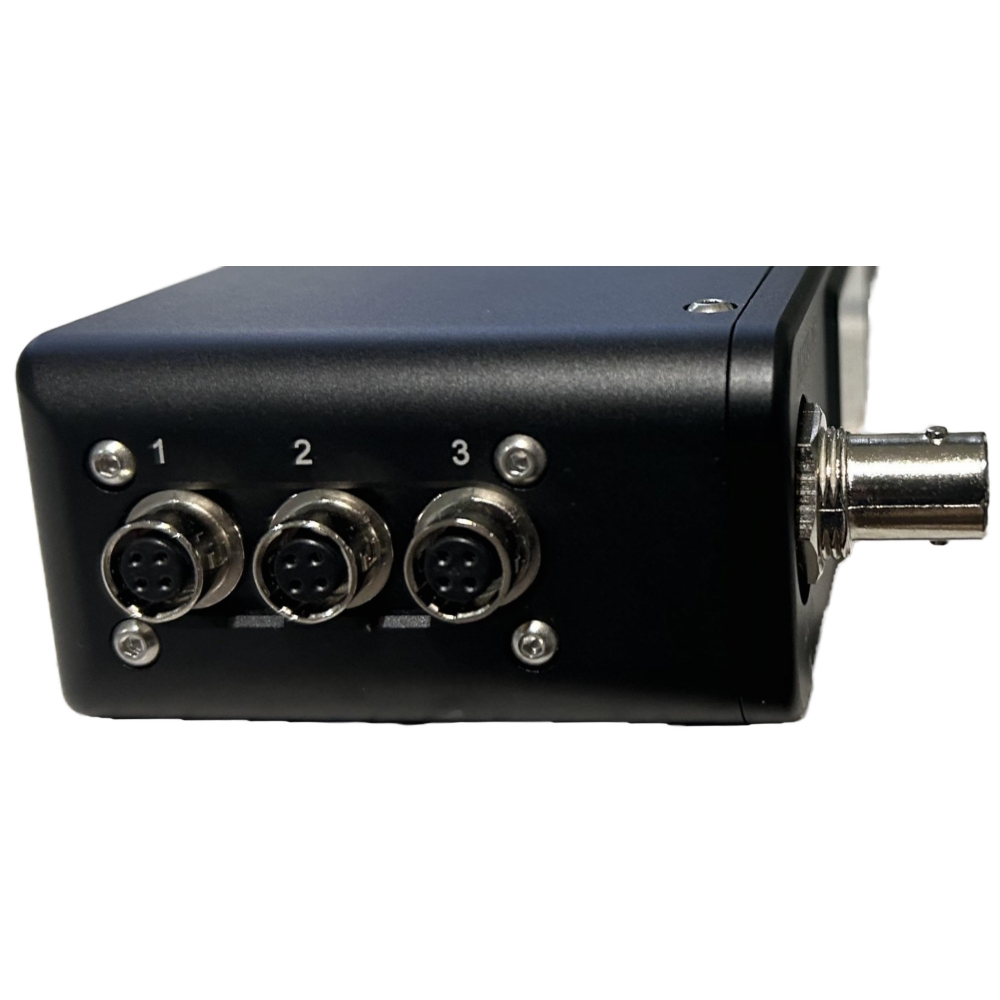

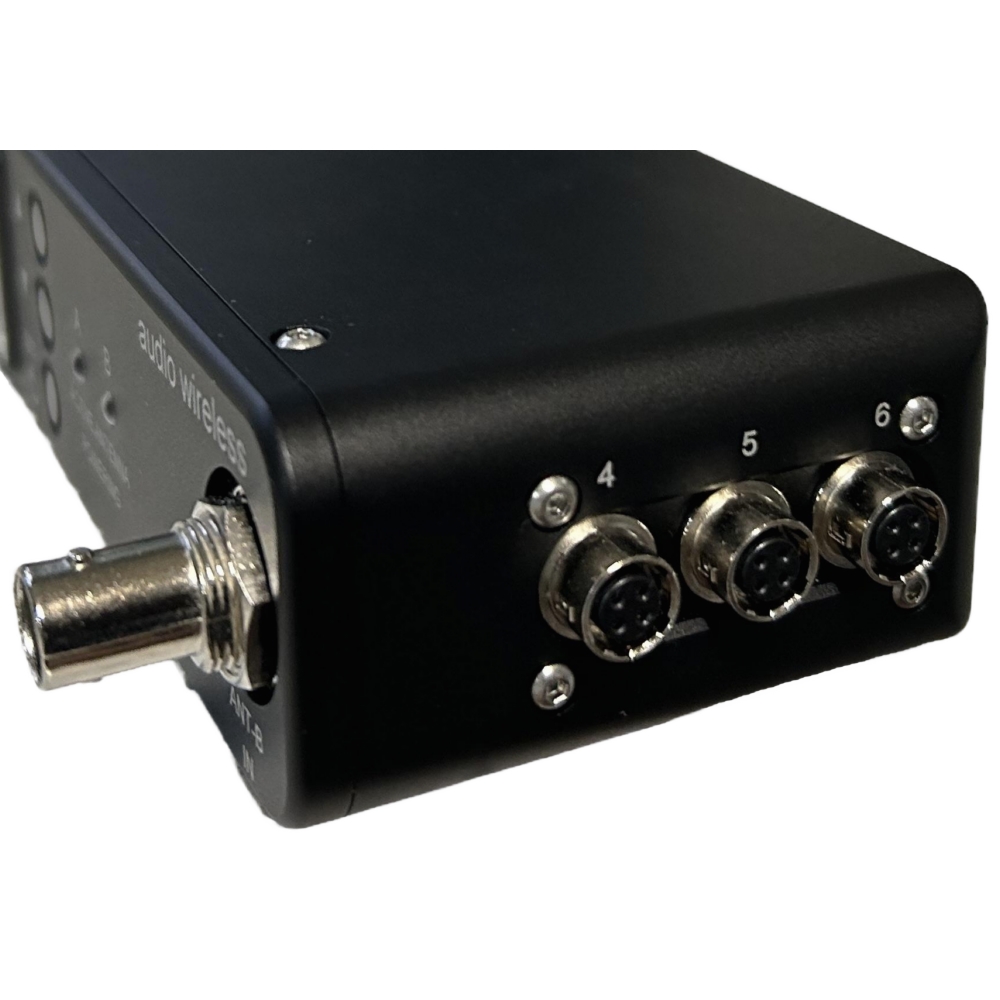

Six Hirose DC outputs power other gear in the bag from the same supply, with up to 3 A in total. Each output is individually fused and switches on and off from the TFT display menu. The AD226-MB runs on 10 to 18 V DC through a 4-pin Hirose input, and a built-in voltmeter shows the input voltage.
Features
- One pair of antennas feeds up to six diversity receivers
- 20 user-selectable digitally tuned filters, 470 to 832 MHz
- Gain from +6 dB to -10 dB in 1 dB steps
- Switchable powering for each active antenna
- Six switched Hirose DC outputs, 3 A total
- Two BNC inputs and 12 SMA outputs

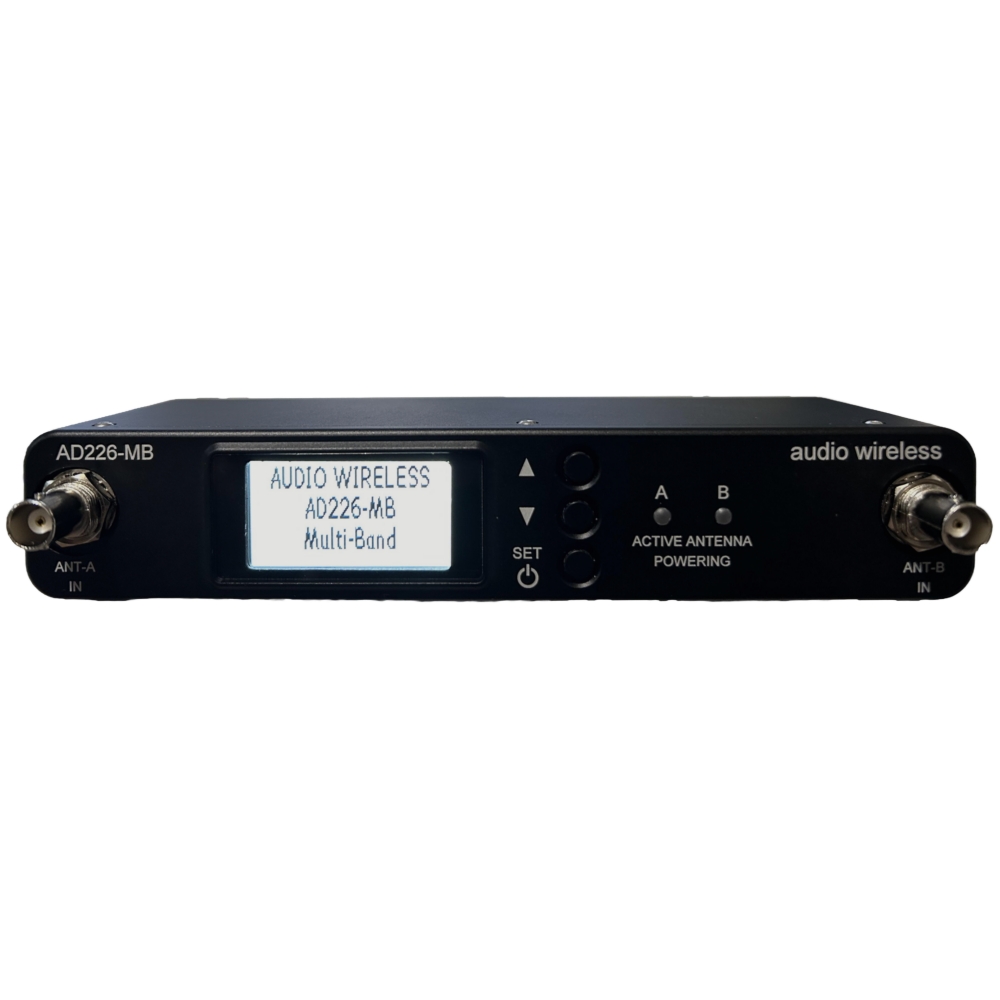

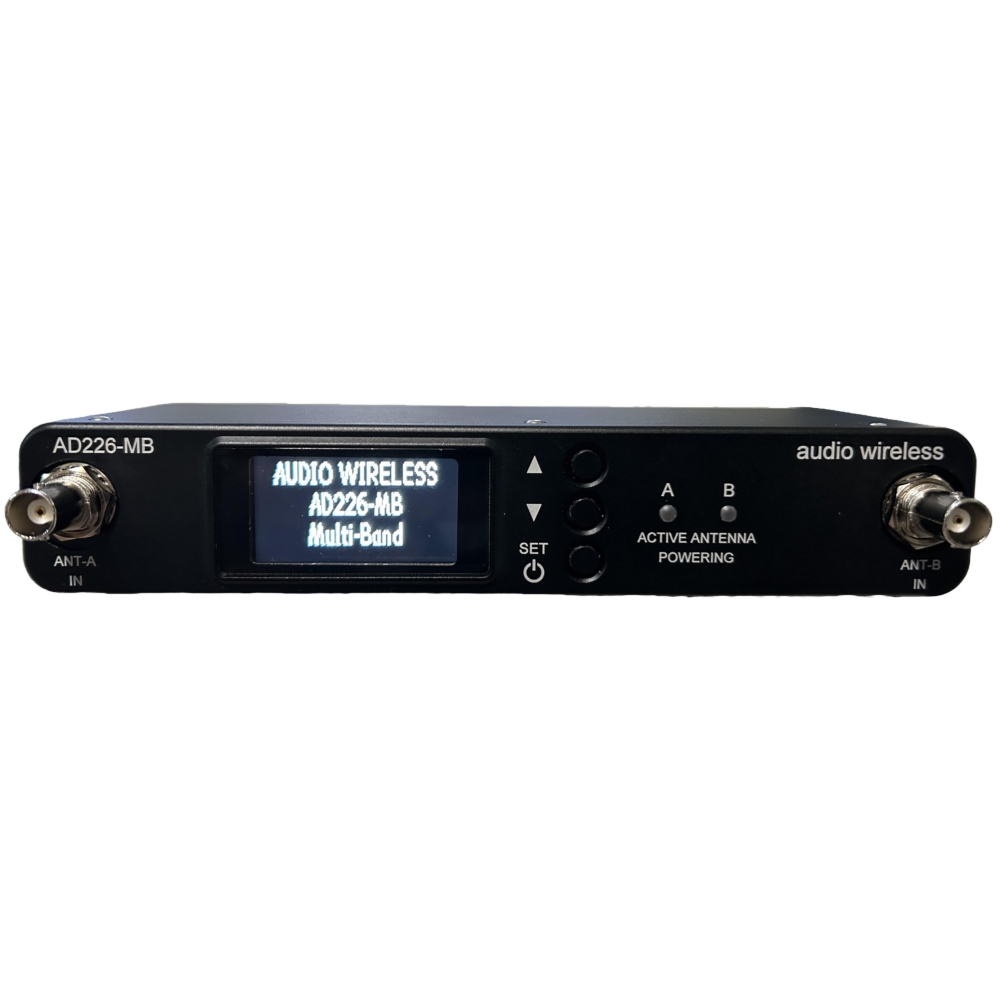

- TFT display menu with LED indicators
- Built-in DC voltmeter
- CNC-machined aluminum case
What's Included
- AD226-MB antenna distribution system

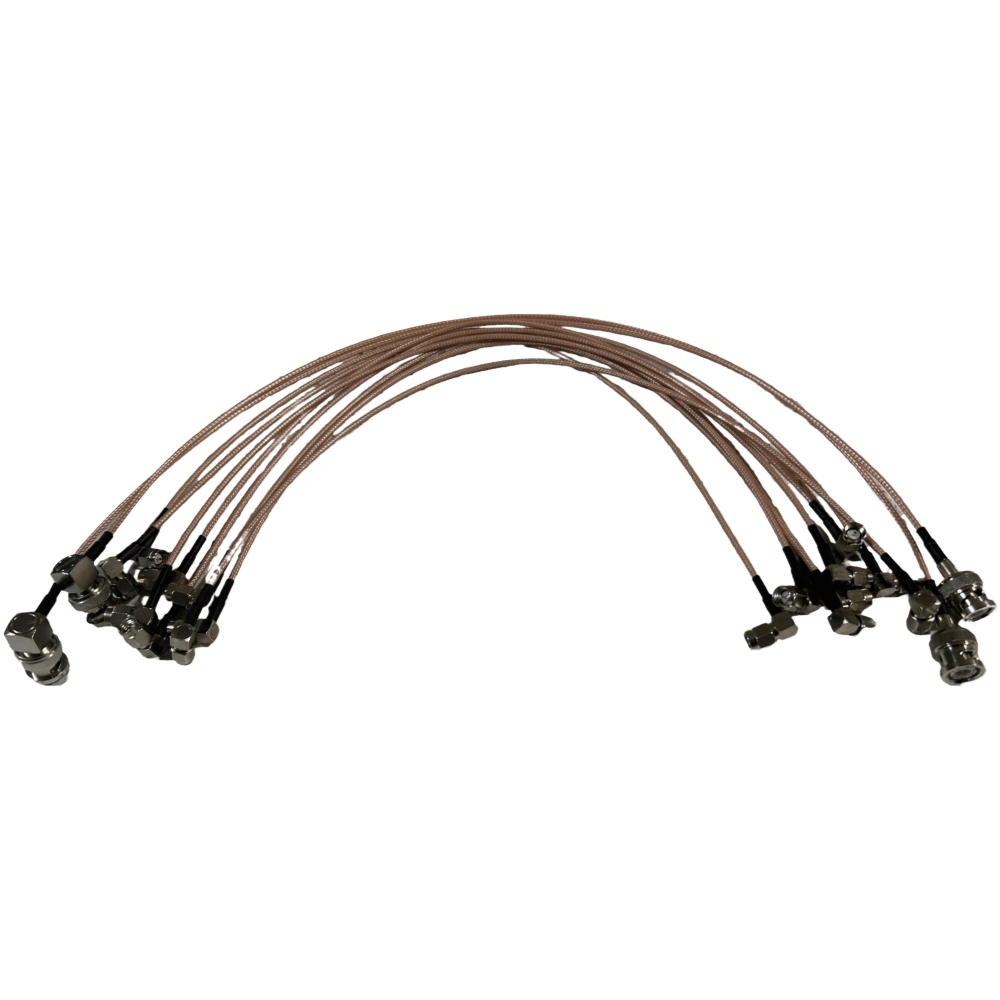

- SMA-RA to SMA-RA RF link cables
- 2 × BNC-RA to BNC-S antenna extension cables
Specifications
| Frequency Range | 470 to 832 MHz, digitally tuned |
|---|---|
| Filtering | 20 user-selectable band-pass filters; 362 MHz bandwidth |
| Inputs | 2 × BNC sockets, 50 Ω |
| Outputs | 12 × SMA sockets (2 × 6), 50 Ω |
| Gain | +6 dB to −10 dB, adjustable in 1 dB steps |
| OIP3 | > +41 dBm |
| Port-to-Port Isolation | > 20 dB minimum |
| Noise Figure | < 3 dB |
| Remote Antenna Powering | Switchable DC T-bias, 12 V DC at 250 mA maximum, regulated, short-circuit protected |
| DC Input | 4-pin Hirose-compatible socket, 10 to 18 V DC, fused, reverse-polarity protected |
| DC Outputs | 6 × 4-pin Hirose-compatible sockets; unregulated input voltage, switched, individually fused, reverse-polarity protected; 3 A total maximum |
| DC Pinout | In: pins 1 and 2 negative, pins 3 and 4 positive; out: pin 1 negative, pin 4 positive |
| Display | TFT display menu; LED indicators |
