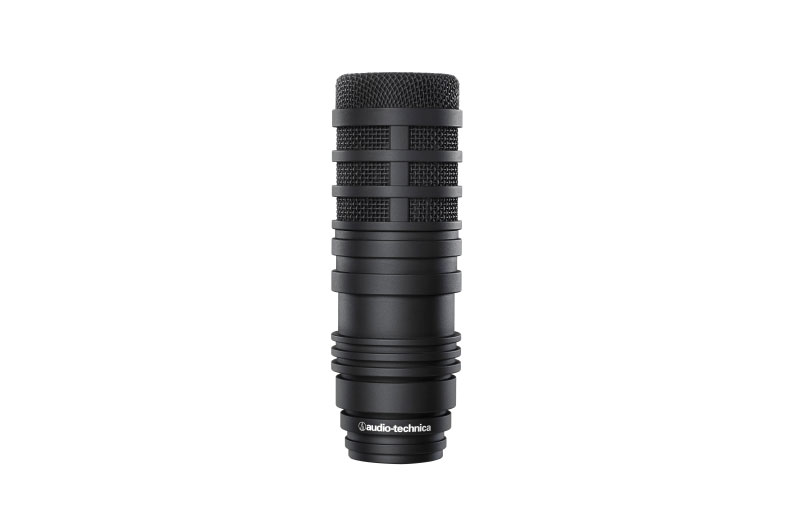

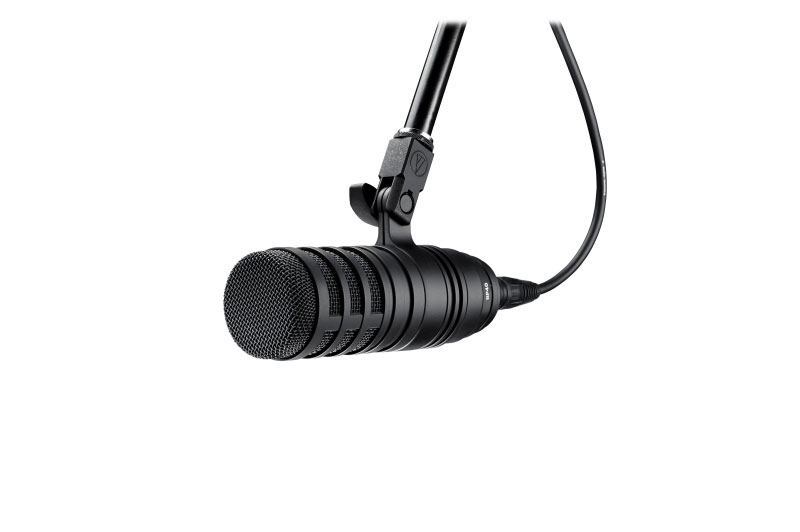

Audio-Technica BP40

$349.00 USD

Large-diaphragm dynamic broadcast microphone features patented floating-edge construction that maximizes diaphragm surface area and optimizes overall diaphragm performance, while the humbucking voice coil prevents electromagnetic interference (EMI).

Quantity:

SKU: AUD BP40 Categories: , Tag:

Description

The BP40 broadcast vocal microphone offers a rich, natural, condenser-like sound from a large-diaphragm dynamic design. The large diaphragm features patented floating-edge construction that maximizes diaphragm surface area and optimizes overall diaphragm performance, while the humbucking voice coil prevents electromagnetic interference (EMI).

With rugged construction and stylish, waveform-inspired design, the BP40 delivers clear and articulate reproduction, ideal for any broadcast application. Optimized capsule placement helps maintain a commanding vocal presence even at a distance, while the multistage windscreen provides superior internal pop filtering. The BP40 broadcast microphone also includes a switchable 100 Hz high-pass filter to provide even more pop protection.

Key Features:

  • Rich, natural, condenser-like sound
  • Large diameter diaphragm with patented floating-edge construction for optimal diaphragm performance
  • Humbucking coil prevents electromagnetic interference (EMI)
  • Hypercardioid polar pattern improves isolation
  • Switchable 100 Hz high-pass filter
  • Superior off-axis rejection for maximum gain before feedback
  • Optimized capsule placement for commanding vocal presence even at a distance
  • Multistage windscreen provides superior internal pop filtering
  • Rugged, all-metal construction for dependable use in professional broadcast environments

Specifications

ELEMENTDynamic
POLAR PATTERNHypercardioid
FREQUENCY RESPONSE50-16,000 Hz
OPEN CIRCUIT SENSITIVITY–48 dB (3.9 mV) re 1V at 1 Pa
IMPEDANCE450 ohms
SWITCHESFlat, roll-off
WEIGHT632 g (22.3 oz)
DIMENSIONS164.0 mm (6.45″) long, 56.0 mm (2.20″) diameter
OUTPUT CONNECTORIntegral 3-pin XLRM-type
ACCESSORIES FURNISHEDAT8483 mounting clamp for 5/8″-27 threaded stands; 5/8″-27 to 3/8″-16 threaded adapter; soft protective pouch

OPTIONAL ACCESSORY: AT8484 shock mount for 5/8″-27 threaded stands

AUDIO-TECHNICA CASE STYLER12
